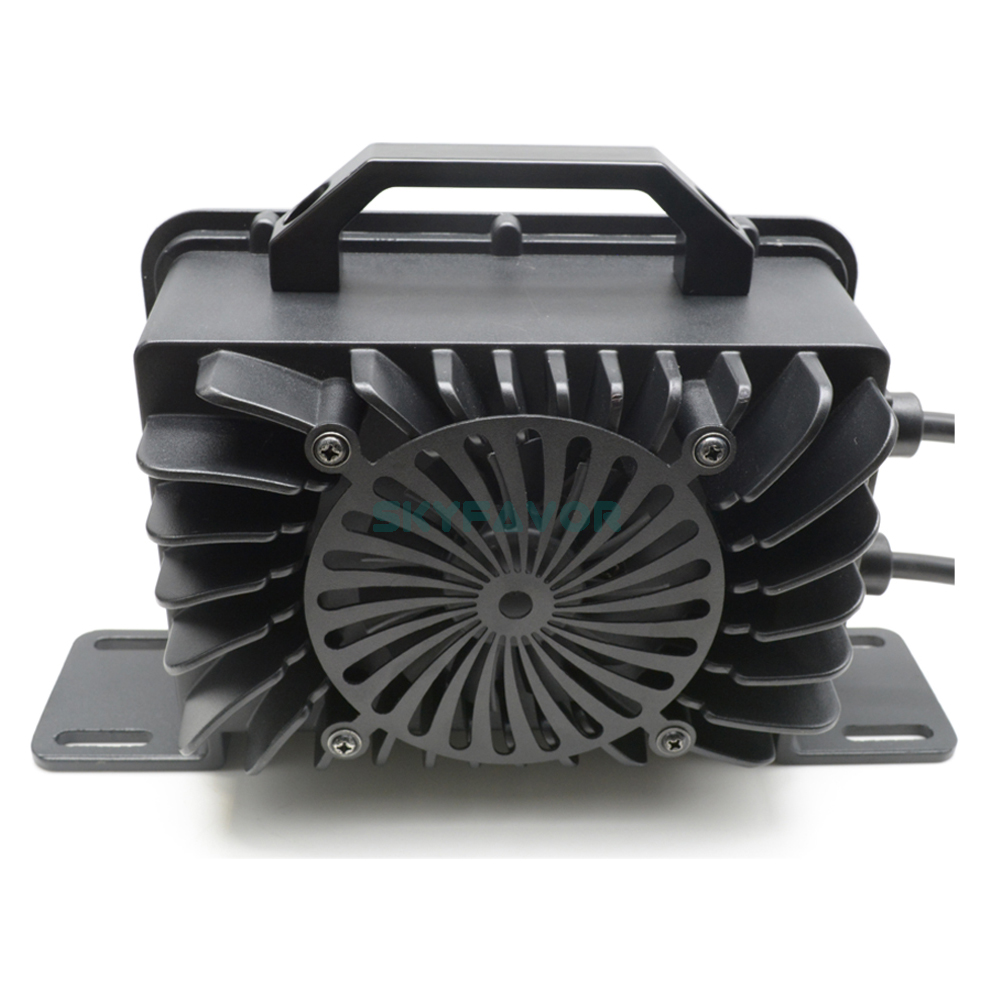

Waterproof Smart 72V Battery Charger 72V 10A Multi-function Universal Fast Lead Acid Lifepo4 Lithium Ion Power Battery Charger

Key attributes

port

output

72V 10A

input

110V or 230Vac

function

72V 10A

output power

900w

protection

Short Circuit Protection, ovp, OTP, OLP, ocp, Over-charging, Overcurrent, Overvoltage

usage

72V 10A

type

Electric

material

Aluminum case

model number

DL-900W

place of origin

Guangdong, China

brand name

SKYFAVOR

Output

72V 10A

Input

AC 100V or 240V 50/60Hz

Size

26.2*16.12*8.85.cm

Weight

2.8kg

Use

FOR lead acid battery pack,lithium battery pack,lifepo4 battery pack

Certification

RoHS

Packaging and delivery

Selling Units

Single item

Single package size

30X20X12 cm

Single gross weight

3.300 kg

Get Quote

Description

(battery charger)Waterproof smart 72V battery charger 72V 10A Multi-function Universal fast lead acid lifepo4 lithium ion power battery charger

Product Details

Charger Model:	900A	Power:	900W
Housing:	Aluminium Alloy	Size:	26288.5161.8mm
Communication:	CAN, RS485	Waterproof:	IP65
Efficiency:	>=92%	Operating Temperature:	-20 to 40℃
Storage Temperature:	-40 to +70℃	Noise:	<=40dB
Cooling:	Temperature and load current-controlled fan
Protection:	Over-temperature, over-voltage, over-current, short-circuit,
Protection:	and reverse connection protection.
Battery type:	Suitable for lead-acid batteries (water-added, GEL, and AGM) or lithium batteries (lithium-iron, lithium-manganese, lithium ternary) charging.
Features:	1.Automatic multi-stage charging curve for long battery life 2.Intelligent fully automatic charging: obtains the battery status
Features:	and switches the charging mode(charge wait/pre-charge/constant current/constant voltage/float charge/ recharge/ full charge)

Electronic Characteristics

ITEM		2430A	3620A	4815A	6012A	7210A
Output	LFP charging voltage	29.2V	43.8V	58.4V	73.0V	87.6V
	NCM charging voltage	29V	43.5V	58V	67.2V	84.0V
	L-A charging voltage	29.4V	44.1V	58.8V	73.5V	88.2V
	Floating charge voltage	27.6V(only Lead)	41.4V(only Lead)	55.2V(only Lead)	69V(only Lead)	82.8V(only Lead)
	Maximum charging current	30A	20A	15.0A	12A	10A
	Rotating lamp current	Lead 5.0A/	Lead 4.5A/	Lead 3.75A/	Lead 2.0A/ Lithium 0.64A	Lead 1.5A/ Lithium 0.45A
	Rotating lamp current	Lithium 1.8A	Lithium 1.44A	Lithium 1.2A
	Ripple voltage	≤2%VOUTMAX
Input	Voltage range	90V~260VAC
	Frequency range	47~63Hz
	Power factor	PF>0.98/115VAC, PF>0.95/230VAC at full load
	AC current(type)	12A/115VAC 6.5A/230VAC
	Inrush current(type)	COLD START 50A at 230VAC
	Leakage Current	<0.75MA
