High Quality 72V Lithium Battery Charger 72V 20A Waterproof on Board Automatic Fast 19S or 20S Lithium Ion Batteries Charger

Key attributes

port

output

72V 20A

input

200-240Vac

function

72V 20A

output power

2000W

protection

Short Circuit Protection, ovp, OTP, OLP, ocp, Over-charging, Overcurrent, Overvoltage

usage

72V battery charger

type

Electric

material

Aluminum Case

model number

DL-2000WP

place of origin

Guangdong, China

brand name

SKYFAVOR

Output

72V 20A

Input

200-240Vac

Size

33*17.5*9cm

Weight

4.5kg

Use

Golf car, washing machine, forklift,Scooters, motorcycles

Certification

RoHS

Packaging and delivery

Selling Units

Single item

Single package size

40X22X18 cm

Single gross weight

5.000 kg

Get Quote

Description

(battery charger)High quality 72V lithium battery charger 72V 20A waterproof on board automatic fast 19S or 20S lithium ion batteries charger INPUT 230Vac

Name	72V lithium battery charger 72V 20A waterproof automatic 19S or 20S lithium ion batteries charger
Model	2000W
Battery type	72V lithium battery pack
AC Input	230Vac
Output voltage	79.8V(for 19S lithium battery)/84V(for 20S lithium battery)
Output current	20A
Protection	Over Voltage Protection Over Current Protection Short Circuit Protection Reverse polarity Protection
Apply to	For 50AH 60Ah 70AH, 72V lithium battery

72V lithium battery charger 72V 20A waterproof automatic 19S or 20S lithium ion batteries charger

The 72V lithium battery charger 72V 20A waterproof automatic 19S or 20S lithium ion batteries charger has designed highly reliable and meet international safety and electromagnetic compatibility requirements.

A:Input Characteristics:

Input Voltage: 230Vac input AC voltage

Input Frequency: 50Hz or 60Hz and single phase.

B:Output Characteristics:

Constant Charging Voltage:79.8V(for 19S lithium battery)/84V(for 20S lithium battery)

C:Charging Mode:72V lithium battery charger 72V 20A waterproof automatic 19S or 20S lithium ion batteries charger

4 Stages,pre-charge, CC, CV, Trickle

D:Safety Test for battery charger

Hi-pot Test:15KVac 5mA 3 Seconds between input and output test

Resistance:The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds

Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B

E:Protection for battery charger

Over Voltage Protection The battery charger will be auto recovered when faults remove

Over Current Protection Charger output current does not exceed the set maximum battery charging current.

Over Short Circuit Protection Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)

Over reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.

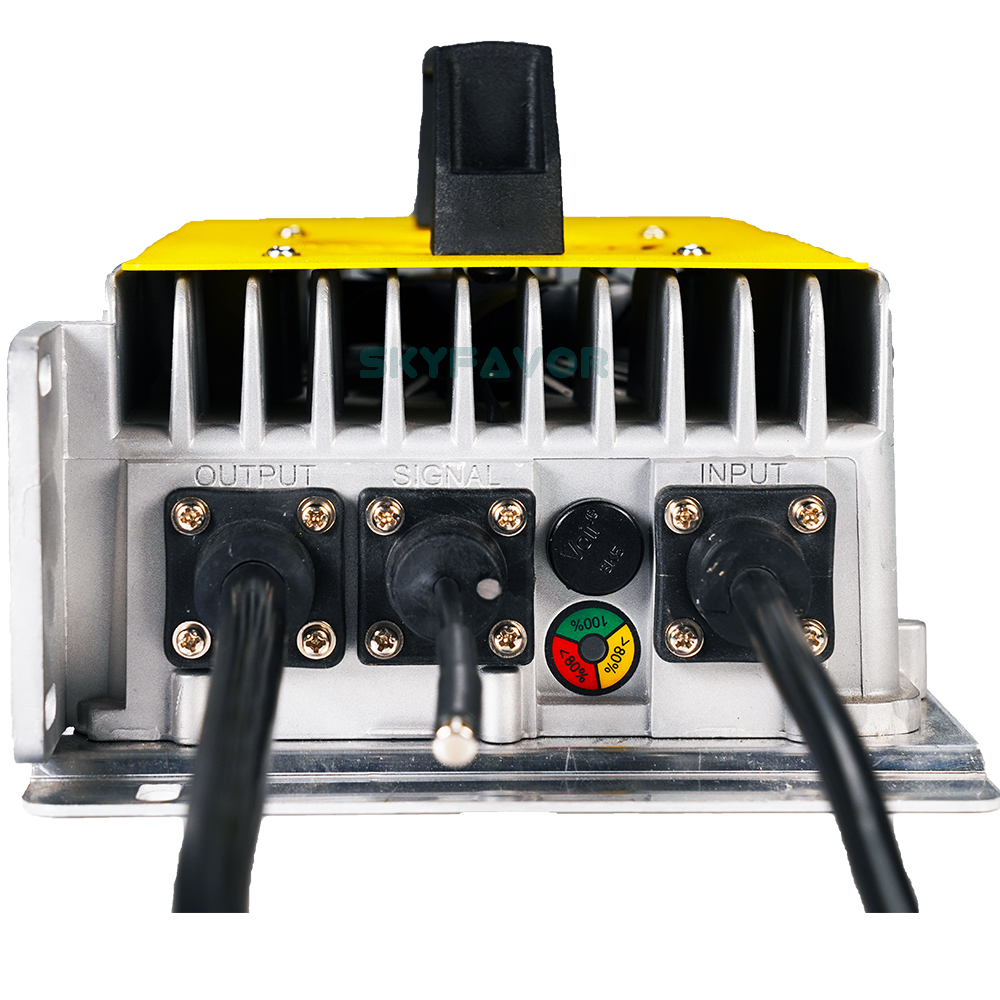

F:DC Connector Dimension:72V lithium battery charger 72V 20A waterproof automatic 19S or 20S lithium ion batteries charger

Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.

Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc

Manufacture time:

The manufacture time of the battery charger will need 8-12 days, because all the battery chargers are customized according to the customer's requirements, we have not any chargers in stock. If you accept the delivery time, please go ahead to make purchase. Once you place the order, we will treat you accept the manufacture time.

Lead Time:72V lithium battery charger 72V 20A waterproof automatic 19S or 20S lithium ion batteries charger

Normally we will deliver the battery charger by DHL, UPS or Fedex express, it always need 5-8 days on transport.

So you will receive the parcel in 13-20 days after pay for the order.

Last thing, when the order be paid it will can't be cancelled after 24 hours, as the charger is customized according to buyer's requirement, it is unique, it is impossible to change the charger specification to resell, so we don't accept order be cancelled after 24 hours. Please read above information carefully and buy with caution. Thanks for your kind understanding and support!

72V lithium battery charger 72V 20A waterproof automatic 19S or 20S lithium ion batteries charger

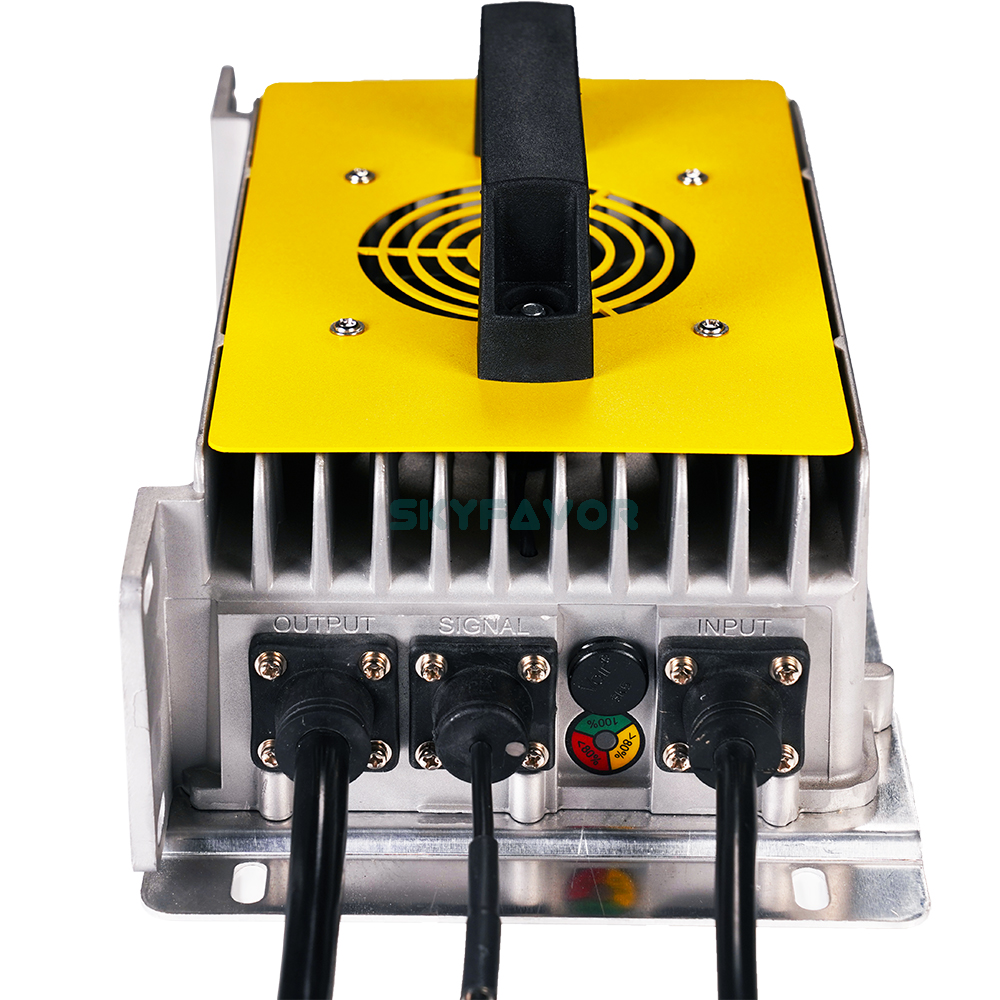

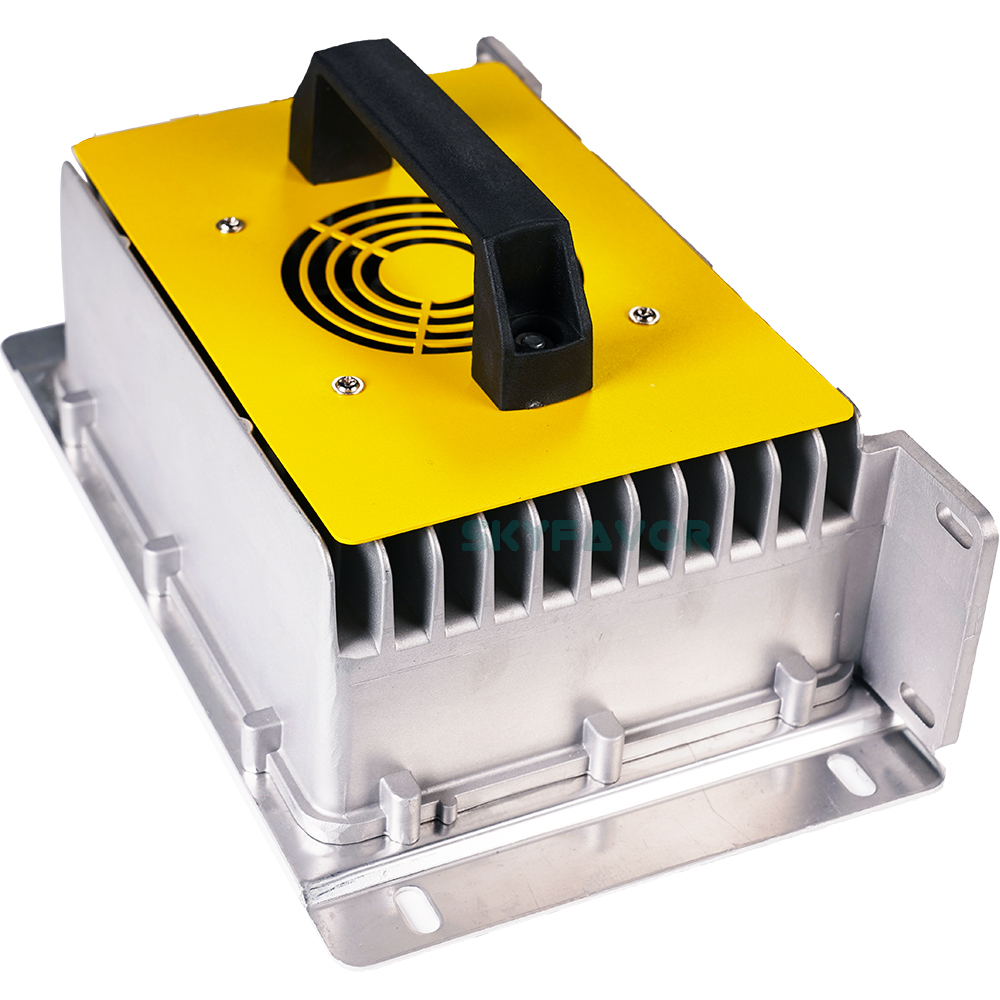

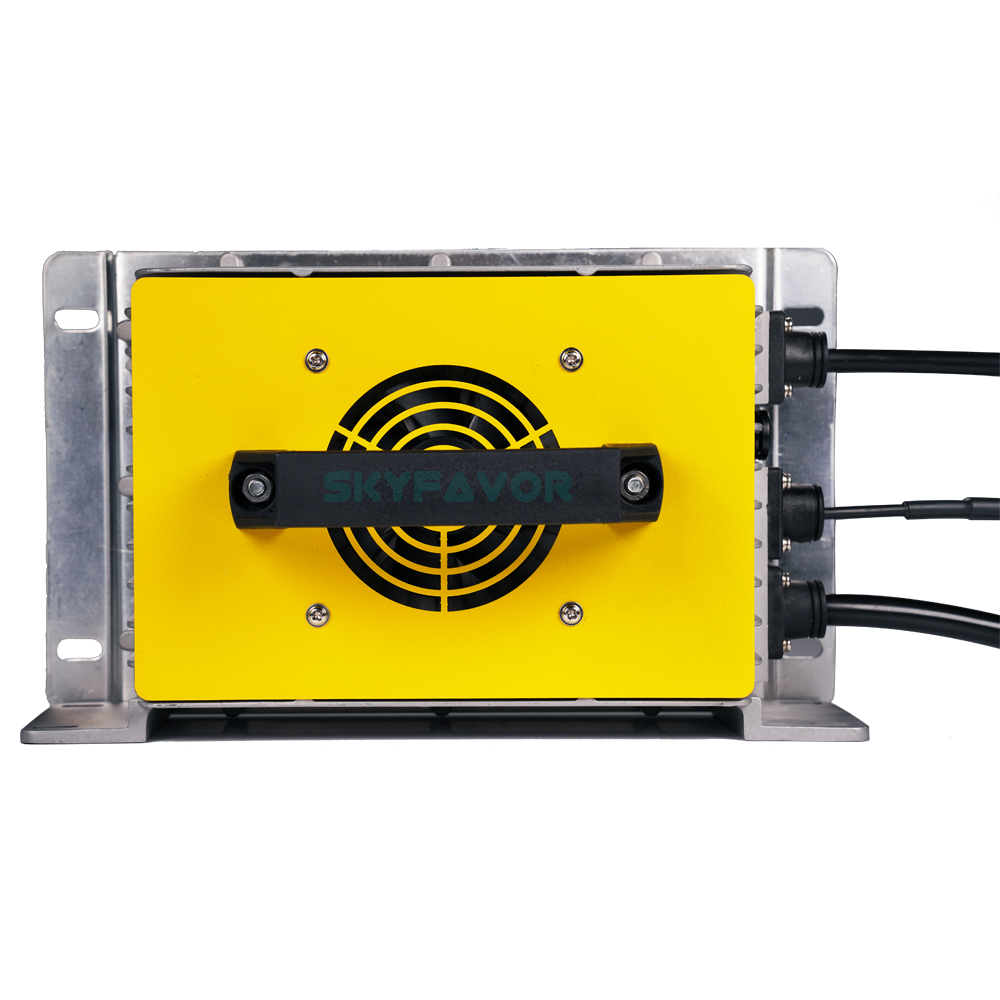

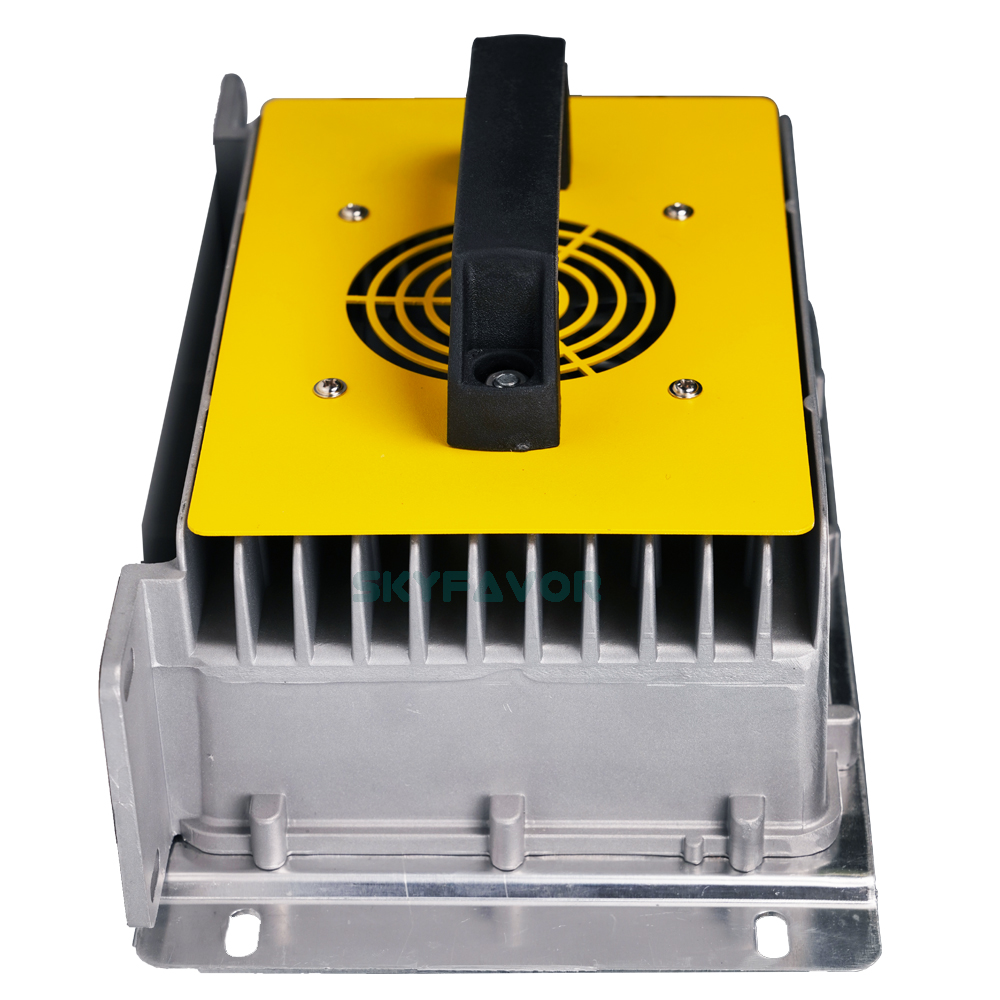

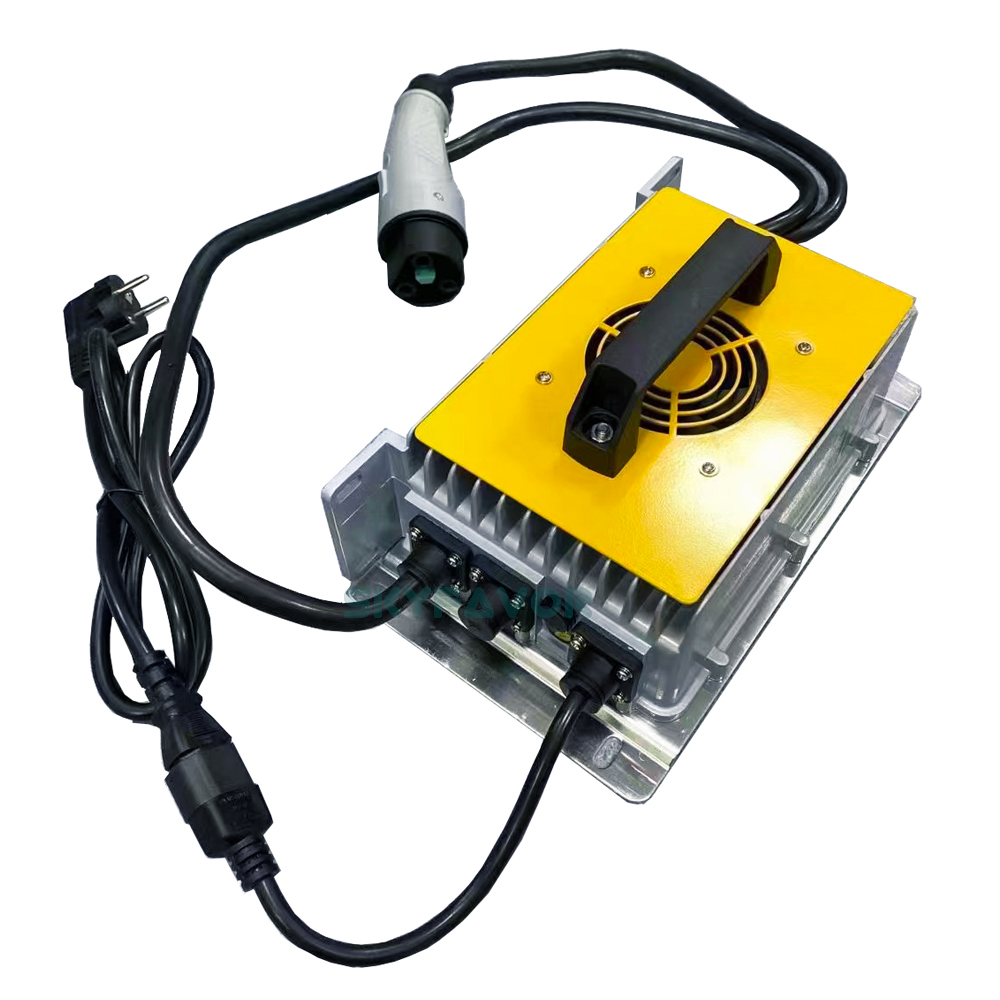

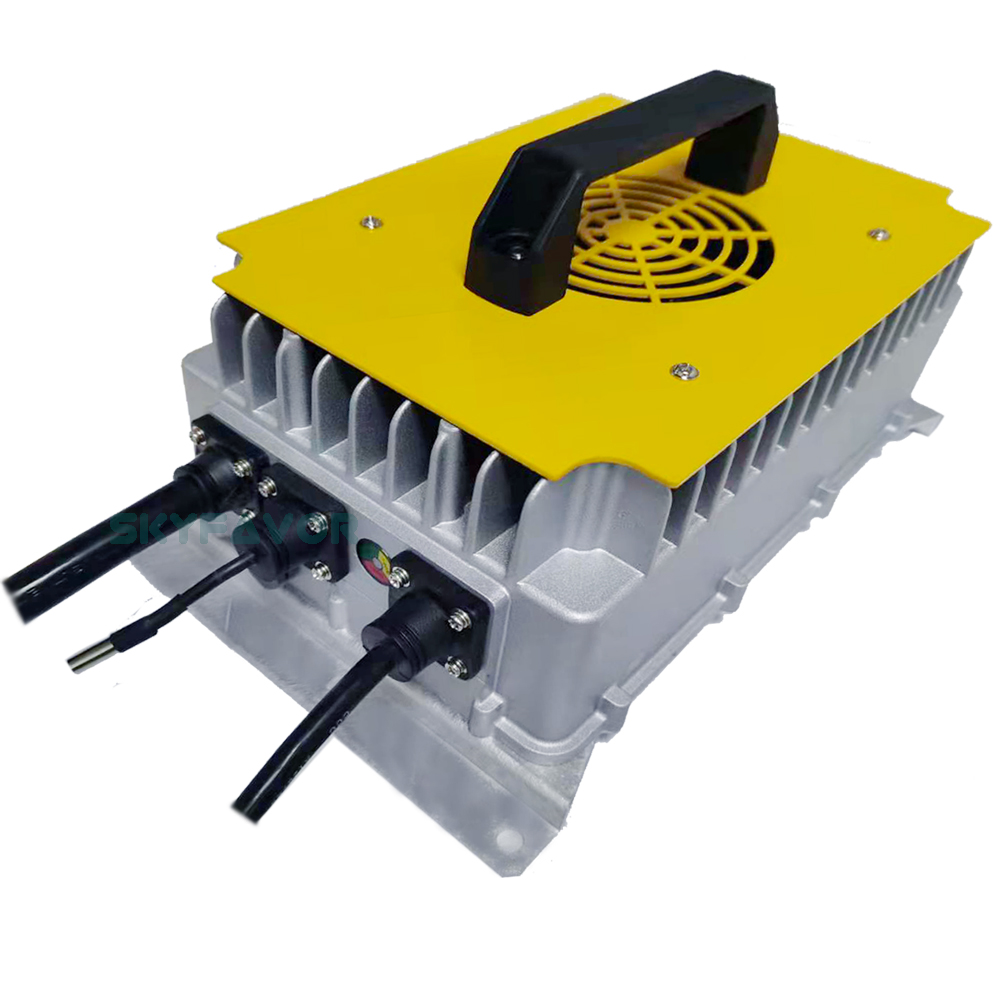

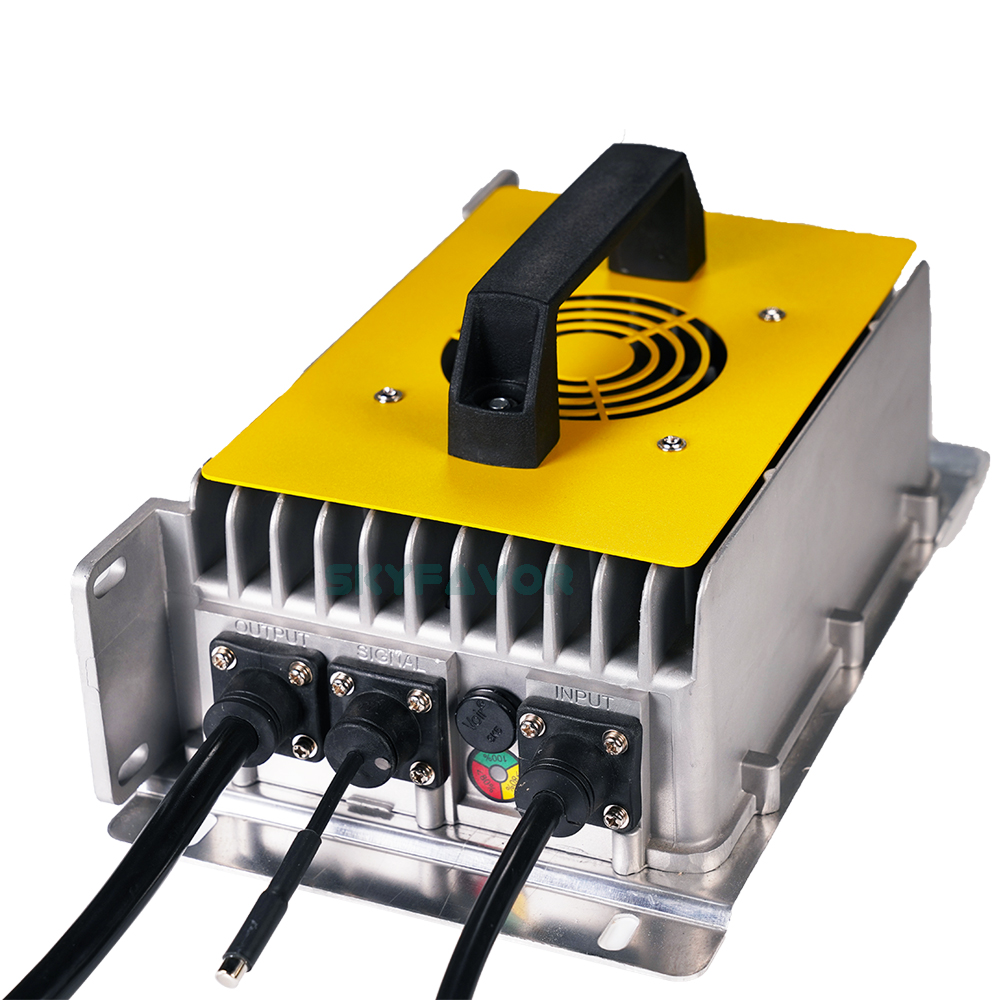

Product picture

High Quality 72V Lithium Battery Charger 72V 20A Waterproof on Board Automatic Fast 19S or 20S Lithium Ion Batteries Charger

We are the professional manufacturer of all kinds of the battery chargers, we can make OEM customized battery charger for every customer

Smart Automatic battery charger list
Model	Charging voltage&current for reference							N.W. (KG)	Size(mm)
Model	12V	24V	36V	48V	60V	72V	84V	N.W. (KG)	Size(mm)
120W	7A	4A	2.5A	1.8A	1.5A	_	_	0.7	135x90x50
180W	10A	5A	3.5A	2.5A	2A	1.5A	_	0.9	155x90x50
240W	15A	7.5A	5A	3.8A	3A	2.5A	_	1	170x90x50
360W	20A	12A	8A	6A	4.5A	4A	_	1.2	170x90x63
600W	25A	19A	12A	9A	7A	6A	_	2.5	207x120x70
900W	40A	25A	18A	15A	12A	10A	_	3	220x135x70
900WB	40A	25A	18A	15A	12A	10A	8A	3.5	260x175x90
1200W	50A	30A	20A	19A	15A	12A	10A	4.5	260x175x90
1500W	60A	45A	30A	24A	19A	16A	14A	5.5	300x175x90
2000W	90A	60A	40A	30A	25A	20A	18A	6.5	330x175x115
2500W	-	75A	50A	40A	30A	25A	22A	7	380x240x150
4000W	150A	100A	80A	60A	45A	40A	35A	11	340x235x110

72V lithium battery charger 72V 20A waterproof automatic 19S or 20S lithium ion batteries charger

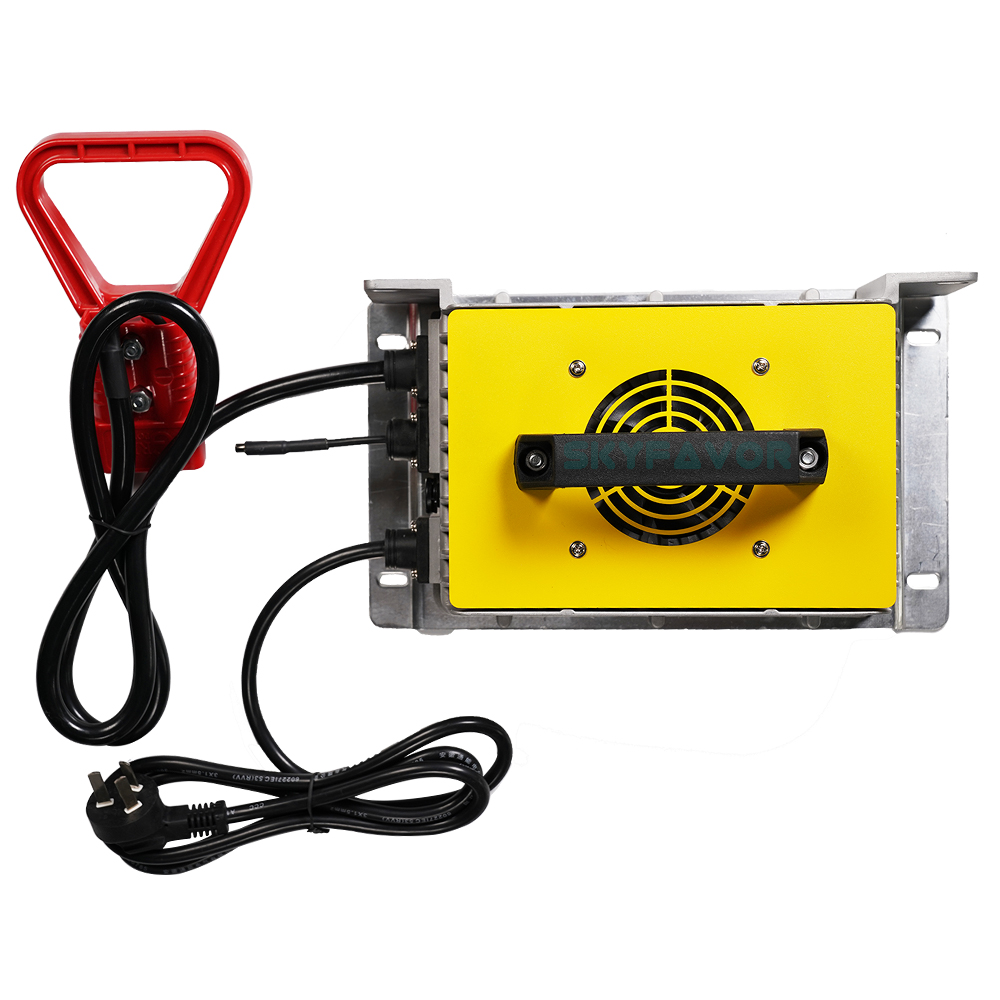

Alternative connections

High Quality 72V Lithium Battery Charger 72V 20A Waterproof on Board Automatic Fast 19S or 20S Lithium Ion Batteries Charger

72V lithium battery charger 72V 20A waterproof automatic 19S or 20S lithium ion batteries charger

Package include

1 x Battery charger

1 x User Manual

High Quality 72V Lithium Battery Charger 72V 20A Waterproof on Board Automatic Fast 19S or 20S Lithium Ion Batteries Charger

72V lithium battery charger 72V 20A waterproof automatic 19S or 20S lithium ion batteries charger

About Product:

1.We promise all the photos display on our store are taken by our team, it is real and 2-10% brightness adjustment.

2.Before sending, all the battery charger will be tested, when packing item, we will use the Foam sponge or Corrugated box to protect the battery charger, we will make sure you will receive the perfect product.

High Quality 72V Lithium Battery Charger 72V 20A Waterproof on Board Automatic Fast 19S or 20S Lithium Ion Batteries Charger

72V lithium battery charger 72V 20A waterproof automatic 19S or 20S lithium ion batteries charger

1. Are you battery charger Manufacturer?

Yes, we are a professional lithium battery charger manufacture over 19 year's experience.

2. Are you specialized in battery charger products?

Yes, we specialize in Lithium battery charger, Lead acid battery charger, LifePO4 battery charger, Smart battery charger.

3. How do you guarantee the quality of your battery charger products?

The battery charger workshop is strict implementation in accordance with the ISO9001 system. Our quality control department made strict quality inspection and 100% aging before packing.

4. Do you have any certification of your battery charger products?

Yes, we have CE, Rohs and FCC certification for most of our battery charger. Some chargers we have UL certification, but the price will be a little higher.

5. How to transport the 72V lithium battery charger?

We have 19 year's experience in their long-term cooperation partners. We can arrange the port and transit country as your demands.

6. Does the 72V lithium battery charger have the minimum order requirements?

No, we have not minimum order requirements for chargers for the normal items.

7. What is the 72V lithium battery charger lead time?

Depend on the quantity of your order. Usually the normal 72V lithium battery charger needs 1-3 days, and OEM order requires 8-12 days.

8. Can you arrange to ship my other supplier’s product together?

Yes, we can help to collect and ship your supplier’s product, and even help to source any products from China you specified in addition to the 72V lithium battery charger products

9. Can I visit your factory?72V lithium battery charger 72V 20A waterproof automatic 19S or 20S lithium ion batteries charger

Sure, welcome to our factory. In addition, we provide free help to large customers to verify the quality of your other supplier service. We can help you to your other Chinese suppliers for verification, and to provide on-site photos, certificates and other documents.

10. Do you offer other service?

Yes, if you need our help on purchasing any goods, just send us your demand details. We will do our utmost to help you, and to provide you with convenient China management.

Best seller will provide you with professional service. Leave message to get a best price of "High quality 72V lithium battery charger 72V 20A waterproof on board automatic fast 19S or 20S lithium ion batteries charger"
