Product details of the yamaha golf cart charger

Quick Overview

yamaha golf cart charger is manufactured based on high-quality materials and is processed by special techniques. It has good corrosion resistance and small contact resistance with active materials to play a good discharge role. Compact in structure, it is easy to assemble and disassemble. The professional production team ensures the accurate production of SKYFAVOR yamaha golf cart charger. The product comes up to the standards in terms of quality and performance. yamaha golf cart charger with large capacity is widely used in automobiles, motorcycles, tractors, diesel engines and other products. The betterment and confirmation of this product help meet the requirements of consumers.

Product Description

The details of yamaha golf cart charger are presented to you in the following section.

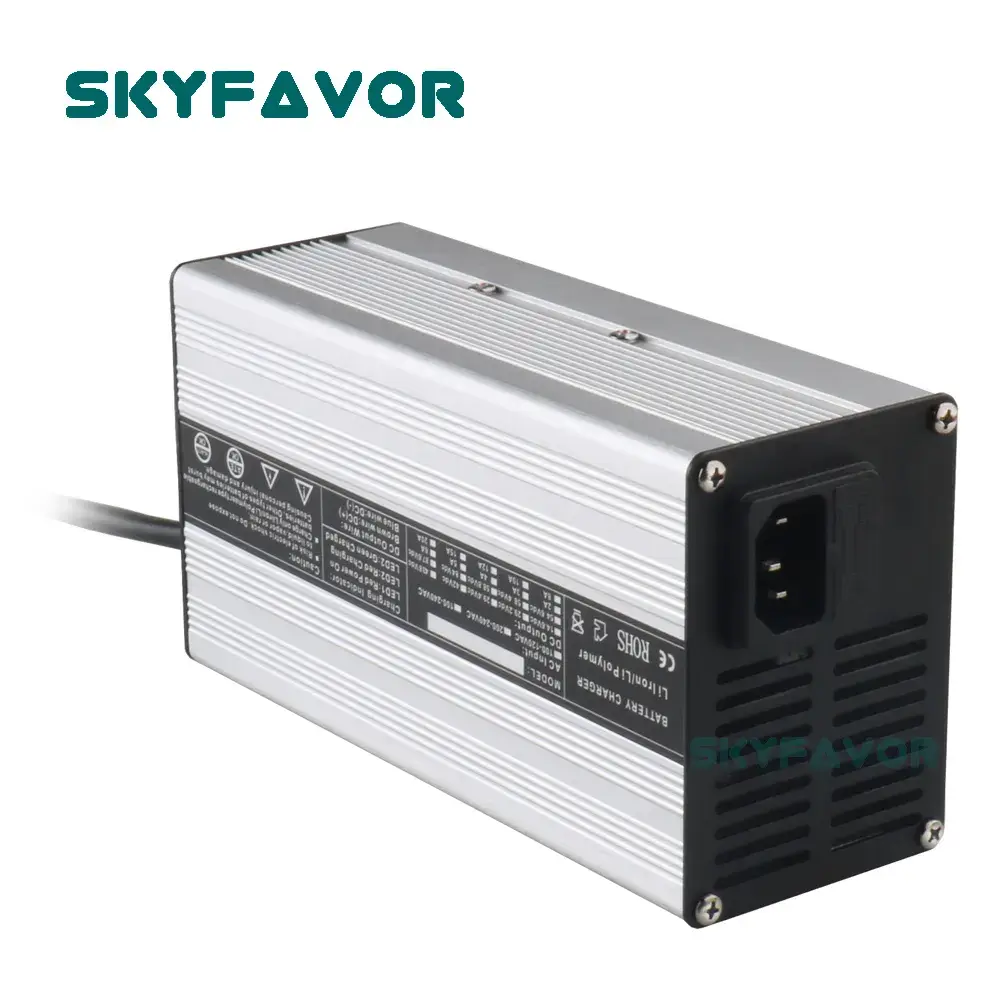

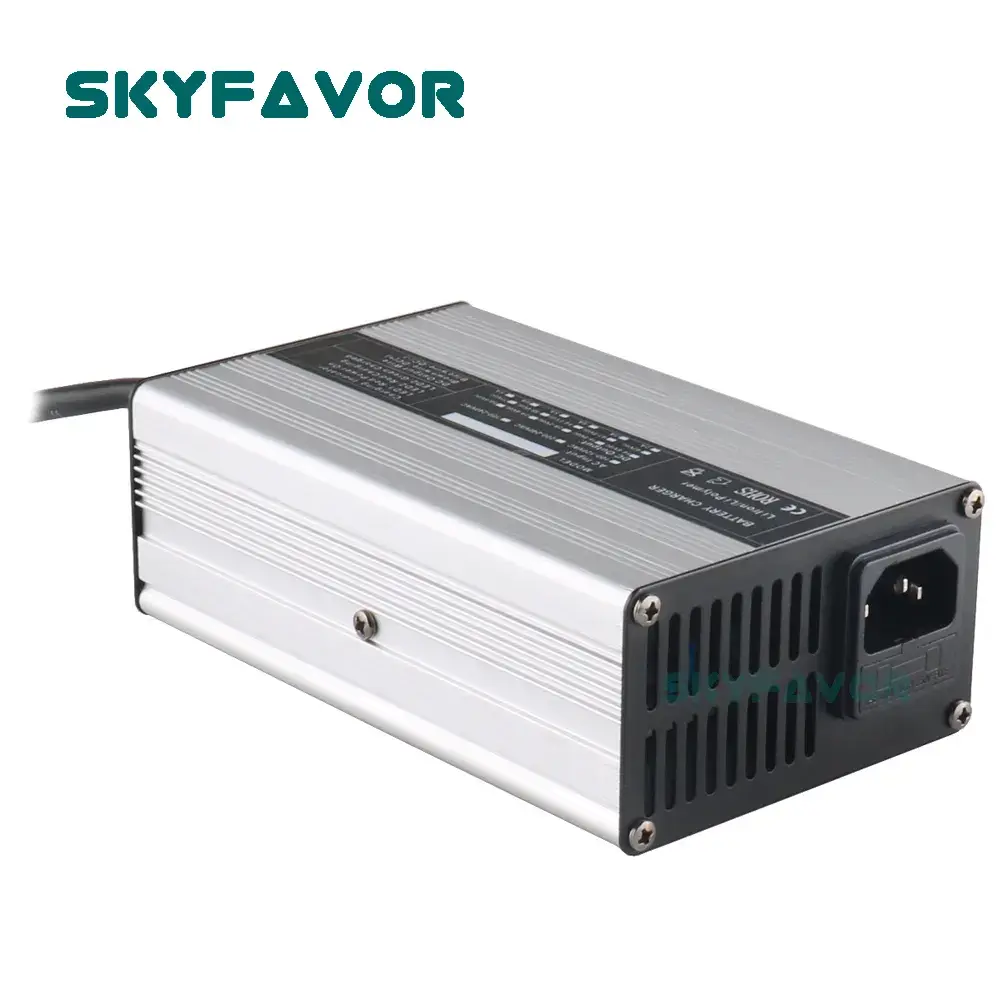

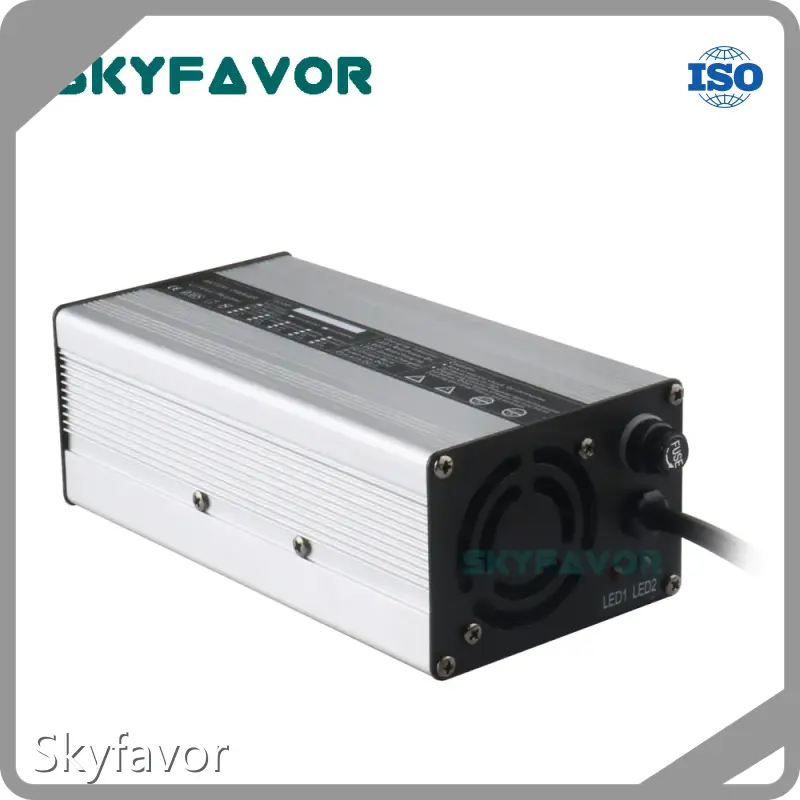

Name	48v lifepo4 battery charger 5a 58.4V automatic 48 volt 5 amp 16S lifepo4 battery chargers
Model	300W
Battery type	48V 16S lifepo4 battery
AC Input	110Vac or 230Vac
Output voltage	58.4V
Output current	5A
Protection	Over Voltage Protection Over Current Protection Short Circuit Protection Reverse polarity Protection
Apply to	For 16AH,20AH,24AH 48V 16S lifepo4 battery

48v lifepo4 battery charger 5a 58.4V automatic 48 volt 5 amp 16S lifepo4 battery chargers

The 48v lifepo4 battery charger 5a 58.4V automatic 48 volt 5 amp 16S lifepo4 battery chargers has designed highly reliable and meet international safety and electromagnetic compatibility requirements.

A:Input Characteristics:

Input Voltage: 110v or 230Vac input AC voltage

Input Frequency: 50Hz or 60Hz and single phase.

B:Output Characteristics:

Constant Charging Voltage: 58.4V(for 48V 16S lifepo4 battery)

C:Charging Mode48v lifepo4 battery charger 5a 58.4V automatic 48 volt 5 amp 16S lifepo4 battery chargers

3 Stages, CC, CV, Trickle

D:Safety Test for battery charger

Hi-pot Test:15KVac 5mA 3 Seconds between input and output test

Resistance:The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds

Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B

E:Protection for battery charger

Over Voltage Protection The battery charger will be auto recovered when faults remove

Over Current Protection Charger output current does not exceed the set maximum battery charging current.

Over Short Circuit Protection Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)

Over reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.

F:DC Connector Dimension:48v lifepo4 battery charger 5a 58.4V automatic 48 volt 5 amp 16S lifepo4 battery chargers

Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.

Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc

We are the professional manufacturer of all kinds of the battery chargers, such as SLA, AGM,GEL lead-acid battery charger, lithium battery charger, lifepo4 battery charger, etc. We can customize all kinds of battery charger for every customer, any quantity is ok.

Each charger only can charge for one kind battery, such as if you choose lead acid battery, we will manufacture the lead acid battery charger, it will not work for lithium battery or lifepo4 battery. Because different kind battery charger the charging curve is different.

Manufacture time:

The manufacture time of the battery charger will need 7-14 days, because all the battery chargers are customized according to the customer's requiremen ts, we have not any chargers in stock. If you accept the delivery time, please go ahead to make purchase. Once you place the order, we will believe you accept the manufacture time.

Lead Time:48v lifepo4 battery charger 5a 58.4V automatic 48 volt 5 amp 16S lifepo4 battery chargers

Normally we will deliver the battery charger by DHL, UPS or FEDEX express, it always need 5-8 days on transport.

So you will receive the parcel in 12-22 days after pay for the order.

Last thing, when the order be paid it will can't be cancelled after 24 hours, as the charger is customized according to buyer's requirement, it is unique, it is impossible to change the charger specification to resell, so we don't accept order be cancelled after 24 hours. Please read above information carefully and buy with caution. Thanks for your kind understanding and support!

We are the professional manufacturer of all kinds of the battery chargers, we can make OEM customized battery charger for every customer

Smart Automatic battery charger list
Model	Charging voltage&current for reference							N.W. (KG)	Size(mm)
Model	12V	24V	36V	48V	60V	72V	84V	N.W. (KG)	Size(mm)
120W	7A	4A	2.5A	1.8A	1.5A	_	_	0.7	135x90x50
180W	10A	5A	3.5A	2.5A	2A	1.5A	_	0.9	155x90x50
240W	15A	7.5A	5A	3.8A	3A	2.5A	_	1	170x90x50
360W	20A	12A	8A	6A	4.5A	4A	_	1.2	170x90x63
600W	25A	19A	12A	9A	7A	6A	_	2.5	207x120x70
900W	40A	25A	18A	15A	12A	10A	_	3	220x135x70
900WB	40A	25A	18A	15A	12A	10A	8A	3.5	260x175x90
1200W	50A	30A	20A	19A	15A	12A	10A	4.5	260x175x90
1500W	60A	45A	30A	24A	19A	16A	14A	5.5	300x175x90
2000W	90A	60A	40A	30A	25A	20A	18A	6.5	330x175x115
2500W	-	75A	50A	40A	30A	25A	22A	7	380x240x150
4000W	150A	100A	80A	60A	45A	40A	35A	11	340x235x110
