Smart Car Battery Charger - - SKYFAVOR
Company Advantages
· At Shenzhen Skyfavor Technology Co., ltd, we offer the following high quality material formulations, including smart car battery charger.
· It's hard to make any damage to our smart car battery charger during cleaning.
· With product quality as the center, Shenzhen Skyfavor Technology Co., ltd insists on the spirit of independent innovation.
|
Name |
120V lithium battery charger 134.4V 5A automatic Professional 120 volt 32S lithium battery charger |
|
Model |
2000L |
|
Battery type |
32S Lithiium ion battery |
|
AC Input |
110Vac or 230Vac |
|
Output voltage |
134.4V |
|
Output current |
5A |
|
Protection |
Over Voltage Protection Over Current Protection Short Circuit Protection Reverse polarity Protection |
|
Apply to |
For 12AH,15AH,18AH 32S li ion battery |

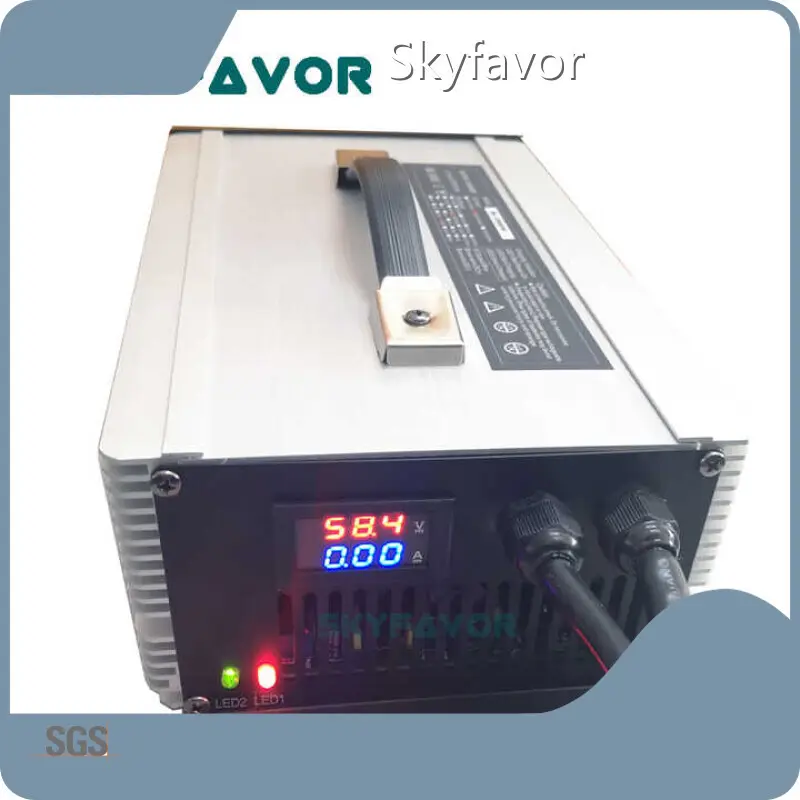

120V lithium battery charger 134.4V 5A automatic Professional 120 volt 32S lithium battery charger
The 120V lithium battery charger 134.4V 5A automatic Professional 120 volt 32S lithium battery charger has designed highly reliable and meet international safety and electromagnetic compatibility requirements.
A:Input Characteristics:
Input Voltage: 110V OR 230Vac input AC voltage
Input Frequency: 50Hz or 60Hz and single phase.
B:Output Characteristics:
Constant Charging Voltage:134.4V (32S lithium battery)
C:Charging Mode:120V lithium battery charger 134.4V 5A automatic Professional 120 volt 32S lithium battery charger
3 Stages, CC, CV, Trickle
D:Safety Test for battery charger
Hi-pot Test:15KVac 5mA 3 Seconds between input and output test
Resistance:The lithium battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds
Drop test: Height: The lipo battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B
E:Protection for battery charger
Over Voltage Protection The li ion battery charger will be auto recovered when faults remove
Over Current Protection Charger output current does not exceed the set maximum battery charging current.
Short Circuit Protection Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)
Reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.
F:DC Connector Dimension:120V lithium battery charger 134.4V 5A automatic Professional 120 volt 32S lithium battery charger
Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.
Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc
We are the professional manufacturer of all kinds of the battery chargers, we can make OEM customized battery charger for every customer.
Smart Automatic battery charger list | |||||||||
Model | Charging voltage¤t for reference | N.W. (KG) | Size(mm) | ||||||
84V | |||||||||
7A | 4A | 2.5A | 1.8A | 1.5A | _ | _ | 0.7 | 135x90x50 | |
10A | 5A | 3.5A | 2.5A | 2A | 1.5A | _ | 0.9 | 155x90x50 | |
15A | 7.5A | 5A | 3.8A | 3A | 2.5A | _ | 1 | 170x90x50 | |
20A | 12A | 8A | 6A | 4.5A | 4A | _ | 1.2 | 170x90x63 | |
25A | 19A | 12A | 9A | 7A | 6A | _ | 2.5 | 207x120x70 | |
40A | 25A | 18A | 15A | 12A | 10A | _ | 3 | 220x135x70 | |
40A | 25A | 18A | 15A | 12A | 10A | 8A | 3.5 | 260x175x90 | |
50A | 30A | 20A | 19A | 15A | 12A | 10A | 4.5 | 260x175x90 | |
60A | 45A | 30A | 24A | 19A | 16A | 14A | 5.5 | 300x175x90 | |
90A | 60A | 40A | 30A | 25A | 20A | 18A | 6.5 | 330x175x115 | |
- | 75A | 50A | 40A | 30A | 25A | 22A | 7 | 380x240x150 | |
150A | 100A | 80A | 60A | 45A | 40A | 35A | 11 | 340x235x110 | |
Product Introduction
Company Features
· Shenzhen Skyfavor Technology Co., ltd is known as a dependable manufacturer based in China. We are widely recognized for providing high quality smart car battery charger.
· Shenzhen Skyfavor Technology Co., ltd has great confidence in the quality of smart car battery charger by using the most advanced technology. The quality of smart car battery charger is guaranteed by the modern technology. The traditional technology and modern technology are combined for the production of smart car battery charger.
· In order to be socially responsible, we have made a plan for energy conservation and emission reduction and we will continue to carry out the plan all the time. So far, we have achieved progress in emission reduction during our production. Contact!
Product Details
The details of smart car battery charger are shown for you at below.
Product Comparison
Compared with products in the industry, Skyfavor's smart car battery charger has the outstanding advantages which are mainly reflected in the following aspects.
