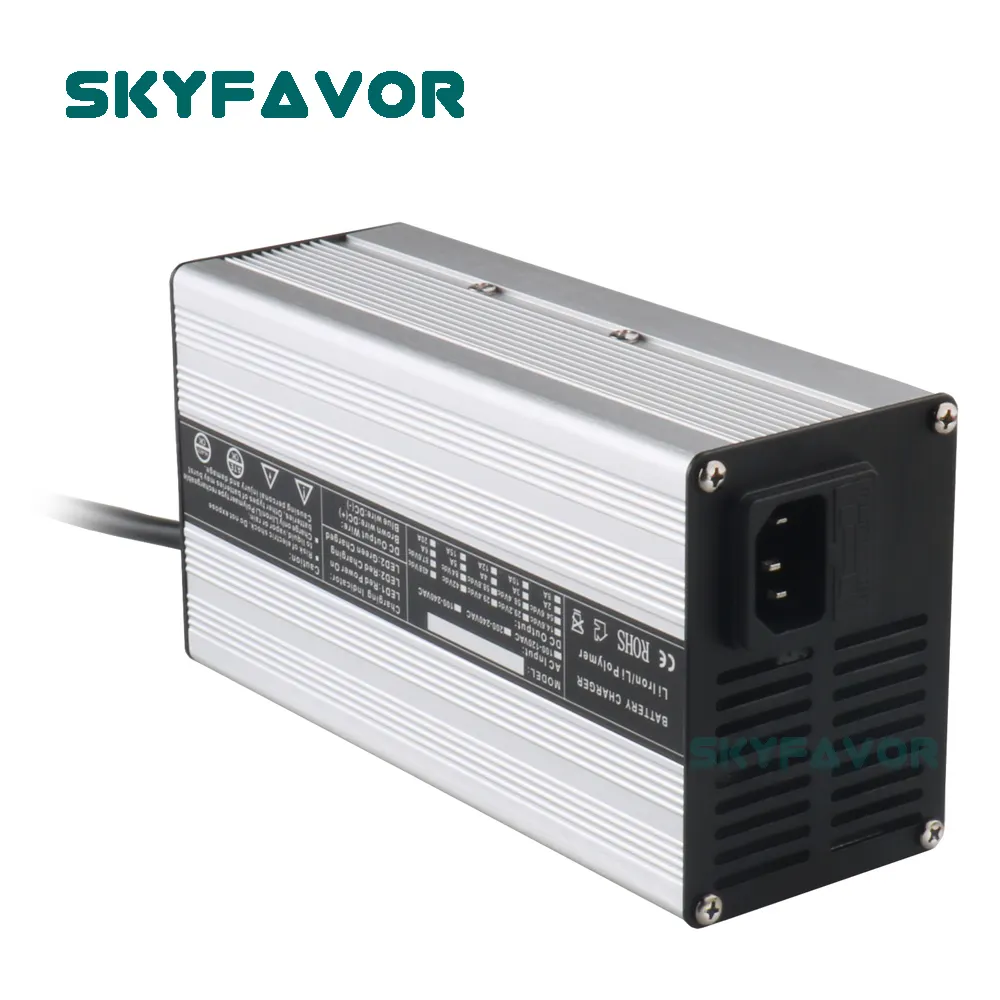

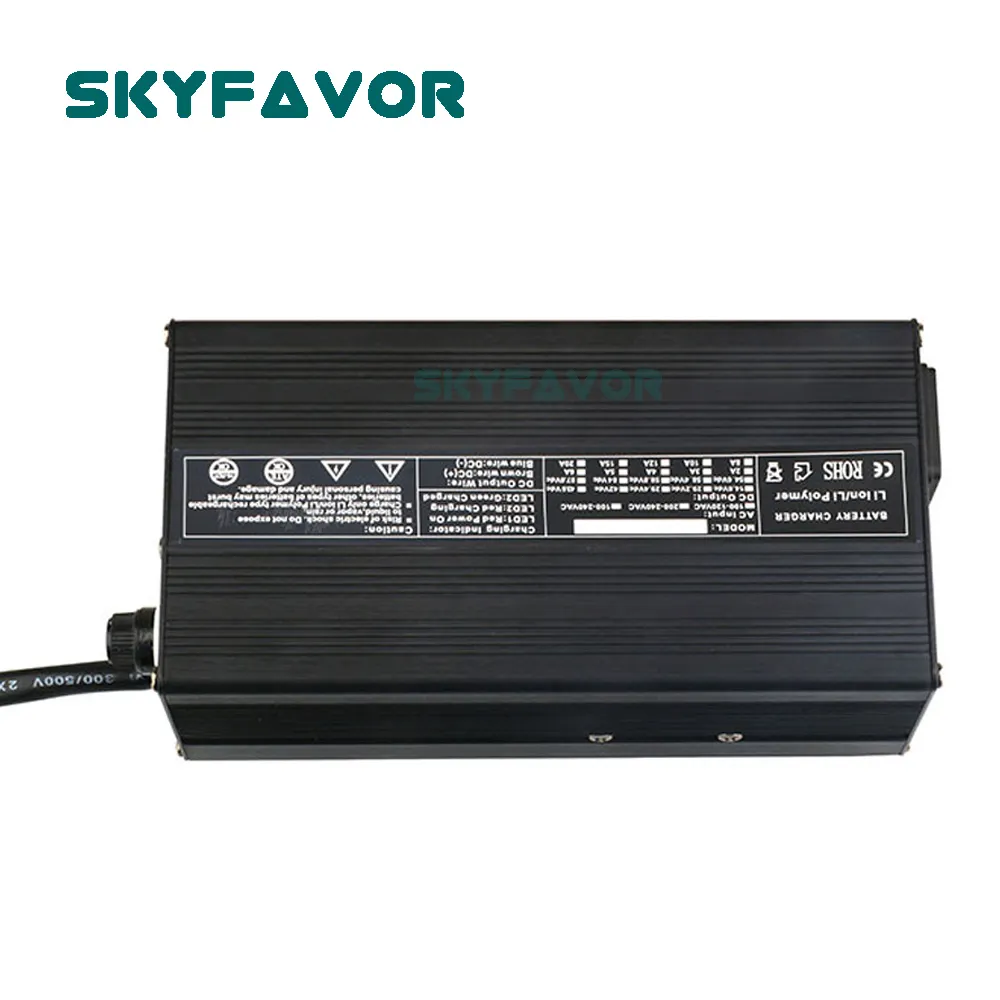

Smart Car Battery Charger - - SKYFAVOR-4

● Input Characteristics:

Input Voltage: 100-240Vac input AC voltage

Input Frequency: 50Hz or 60Hz and single phase.

● Output Characteristics:

Constant Charging Voltage: 42V(for 10S Li-ion battery),

● Charging Mode:

Customized 36V li-ion battery charger 42V 5A lithium battery charger

3 Stages, CC, CV, Trickle

● Safety Test for battery charger:

Hi-pot Test:15KVac 5mA 3 Seconds between input and output test

Resistance:The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds

Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free

fall appendix B

● Protection for battery charger:

Over Voltage Protection   The battery charger will be auto recovered when faults remove

Over Current Protection   Charger output current does not exceed the set maximum battery charging current.

Over Short Circuit Protection  Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen.  The power shall be auto-recovery.  (It will enter into normal condition when then the fault condition is removed)

Over reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.

● DC Connector Dimension:

48V 4A Lithium Battery Charger output 54.6V 13S Li-ion battery charger

Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.

Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra

and Grio, Polarized C7 etc

Manufacture time

The manufacture time of the battery charger will need 8-12 days, because all the battery chargers are customized according to the customer's requirements, we have not any chargers in stock.  If you accept the delivery time, please go ahead to make purchase.  Once you place the order, we will treat you accept the manufacture time.

Lead Time

Normally we will deliver the battery charger by DHL, UPS or Fedex express, it always need 5-8 days on transport.

So you will receive the parcel in 13-20 days after pay for the order.

Last thing,  when the order be paid it will can't be cancelled after 24 hours, as the charger is customized according to buyer's requirement, it is unique, it is impossible to change the charger specification to resell, so we don't accept order be cancelled after 24 hours.  Please read above information carefully and buy with caution.   Thanks for your kind understanding and support!
