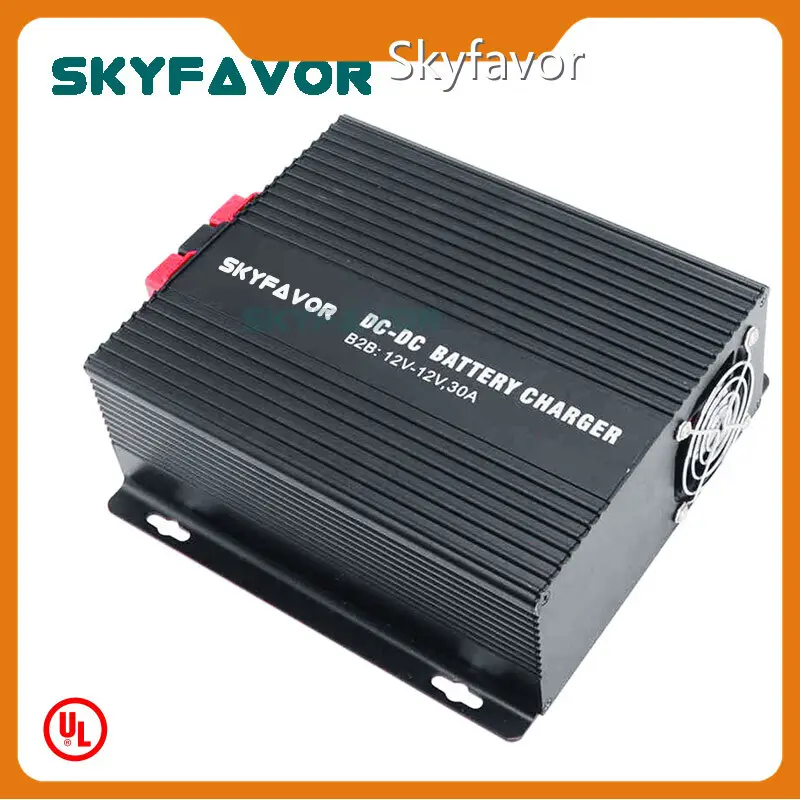

Personalized Battery Charger - - SKYFAVOR-7
Product details of the personalized battery charger
Product Information
personalized battery charger exhibits high hardness, good abrasion resistance, high strength and stability. The quality of this product is backed by well-established infrastructure. SKYFAVOR is equipped with very professional customer service team.
| Name | DC to DC Battery charger 12V TO 24V 25A fast RV Yacht on board battery charger |
| Model | 1224BTOB |
| Main Battery voltage | 24V |
| Main battery type | GEL,Sealed,Flooded/AGM,Lifepo4,Lithium-ion(NCM) |
| Starter battery voltage | 12V |
| Starter battery type | Lead acid |
| DC-DC Max charging power | 780W |
| Main battery Max charging current | 25A |
| Self-consumption current | 24ma |
| Dimension | 215X194X70mm |
| Weight | 1.8kg |
| Accessories(Optional) | Monitor(MT2) |
| Bluetooth Dongle(BT10) | |
| Temperature Sensor(TRS) |
B2B Charge
It means to charge the main battery through alternator and starter battery. If it is not used in the vehicle, you can also use one battery to charge another battery
1. When the vehicle is running, the vehicle alternator can quickly charge the main battery through the charger at full power
2. The charger can charge the main battery according to the specified voltage and current by boosting or stepping down to ensure that the main battery is in accordance with the standard.
DC to DC Battery charger 12V TO 24V 25A fast RV Yacht on board battery charger
Other functions
1. Fully automatic charging: In order to continuously charge the battery, the controller can always be connected to the car battery. When the charging energy is stopped, such as the car stops driving, the battery will not discharge in the reverse direction.
2. Multiple protection functions: with overheating, overvoltage, short circuit, wrong connection protection
3. External temperature sensor: The ambient temperature will affect the parameters for charging the battery. The controller needs to perform parameter compensation according to the temperature of the battery, especially in places with large temperature changes. It is strongly recommended to install a temperature sensor.
Note: Lithium batteries do not require temperature compensation
4. Lithium battery automatic wake-up function: When the lithium battery BMS is protected for some reason, the controller can automatically wake up the BMS and continue to charge the lithium battery
DC to DC Battery charger 12V TO 24V 25A fast RV Yacht on board battery charger
COMPANY STRENGTH
1 Ensure that the battery installation environment is ventilated and dissipated. The LiFePO4 battery is recommended to work in an environment above 0 degrees Celsius, otherwise the battery characteristics will drop a lot
2. The battery must be fully charged and stored, and it must be charged regularly to ensure that it is not stored under power, otherwise it will affect the battery life
3. Lead-acid batteries that are completely empty must be charged as soon as possible, otherwise it may cause permanent damage!
4. The lithium battery must have a BMS (Battery Management System). Try to avoid completely emptying the battery.
Product Introduction
Company Feature
• Skyfavor has established a sound service system to provide quality services for customers attentively.
• With traffic convenience, Skyfavor's location has multiple traffic lines passing through. This is good for the outward transportation of Battery charger.
• Skyfavor believes that an excellent team is a soul for an enterprise's development. For many years, we have been recruiting talents and elites to build a management team with modern quality and high work efficiency. The team members work together to lead a healthy and efficient development for our company.
• In recent years, Skyfavor has continuously optimized the export environment and has striven to expanded export channels. Besides, we have actively opened up the foreign market to change the simplex situation of the sales market. All these contribute to the increment of market share in the international market.
Skyfavor's Battery charger are of reasonable price and excellent quality. We sincerely invite new and old customers to contact us and discuss business!
