Personalized Battery Charger by SKYFAVOR-8
Product details of the personalized battery charger
Quick Overview
Tested by relevant national departments, personalized battery charger has excellent performance that meets the national standards. Moreover, the careful design of professionals makes it compact in structure and easy to install and disassemble. SKYFAVOR personalized battery charger is made of superior raw materials which are selected from qualified vendors. personalized battery charger personalized battery charger is dimensionally accurate thanks to the adoption of lean production method. personalized battery charger, excellent in quality, is often used in automobiles, motorcycles, tractors, diesel engines and other products. After long-term and unremitting efforts, Shenzhen Skyfavor Technology Co., ltd has established long-term partnerships with many world-renowned companies.
Product Information
The personalized battery charger mainly promoted by Skyfavor have been further improved in the past through the technical improvement, which is reflected in the following aspects.
|
Name |
48V lifepo4 battery charger 48V 10A professional fast 16S lifepo4 battery chargers |
|
Model |
600W |
|
Battery type |
48V lifepo4 battery pack |
|
AC Input |
230Vac |
|
Output voltage |
58.4V |
|
Output current |
10A |
|
Protection |
Over Voltage Protection Over Current Protection Short Circuit Protection Reverse polarity Protection |
|
Apply to |
For 30AH 40Ah 50AH, 48v 16S lifepo4 battery |

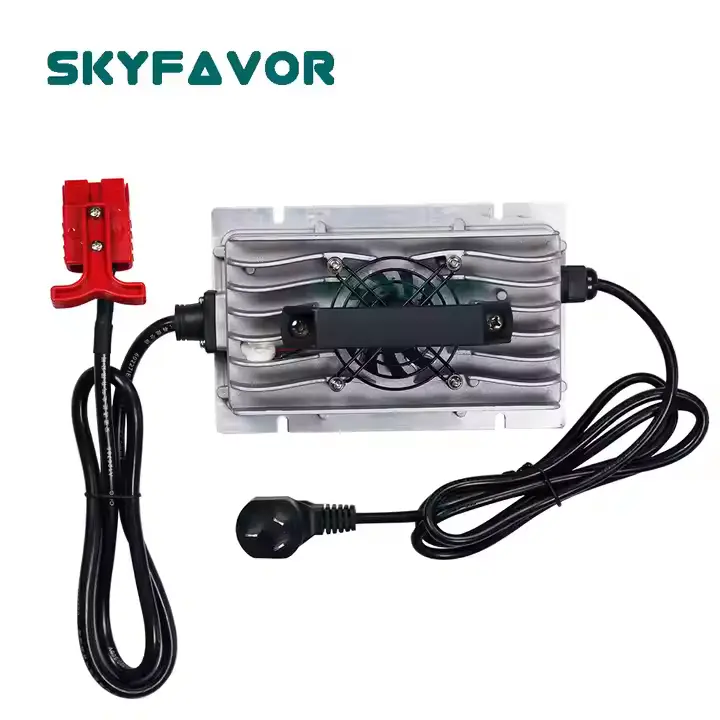

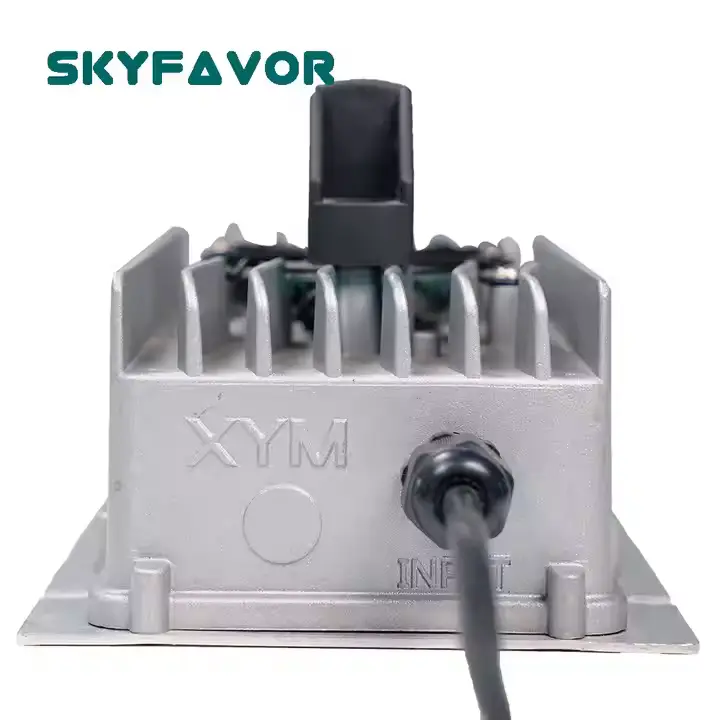

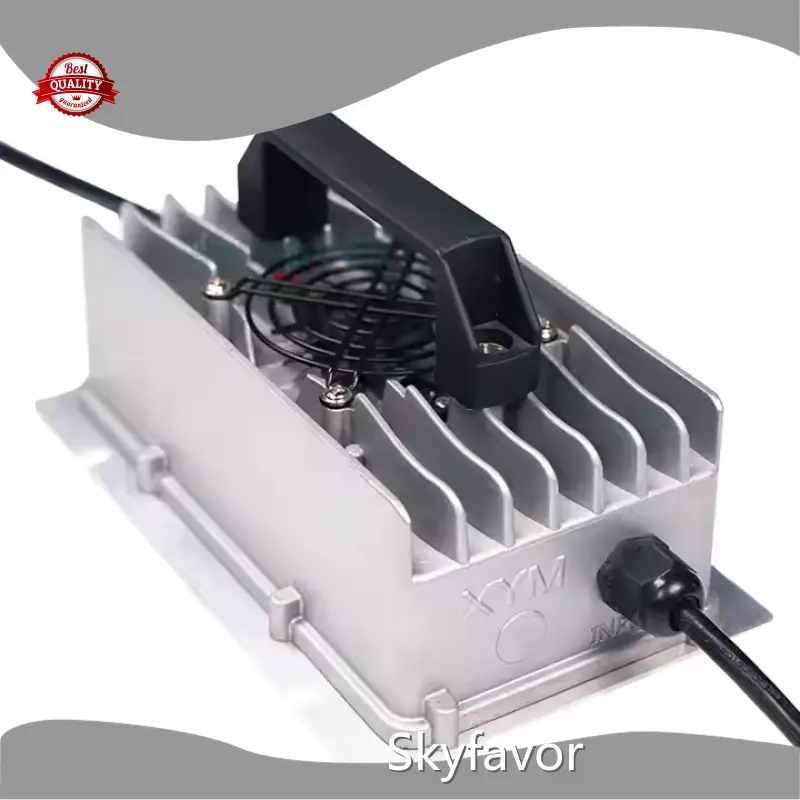

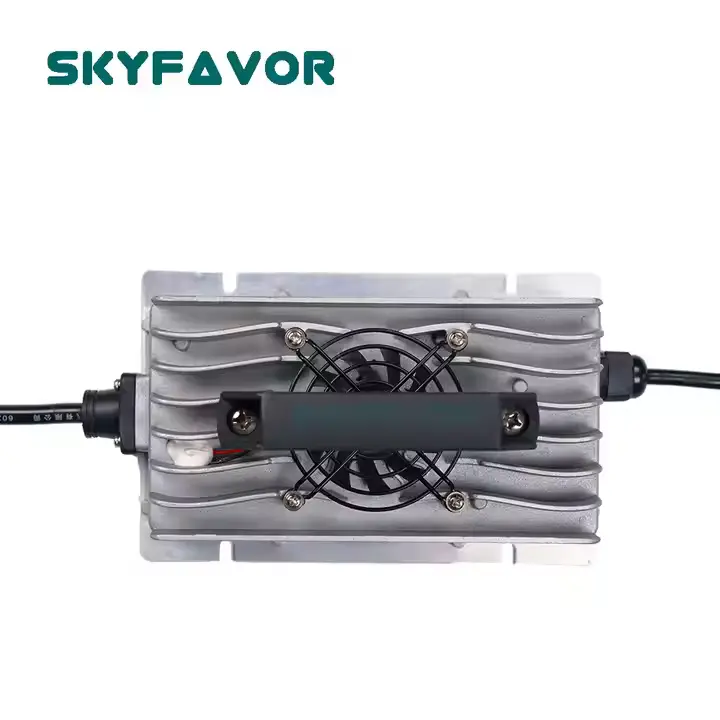

48V lifepo4 battery charger 48V 10A professional fast 16S lifepo4 battery chargers
The 48V lifepo4 battery charger 48V 10A professional fast 16S lifepo4 battery chargers has designed highly reliable and meet international safety and electromagnetic compatibility requirements.
A:Input Characteristics:
Input Voltage: 110Vac or 230Vac input AC voltage
Input Frequency: 50Hz or 60Hz and single phase.
B:Output Characteristics:
Constant Charging Voltage:58.4V(for 16S lifepo4 battery pack)
C:Charging Mode:48V lifepo4 battery charger 48V 10A professional fast 16S lifepo4 battery chargers
4 Stages,pre-charge, CC, CV, Trickle
D:Safety Test for battery charger
Hi-pot Test:15KVac 5mA 3 Seconds between input and output test
Resistance:The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds
Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B
E:Protection for battery charger
Over Voltage Protection The battery charger will be auto recovered when faults remove
Over Current Protection Charger output current does not exceed the set maximum battery charging current.
Over Short Circuit Protection Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)
Over reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.
F:DC Connector Dimension:48V lifepo4 battery charger 48V 10A professional fast 16S lifepo4 battery chargers
Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.
Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc
We are the professional manufacturer of all kinds of the battery chargers, we can make OEM customized battery charger for every customer
