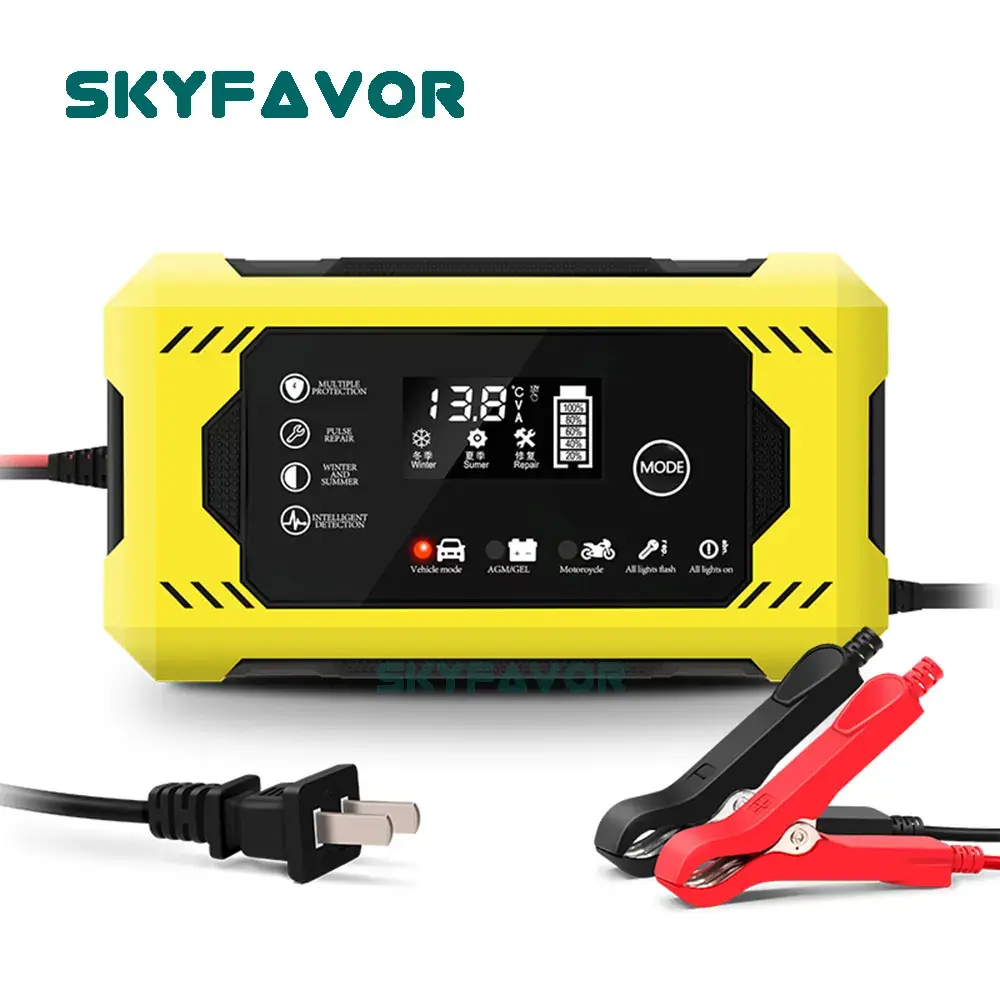

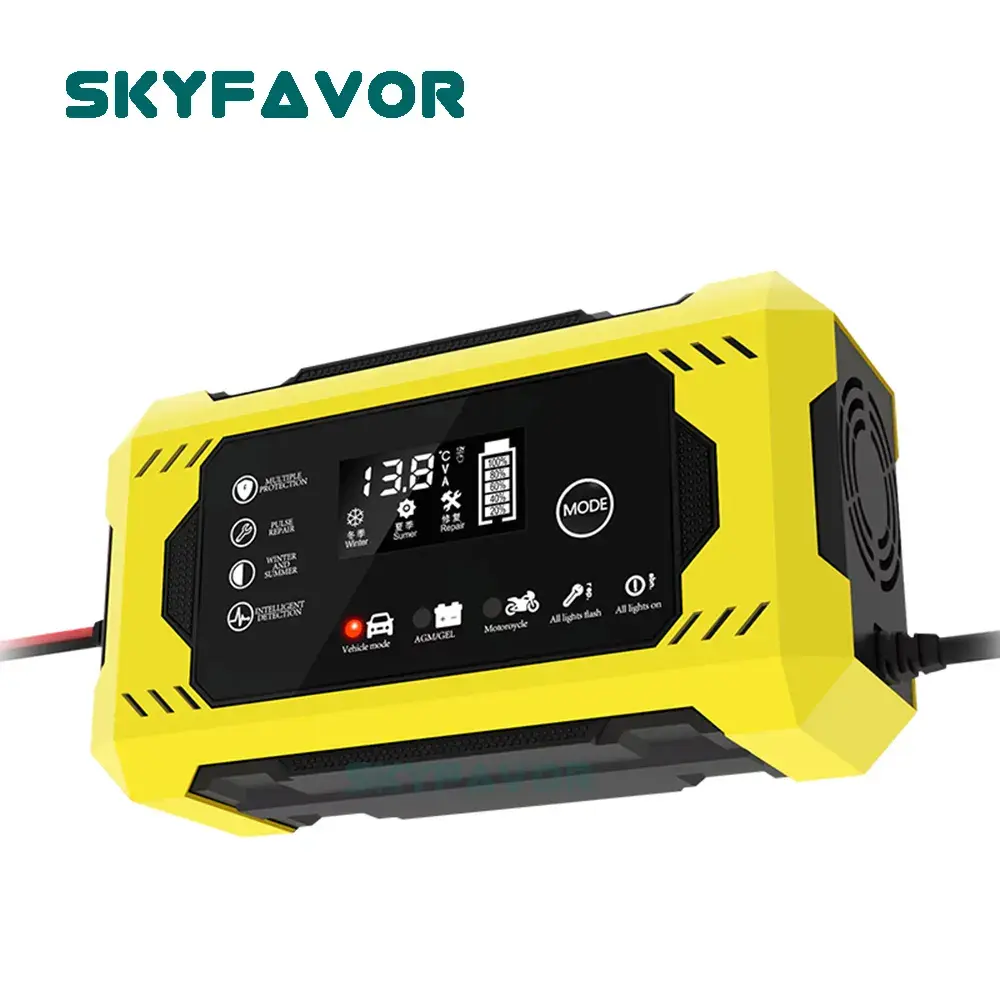

Mobile Car Battery Charger by SKYFAVOR
Company Advantages
· SKYFAVOR mobile car battery charger has a design that satisfies design standard.
· Now the performance of this product is improved at every turn by powerful technologies.
· The product is suitable for a wide range of applications.
|
Name |
12V car battery charger 12V 6A automatic trickle charge battery charger with pulse repair |
|
Mode |
1206Y2 |
|
Input |
110Vac or 220Vac |
|
Output |
14.4V Float charge voltage:13.8V (for 12V lead acid battery) |
|
Output current |
6A |
|
Features: |
Temperature control compensation charger |
|
Compatibility |
35AH,60AH 80AH lead acid battery |
|
Protection |
-Short circuit protection -Overvoltage protection -Overcurrent protection -Overheating protection -Reverse connection protection |
|
Apply to |
Children's toy cars, motorcycles, cars, etc. |
|
weight |
410g
|
Motorcycle car battery charger 12V 6A deepcycle 12volt lead acid battery pulse repair charger
The Motorcycle car battery charger 12V 6A deepcycle 12volt lead acid battery pulse repair charger has designed highly reliable and meet international safety and electromagnetic compatibility requirements.
A:Input Characteristics:
Input Voltage: 100-240Vac input AC voltage
Input Frequency: 50Hz or 60Hz and single phase.
B:Output Characteristics:
Constant Charging Voltage: 14.4V Float charge 13.8V
C:Charging Mode Motorcycle car battery charger 12V 6A deepcycle 12volt lead acid battery pulse repair charger
3 Stages, CC, CV, Trickle
D:Safety Test for battery charger
Hi-pot Test:15KVac 5mA 3 Seconds between input and output test
Resistance:The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds
Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B
E:Protection for battery charger
Over Voltage Protection The battery charger will be auto recovered when faults remove
Over Current Protection Charger output current does not exceed the set maximum battery charging current.
Over Short Circuit Protection Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)
Over reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.
F:DC Connector Dimension:Motorcycle car battery charger 12V 6A deepcycle 12volt lead acid battery pulse repair charger
Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.
Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc
We are the professional manufacturer of all kinds of the battery chargers, such as SLA, AGM,GEL lead-acid battery charger, lithium battery charger, lifepo4 battery charger, etc. We can customize all kinds of battery charger for every customer, any quantity is ok.
Smart Automatic battery charger list | |||||||||
Model IDOITWELL | Charging voltage¤t for reference | N.W. (KG) | Size(mm) IDOITWELL | ||||||
84V | |||||||||
7A | 4A | 2.5A | 1.8A | 1.5A | _ | _ | 0.7 | 135x90x50 | |
10A | 5A | 3.5A | 2.5A | 2A | 1.5A | _ | 0.9 | 155x90x50 | |
15A | 8.5A | 5A | 3.8A | 3A | 2.5A | _ | 1 | 170x90x50 | |
20A | 12A | 8A | 6A | 4.5A | 4A | _ | 1.2 | 170x90x63 | |
25A | 19A | 12A | 9A | 7A | 6A | _ | 2.5 | 207x120x70 | |
40A | 25A | 18A | 15A | 12A | 10A | _ | 3 | 220x135x70 | |
40A | 25A | 18A | 15A | 12A | 10A | 8A | 3.5 | 260x175x90 | |
50A | 30A | 20A | 19A | 15A | 12A | 10A | 4.5 | 260x175x90 | |
60A | 45A | 30A | 24A | 19A | 16A | 14A | 5.5 | 300x175x90 | |
90A | 60A | 40A | 30A | 25A | 20A | 18A | 6.5 | 330x175x115 | |
- | 75A | 50A | 40A | 30A | 25A | 22A | 7 | 380x240x150 | |
150A | 100A | 80A | 60A | 45A | 40A | 35A | 11 | 400x300x200 | |
Product Introduction
Company Features
· As a famous mobile car battery charger enterprise, SKYFAVOR is leading the industry.
· The company has gathered a group of outstanding design talents. Members are able to combine imagination with collaboration and craftsmanship to develop thoughtful, elegant product design solutions.
· Our brand promise, vision, and values are the language that unifies us as an organization and creates a common purpose: advancing the quality of life by creating and sustaining safe, comfortable and efficient environments. Welcome to visit our factory!
Enterprise Advantages
Skyfavor has an R&D team consisting of professional scientific manpower from various fields. Moreover, we have long-term cooperation and technical exchanges with well-known research institutions at home and abroad.
Skyfavor strives to explore a humanized and diversified service model to provide all-round and professional services for customers.
Skyfavor adheres to sincerity-based business and pursuit of excellence and innovation. We are professional, concentrated and dedicated. With the strong willpower, we constantly overcome various difficulties during development. The final goal is to develop into a leading enterprise in the industry.
Skyfavor becomes a modern enterprise with great social influence after years of development.
The products of Skyfavor have the advantages of complete functions, high technique and large added value, so that they can be sold well in domestic and foreign markets.
