Lithium Battery Charger for Golf Cart - - SKYFAVOR

Company Advantages

· For the design of SKYFAVOR lithium battery charger for golf cart, we have a professional design team to take responsibilities for it.

· Comparing to other products, our lithium battery charger for golf cart has more evident advantages in function.

· The product, with many economic benefits, is widely used in the market.

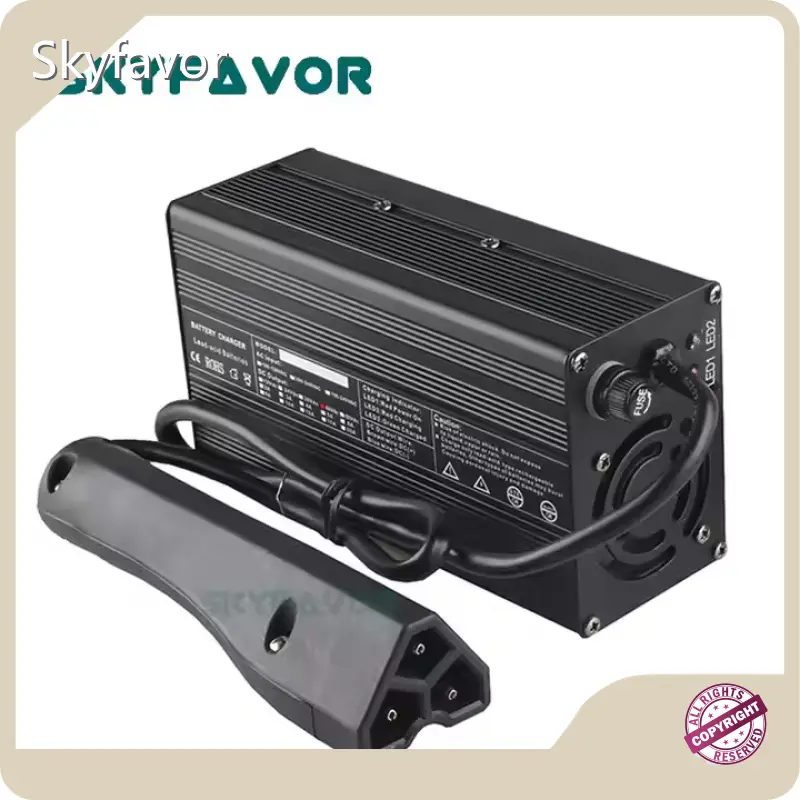

Automatic smart 48V Golf Cart Battery Charger 48 Volt 8 Amp fast battery charger

Manufacture time:

The manufacture time of the battery charger will need 7-14 days, because all the battery chargers are customized according to the customer's requiremen ts, we have not any chargers in stock. If you accept the delivery time, please go ahead to make purchase. Once you place the order, we will believe you accept the manufacture time.



Lead Time:

Normally we will deliver the battery charger by DHL, UPS or FEDEX express, it always need 5-8 days on transport.



So you will receive the parcel in 12-22 days after pay for the order.



Last thing, when the order be paid it will can't be cancelled after 24 hours, as the charger is customized according to buyer's requirement, it is unique, it is impossible to change the charger specification to resell, so we don't accept order be cancelled after 24 hours. Please read above information carefully and buy with caution. Thanks for your kind understanding and support!



Automatic smart 48V Golf Cart Battery Charger 48 Volt 8 Amp fast battery charger

The Automatic smart 48V Golf Cart Battery Charger 48 Volt 8 Amp fast battery charger has designed highly reliable and meet international safety and electromagnetic compatibility requirements.

A:Input Characteristics:

   Input Voltage: 110v or 240Vac input AC voltage

   Input Frequency: 50Hz or 60Hz and single phase.

B:Output Characteristics:

   Constant Charging Voltage: 58.8V float charge 55.2V

C:Charging ModeAutomatic smart 48V Golf Cart Battery Charger 48 Volt 8 Amp fast battery charger

   3 Stages, CC, CV, Trickle

D:Safety Test for battery charger

   Hi-pot Test:15KVac 5mA 3 Seconds between input and output test

   Resistance:The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds

   Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B

E:Protection for battery charger

Over Voltage Protection   The battery charger will be auto recovered when faults remove

Over Current Protection   Charger output current does not exceed the set maximum battery charging current.

Over Short Circuit Protection  Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)

Over reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.

F:DC Connector Dimension:Automatic smart 48V Golf Cart Battery Charger 48 Volt 8 Amp fast battery charger

Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.

Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc

We are the professional manufacturer of all kinds of the battery chargers, such as SLA, AGM,GEL lead-acid battery charger, lithium battery charger, lifepo4 battery charger, etc. We can customize all kinds of battery charger for every customer, any quantity is ok.

Each charger only can charge for one kind battery, such as if you choose lead acid battery, we will manufacture the lead acid battery charger, it will not work for lithium battery or lifepo4 battery. Because different kind battery charger the charging curve is different.

Smart Automatic battery charger list
Model	Charging voltage&current for reference							N.W. (KG)	Size(mm)
	12V	24V	36V	48V	60V	72V	84V
120W	7A	4A	2.5A	1.8A	1.5A	_	_	0.7	135x90x50
180W	10A	5A	3.5A	2.5A	2A	1.5A	_	0.9	155x90x50
240W	15A	7.5A	5A	3.8A	3A	2.5A	_	1	170x90x50
360W	20A	12A	8A	6A	4.5A	4A	_	1.2	170x90x63
600W	25A	19A	12A	9A	7A	6A	_	2.5	207x120x70
900W	40A	25A	18A	15A	12A	10A	_	3	220x135x70
900WB	40A	25A	18A	15A	12A	10A	8A	3.5	260x175x90
1200W	50A	30A	20A	19A	15A	12A	10A	4.5	260x175x90
1500W	60A	45A	30A	24A	19A	16A	14A	5.5	300x175x90
2000W	90A	60A	40A	30A	25A	20A	18A	6.5	330x175x115
2500W	-	75A	50A	40A	30A	25A	22A	7	380x240x150
4000W	150A	100A	80A	60A	45A	40A	35A	11	340x235x110

 Product Introduction

f7c044cb5388dcef38049992158a822

3a1e958eef0ad7550880f74e0fb1513

4a8f08bce95476e8f1ef2aa7cd419b9

9cd2188a02dcd4c95b82e9e779d8f10

86dc7f53c398b4995dd0d9bb8d821b1

74706df07261f0647619316348bf46e

80933acb6a8f4ff6d9af420a2e00d26

501018e2adcebecf26e3ffaacb2e4ef

Company Features

· Shenzhen Skyfavor Technology Co., ltd is a standard lithium battery charger for golf cart manufacturer.

· Shenzhen Skyfavor Technology Co., ltd has won recognition for its solid technical foundation.

· Our commitment is to identify the best solution for customers' projects, enabling them to become the first choice of their customers.

Product Details

Next, the details of lithium battery charger for golf cart are shown for you.

Application of the Product

The lithium battery charger for golf cart developed by Skyfavor is widely used in various fields.

With rich manufacturing experience and strong production capability, Skyfavor is able to provide professional solutions according to customers' actual needs.

Enterprise Advantages

Skyfavor has a group of professional production and processing personnel to continuously improve the production and processing capabilities of Battery charger.

Skyfavor integrates facilities, capital, technology, personnel, and other advantages, and strives to offer special and good services.

In the operation, our company mainly focuses on of people and integrity and we follow the core value of 'pursuit of excellence, cooperation and win-win'. We constantly improve production technology to provide consumers with better products and more professional services. It is our commitment to become a well-known modern enterprise in China.

Our company was established in and has years' experience in product development, production and sales.

Our sales terminals form a sales network throughout the domestic and international markets. It helps us to constantly set a good sales record at home and abroad.
