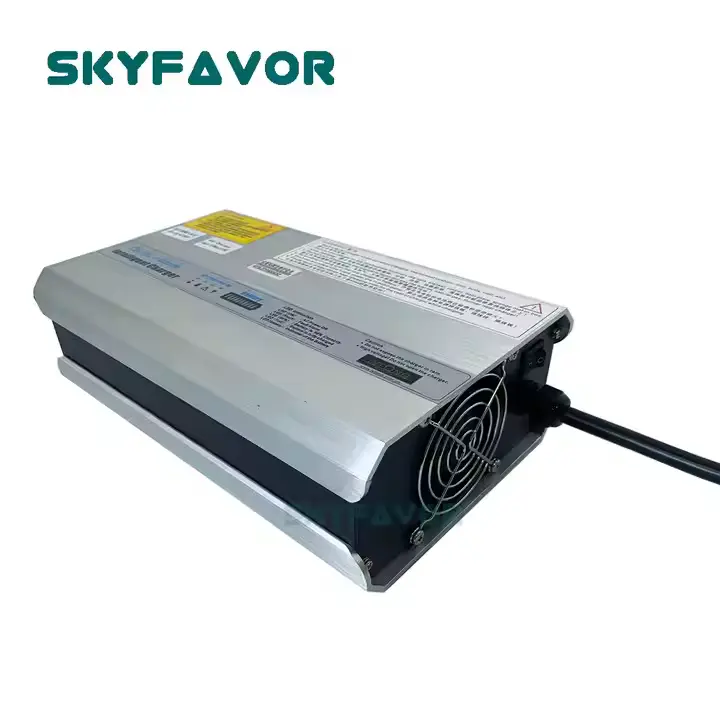

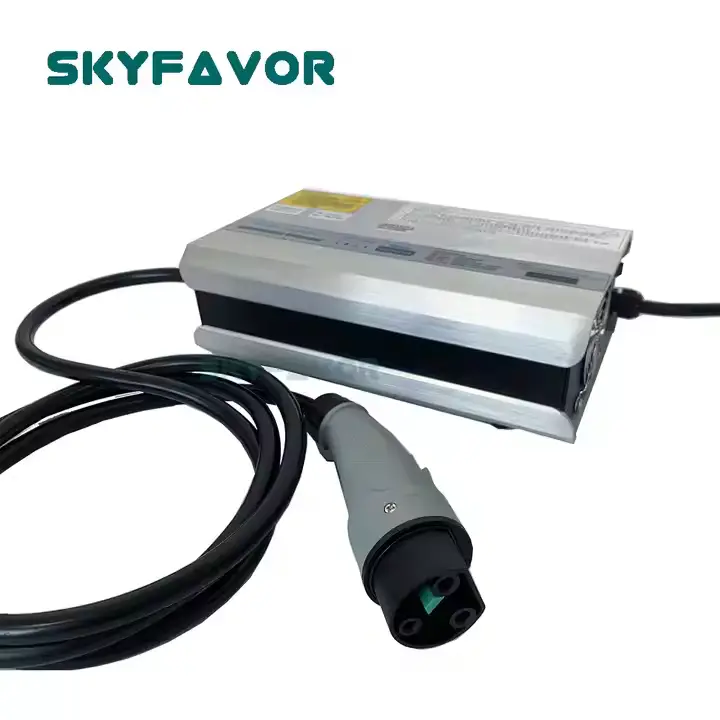

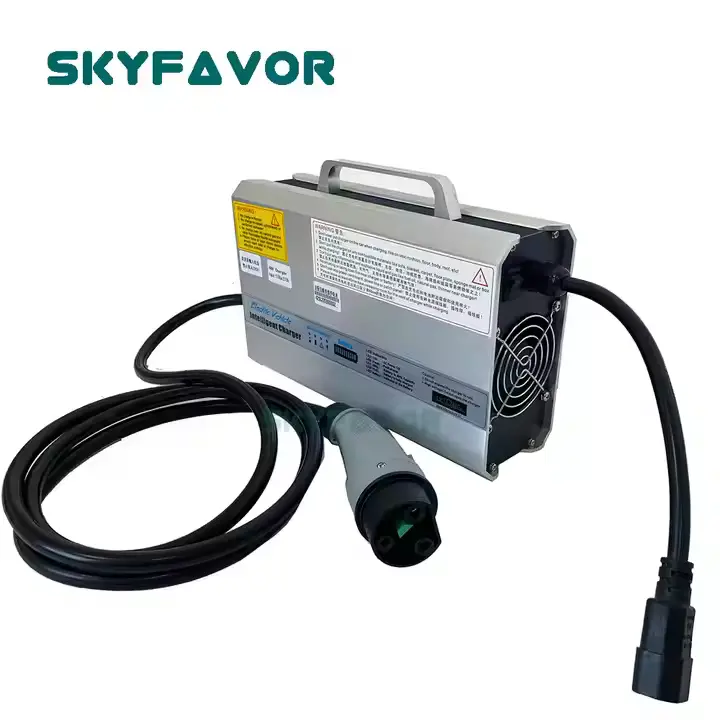

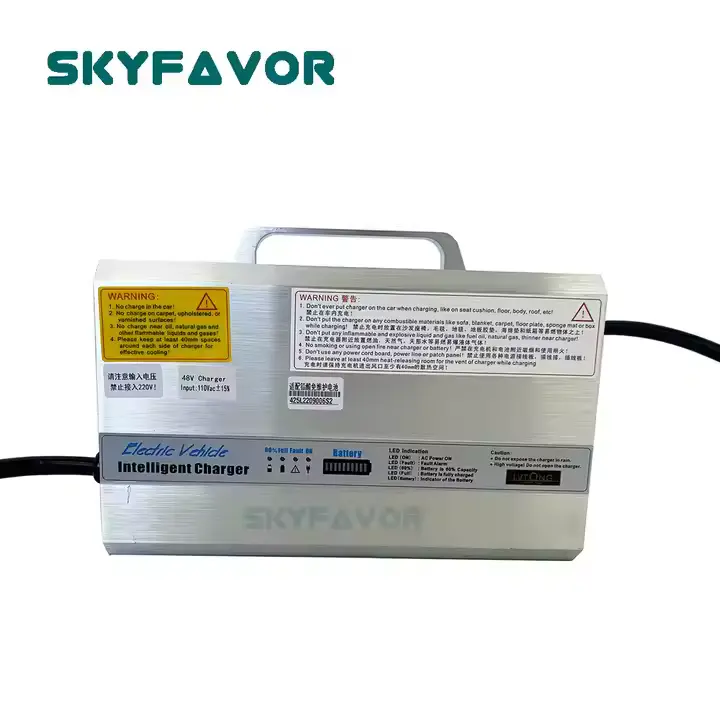

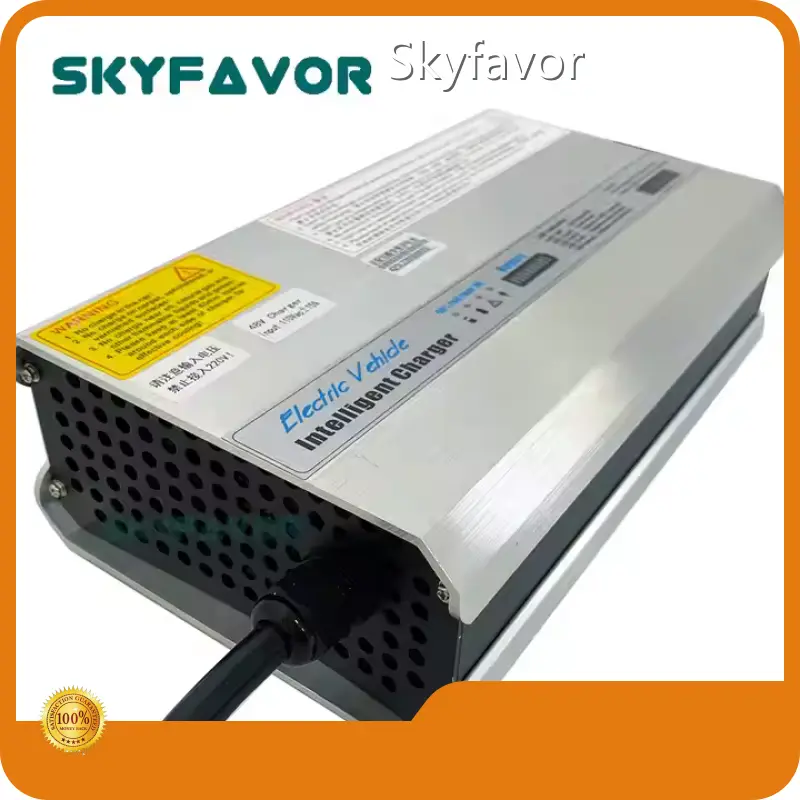

Lithium Battery Charger for Golf Cart by SKYFAVOR
|
Name |
48V 25A Lead acid battery cherger(48v golf cart charger) |
|
Model |
1500W |
|
Battery type |
48v lead acid battery |
|
AC Input |
110Vac or 230Vac |
|
Output voltage |
58.8V flaot charge 55.2v |
|
Output current |
25A |
|
Protection |
Over Voltage Protection Over Current Protection Short Circuit Protection Reverse polarity Protection |
|
Apply to |
For 170AH,240AH 300AH 48v lead acid battery |
48V 25A golf cart charger Y60 Connector for 48 volt tour bus car electric vehicle
The 48V 25A golf cart charger Y60 Connector for 48 volt tour bus car electric vehicle has designed highly reliable and meet international safety and electromagnetic compatibility requirements.
A:Input Characteristics:
Input Voltage: 110Vac or 230Vac input AC voltage
Input Frequency: 50Hz or 60Hz and single phase.
B:Output Characteristics:
Constant Charging Voltage:58.8V float charge 55.2V
C:Charging Mode:48V 25A golf cart charger Y60 Connector for 48 volt tour bus car electric vehicle
3 Stages, CC, CV, Trickle
D:Safety Test for battery charger
Hi-pot Test:15KVac 5mA 3 Seconds between input and output test
Resistance:The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds
Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B
E:Protection for battery charger
Over Voltage Protection The battery charger will be auto recovered when faults remove
Over Current Protection Charger output current does not exceed the set maximum battery charging current.48V 25A golf cart charger Y60 Connector for 48 volt tour bus car electric vehicle
Short Circuit Protection Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)
reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.
F:DC Connector Dimension:48V 25A golf cart charger Y60 Connector for 48 volt tour bus car electric vehicle
Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.
Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc
We are the professional manufacturer of all kinds of the battery chargers, we can make OEM customized battery charger for every customer.
Smart Automatic battery charger list | |||||||||
Model | Charging voltage¤t for reference | N.W. (KG) | Size(mm)
| ||||||
84V | |||||||||
7A | 4A | 2.5A | 1.8A | 1.5A | _ | _ | 0.7 | 135x90x50 | |
10A | 5A | 3.5A | 2.5A | 2A | 1.5A | _ | 0.9 | 155x90x50 | |
15A | 7.5A | 5A | 3.8A | 3A | 2.5A | _ | 1 | 170x90x50 | |
20A | 12A | 8A | 6A | 4.5A | 4A | _ | 1.2 | 170x90x63 | |
25A | 19A | 12A | 9A | 7A | 6A | _ | 2.5 | 207x120x70 | |
40A | 25A | 18A | 15A | 12A | 10A | _ | 3 | 220x135x70 | |
40A | 25A | 18A | 15A | 12A | 10A | 8A | 3.5 | 260x175x90 | |
50A | 30A | 20A | 19A | 15A | 12A | 10A | 4.5 | 260x175x90 | |
60A | 45A | 30A | 24A | 19A | 16A | 14A | 5.5 | 300x175x90 | |
90A | 60A | 40A | 30A | 25A | 20A | 18A | 6.5 | 330x175x115 | |
- | 75A | 50A | 40A | 30A | 25A | 22A | 7 | 380x240x150 | |
150A | 100A | 80A | 60A | 45A | 40A | 35A | 11 | 340x235x110 | |
Product Introduction
Company Advantages
· Customers have made some extraordinary claims for our lithium battery charger for golf cart.
· The perfect product testing facilities and capable technology team ensure the performance of this product.
· The product caters to market demand and will be more widely used in the market.
Company Features
· Shenzhen Skyfavor Technology Co., ltd has evolved into an expert that develops, design, and produces lithium battery charger for golf cart. We are highly identified by competitors.
· Each of our professional members has gained extensive knowledge and years of expertise in the lithium battery charger for golf cart industry. They are capable of delivering the best products and services at the highest level.
· We follow the principle of 'providing reliable service and persevering' and formulate the following main business policies: developing talent advantage and layout investment to enhance the development momentum; expanding the market through marketing to ensure complete production capacity. Check now!
Application of the Product
The lithium battery charger for golf cart produced by Skyfavor is very popular in the market and is widely used in industry.
In addition to high-quality products, Skyfavor also provides effective solutions based on the actual conditions and the needs of different customers.
