Intelligent Lead Acid Battery Charger by SKYFAVOR
Product details of the intelligent lead acid battery charger
Product Introduction
There is a zero-compromise approach when it comes to design and material selection for SKYFAVOR intelligent lead acid battery charger. Regular performance checks have been implemented to ensure high performance and reliable quality. The product is priced low and has a broad market application prospect.
| Name | Multi-function 24V battery charger 24V 15A fast automatic Universal 24 volt battery charger |
| Model | 24115ATOD |
| Input voltage & frequency range | 100V-240Vac |
| battery type | GEL,Sealed,Flooded/AGM,Lifepo4,Lithium-ion(NCM) |
| Battery voltage | 24V |
| Max output current-Nomal mode | 15A |
| Max output current-low current mode | 7.5A |
| Max output current Night mode (Quiet mode,10% fan RPM) | 6A |
| Power supply function(Default output voltage value) | 25.5V 15A |
| Power supply function(APP setting output voltage range) | 24V-27.6V |
| Efficiency | >90% |
| Dimension | 221X155X70mm |
| Weight | 1.4kg |

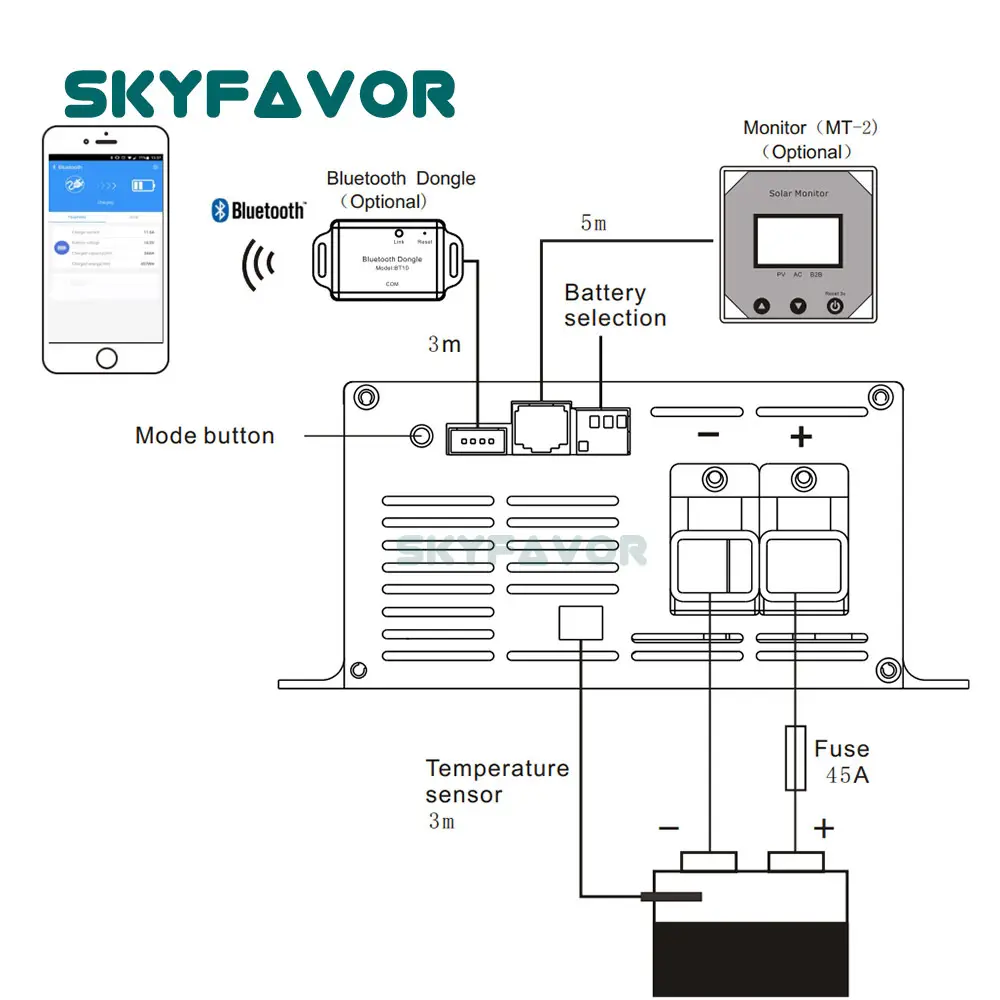

| Accessories(Optional) | Monitor(MT-2) |
| Bluetooth Dongle(BT10) | |
| Temperature Sensor(TRS) |
Product Introduction
Note:
1. Charging the lithium battery without temperature compensation
2. The temperature sensor (RTs) is an optional part and needs to be purchased separately If not connected, no temperature compensation
3. Protection function
Overheating protection: the internal temperature> 85 ℃ ,charger stop working Current reduction protection: the internal temperature > 70 ℃, the current is reduced by 50% for charging
Short circuit protection: battery is short circuited and the charger stops working
Reverse connection protection: the battery is reversely connected and the charger does not work
4. Low current mode(50% current)
The charger is charged with 50% current of standard specification
5. Night mode Multi-function 24V battery charger 24V 15A fast automatic Universal 24 volt battery charger
Night mode charging, Keep 10% fan speed allowed during charging process, and Keep silent , the charging current will reduce to 10A (AC1230 PRO) / 6A(AC2415PRO) 3A(AC4810PRO)
6. DC Power supply mode
Charger outputs constant voltage,It can be used as a DC power supply,Reference parameter table of output voltage and current
Note: DC power supply mode, disable battery selection function and temperature compensation
7. Fan control
Detect charging current and charger temperature to change fan speed
8. Lithium battery 0V automatic activation charging
When the lithium battery is low voltage protection (UVP) state, the charger can automatically activate the lithium battery charging
9. lithium battery 0℃ charging function
The 0 ℃ charging function of lithium battery can be selected through the DIP switch
