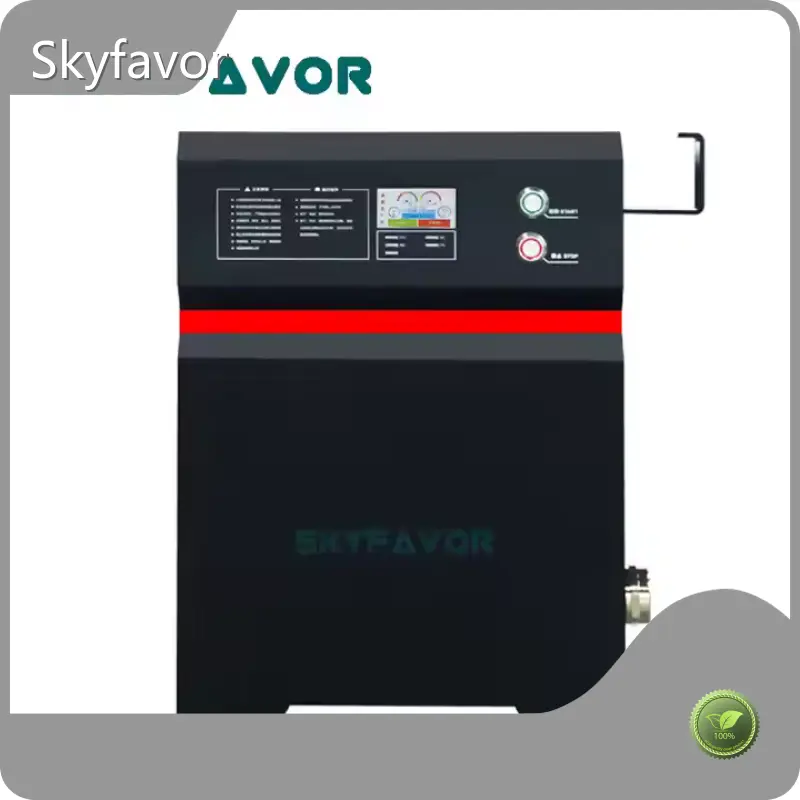

Industrial Car Battery Charger by SKYFAVOR
Product details of the industrial car battery charger
Product Information
All indicators and processes of SKYFAVOR industrial car battery charger meet the requirements of national indicators. The strong functionality of the product can be proved by the increasing sales. Shenzhen Skyfavor Technology Co., ltd will do everything possible to help customers for better user experience.
(battery charger)Custom High Power PFC 60V battery charger 60V battery charger 60V 90A LCD display Automatic can bus control battery charger machine with PFC
Important Note:
We need the exact charger specifications to start production, so please leave a message when confirming the ordering and provide us with all the necessary information below. Thank you!
60V battery charger 60V 90A LCD display Automatic can bus control battery charger machine with PFC
Custom battery charger requires the following information:
1. Battery type: lead-acid battery, lithium battery or lifepo4 battery?
2. Battery capacity:
3. Input AC voltage:
4. Input plug:
5. Output voltage:
6. Output current:
7. Output plug:
For example: 48V 13S 60Ah lithium battery, input 110Vac USA 3-pin plug, output 54.6V 15A Anderdon 50A red plug
(Please specify whether the Anderson 50A plug is gray or red.)
We are the professional manufacturer that produce all kinds of the battery chargers, such as VRLA, AGM, GEL, SLA lead acid battery chargers, lithium battery chargers, lifepo4 battery chargers, lipo battery chargers, etc. We can 100% custom the battery chargers according to buyer's demands. NO MOQ!!! Even if only 1 piece.
Features:
High-efficiency smart charging system is designed for battery charging of electric vehicles. It is suitable for the charging of electric forklifts, electric pallet trucks, electric vans, electric stackers, electric tractors, AGV, electric sightseeing cars, golf carts, patrol cars, engineering cars, sanitation vehicle. The high-efficiency smart charging system adopts the structure of an integrated charger. The overall is composed of one power rectifying unit, one charging monitoring unit, and one charging socket, the charging process is fully automated to perform the charging management of the battery.
Smart and reliableLCD/LED displayHistory alarm records-1000Charging history-300Emergency stop buttonSmart compensation charging algorithm
Safe and stableWide input voltage range 90~264VOutput voltage ripple ±1%Current ripple ±3%Output current accuracy ±2%Cutomized managementHumanizeLiquid battery IUIa charging managementDedicated charge management for valve-regulated batteriesLithium battery CAN communicationAdvanced heat dissipation technologyMaintain optimal battery performance and battery health.
Energy efficientPFC more than 0.99 ;24V charger efficiency exceeds 92%;48V charger efficiency over 95%;THD ≤ 10%;Power conversion efficiency is high and save cost;Zero Voltage Switching ZVS+MOSFET TechnologyDC 300A, Different voltage 24/36/48/72/80/96V,120V
Smart Automatic battery charger list | |||||||||
Model | Charging voltage¤t for reference | N.W. (KG) | Size(mm) | ||||||
84V | |||||||||
7A | 4A | 2.5A | 1.8A | 1.5A | _ | _ | 0.7 | 135x90x50 | |
10A | 5A | 3.5A | 2.5A | 2A | 1.5A | _ | 0.9 | 155x90x50 | |
15A | 7.5A | 5A | 3.8A | 3A | 2.5A | _ | 1 | 170x90x50 | |
20A | 12A | 8A | 6A | 4.5A | 4A | _ | 1.2 | 170x90x63 | |
25A | 19A | 12A | 9A | 7A | 6A | _ | 2.5 | 207x120x70 | |
40A | 25A | 18A | 15A | 12A | 10A | _ | 3 | 220x135x70 | |
40A | 25A | 18A | 15A | 12A | 10A | 8A | 3.5 | 260x175x90 | |
50A | 30A | 20A | 19A | 15A | 12A | 10A | 4.5 | 260x175x90 | |
60A | 45A | 30A | 24A | 19A | 16A | 14A | 5.5 | 300x175x90 | |
90A | 60A | 40A | 30A | 25A | 20A | 18A | 6.5 | 330x175x115 | |
- | 75A | 50A | 40A | 30A | 25A | 22A | 7 | 380x240x150 | |
150A | 100A | 80A | 60A | 45A | 40A | 35A | 11 | 340x235x110 | |
Product Introduction
Company Advantage
• There are multiple main traffic lines passing through Skyfavor's location. The developed traffic network is conducive to the distribution of Battery charger.
• With a focus on talents cultivation, our company has established an innovative talent team. The team members have innovative thinking and management capabilities.
• Skyfavor receives trust and favor from new and old customers based on high-quality products, reasonable price, and professional services.
• Skyfavor's products are sold well in China, Africa, Europe, Southeast Asia, and other regions, and are highly praised by domestic and foreign customers.
If you want further information about the detail and price about the custom service for Battery charger, please leave your contact information. Skyfavor would reply you soon and your patience would be much appreciated.
