Golf Cart Battery Chargers for Sale - - SKYFAVOR-1
Company Advantages
· Shenzhen Skyfavor Technology Co., ltd uses environmentally-recyclable materials as much as possible for golf cart battery chargers for sale.
· Now the performance of this product is improved at every turn by powerful technologies.
· Shenzhen Skyfavor Technology Co., ltd also emphasizes on the research and development of new golf cart battery chargers for sale products.
|
Name |
36V 5A Lead acid Battery Charger Golf cart Charger |
|
Model |
240G |
|
Battery type |
36V lead acid battery |
|
AC Input |
110Vac or 230Vac |
|
Output voltage |
44.1V float cahrge 41.4V |
|
Output current |
5A |
|
Protection |
Over Voltage Protection Over Current Protection Short Circuit Protection Reverse polarity Protection |
|
Apply to |
For 48V 14S litium ion battery pack |

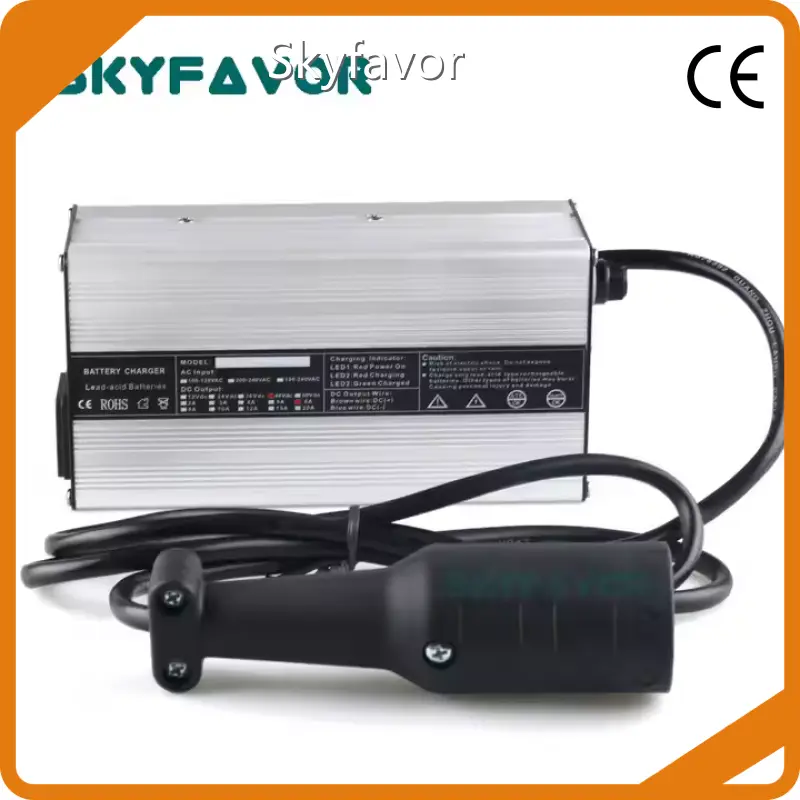

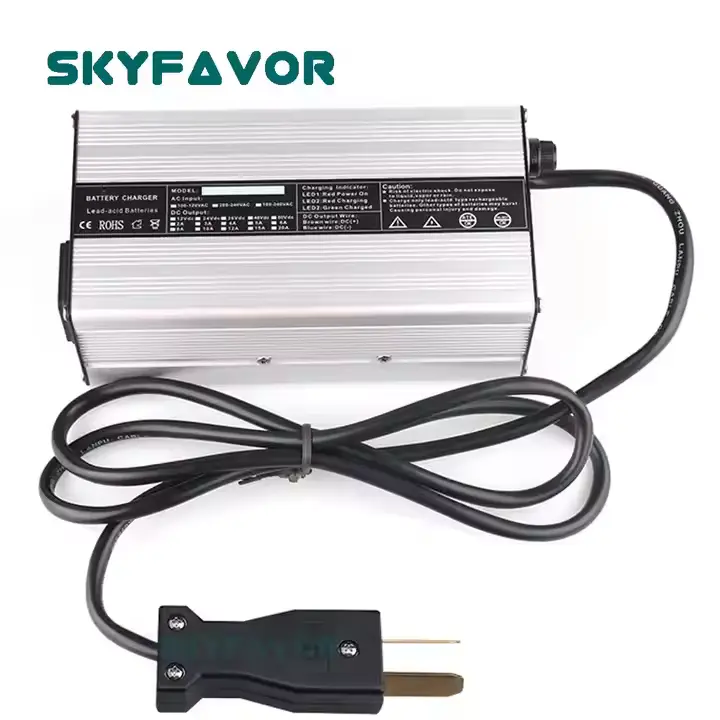

36V 5A Lead acid Battery Charger Golf cart Charger
The 36V 5A Lead acid Battery Charger Golf cart Chargerhas designed highly reliable and meet international safety and electromagnetic compatibility requirements.
A:Input Characteristics:
Input Voltage: 100-240Vac input AC voltage
Input Frequency: 50Hz or 60Hz and single phase.
B:Output Characteristics:
Constant Charging Voltage: 44.1V float charge 41.4V(for 36V lead acid battery)
C:Charging Mode36V 5A Lead acid Battery Charger Golf cart Charger
3 Stages, CC, CV, Trickle
D:Safety Test for battery charger
Hi-pot Test:15KVac 5mA 3 Seconds between input and output test
Resistance:The liftpo4 battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds
Drop test: Height: The wheelchair battery chargerconform to BS EN60068-2-32:1993 TEST ED: free fall appendix B
E:Protection for battery charger
Over Voltage Protection The power supply will be auto recovered when faults remove
Over Current Protection Charger output current does not exceed the set maximum battery charging current.
Over Short Circuit Protection Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)
Over reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.
F:DC Connector Dimension:36V 5A Lead acid Battery Charger Golf cart Charger
Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.
Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc
We are the professional manufacturer of all kinds of the battery chargers, we can make OEM customized battery charger for every customer.
Smart Automatic battery charger list | |||||||||
Model | Charging voltage¤t for reference | N.W. (KG) | Size(mm) | ||||||
84V | |||||||||
7A | 4A | 2.5A | 1.8A | 1.5A | _ | _ | 0.7 | 135x90x50 | |
10A | 5A | 3.5A | 2.5A | 2A | 1.5A | _ | 0.9 | 155x90x50 | |
15A | 7.5A | 5A | 3.8A | 3A | 2.5A | _ | 1 | 170x90x50 | |
20A | 12A | 8A | 6A | 4.5A | 4A | _ | 1.2 | 170x90x63 | |
25A | 19A | 12A | 9A | 7A | 6A | _ | 2.5 | 207x120x70 | |
40A | 25A | 18A | 15A | 12A | 10A | _ | 3 | 220x135x70 | |
40A | 25A | 18A | 15A | 12A | 10A | 8A | 3.5 | 260x175x90 | |
50A | 30A | 20A | 19A | 15A | 12A | 10A | 4.5 | 260x175x90 | |
60A | 45A | 30A | 24A | 19A | 16A | 14A | 5.5 | 300x175x90 | |
90A | 60A | 40A | 30A | 25A | 20A | 18A | 6.5 | 330x175x115 | |
- | 75A | 50A | 40A | 30A | 25A | 22A | 7 | 380x240x150 | |
150A | 100A | 80A | 60A | 45A | 40A | 35A | 11 | 340x235x110 | |
Product Introduction
Company Features
· With years of evolvement, Shenzhen Skyfavor Technology Co., ltd has been recognized as an expert in developing, designing, and manufacturing golf cart battery chargers for sale.
· In order to meet the high demands of the golf cart battery chargers for sale market, our company has successfully established its own professional R&D base. Our company has a strong R&D team with mature technology skills and rich experience in the golf cart battery chargers for sale industry. Our company has gained fame in the golf cart battery chargers for sale industry for our strong technical base.
· Our mission is to provide the highest quality products and focus on timely delivery. We are committed to providing comprehensive services that exceed customer requirements with reliable management and committed production control. Contact!
Product Comparison
Compared with similar products, our company's golf cart battery chargers for sale has the following outstanding features.
