Product details of the golf cart battery charger
Quick Detail
It will help a lot for the popularity of SKYFAVOR to perform the design. The quality of this product is well controlled by implementing strict testing process. It is well-known that SKYFAVOR has been developing wider sales network to spread its good quality golf cart battery charger.
Product Information
With a focus on details, Skyfavor strives to create high-quality golf cart battery charger.
|
Name |
48V lifepo4 battery charger 48V 10A custom automatic fast 48 volt 16S 58.4V lifepo4 battery chargers |
|
Model |
600W |
|
Battery type |
48V lifepo4 battery |
|
AC Input |
110Vac or 230Vac |
|
Output voltage |
58.4V |
|
Output current |
10A |
|
Protection |
Over Voltage Protection Over Current Protection Short Circuit Protection Reverse polarity Protection |
|
Apply to |
For 80AH,100AH,120AH 48V lifepo4 battery |

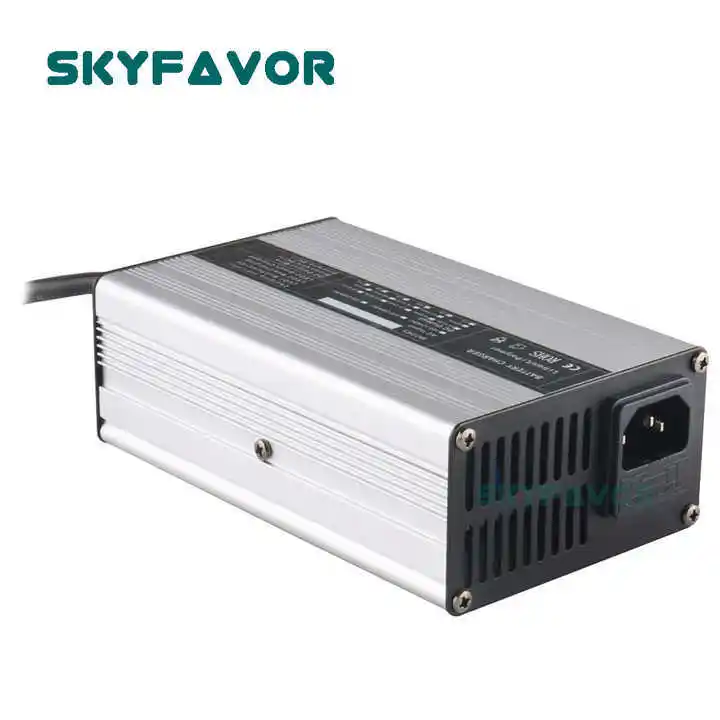

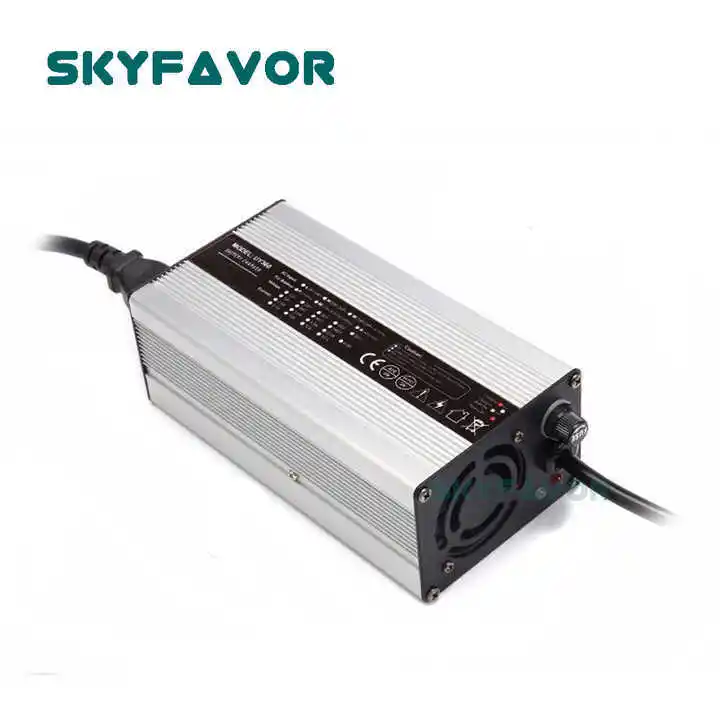

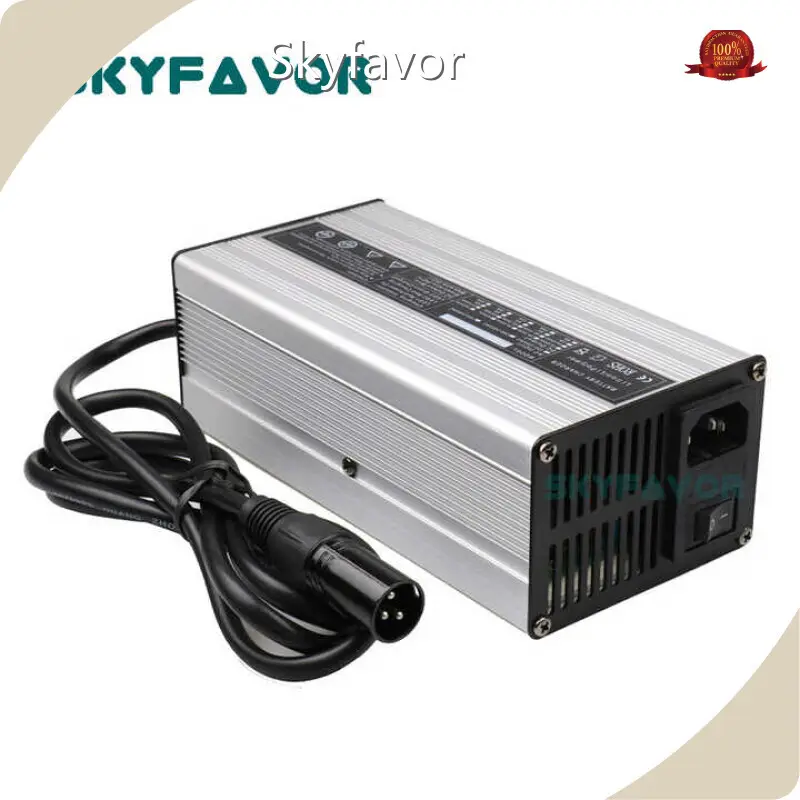

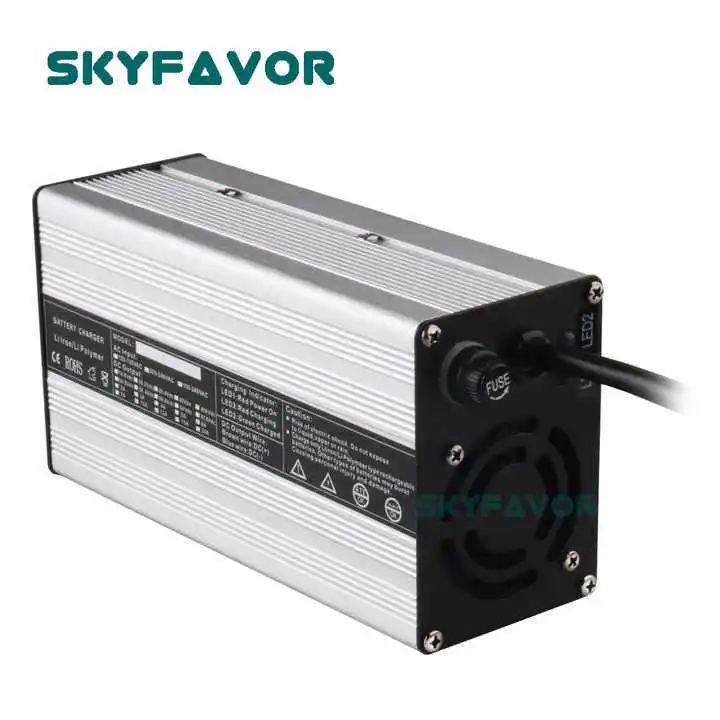

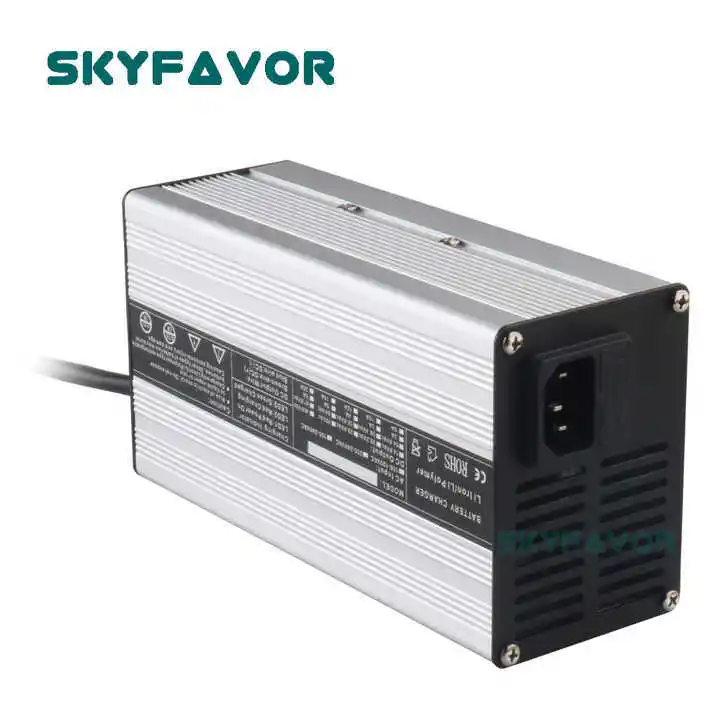

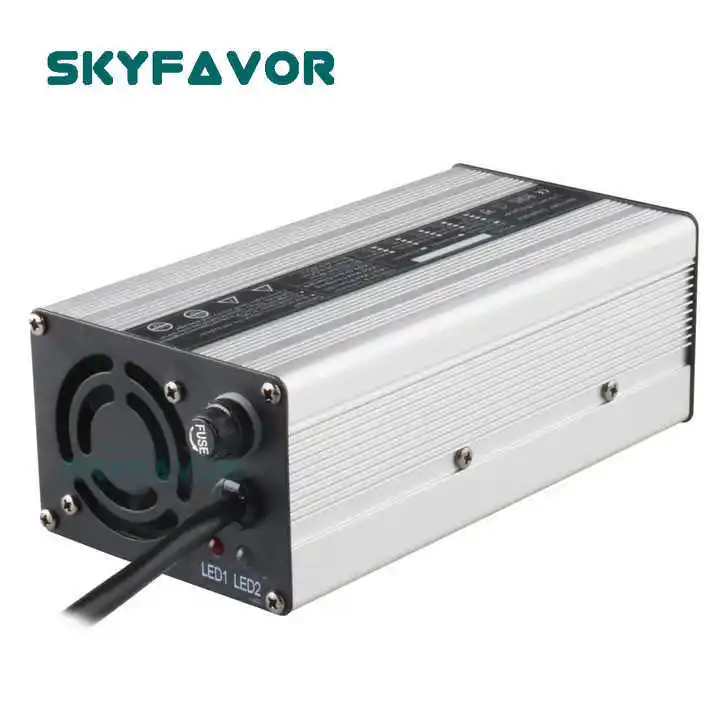

48V lifepo4 battery charger 48V 10A custom automatic fast 48 volt 16S 58.4V lifepo4 battery chargers
The 48V lifepo4 battery charger 48V 10A custom automatic fast 48 volt 16S 58.4V lifepo4 battery chargers has designed highly reliable and meet international safety and electromagnetic compatibility requirements.
A:Input Characteristics:
Input Voltage: 110V OR 230Vac input AC voltage
Input Frequency: 50Hz or 60Hz and single phase.
B:Output Characteristics:
Constant Charging Voltage:58.4V(for 48V 16S lifepo4 battery)
C:Charging Mode:48V lifepo4 battery charger 48V 10A custom automatic fast 48 volt 16S 58.4V lifepo4 battery chargers
3 Stages, CC, CV, Trickle
D:Safety Test for battery charger
Hi-pot Test:15KVac 5mA 3 Seconds between input and output test
Resistance:The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds
Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B
E:Protection for battery charger
Over Voltage Protection The battery charger will be auto recovered when faults remove
Over Current Protection Charger output current does not exceed the set maximum battery charging current.48V lifepo4 battery charger 48V 10A custom automatic fast 48 volt 16S 58.4V lifepo4 battery chargers
Short Circuit Protection Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)
reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.
F:DC Connector Dimension:48V lifepo4 battery charger 48V 10A custom automatic fast 48 volt 16S 58.4V lifepo4 battery chargers
Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.
Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc
We are the professional manufacturer of all kinds of the battery chargers, we can make OEM customized battery charger for every customer.
Smart Automatic battery charger list | |||||||||
Model | Charging voltage¤t for reference | N.W. (KG) | Size(mm) IDOITWELL | ||||||
84V | |||||||||
7A | 4A | 2.5A | 1.8A | 1.5A | _ | _ | 0.7 | 135x90x50 | |
10A | 5A | 3.5A | 2.5A | 2A | 1.5A | _ | 0.9 | 155x90x50 | |
15A | 7.5A | 5A | 3.8A | 3A | 2.5A | _ | 1 | 170x90x50 | |
20A | 12A | 8A | 6A | 4.5A | 4A | _ | 1.2 | 170x90x63 | |
25A | 19A | 12A | 9A | 7A | 6A | _ | 2.5 | 207x120x70 | |
40A | 25A | 18A | 15A | 12A | 10A | _ | 3 | 220x135x70 | |
40A | 25A | 18A | 15A | 12A | 10A | 8A | 3.5 | 260x175x90 | |
50A | 30A | 20A | 19A | 15A | 12A | 10A | 4.5 | 260x175x90 | |
60A | 45A | 30A | 24A | 19A | 16A | 14A | 5.5 | 300x175x90 | |
90A | 60A | 40A | 30A | 25A | 20A | 18A | 6.5 | 330x175x115 | |
- | 75A | 50A | 40A | 30A | 25A | 22A | 7 | 380x240x150 | |
150A | 100A | 80A | 60A | 45A | 40A | 35A | 11 | 340x235x110 | |
