Golf Cart Battery Charger by SKYFAVOR-1
Company Advantages
· SKYFAVOR golf cart battery charger is produced under the standardized and scientific production process.
· The product is the primary choice of customers worldwide for its high performance.
· The product caters to different market needs, leading to a more promising market application prospect.
|
Name |
48V 10A lihtium battery 48 volt charger for 12S or 13S li-ion battery charger |
|
Model |
600W |
|
Battery type |
48V lithium battery |
|
AC Input |
110Vac or 230Vac |
|
Output voltage |
50.4V(for 12S lithium battery)/54.6V(for 13S lithium battery) |
|
Output current |
10A |
|
Protection |
Over Voltage Protection Over Current Protection Short Circuit Protection Reverse polarity Protection |
|
Apply to |
For 25AH,30AH,35AH 48V lihtium battery |

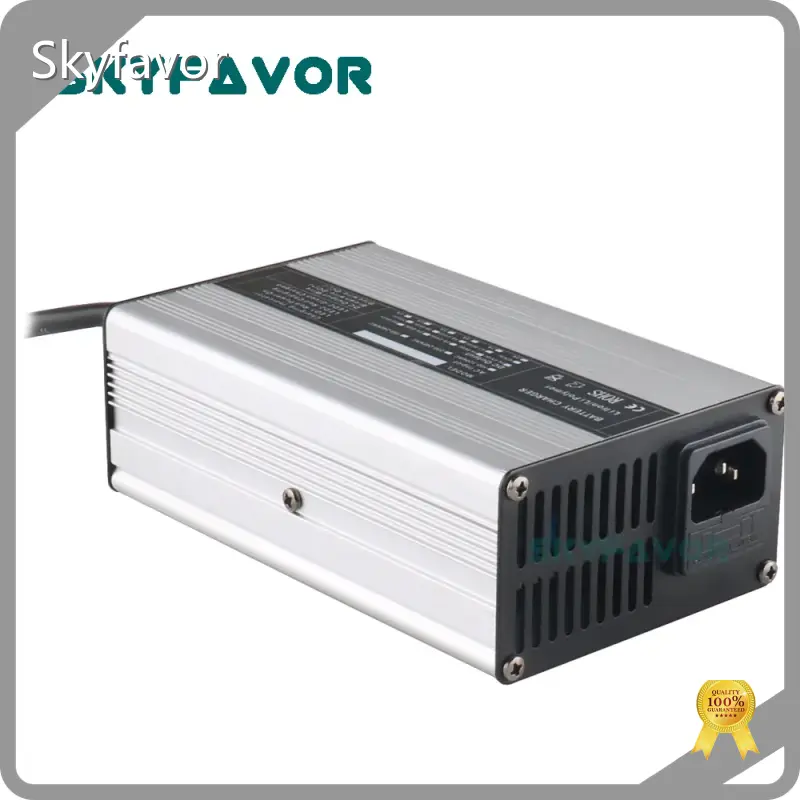

48V 10A lihtium battery 48 volt charger for 12S or 13S li-ion battery charger
The 48V 10A lihtium battery 48 volt charger for 12S or 13S li-ion battery charger has designed highly reliable and meet international safety and electromagnetic compatibility requirements.
A:Input Characteristics:
Input Voltage: 110V OR 230Vac input AC voltage
Input Frequency: 50Hz or 60Hz and single phase.
B:Output Characteristics:
Constant Charging Voltage:50.4V(for 12S lithium battery)/54.6V(for 13S lithium battery)
C:Charging Mode:48V 10A lihtium battery 48 volt charger for 12S or 13S li-ion battery charger
3 Stages, CC, CV, Trickle
D:Safety Test for battery charger
Hi-pot Test:15KVac 5mA 3 Seconds between input and output test
Resistance:The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds
Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B
E:Protection for battery charger
Over Voltage Protection The battery charger will be auto recovered when faults remove
Over Current Protection Charger output current does not exceed the set maximum battery charging current.48V 10A lihtium battery 48 volt charger for 12S or 13S li-ion battery charger
Short Circuit Protection Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)
reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.
F:DC Connector Dimension:48V 10A lihtium battery 48 volt charger for 12S or 13S li-ion battery charger
Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.
Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc
We are the professional manufacturer of all kinds of the battery chargers, we can make OEM customized battery charger for every customer.
Smart Automatic battery charger list | |||||||||
Model | Charging voltage¤t for reference | N.W. (KG) | Size(mm) | ||||||
84V | |||||||||
7A | 4A | 2.5A | 1.8A | 1.5A | _ | _ | 0.7 | 135x90x50 | |
10A | 5A | 3.5A | 2.5A | 2A | 1.5A | _ | 0.9 | 155x90x50 | |
15A | 7.5A | 5A | 3.8A | 3A | 2.5A | _ | 1 | 170x90x50 | |
20A | 12A | 8A | 6A | 4.5A | 4A | _ | 1.2 | 170x90x63 | |
25A | 19A | 12A | 9A | 7A | 6A | _ | 2.5 | 207x120x70 | |
40A | 25A | 18A | 15A | 12A | 10A | _ | 3 | 220x135x70 | |
40A | 25A | 18A | 15A | 12A | 10A | 8A | 3.5 | 260x175x90 | |
50A | 30A | 20A | 19A | 15A | 12A | 10A | 4.5 | 260x175x90 | |
60A | 45A | 30A | 24A | 19A | 16A | 14A | 5.5 | 300x175x90 | |
90A | 60A | 40A | 30A | 25A | 20A | 18A | 6.5 | 330x175x115 | |
- | 75A | 50A | 40A | 30A | 25A | 22A | 7 | 380x240x150 | |
150A | 100A | 80A | 60A | 45A | 40A | 35A | 11 | 340x235x110 | |
Product Introduction
Company Features
· Since its inception, Shenzhen Skyfavor Technology Co., ltd has continued to provide high-quality golf cart battery charger. We are considered a trustworthy provider and distributor.
· Our company has a professional R&D base and has been committed to developing high-quality golf cart battery charger. Our company has strong research and development capabilities. The internationally advanced development process has made our company always at the forefront of the golf cart battery charger industry.
· Shenzhen Skyfavor Technology Co., ltd will become a highly competitive company in the golf cart battery charger market. Inquire now!
Product Details
With a focus on product's quality, our company strives for excellent quality in the process of producing golf cart battery charger.
Application of the Product
Skyfavor's golf cart battery charger can be applied to different fields and scenes, which enables us to meet different requirements.
In the early stage, we conduct a communication survey to gain an in-depth understanding of the customer's problems. Therefore, we can develop solutions that best suit the customers based on the results of the communication survey.
Product Comparison
Compared with the products in the market, the golf cart battery charger produced by our company has the following advantages.
