Electric Golf Cart Charger by SKYFAVOR
Product details of the electric golf cart charger
Product Overview
electric golf cart charger, scientific in structure, can effectively prevent electrolyte splashing in the battery. In addition, it is strictly tested to ensure that all performance indicators meet the international standards. The raw material suppliers of SKYFAVOR electric golf cart charger have undergone rigorous screening. With the capacity to bear long time use, the product is highly durable. electric golf cart charger is mostly used in automobiles, motorcycles, tractors, diesel engines and other products. The product effectively serves various application purposes.
Product Introduction
Next, Skyfavor will present you with the specific details of electric golf cart charger.
|
Name |
36V waterproof battery charger 36V 12A club car EZGO RXV & TXT48 golf cart charger |
|
Model |
600W |
|
Battery type |
36V lead acid battery pack |
|
AC Input |
230Vac |
|
Output voltage |
44.1V float charge 41.4V |
|
Output current |
12A |
|
Protection |
Over Voltage Protection Over Current Protection Short Circuit Protection Reverse polarity Protection |
|
Apply to |
For 100AH 120Ah 150AH, 36V lead acid battery |

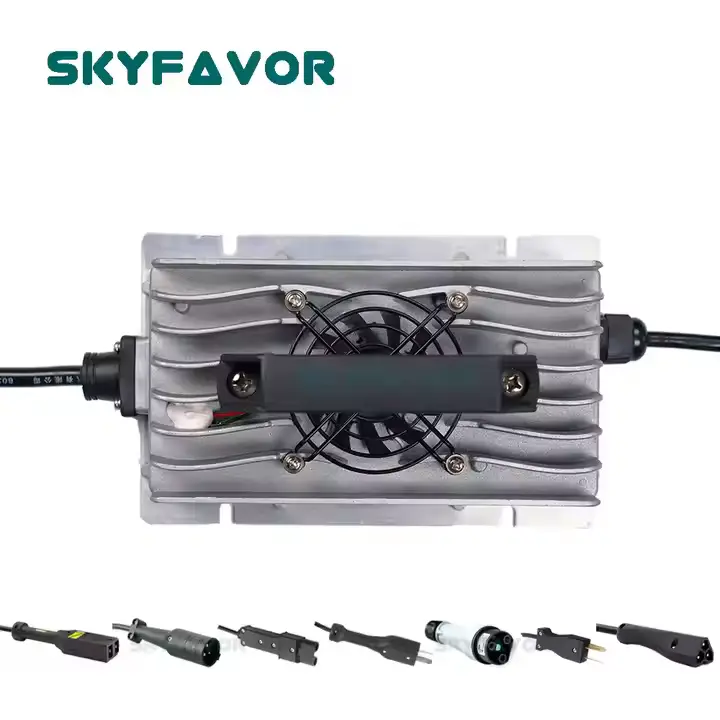

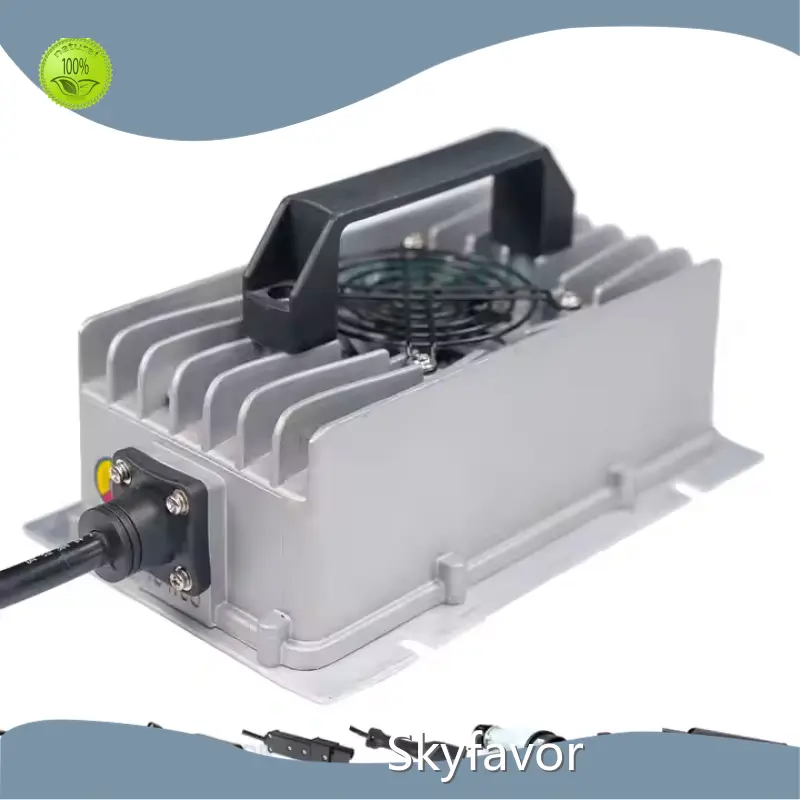

36V waterproof battery charger 36V 12A club car EZGO RXV & TXT48 golf cart charger
The 36V waterproof battery charger 36V 12A club car EZGO RXV & TXT48 golf cart charger has designed highly reliable and meet international safety and electromagnetic compatibility requirements.
A:Input Characteristics:
Input Voltage: 110Vac or 230Vac input AC voltage
Input Frequency: 50Hz or 60Hz and single phase.
B:Output Characteristics:
Constant Charging Voltage:44.1V flaot charge 41.4V(for 36V lead acid battery pack)
C:Charging Mode:36V waterproof battery charger 36V 12A club car EZGO RXV & TXT48 golf cart charger
4 Stages,pre-charge, CC, CV, Trickle
D:Safety Test for battery charger
Hi-pot Test:15KVac 5mA 3 Seconds between input and output test
Resistance:The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds
Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B
E:Protection for battery charger
Over Voltage Protection The battery charger will be auto recovered when faults remove
Over Current Protection Charger output current does not exceed the set maximum battery charging current.
Over Short Circuit Protection Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)
Over reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.
F:DC Connector Dimension:36V waterproof battery charger 36V 12A club car EZGO RXV & TXT48 golf cart charger
Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.
Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc
We are the professional manufacturer of all kinds of the battery chargers, we can make OEM customized battery charger for every customer
Smart Automatic battery charger list | |||||||||
Model | Charging voltage¤t for reference | N.W. (KG) | Size(mm) | ||||||
84V | |||||||||
7A | 4A | 2.5A | 1.8A | 1.5A | _ | _ | 0.7 | 135x90x50 | |
10A | 5A | 3.5A | 2.5A | 2A | 1.5A | _ | 0.9 | 155x90x50 | |
15A | 7.5A | 5A | 3.8A | 3A | 2.5A | _ | 1 | 170x90x50 | |
20A | 12A | 8A | 6A | 4.5A | 4A | _ | 1.2 | 170x90x63 | |
25A | 19A | 12A | 9A | 7A | 6A | _ | 2.5 | 207x120x70 | |
40A | 25A | 18A | 15A | 12A | 10A | _ | 3 | 220x135x70 | |
40A | 25A | 18A | 15A | 12A | 10A | 8A | 3.5 | 260x175x90 | |
50A | 30A | 20A | 19A | 15A | 12A | 10A | 4.5 | 260x175x90 | |
60A | 45A | 30A | 24A | 19A | 16A | 14A | 5.5 | 300x175x90 | |
90A | 60A | 40A | 30A | 25A | 20A | 18A | 6.5 | 330x175x115 | |
- | 75A | 50A | 40A | 30A | 25A | 22A | 7 | 380x240x150 | |
150A | 100A | 80A | 60A | 45A | 40A | 35A | 11 | 340x235x110 | |
