Dc to Dc Smart Charger - - SKYFAVOR
Product details of the dc to dc smart charger
Product Description
Selection of materials is another prominent feature of dc to dc smart charger. The product is guaranteed by our professional and responsible QC team to meet the industry standards. The offered product is highly demanded among customers for its outstanding features.
|
Name |

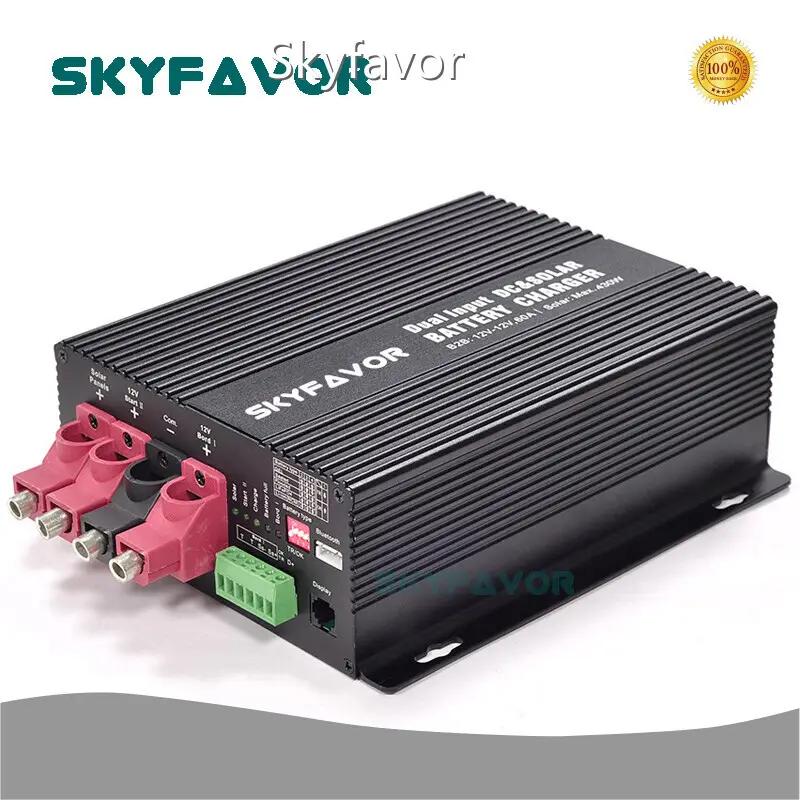

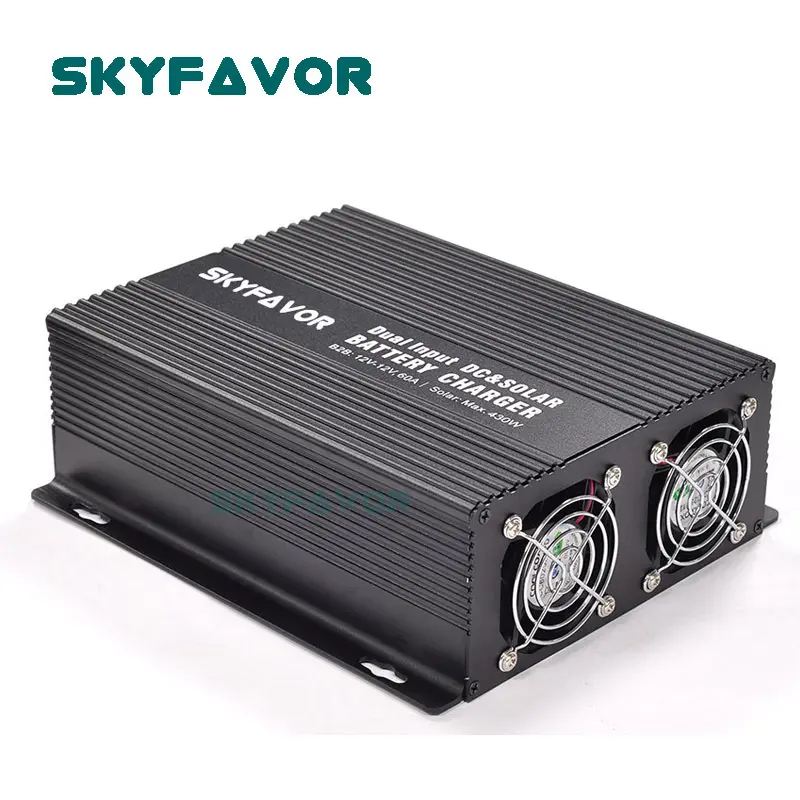

12V 30A DC to DC Dual Input Battery Charger 12V DC and MPPT solar battery charger |
|
Model |
123020BS |
|
Main Battery voltage |
12V |
|
Main battery type |
GEL,Sealed,Flooded/AGM,Lifepo4,Lithium-ion(NCM) |
|
Starter battery voltage |
12V |
|
Starter battery type |
Lead acid |
|
DC-DC Max charging current |
30A |
|
Solar Max charging current |
20A |
|
Solar Max voltage |
50V |
|
Self-consumption current |
24ma |
|
Dimension |
190X194X70mm |
|
Weight |
1.44kg |
|
Accessories(Optional) |
Monitor(MT-2) Bluetooth Dongle(BT10) Temperature Sensor(TRS) |
B2B Charge:
It means to charge the main battery through alternator and starter battery. If it is not used in the vehicle, you can also use one battery to charge another battery
1. When the vehicle is running, the vehicle alternator can quickly charge the main battery through the charger at full power
2. The charger can charge the main battery according to the specified voltage and current by boosting or stepping down to ensure that the main battery is in accordance with the standard.
12V 30A DC to DC Dual Input Battery Charger 12V DC and MPPT solar battery charger
MPPT solar charger
1.The charger can increase the charging efficiency of the solar panel by 10-30% through MPPT technology (search for the maximum power point)
2. The charger can charge the main battery according to the specified current by boosting or stepping down to ensure that the main battery is charged according to the standard charge curve charging
3. When the vehicle is not used for a long time, you can maintain a small trickle charge flow for the starter battery to ensure that the starter battery has enough electricity to start the vehicle
12V 30A DC to DC Dual Input Battery Charger 12V DC and MPPT solar battery charger
Other functions
1. Fully automatic charging: In order to continuously charge the battery, the controller can always be connected to the car battery. When the charging energy is stopped, such as the car stops driving, the battery will not discharge in the reverse direction.
2. Multiple protection functions: with overheating, overvoltage, short circuit, wrong connection protection
3.External temperature sensor: The ambient temperature will affect the parameters for charging the battery. The controller needs to perform parameter compensation according to the temperature of the battery, especially
Product Introduction
Company Feature
• Our company thinks highly of talents management and scientific and technological innovation. Therefore, our talents team is of high technical level and strong management ability.
• Since the establishment in Skyfavor has been pursuing innovation and progress. Now we have a relatively large business scale and great corporate strength.
• Skyfavor continues to innovate the business mode. We combine online channels with offline channels and expand sales channel, which enables us to build a nationwide marketing network.
• Our company persists in offering the high-quality logistics channel and the comprehensive pre-sales, sales, after-sales service systems.
• There is an obvious advantage in our company's location. And we are provided with a developed transportation infrastructure nearby and it is conducive to the long-term development of the company.
Large margin sales are going on. The more you buy, the more cost-effective price you will get. For details, please consult Skyfavor.
