Custom Battery Chargers - - SKYFAVOR-18
|
Name |
16S lifepo4 battery charger 48V 50A automatic 58.4V 50A fast waterproof battery chargers |
|
Model |
3000W |
|
Battery type |
48V 16S liFEPO4 battery pack |
|
AC Input |
230Vac |
|
Output voltage |
58.4V(for 16S Lifepo4 battery) |
|
Output current |
50A |
|
Protection |
Over Voltage Protection Over Current Protection Short Circuit Protection Reverse polarity Protection |
|
Apply to |
For 180AH 200Ah 250AH, 48v lilifepo4 battery |

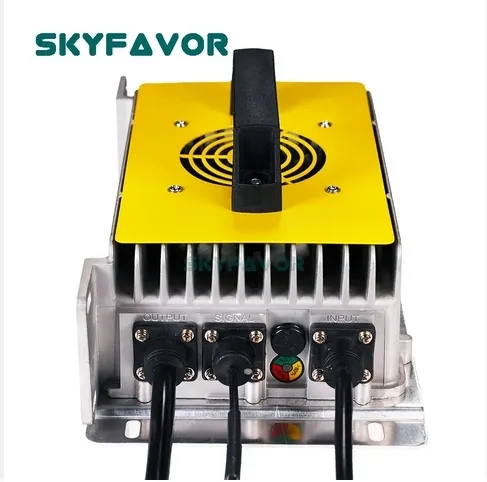

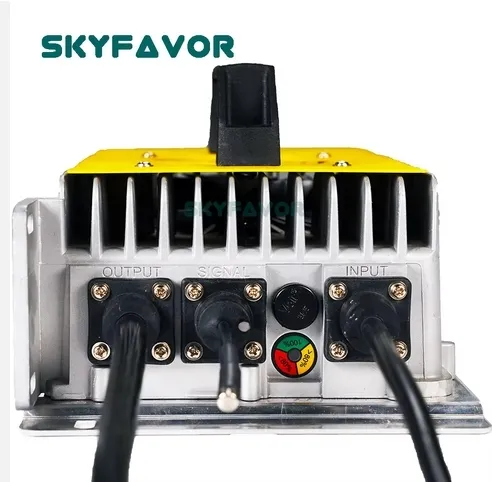

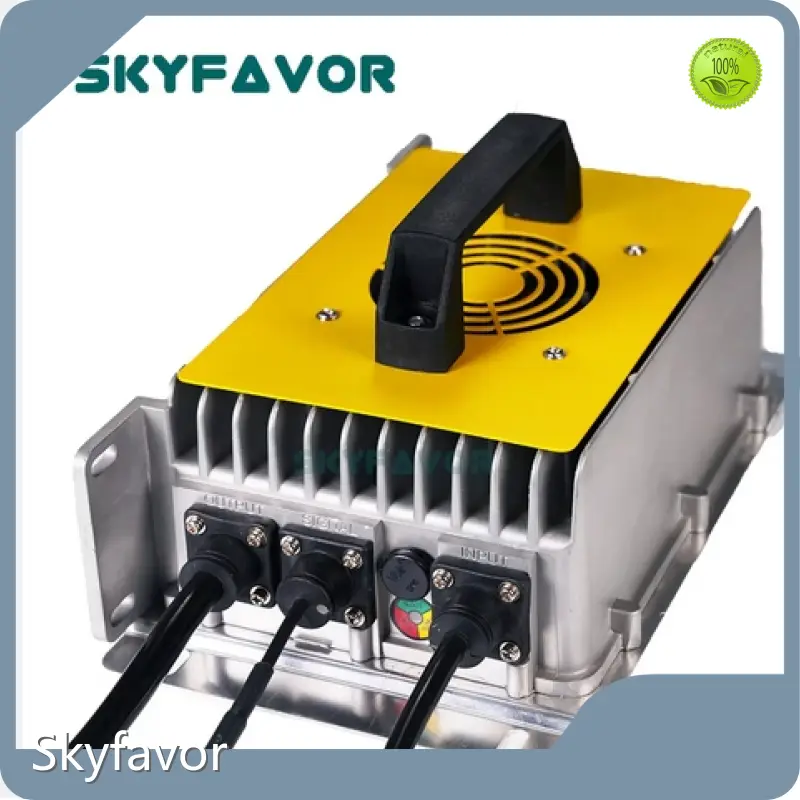

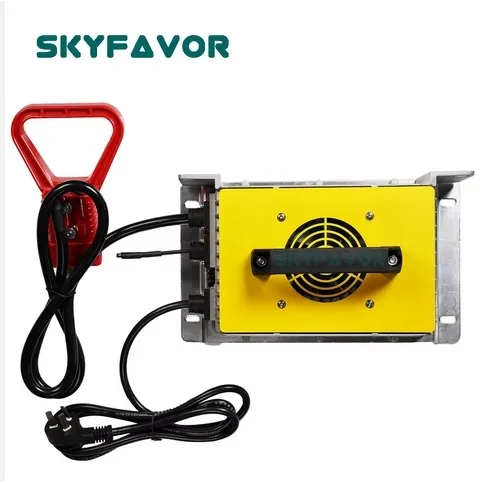

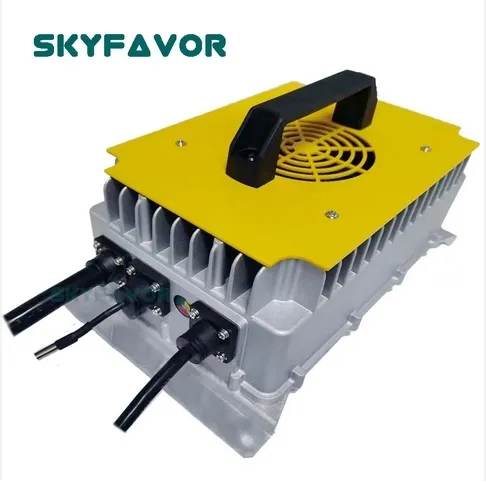

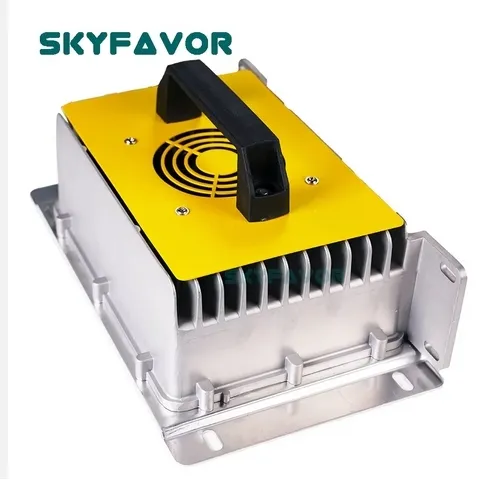

16S lifepo4 battery charger 48V 50A automatic 58.4V 50A fast waterproof battery chargers
The 16S lifepo4 battery charger 48V 50A automatic 58.4V 50A fast waterproof battery chargers has designed highly reliable and meet international safety and electromagnetic compatibility requirements.
A:Input Characteristics:
Input Voltage: 230Vac input AC voltage
Input Frequency: 50Hz or 60Hz and single phase.
B:Output Characteristics:
Constant Charging Voltage: 58.4V(for 16S lifepo4 battery pack)
C:Charging Mode:16S lifepo4 battery charger 48V 50A automatic 58.4V 50A fast waterproof battery chargers
4 Stages,pre-charge, CC, CV, Trickle
D:Safety Test for battery charger
Hi-pot Test:15KVac 5mA 3 Seconds between input and output test
Resistance:The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds
Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B
E:Protection for battery charger
Over Voltage Protection The battery charger will be auto recovered when faults remove
Over Current Protection Charger output current does not exceed the set maximum battery charging current.
Over Short Circuit Protection Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)
Over reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.
F:DC Connector Dimension:16S lifepo4 battery charger 48V 50A automatic 58.4V 50A fast waterproof battery chargers
Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.
Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 et
Other functions
Smart Automatic battery charger list |
|||||||||
|
Model |
Charging voltage¤t for reference |
N.W. (KG) |
Size(mm) |
||||||
|
84V |
|||||||||
|
7A |
4A |
2.5A |
1.8A |
1.5A |
_ |
_ |
0.7 |
135x90x50 |
|
|
10A |
5A |
3.5A |
2.5A |
2A |
1.5A |
_ |
0.9 |
155x90x50 |
|
|
15A |
7.5A |
5A |
3.8A |
3A |
2.5A |
_ |
1 |
170x90x50 |
|
|
20A |
12A |
8A |
6A |
4.5A |
4A |
_ |
1.2 |
170x90x63 |
|
|
25A |
19A |
12A |
9A |
7A |
6A |
_ |
2.5 |
207x120x70 |
|
|
40A |
25A |
18A |
15A |
12A |
10A |
_ |
3 |
220x135x70 |
|
|
40A |
25A |
18A |
15A |
12A |
10A |
8A |
3.5 |
260x175x90 |
|
|
50A |
30A |
20A |
19A |
15A |
12A |
10A |
4.5 |
260x175x90 |
|
|
60A |
45A |
30A |
24A |
19A |
16A |
14A |
5.5 |
300x175x90 |
|
|
90A |
60A |
40A |
30A |
25A |
20A |
18A |
6.5 |
330x175x115 |
|
|
- |
75A |
50A |
40A |
30A |
25A |
22A |
7 |
380x240x150 |
|
|
150A |
100A |
80A |
60A |
45A |
40A |
35A |
11 |
340x235x110 | |
Product Introduction
Company Advantages
· The materials of SKYFAVOR custom battery chargers is high quality as they are manufactured on standardizarion production line.
· SKYFAVOR's concentration on the product quality turns out to be effective.
· SKYFAVOR has been putting emphasis on the quality of service.
Company Features
· Shenzhen Skyfavor Technology Co., ltd is a reliable and trustworthy custom battery chargers supplier for many famous companies.
· Our manufacturing plant is strategically placed. This enables us to maximize efficiency and ensure products are where they need to be at the right time.
· We put both business success and environment protection as our priority. During production, we will seek quality yet more environmentally friendly materials so as to achieve sustainable development.
Application of the Product
custom battery chargers of Skyfavor can play a role in various industries.
With a focus on customers, Skyfavor analyzes problems from the perspective of customers. And we provide customers with comprehensive, professional and excellent solutions.
