Product details of the custom battery chargers
Product Introduction
The design of SKYFAVOR custom battery chargers is designed by our R&D team based on an analysis of the market situation. The design is reasonable and can maximize the overall performance for a wider application. This product is unsurpassable in terms of quality and performance. This product plays an important role in the development of SKYFAVOR in the industry.
Name |

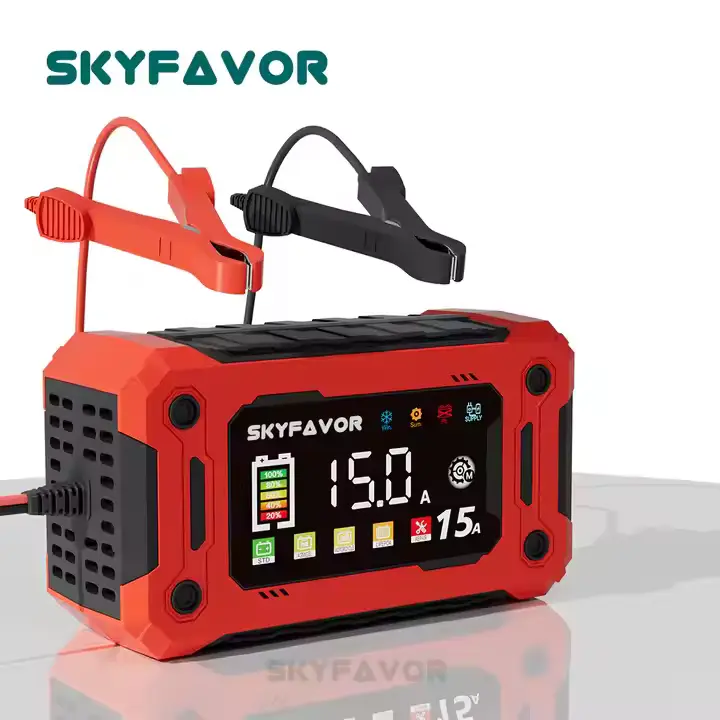

Universal 12V battery charger 12V 15A fast smart automatic motorcycle car battery charger |
Mode |
1215A |
Input |
100-240Vac |
Output |
14.7V Float charge voltage:13.8V (for 12V lead acid battery) |
Output current |
12V 15A |
Features: |

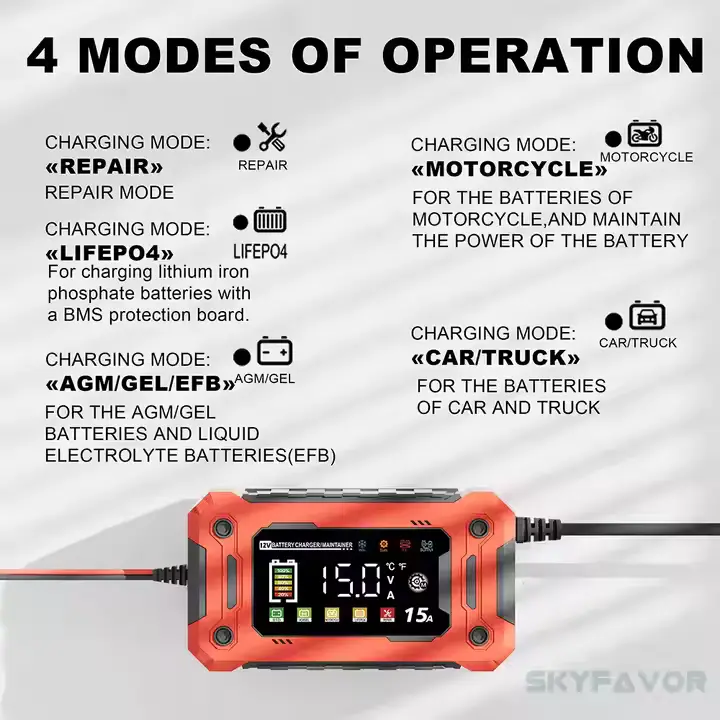

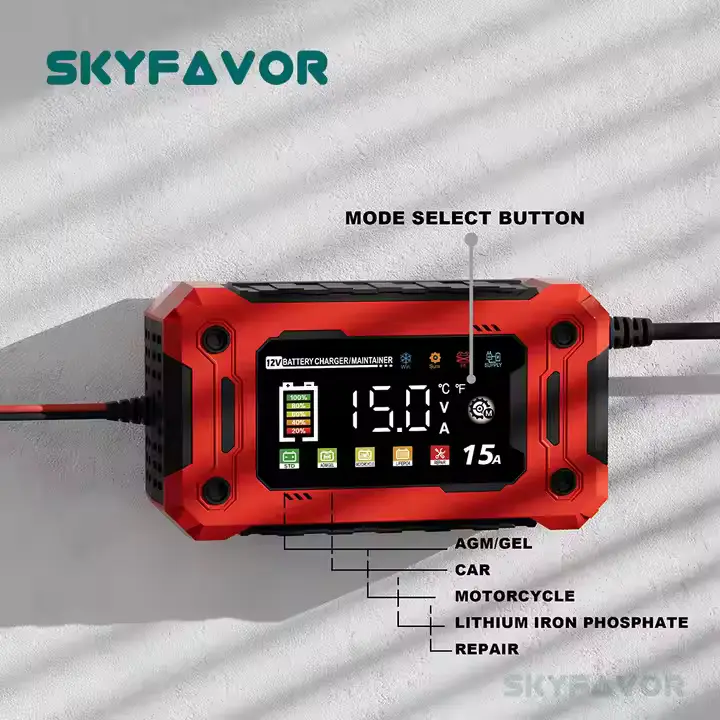

12V 15A power supply function GEL AGEM lead acid battery and lifepo4 battery automatic conversion Intelligent Pulse Repair |
Compatibility |
4AH-200AH lead acid battery |
Protection |

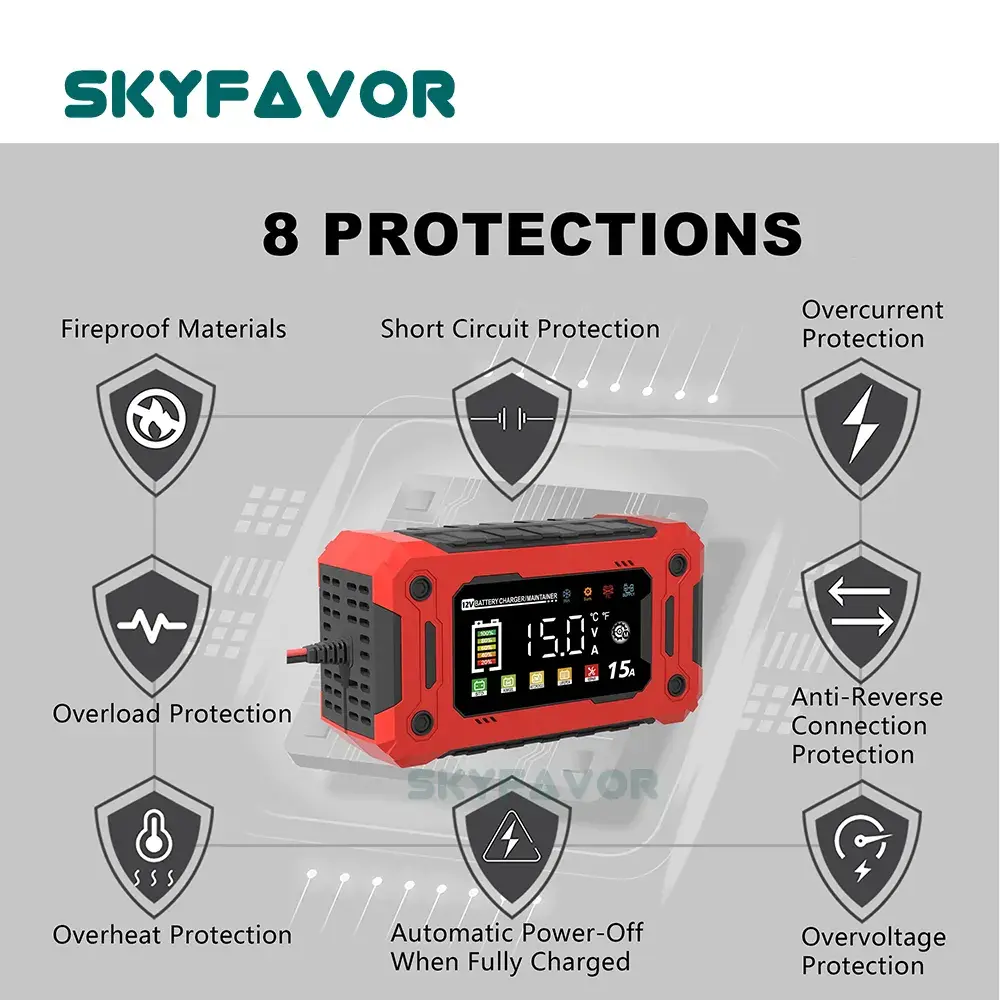

-Short circuit protection -Low-voltage protection -Overvoltage protection -Overcurrent protection -Overheating protection -Smart security protection -Overall earthquake resistance -Overcharge and overdischarge protection -Reverse connection protection -Overshoot over discharge protection |
Apply to |
Children's toy cars, motorcycles, cars, buses, trucks, etc. |
weight |
700g
|
* Microprocessor Control (CPU).* This is a fully automatic battery charger* Automatic charging protects your battery from being overcharged. So you can leave the charger connected to the battery indefinitely.* Smart chargers are suitable for most battery types including Calcium, Gel AGM, Wet, lead Acid batteries. They may also help restore drained and sulphated batteries.* Types of batteries: Most types of lead acid batteries including Calcium, Gel AGM, Wet, lead Acid, LiFePO4,etc..* Switchmode technology: Yes* Polarity protection: Yes* Output short protection: Yes* Non battery link protection: Yes* Over voltage protection: Yes* Over temperature protection: Yes* Cooling: Fan* Input voltage: 100-240V AC, 50-60Hz* Rated output: 12V 15A max.* Minimum start voltage: 8.0V* Battery range: 4-200Ah* Thermal protect: 65'C+/-5'C* Efficiency: App. 85%.* Compliant standards: CE, UKCA, FCC* Dimension (L×W×H): 152.5×84×55mm* Weight: 700g
SKYFAVOR Smart Automatic battery charger list | |||||||||
Model | Charging voltage¤t for reference | N.W. (KG) | Size(mm) | ||||||
84V | |||||||||
7A | 4A | 2.5A | 1.8A | 1.5A | _ | _ | 0.7 | 135x90x50 | |
10A | 5A | 3.5A | 2.5A | 2A | 1.5A | _ | 0.9 | 155x90x50 | |
15A | 7.5A | 5A | 3.8A | 3A | 2.5A | _ | 1 | 170x90x50 | |
20A | 12A | 8A | 6A | 4.5A | 4A | _ | 1.2 | 170x90x63 | |
25A | 19A | 12A | 9A | 7A | 6A | _ | 2.5 | 207x120x70 | |
40A | 25A | 18A | 15A | 12A | 10A | _ | 3 | 220x135x70 | |
40A | 25A | 18A | 15A | 12A | 10A | 8A | 3.5 | 260x175x90 | |
50A | 30A | 20A | 19A | 15A | 12A | 10A | 4.5 | 260x175x90 | |
60A | 45A | 30A | 24A | 19A | 16A | 14A | 5.5 | 300x175x90 | |
90A | 60A | 40A | 30A | 25A | 20A | 18A | 6.5 | 330x175x115 | |
- | 75A | 50A | 40A | 30A | 25A | 22A | 7 | 380x240x150 | |
150A | 100A | 80A | 60A | 45A | 40A | 35A | 11 | 400x300x200 |
