Custom Battery Chargers - - SKYFAVOR-14

Product details of the custom battery chargers

Product Information

custom battery chargers is unique in design. Compared with other products, the product has more obvious advantages of longer service life and more stable performance which have been tested by authoritative third parties. SKYFAVOR is experienced in supplying exquisite custom battery chargers for customers.

Features:

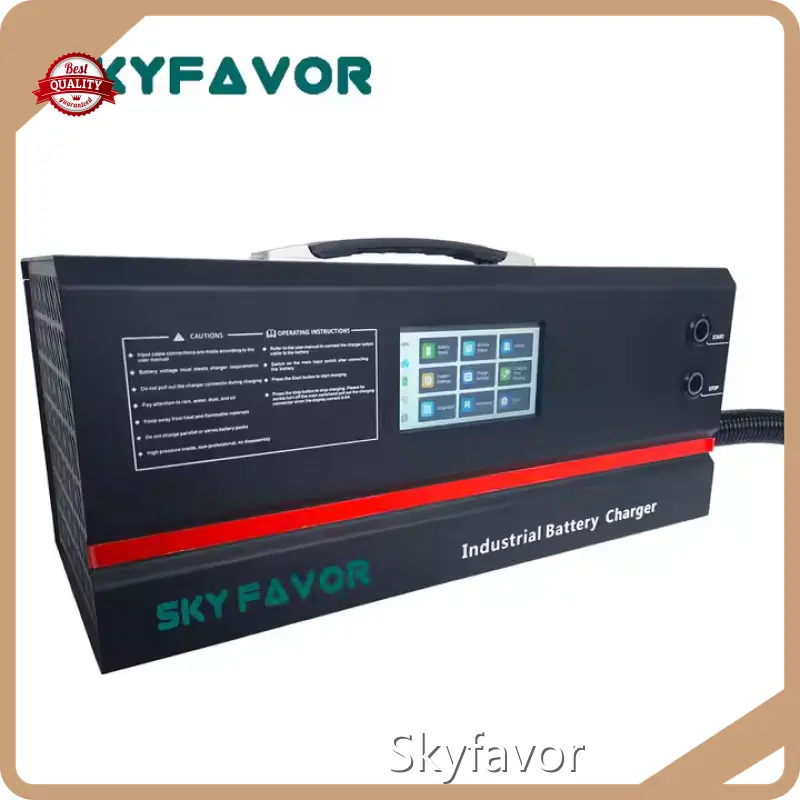

High-efficiency smart charging system is designed for battery charging of electric vehicles. It is suitable for the charging of electric forklifts, electric pallet trucks, electric vans, electric stackers, electric tractors, AGV, electric sightseeing cars, golf carts, patrol cars, engineering cars, sanitation vehicle. The high-efficiency smart charging system adopts the structure of an integrated charger. The overall is composed of one power rectifying unit, one charging monitoring unit, and one charging socket, the charging process is fully automated to perform the charging management of the battery.

Smart and reliableLCD/LED displayHistory alarm records-1000Charging history-300Emergency stop buttonSmart compensation charging algorithm



Safe and stableWide input voltage range 90~264VOutput voltage ripple ±1%Current ripple ±3%Output current accuracy ±2%Cutomized managementHumanizeLiquid battery IUIa charging managementDedicated charge management for valve-regulated batteriesLithium battery CAN communicationAdvanced heat dissipation technologyMaintain optimal battery performance and battery health.

Energy efficientPFC more than 0.99 ;24V charger efficiency exceeds 92%;48V charger efficiency over 95%;THD ≤ 10%;Power conversion efficiency is high and save cost;Zero Voltage Switching ZVS+MOSFET TechnologyDC 300A, Different voltage 24/36/48/72/80/96V,120V

We are the professional manufacturer of all kinds of the battery chargers, such as SLA, AGM,GEL lead-acid battery charger, lithium battery charger, lifepo4 battery charger, etc. We can customize all kinds of battery charger for every customer, any quantity is ok.

Each charger only can charge for one kind battery, such as if you choose lead acid battery, we will manufacture the lead acid battery charger, it will not work for lithium battery or lifepo4 battery. Because different kind battery charger the charging curve is different.

Smart Automatic battery charger list
Model	Charging voltage&current for reference							N.W. (KG)	Size(mm)
	12V	24V	36V	48V	60V	72V	84V
120W	7A	4A	2.5A	1.8A	1.5A	_	_	0.7	135x90x50
180W	10A	5A	3.5A	2.5A	2A	1.5A	_	0.9	155x90x50
240W	15A	7.5A	5A	3.8A	3A	2.5A	_	1	170x90x50
360W	20A	12A	8A	6A	4.5A	4A	_	1.2	170x90x63
600W	25A	19A	12A	9A	7A	6A	_	2.5	207x120x70
900W	40A	25A	18A	15A	12A	10A	_	3	220x135x70
900WB	40A	25A	18A	15A	12A	10A	8A	3.5	260x175x90
1200W	50A	30A	20A	19A	15A	12A	10A	4.5	260x175x90
1500W	60A	45A	30A	24A	19A	16A	14A	5.5	300x175x90
2000W	90A	60A	40A	30A	25A	20A	18A	6.5	330x175x115
2500W	-	75A	50A	40A	30A	25A	22A	7	380x240x150
4000W	150A	100A	80A	60A	45A	40A	35A	11	340x235x110

 Product Introduction

cdaca7c9576d9c12dc3b50873c2c418

d3682f32c03810a416483bd0fd9e190

dcb86a48dff053476390eb05379d330

b4311b3737c90e0d9e0a1cdeea7fbe4

acfbccbe04bd9869e99e78aa5aa2907

a09da0806ea4c18b5be934290ecbde1

63bffa7a4adeb49e832c830fbdd4037

1cfe9705b04427bbd0e7a2647e12ddd
