Custom Battery Chargers - - SKYFAVOR-12
|
Name |

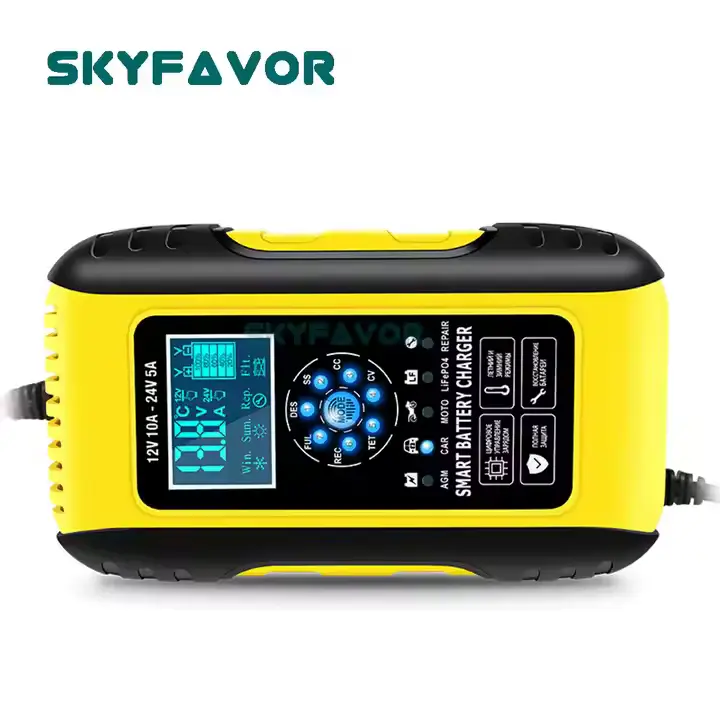

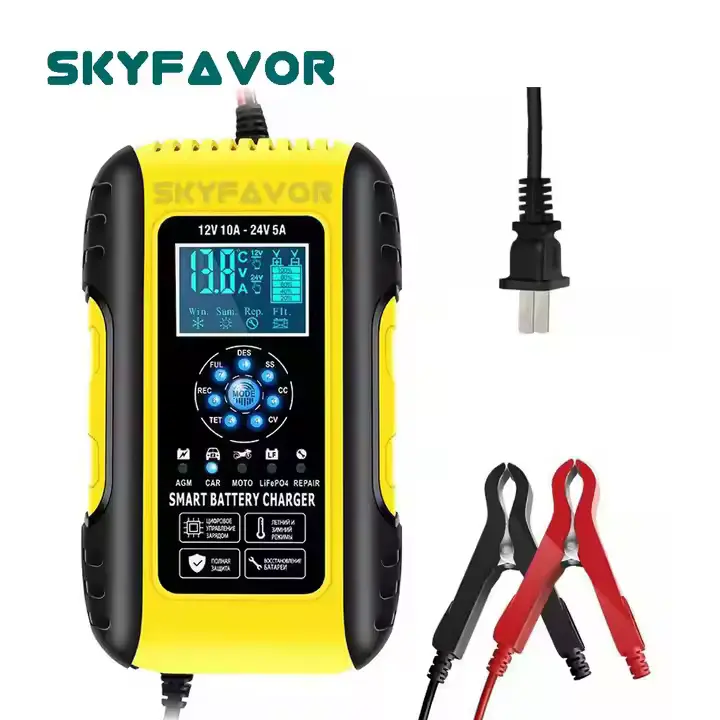

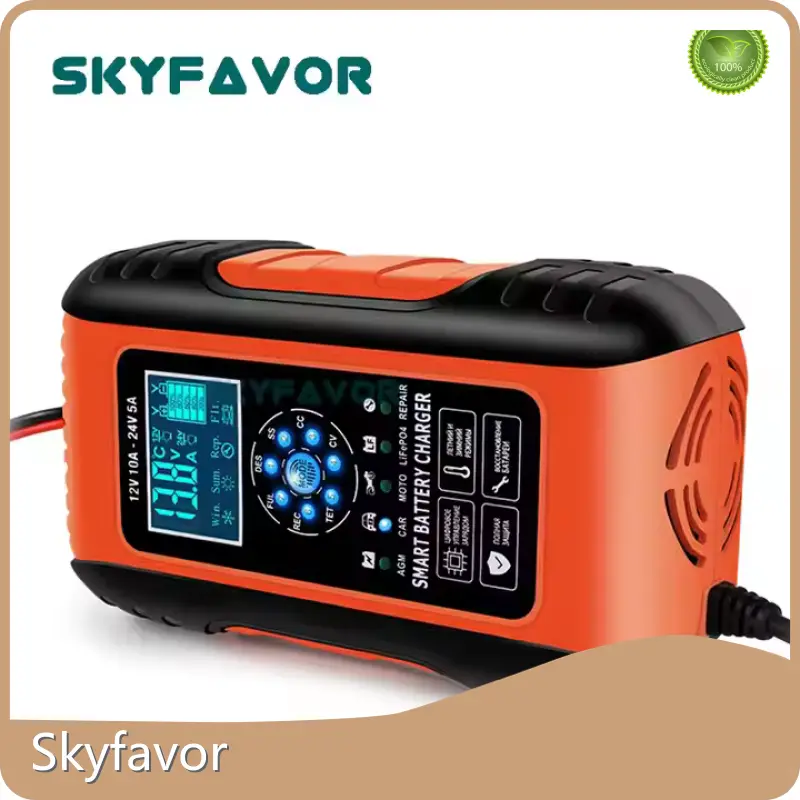

Universal 12V 24V Pulse Repair lead acid lifepo4 battery charger |
|
Mode |
122410Z |
|
Input |
110Vac-220Vac |
|
Output |
14.7V Float charge voltage:13.8V (for 12V lead acid battery) 29.4V Float charge voltage:27.6V (for 24V lead acid battery) 14.6V (for 4S lifepo4 battery) 29.2V (for 8S lifepo4 battery) |
|
Output current |
12V 10A 24V 5A |
|
Features: |
12v/24v automatic conversion Intelligent Pulse Repair |
|
Compatibility |
24AH-120AH lead acid battery |
|
Protection |
-Short circuit protection -Low-voltage protection -Overvoltage protection -Overcurrent protection -Overheating protection -Smart security protection -Overall earthquake resistance -Overcharge and overdischarge protection -Reverse connection protection -Overshoot over discharge protection |
|
Apply to |
Children's toy cars, motorcycles, cars, buses, trucks, etc. |
|
weight |
640g |
Features:
· Microprocessor Control (CPU).
· 7-STAGE AUTOMATIC CHARGING:
· This is a fully automatic battery charger with 7 charge stages.
· Automatic charging protects your battery from being overcharged. So you can leave the charger connected to the battery indefinitely.
· 7-stage chargers are suitable for most battery types including Calcium, Gel AGM, LiFePo4, Wet, lead Acid batteries. They may also help restore drained and sulphated batteries.
· Types of batteries: Most types of lead acid batteries including Calcium, Gel AGM, LiFePo4, Wet, lead Acid, etc..
· Switchmode technology: Yes
· Polarity protection: Yes
· Output short protection: Yes
· Non battery link protection: Yes
· Over voltage protection: Yes
· Over temperature protection: Yes
· Cooling: Fan
· Input voltage: 100-240V AC, 50-60Hz
· Rated output: 12V 10A , 24V 5A
· Minimum start voltage: 8.0V
· Battery range: 6-180Ah
· Thermal protect: 65'C+/-5'C
· Efficiency: App. 85%.
· Compliant standards: CE, IEC60335, EN61000, EN55014
· Dimension (L×W×H): 23*13.5*7.5cm
· Weight: 640g
Universal lead acid lifepo4 battery charger 12V 10A 24V 5A Automatic Intelligent battery charger
Smart Automatic battery charger list | |||||||||
Model | Charging voltage¤t for reference | N.W. (KG) | Size(mm) | ||||||
84V | |||||||||
7A | 4A | 2.5A | 1.8A | 1.5A | _ | _ | 0.7 | 135x90x50 | |
10A | 5A | 3.5A | 2.5A | 2A | 1.5A | _ | 0.9 | 155x90x50 | |
15A | 7.5A | 5A | 3.8A | 3A | 2.5A | _ | 1 | 170x90x50 | |
20A | 12A | 8A | 6A | 4.5A | 4A | _ | 1.2 | 170x90x63 | |
25A | 19A | 12A | 9A | 7A | 6A | _ | 2.5 | 207x120x70 | |
40A | 25A | 18A | 15A | 12A | 10A | _ | 3 | 220x135x70 | |
40A | 25A | 18A | 15A | 12A | 10A | 8A | 3.5 | 260x175x90 | |
50A | 30A | 20A | 19A | 15A | 12A | 10A | 4.5 | 260x175x90 | |
60A | 45A | 30A | 24A | 19A | 16A | 14A | 5.5 | 300x175x90 | |
90A | 60A | 40A | 30A | 25A | 20A | 18A | 6.5 | 330x175x115 | |
- | 75A | 50A | 40A | 30A | 25A | 22A | 7 | 380x240x150 | |
150A | 100A | 80A | 60A | 45A | 40A | 35A | 11 | 400x300x200 | |
Product Introduction
Company Advantages
· SKYFAVOR custom battery chargers is manufactured utilizing the finest materials and the latest production technology.
· As we always keep 'Quality first' firmly in mind, the product is sure to be of the highest quality.
· The market prospect of this product is promising because it can bring huge economic benefits and is favored by customers.
Company Features
· With years of experience and expertise in designing and manufacturing of custom battery chargers, Shenzhen Skyfavor Technology Co., ltd has taken its place among manufacturers in the industry.
· Our company is located near to the consumer market. This not only helps reduce transportation and distribution costs but helps render quick services to the customers.
· A good image of SKYFAVOR springs from the good quality of custom battery chargers, as well as the service to customers. Please contact.
Application of the Product
Our custom battery chargers has been widely used in many industries.
We have been engaged in the production and management of Battery charger for many years. For some problems encountered by customers in the procurement, we have the ability to provide customers with a practical and effective solution to help customers solve problems better.
