Custom Battery Chargers by SKYFAVOR-21
Company Advantages
· The superior raw materials of SKYFAVOR custom battery chargers are sourced from top-grade suppliers.
· Its quality competitiveness index has kept stabilized over the years.
· The product is easily accepted by the customers due to a convenient sales network.
|
Name |

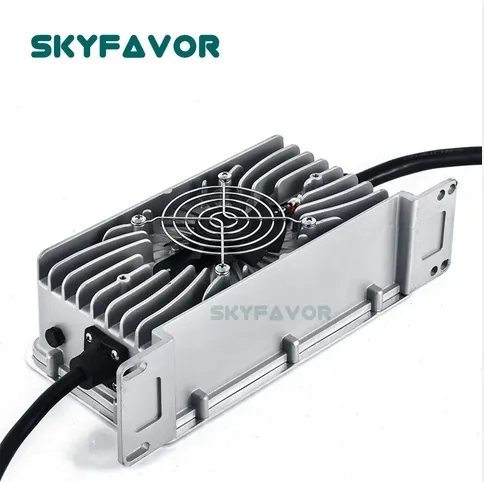

Waterproof 36V lead acid battery charger 36V 20A professional fast automatic battery charger |
|
Model |
1100W |
|
Battery type |
36V lead acid battery pack |
|
AC Input |
110Vac or 230Vac |
|
Output voltage |
44.1V float charge 41.4V |
|
Output current |
20A |
|
Protection |
Over Voltage Protection Over Current Protection Short Circuit Protection Reverse polarity Protection |
|
Apply to |
For 180Ah 200AH,240AH 36V lead acid battery |
Waterproof 36V lead acid battery charger 36V 20A professional fast automatic battery charger
The Waterproof 36V lead acid battery charger 36V 20A professional fast automatic battery charger has designed highly reliable and meet international safety and electromagnetic compatibility requirements.
A:Input Characteristics:
Input Voltage: 110Vac or 230Vac input AC voltage
Input Frequency: 50Hz or 60Hz and single phase.
B:Output Characteristics:
Constant Charging Voltage:44.1V float charge 41.4V(for 36V lead acid battery)
C:Charging Mode:Waterproof 36V lead acid battery charger 36V 20A professional fast automatic battery charger
3 Stages, CC, CV, Trickle
D:Safety Test for battery charger
Hi-pot Test:15KVac 5mA 3 Seconds between input and output test
Resistance:The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds
Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B
E:Protection for battery charger
Over Voltage Protection The battery charger will be auto recovered when faults remove
Over Current Protection Charger output current does not exceed the set maximum battery charging current.
Over Short Circuit Protection Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)
Over reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.
F:DC Connector Dimension:Waterproof 36V lead acid battery charger 36V 20A professional fast automatic battery charger
Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.
Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc
We are the professional manufacturer of all kinds of the battery chargers, we can make OEM customized battery charger for every customer
Smart Automatic battery charger list |
|||||||||
|
Model |
Charging voltage¤t for reference |
N.W. (KG) |
Size(mm) |
||||||
|
84V |
|||||||||
|
7A |
4A |
2.5A |
1.8A |
1.5A |
_ |
_ |
0.7 |
135x90x50 |
|
|
10A |
5A |
3.5A |
2.5A |
2A |
1.5A |
_ |
0.9 |
155x90x50 |
|
|
15A |
7.5A |
5A |
3.8A |
3A |
2.5A |
_ |
1 |
170x90x50 |
|
|
20A |
12A |
8A |
6A |
4.5A |
4A |
_ |
1.2 |
170x90x63 |
|
|
25A |
19A |
12A |
9A |
7A |
6A |
_ |
2.5 |
207x120x70 |
|
|
40A |
25A |
18A |
15A |
12A |
10A |
_ |
3 |
220x135x70 |
|
|
40A |
25A |
18A |
15A |
12A |
10A |
8A |
3.5 |
260x175x90 |
|
|
50A |
30A |
20A |
19A |
15A |
12A |
10A |
4.5 |
260x175x90 |
|
|
60A |
45A |
30A |
24A |
19A |
16A |
14A |
5.5 |
300x175x90 |
|
|
90A |
60A |
40A |
30A |
25A |
20A |
18A |
6.5 |
330x175x115 |
|
|
- |
75A |
50A |
40A |
30A |
25A |
22A |
7 |
380x240x150 |
|
|
150A |
100A |
80A |
60A |
45A |
40A |
35A |
11 |
340x235x110 | |
Product Introduction
Company Features
· Shenzhen Skyfavor Technology Co., ltd is a remarkable enterprise which mainly producing custom battery chargers.
· Our company is internationally well-known because of the technology strength. We have advanced technology and advanced production equipment to ensure the quality of custom battery chargers.
· SKYFAVOR has been always insisting on independent innovation and believes which will continuously enhance its core competitiveness. Get quote!
Enterprise Advantages
Our company has a first-class product safety management team and product development team. Moreover, our more stable position in the market provides a solid guarantee for the industrial upgrading of products.
Skyfavor keeps pace with the major trend of 'Internet +' and involves in online marketing. We strive to meet the needs of different consumer groups and provide more comprehensive and professional services.
Skyfavor's mission is to lead the industry to develop and promote society to progress. Customers are our priority and honesty and mutual benefits are what we always adhere to. We are dedicated to providing quality products and services for customers. We strive to be a leading and influential enterprise, so as to lead the industry to develop.
Since the establishment in Skyfavor has been introducing advanced knowledge and technology. During the development for years, we have made remarkable achievements in the industry.
Skyfavor's products are highly recognized by consumers and are very popular both at home and abroad.
