Custom Battery Chargers by SKYFAVOR-19
Product details of the custom battery chargers
Product Information
The production process of SKYFAVOR custom battery chargers is strictly controlled utilizing high precision machine. Quality and reliability are the basic characteristics of the product. Since the establishment of a well-organized service team, SKYFAVOR has received more and better comments from customers.
|
Name |
Custom 24V 8S lifepo4 battery charger 24V 50A waterproof automatic fast lifepo4 battery chargers |
|
Model |
2000W |
|
Battery type |
24V lifepo4 battery pack |
|
AC Input |
230Vac |
|
Output voltage |
29.2V |
|
Output current |
50A |
|
Protection |
Over Voltage Protection Over Current Protection Short Circuit Protection Reverse polarity Protection |
|
Apply to |
For 180AH 200Ah 240AH, 24v lifepo4 battery |

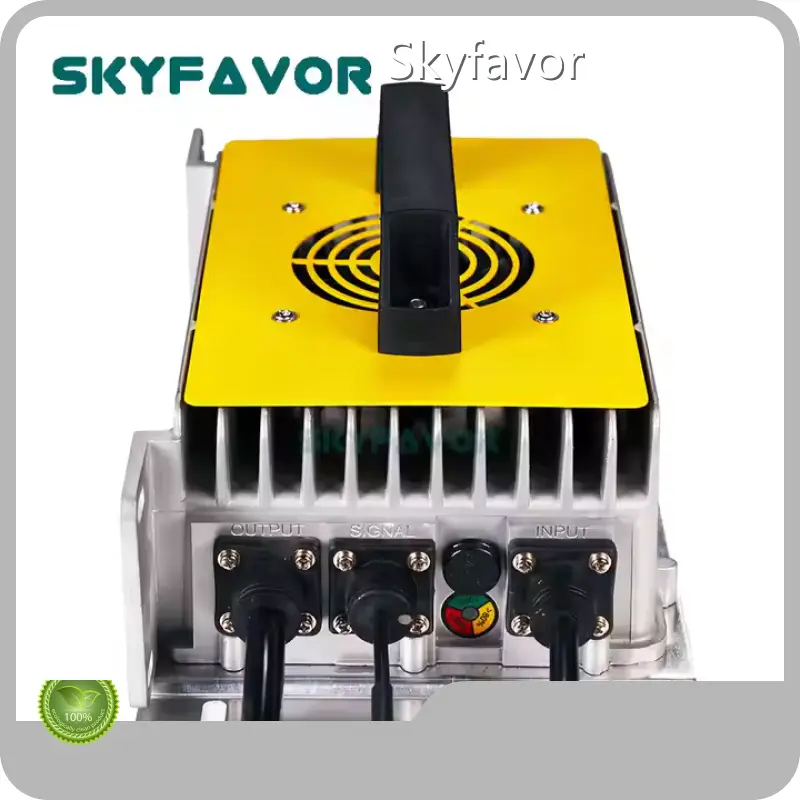

Custom 24V 8S lifepo4 battery charger 24V 50A waterproof automatic fast lifepo4 battery chargers
The Custom 24V 8S lifepo4 battery charger 24V 50A waterproof automatic fast lifepo4 battery chargers has designed highly reliable and meet international safety and electromagnetic compatibility requirements.
A:Input Characteristics:
Input Voltage: 230Vac input AC voltage
Input Frequency: 50Hz or 60Hz and single phase.
B:Output Characteristics:
Constant Charging Voltage:29.2V(for 24V lifepo4 battery)
C:Charging Mode:Custom 24V 8S lifepo4 battery charger 24V 50A waterproof automatic fast lifepo4 battery chargers
4 Stages,pre-charge, CC, CV, Trickle
D:Safety Test for battery charger
Hi-pot Test:15KVac 5mA 3 Seconds between input and output test
Resistance:The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds
Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B
E:Protection for battery charger
Over Voltage Protection The battery charger will be auto recovered when faults remove
Over Current Protection Charger output current does not exceed the set maximum battery charging current.
Over Short Circuit Protection Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)
Over reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.
F:DC Connector Dimension:Custom 24V 8S lifepo4 battery charger 24V 50A waterproof automatic fast lifepo4 battery chargers
Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.
Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc
We are the professional manufacturer of all kinds of the battery chargers, we can make OEM customized battery charger for every customer
Product Introduction
Company Advantage
• Skyfavor's Battery charger are sold well in all parts of the country. They are of good quality and affordable price, which are deeply favored by the majority of customers.
• Skyfavor was founded in with a development history of years.
• Unique geographical advantages and abundant social resources create good conditions for Skyfavor's development.
Skyfavor is a pharmaceutical company that values integrity and reputation greatly. Battery charger are of good quality and affordability. If you have any needs, you may contact us directly.
