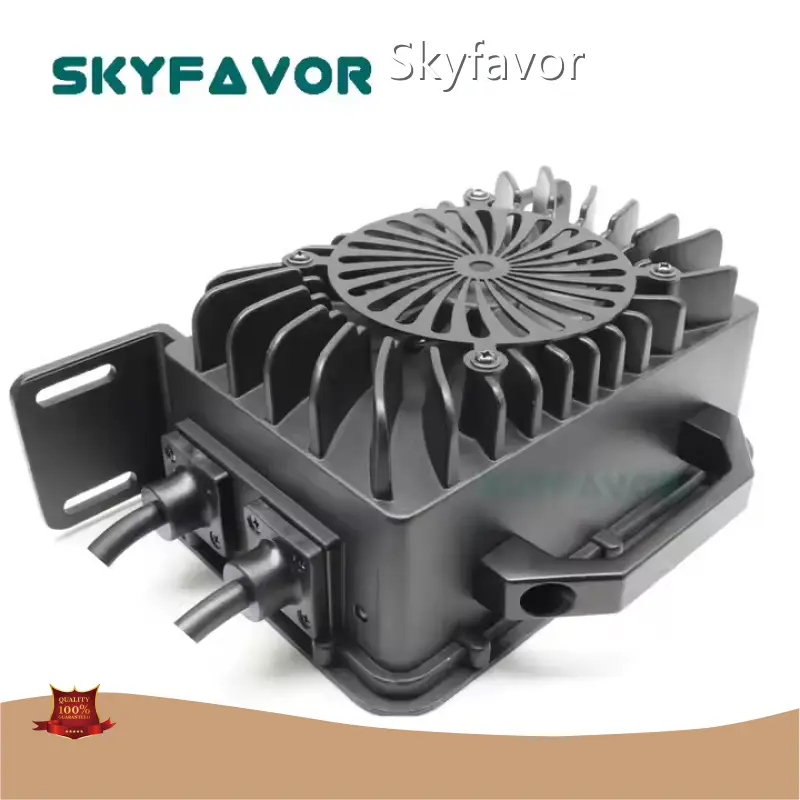

Custom Battery Chargers by SKYFAVOR-18
Product details of the custom battery chargers
Product Introduction
The manufacturing process for SKYFAVOR custom battery chargers has time and technology constrains. As a result of the implementation of a strict quality management system, product quality has been improved. The product has gained wide admiration among customers and is bound to be of promising market prospect.
Product Details
| Charger Model: | 900A | Power: | 900W |
| Housing: | Aluminium Alloy | Size: | 262*88.5*161.8mm |
| Communication: | CAN, RS485 | Waterproof: | IP65 |
| Efficiency: | >=92% | Operating Temperature: | -20 to 40℃ |
| Storage Temperature: | -40 to +70℃ | Noise: | <=40dB |
| Cooling: | Temperature and load current-controlled fan | ||
| Protection: | Over-temperature, over-voltage, over-current, short-circuit, | ||
| and reverse connection protection. | |||
| Battery type: | Suitable for lead-acid batteries (water-added, GEL, and AGM) or lithium batteries (lithium-iron, lithium-manganese, lithium ternary) charging. | ||
| Features: | 1.Automatic multi-stage charging curve for long battery life 2.Intelligent fully automatic charging: obtains the battery status | ||
| and switches the charging mode(charge wait/pre-charge/constant current/constant voltage/float charge/ recharge/ full charge) | |||
Electronic Characteristics
| ITEM | 2430A | 3620A | 4815A | 6012A | 7210A | |
| Output | LFP charging voltage | 29.2V | 43.8V | 58.4V | 73.0V | 87.6V |
| NCM charging voltage | 29V | 43.5V | 58V | 67.2V | 84.0V | |
| L-A charging voltage | 29.4V | 44.1V | 58.8V | 73.5V | 88.2V | |
| Floating charge voltage | 27.6V(only Lead) | 41.4V(only Lead) | 55.2V(only Lead) | 69V(only Lead) | 82.8V(only Lead) | |
| Maximum charging current | 30A | 20A | 15.0A | 12A | 10A | |
| Rotating lamp current | Lead 5.0A/ | Lead 4.5A/ | Lead 3.75A/ | Lead 2.0A/ Lithium 0.64A | Lead 1.5A/ Lithium 0.45A | |
| Lithium 1.8A | Lithium 1.44A | Lithium 1.2A | ||||
| Ripple voltage | ≤2%VOUTMAX | |||||
| Input | Voltage range | 90V~260VAC | ||||
| Frequency range | 47~63Hz | |||||
| Power factor | PF>0.98/115VAC, PF>0.95/230VAC at full load | |||||
| AC current(type) | 12A/115VAC 6.5A/230VAC | |||||
| Inrush current(type) | COLD START 50A at 230VAC | |||||
| Leakage Current | <0.75MA | |||||
48V battery charger 48V 15A Universal lifepo4 lead acid Flooded Gel AGM lithium waterproof battery charger
Product Introduction1.Multi-voltage compatible : manually select battery type and automatically adjust charging curve, solving the problem of different batteries requiring different chargers on the same voltage platform.2.Compatible with AGM, gel, lead-acid, NCM, LFP, lithium-ion batteries.3.Intelligent fully automatic charging: switch charging modes based on the battery's status.(Standby/precharge/constant current/constant voltage/float charge/recharge/full).Automatic multi-stage charging curve for longer battery life.4.Bluetooth application monitoring of charging status, supports custom charging time and parameter settings.5.Dimensions: 262 mm (L) x 88.5 mm (W) x 161.8 mm (H).6.CE, FCC, and DOE etc.7.Supports multiple output plugs8.Customizable charging profiles or charging modes.
We are the professional manufacturer of all kinds of the battery chargers, we can make OEM customized battery charger for every customer
Product Introduction
Company Advantage
• Skyfavor collects problems and demands from target customers all over the country through deep-going market research. Based on their needs, we keep improving and updating the original service, so as to achieve the maximum extent. This enables us to establish a good corporate image.
• Skyfavor's experienced and professional technical personnel ensures excellent product design and development.
• After years' development, our company has a mature management model and advanced production technology now.
• The market share of our products continues to increase and our marketing network covers the whole country and Southeast Asia.
Skyfavor provides Battery charger of multiple types, excellent quality and favorable price. New and old customers are welcome to discuss business with us!
