Custom Battery Chargers by SKYFAVOR-15
Company Advantages
· SKYFAVOR custom battery chargers is manufactured from upper material and technique.
· Many customers have remarked that the product is absolutely perfect in its quality, performance, usability, etc.
· SKYFAVOR is professional to provide custom battery chargers OEM / ODM services.

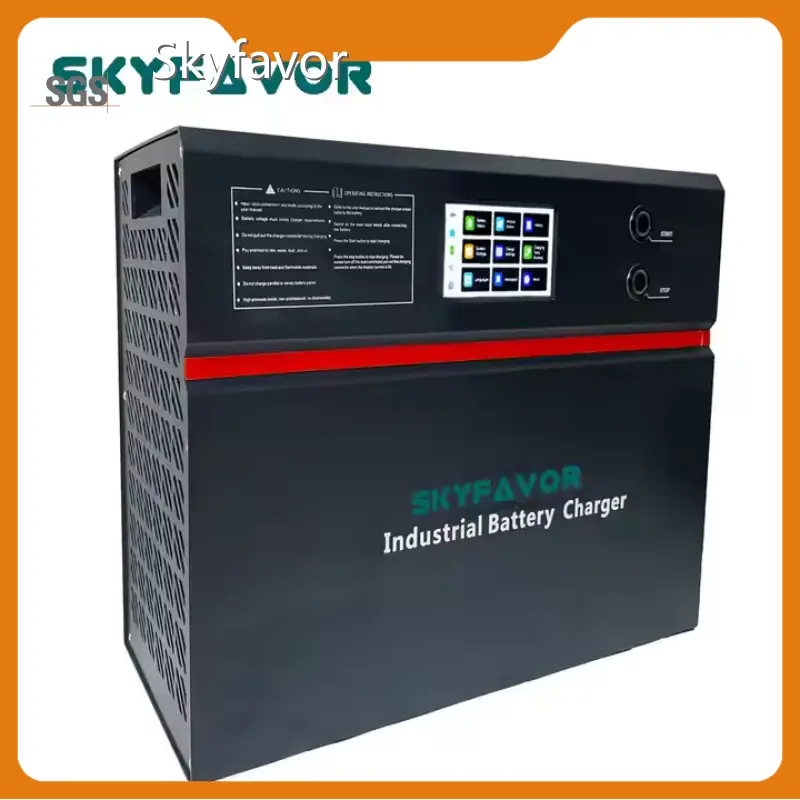

(battery charger)Customized Intelligent 36V battery charger 36V 100A lcd display high power can bus control 36 volt battery charger with pfc
Input:230Vac
Important Note:
We need the exact charger specifications to start production, so please leave a message when confirming the ordering and provide us with all the necessary information below. Thank you!
Customized 36V battery charger 36V 100A can bus control 36 volt battery charger with pfc
Custom battery charger requires the following information:
1. Battery type: lead-acid battery, lithium battery or lifepo4 battery?
2. Battery capacity:
3. Input AC voltage:
4. Input plug:
5. Output voltage:
6. Output current:
7. Output plug:
For example: 48V 13S 60Ah lithium battery, input 110Vac USA 3-pin plug, output 54.6V 15A Anderdon 50A red plug
(Please specify whether the Anderson 50A plug is gray or red.)
We are the professional manufacturer that produce all kinds of the battery chargers, such as VRLA, AGM, GEL, SLA lead acid battery chargers, lithium battery chargers, lifepo4 battery chargers, lipo battery chargers, etc. We can 100% custom the battery chargers according to buyer's demands. NO MOQ!!! Even if only 1 piece.
Features:
High-efficiency smart charging system is designed for battery charging of electric vehicles. It is suitable for the charging of electric forklifts, electric pallet trucks, electric vans, electric stackers, electric tractors, AGV, electric sightseeing cars, golf carts, patrol cars, engineering cars, sanitation vehicle. The high-efficiency smart charging system adopts the structure of an integrated charger. The overall is composed of one power rectifying unit, one charging monitoring unit, and one charging socket, the charging process is fully automated to perform the charging management of the battery.Customized 36V battery charger 36V 100A can bus control 36 volt battery charger with pfc
Smart and reliableLCD/LED displayHistory alarm records-1000Charging history-300Emergency stop buttonSmart compensation charging algorithm
Safe and stableWide input voltage range 90~264VOutput voltage ripple ±1%Current ripple ±3%Output current accuracy ±2%Cutomized managementCustomized 36V battery charger 36V 100A can bus control 36 volt battery charger with pfcHumanizeLiquid battery IUIa charging managementDedicated charge management for valve-regulated batteriesLithium battery CAN communicationAdvanced heat dissipation technologyMaintain optimal battery performance and battery health.
Energy efficientPFC more than 0.99 ;24V charger efficiency exceeds 92%;48V charger efficiency over 95%;THD ≤ 10%;Power conversion efficiency is high and save cost;Zero Voltage Switching ZVS+MOSFET TechnologyDC 300A, Different voltage 24/36/48/72/80/96V,120V
Smart Automatic battery charger list | |||||||||
Model | Charging voltage¤t for reference | N.W. (KG) | Size(mm) | ||||||
84V | |||||||||
7A | 4A | 2.5A | 1.8A | 1.5A | _ | _ | 0.7 | 135x90x50 | |
10A | 5A | 3.5A | 2.5A | 2A | 1.5A | _ | 0.9 | 155x90x50 | |
15A | 7.5A | 5A | 3.8A | 3A | 2.5A | _ | 1 | 170x90x50 | |
20A | 12A | 8A | 6A | 4.5A | 4A | _ | 1.2 | 170x90x63 | |
25A | 19A | 12A | 9A | 7A | 6A | _ | 2.5 | 207x120x70 | |
40A | 25A | 18A | 15A | 12A | 10A | _ | 3 | 220x135x70 | |
40A | 25A | 18A | 15A | 12A | 10A | 8A | 3.5 | 260x175x90 | |
50A | 30A | 20A | 19A | 15A | 12A | 10A | 4.5 | 260x175x90 | |
60A | 45A | 30A | 24A | 19A | 16A | 14A | 5.5 | 300x175x90 | |
90A | 60A | 40A | 30A | 25A | 20A | 18A | 6.5 | 330x175x115 | |
- | 75A | 50A | 40A | 30A | 25A | 22A | 7 | 380x240x150 | |
150A | 100A | 80A | 60A | 45A | 40A | 35A | 11 | 340x235x110 | |
Product Introduction
Company Features
· Shenzhen Skyfavor Technology Co., ltd has been recognized as one of the most qualified manufacturers over the years. We specialize in the development, design, and production of custom battery chargers.
· The state-of-the-art technology has successfully helped Shenzhen Skyfavor Technology Co., ltd improve the performance of custom battery chargers. All manufacturing equipment in Shenzhen Skyfavor Technology Co., ltd are completely advanced in the custom battery chargers industry.
· Since the inception, we have been adhering to the principle of integrity. We always conduct business trade in accordance with fairness and refuse any vicious business competition.
Application of the Product
Skyfavor's custom battery chargers can be used in different fields.
While providing quality products, Skyfavor is dedicated to providing personalized solutions for customers according to their needs and actual situations.
