Commercial Battery Chargers by SKYFAVOR-1
battery charger)Professional Automatic 48V forklift battery charger 48V 50A fast touch screen adjustable battery charger for forklift pallet agv
INPUT:230Vac
Important Note:
We need the exact charger specifications to start production, so please leave a message when confirming the ordering and provide us with all the necessary information below. Thank you!

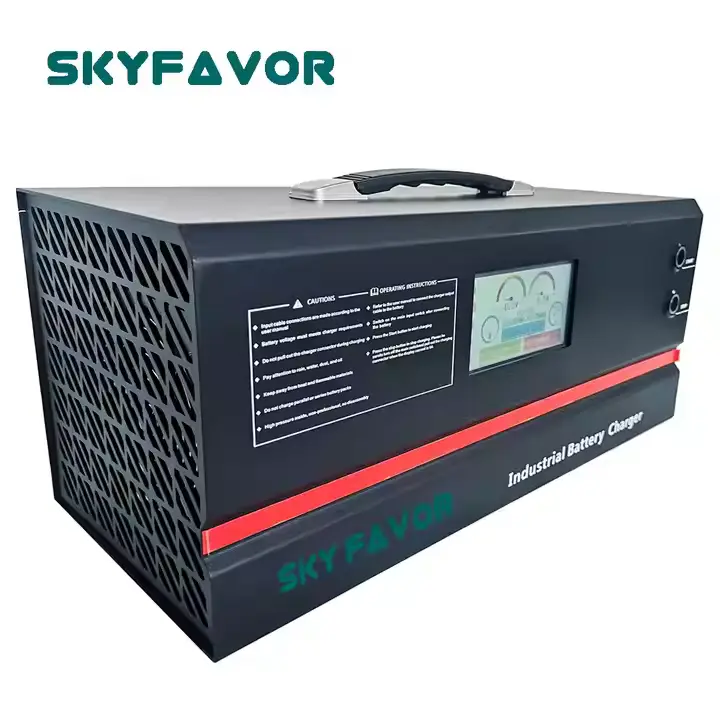

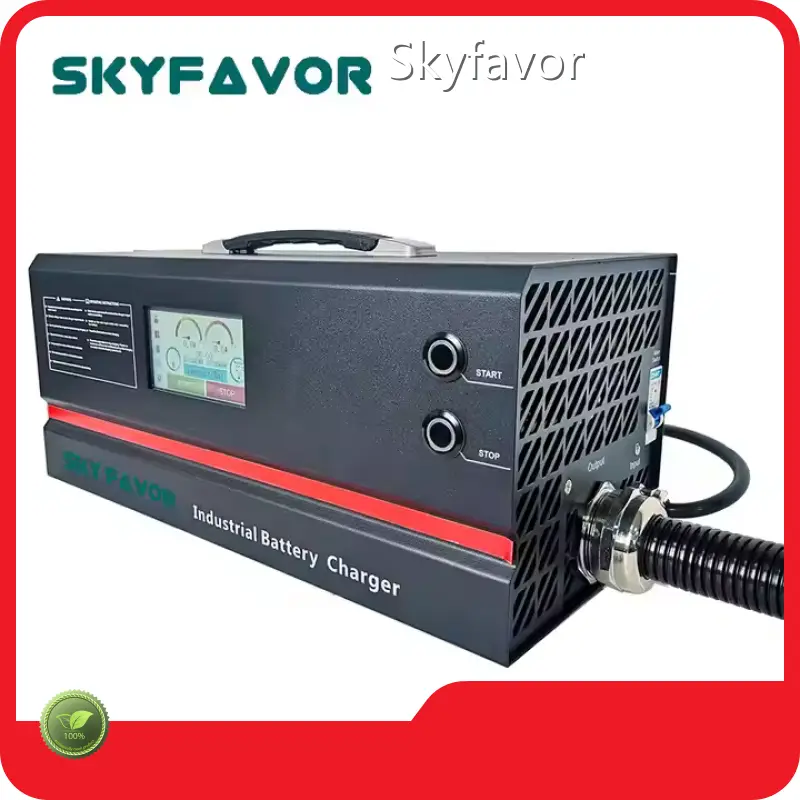

Automatic 48V forklift battery charger 48V 50A fast touch screen adjustable battery charger
Custom battery charger requires the following information:
1. Battery type: lead-acid battery, lithium battery or lifepo4 battery?
2. Battery capacity:
3. Input AC voltage:
4. Input plug:
5. Output voltage:
6. Output current:
7. Output plug:
For example: 48V 13S 60Ah lithium battery, input 110Vac USA 3-pin plug, output 54.6V 15A Anderdon 50A red plug
(Please specify whether the Anderson 50A plug is gray or red.)
We are the professional manufacturer that produce all kinds of the battery chargers, such as VRLA, AGM, GEL, SLA lead acid battery chargers, lithium battery chargers, lifepo4 battery chargers, lipo battery chargers, etc. We can 100% custom the battery chargers according to buyer's demands. NO MOQ!!! Even if only 1 piece.
Features:
High-efficiency smart charging system is designed for battery charging of electric vehicles. It is suitable for the charging of electric forklifts, electric pallet trucks, electric vans, electric stackers, electric tractors, AGV, electric sightseeing cars, golf carts, patrol cars, engineering cars, sanitation vehicle. The high-efficiency smart charging system adopts the structure of an integrated charger. The overall is composed of one power rectifying unit, one charging monitoring unit, and one charging socket, the charging process is fully automated to perform the charging management of the battery.
Smart and reliableLCD/LED displayHistory alarm records-1000Charging history-300Emergency stop buttonSmart compensation charging algorithm
Safe and stableWide input voltage range 210~264VOutput voltage ripple ±1%Current ripple ±3%Output current accuracy ±2%Cutomized managementHumanizeLiquid battery IUIa charging managementDedicated charge management for valve-regulated batteries Lithium battery
CAN communicationAdvanced heat dissipation technologyMaintain optimal battery performance and battery health.
Energy efficientPFC more than 0.99 ;24V charger efficiency exceeds 92%;48V charger efficiency over 95%;THD ≤ 10%;Power conversion efficiency is high and save cost;Zero Voltage Switching ZVS+MOSFET TechnologyDC 300A, Different voltage 24/36/48/72/80/96V,120V
Smart Automatic battery charger list | |||||||||
Model | Charging voltage¤t for reference | N.W. (KG) | Size(mm) | ||||||
84V | |||||||||
7A | 4A | 2.5A | 1.8A | 1.5A | _ | _ | 0.7 | 135x90x50 | |
10A | 5A | 3.5A | 2.5A | 2A | 1.5A | _ | 0.9 | 155x90x50 | |
15A | 7.5A | 5A | 3.8A | 3A | 2.5A | _ | 1 | 170x90x50 | |
20A | 12A | 8A | 6A | 4.5A | 4A | _ | 1.2 | 170x90x63 | |
25A | 19A | 12A | 9A | 7A | 6A | _ | 2.5 | 207x120x70 | |
40A | 25A | 18A | 15A | 12A | 10A | _ | 3 | 220x135x70 | |
40A | 25A | 18A | 15A | 12A | 10A | 8A | 3.5 | 260x175x90 | |
50A | 30A | 20A | 19A | 15A | 12A | 10A | 4.5 | 260x175x90 | |
60A | 45A | 30A | 24A | 19A | 16A | 14A | 5.5 | 300x175x90 | |
90A | 60A | 40A | 30A | 25A | 20A | 18A | 6.5 | 330x175x115 | |
- | 75A | 50A | 40A | 30A | 25A | 22A | 7 | 380x240x150 | |
150A | 100A | 80A | 60A | 45A | 40A | 35A | 11 | 340x235x110 | |
Product Introduction
Company Advantages
· There are diverse models for commercial battery chargers to meet different demands.
· The product has been quality tested before delivery to ensure that it is flawless and free from any defect.
· With various excellent characteristics, the product is increasingly applied by people from various fields.
Company Features
· We are a famous brand which mainly produce high quality commercial battery chargers.
· Our production is very convenient for logistics. Located near local ports and highways, transportation lines and distances are shorter, faster and cheaper.
· We are committed to honesty and integrity in all our business relationships. The trust of customers is what we pursue. We are willing to maintain a long-term supply and cooperative relationship with the customers.
Application of the Product
Our commercial battery chargers is widely used in various scenarios.
According to different needs of customers, Skyfavor is capable of providing reasonable, comprehensive and optimal solutions for customers.
