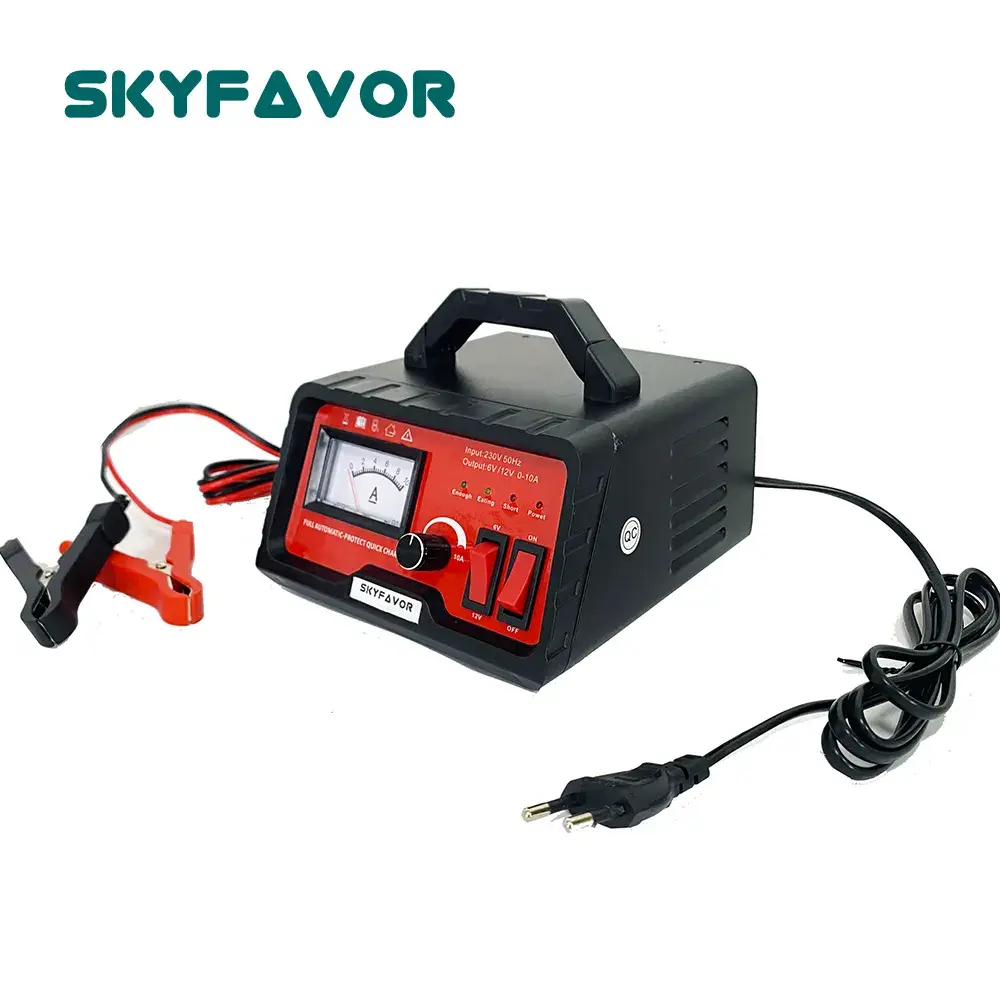

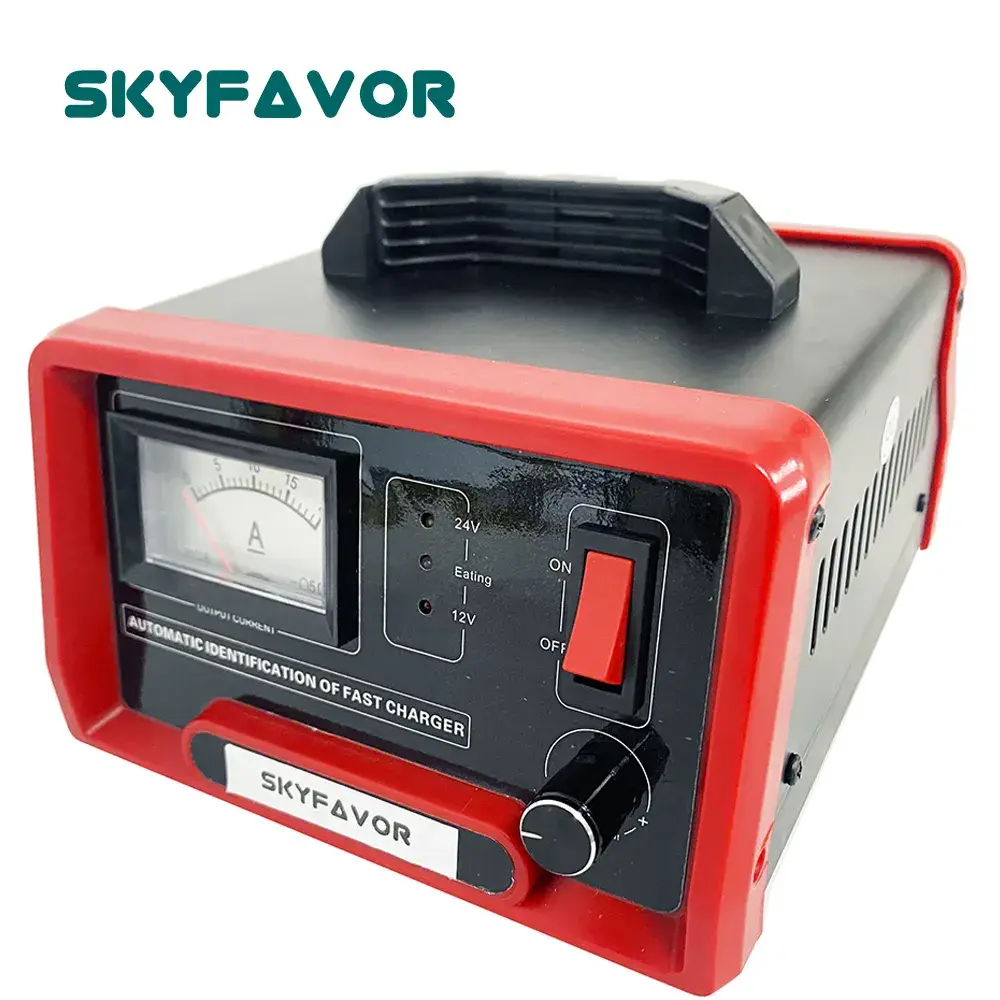

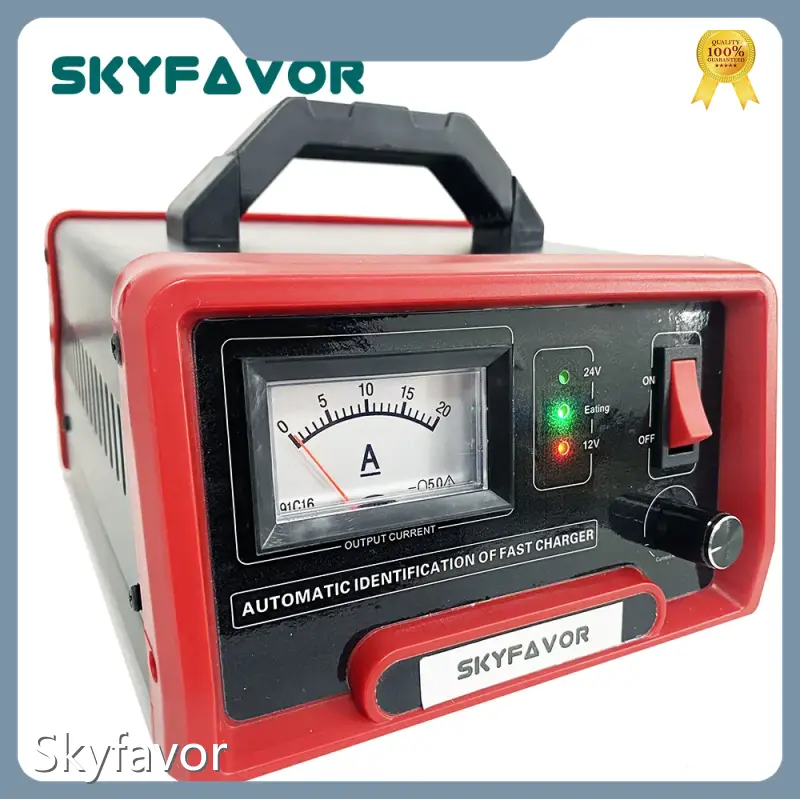

Cat Battery Charger Wholesale - SKYFAVOR
Product details of the cat battery charger
Quick Detail
SKYFAVOR cat battery charger is manufactured using exceptional grade raw materials and sophisticated technology. Owing to the presence of our expert team members, we are engaged in supplying a wide range of cat battery charger. The increasing competitiveness of SKYFAVOR also motivate the cat battery charger market to develop better.
Product Introduction
Skyfavor pays great attention to details. And the details of cat battery charger are as follows.
|
Model |
122410X |
Brand |
SKYFAVOR |
|
Input voltage |
110V-250V |
power |
180W |
|
Output voltage |
12V24V |
Frequency |
50-60HZ |
|
Peak current |
12V/10A 24V/5A |
Voltage Identification |
12V Peak (8-14.5V);24V Peak (18-29V) |
|
Work Temperature |
-30℃ to +50℃ |
Product size |
190*140*70(mm) |
|
Net weight |
0.7kg |
Protection function |
Multiple protection |
|
Battery type |
1. 12V24V battery: Lead-Acid Battery; Maintenance-free battery; Dry battery, Water battery; Gel battery; Solar battery, ect. |
||
Application
It's compatible with all kinds of 12V /24V lead-acid battery, water battery, maintenance-free battery, dry battery charging. etc. (VELA BATTERY ,GEL BATTERY,OPZN BATTERY )
APPLY : scooter, motorcycle, car, SUV, small truck, tractor and any vehicle batteries.
Batteries of any size can be charged,The charging time depends on the true capacity of the battery.
Features:
1. One-button automatic
2. Applicable for 12V or 24V battery.
3.Digital display power, voltage, current , Show charging status in stages
4. The current can be adjusted manually, Automatic & manual charging modes, more reliable and secure.
Charging time reference
Battery(AH) | Charging time(H) | Battery(AH) | Charging time(H) |
3AH | 0.5 | 6AH | 1-2 |
9AH | 1-3 | 12AH | 3-5 |
20AH | 4-5 | 32AH | 5-7 |
36AH | 7-8 | 45AH | 7-10 |
55AH | 8-10 | 60AH | 9-14 |
80AH | 10-15 | 105AH | 15-22 |
120AH | 19-25 | 150AH | 20-28 |
Tip: The larger the battery capacity, the longer the charging time.
Charging mode:
Four stage charging , protect the battery , non-overcharging
1.Adaptive electricity charging
2. Charging at constant voltage
3. Full charge soon&conduct floating charge4. Microcurrent supply/full charge
SIX Protections ,Ensure safe charging
Short Circuit protection
Polarity error protection
Overheating protection
Over current protection
low-voltage protection
Over voltage protection
Note:1. Please do not block cooling fan or use the charger while cooling fan is stopped.2. Please prevent the charger from rain or water to avoid damage.
Smart Automatic battery charger list | |||||||||
Model | Charging voltage¤t for reference | N.W. (KG) | Size(mm) | ||||||
84V | |||||||||
7A | 4A | 2.5A | 1.8A | 1.5A | _ | _ | 0.7 | 135x90x50 | |
10A | 5A | 3.5A | 2.5A | 2A | 1.5A | _ | 0.9 | 155x90x50 | |
15A | 8.5A | 5A | 3.8A | 3A | 2.5A | _ | 1 | 170x90x50 | |
20A | 12A | 8A | 6A | 4.5A | 4A | _ | 1.2 | 170x90x63 | |
25A | 19A | 12A | 9A | 7A | 6A | _ | 2.5 | 207x120x70 | |
40A | 25A | 18A | 15A | 12A | 10A | _ | 3 | 220x135x70 | |
40A | 25A | 18A | 15A | 12A | 10A | 8A | 3.5 | 260x175x90 | |
50A | 30A | 20A | 19A | 15A | 12A | 10A | 4.5 | 260x175x90 | |
60A | 45A | 30A | 24A | 19A | 16A | 14A | 5.5 | 300x175x90 | |
90A | 60A | 40A | 30A | 25A | 20A | 18A | 6.5 | 330x175x115 | |
- | 75A | 50A | 40A | 30A | 25A | 22A | 7 | 380x240x150 | |
150A | 100A | 80A | 60A | 45A | 40A | 35A | 11 | 400x300x200 | |
Product Introduction
Company Information
Over the years, Shenzhen Skyfavor Technology Co., ltd has grown from a small team to one of the premier manufacturers of cat battery charger. We have cooperated with many internationally reputable companies over the years. We have offered numerous high-quality products including cat battery charger to them and earned long-term business relationships. Shenzhen Skyfavor Technology Co., ltd provides professional service for every customer. Get quote!
Look forward to working with you to create a better future.
