Cat Battery Charger - - SKYFAVOR
|
Name |

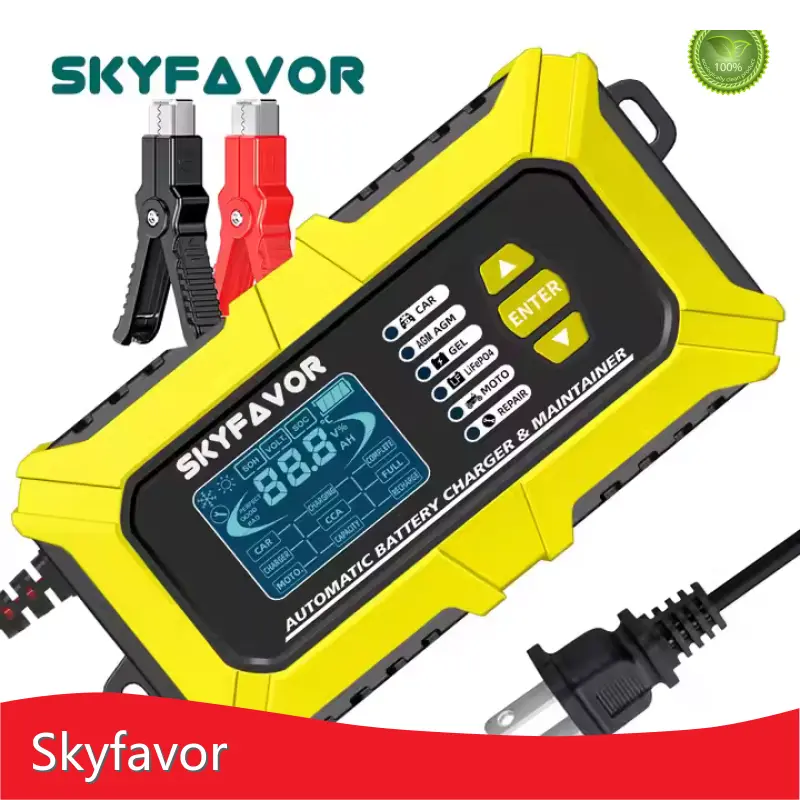

Car battery charger & battery tester analyzer & pulse repair smart 12v 6a battery charger |
|
Mode |
FTC1206B |
|
Input |
100Vac - 230Vac |
|
Output |
14.4V Float charge voltage:13.8V (for 12V lead acid battery) |
|
Output current |
6A |
|
Features: |
Temperature control compensation charger |
|
Compatibility |
4AH,8AH 12AH 18AH 20AH 30AH 60AH 80AH 120AH lead acid battery |
|
Protection |
-Short circuit protection -Overvoltage protection -Overcurrent protection -Overheating protection -Reverse connection protection |
|
Apply to |
Children's toy cars, motorcycles, cars, etc. |
|
weight |
470g |
Car battery charger & battery tester analyzer & pulse repair smart 12v 6a battery charger
Battery Charger is designed to charge 12V lead-acid/AGM batteries from 4AH-120AH, check battery manufacturer specifications before using this charger.
Battery Tester adopts the advanced conductance testing Technology in the word to easily, quickly and accurately measure the actual cold cranking amps capability of the vehicle starting battery, healthy state of the battery itself, and common fault of the battery, which can help maintenance personnel to find the find the problem quickly and accurately, thus to achieve quick vehicle repair.
Compatibility
Please be noted that battery type and CCA values(Cold Cranking Amp) marked on the battery label, please refer to it before using. Tester supports the following types.
1. VRLA/GEL/AGM/EFB/STD
2. Regular Floode
Important Car battery charger & battery tester analyzer & pulse repair smart 12v 6a battery charger
* Use this tester in accordance with there instructions, taking into account the working conditions and the work to be performed. Use of this tester for operations different from those intended could result in a hazardous situation
* Before testing, make sure the battery terminals are really clean as grease and dust could lead to errors in the test results.
* Wear eye protection when working around batteries.
* Check the insulation layer of the battery clamps is in normal condition(no damage, bareness or disconnection),in case of the electric shock.
* Test in a well-ventilated area. Explosive and toxic gases may be produced during testing
* Keep hair, hands,and clothing as well as tester leads and cords away from moving blades and belts.
* The tester is not a toy. keep it out of the reach of children.
* Do Not place the tester near the engine or exhaust pipe to avoid damaged by high temperatures, when the car engine is running.
* Do not smoke, cause sparks, or strike matches near the battery when testing
* Do not remove battery clamps while testing
* Do not put the tester into a highly humid, dusty environment.
* Do not disassemble the tester, or may cause damage.
* Check battery manufacturer specifications before using this charger.
* Explosive gases may escape from the battery during charging. Provide ventilation to prevent flames and sparks.
* Do not expose charger to sunlight, high temperature environment.
* Battery acid is corrosive. Rinse immediately with water if acid comes into contact with skin or eyes.
* Do not charge a frozen or damaged battery.
* Do not charge non-rechargeable batteries.
* Do not place the charger on the
We are the professional manufacturer of all kinds of the battery chargers, we can make OEM customized battery charger for every customer
Smart Automatic battery charger list | |||||||||
Model | Charging voltage¤t for reference | N.W. (KG) | Size(mm) | ||||||
84V | |||||||||
7A | 4A | 2.5A | 1.8A | 1.5A | _ | _ | 0.7 | 135x90x50 | |
10A | 5A | 3.5A | 2.5A | 2A | 1.5A | _ | 0.9 | 155x90x50 | |
15A | 7.5A | 5A | 3.8A | 3A | 2.5A | _ | 1 | 170x90x50 | |
20A | 12A | 8A | 6A | 4.5A | 4A | _ | 1.2 | 170x90x63 | |
25A | 19A | 12A | 9A | 7A | 6A | _ | 2.5 | 207x120x70 | |
40A | 25A | 18A | 15A | 12A | 10A | _ | 3 | 220x135x70 | |
40A | 25A | 18A | 15A | 12A | 10A | 8A | 3.5 | 260x175x90 | |
50A | 30A | 20A | 19A | 15A | 12A | 10A | 4.5 | 260x175x90 | |
60A | 45A | 30A | 24A | 19A | 16A | 14A | 5.5 | 300x175x90 | |
90A | 60A | 40A | 30A | 25A | 20A | 18A | 6.5 | 330x175x115 | |
- | 75A | 50A | 40A | 30A | 25A | 22A | 7 | 380x240x150 | |
150A | 100A | 80A | 60A | 45A | 40A | 35A | 11 | 340x235x110 | |
