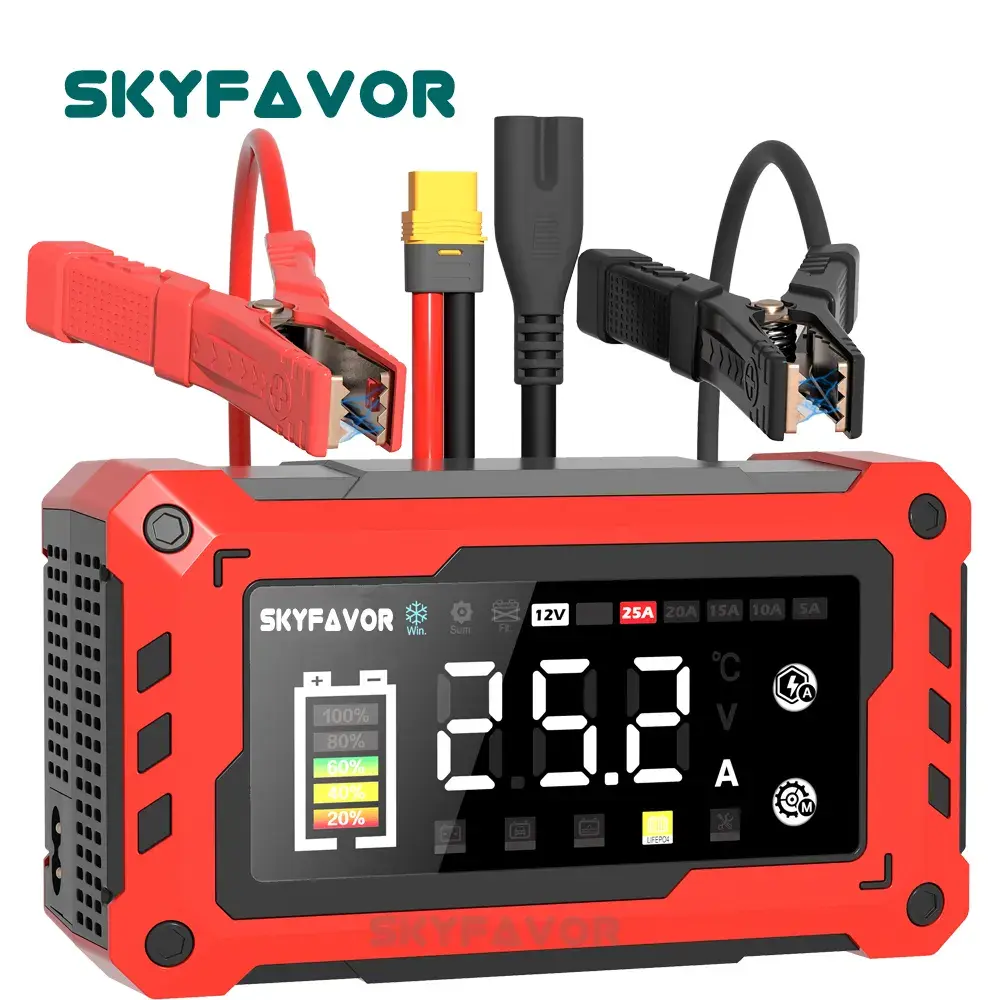

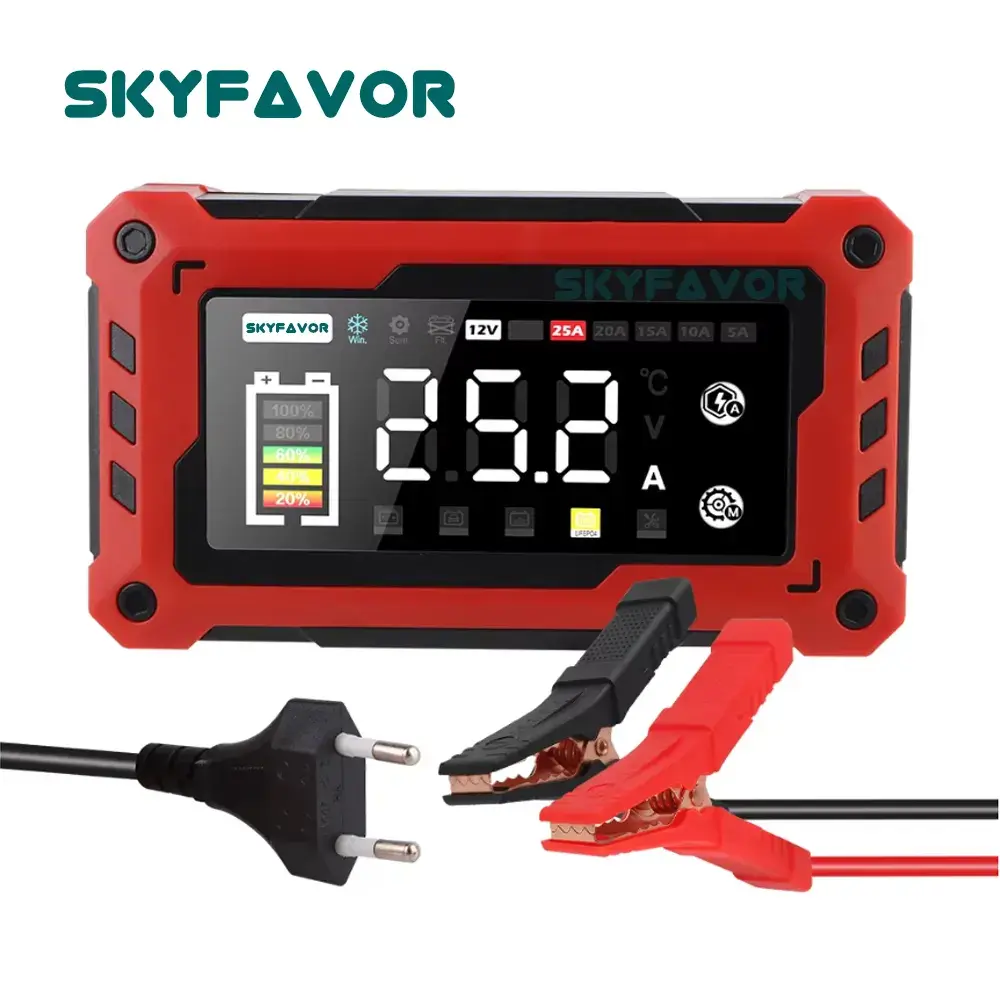

Cat Battery Charger by SKYFAVOR

Universal truck motorcycle car battery charger 12V 24V 25A smart battery charger

FEATURES:

·       High Frequency pulse intelligent repair can solve the problems of insufficient power, low voltage and large internal resistance. The staged charging can effectively protect the battery from damage and prolong the battery life.

·       The LED intelligent digital display screen can automatically pulse repair the batteries, and it will automatically stop when fully charged. and intelligently adjust the current.

·       375W pure copper high-frequency transformer, high conversion rate, safe and fast, equipped with exhaust port design, fast and silent heat dissipation, not easy to heat, greatly extending the service life of the charger.

·       Multi intelligent protections, reverse connection, short circuit, overvoltage, overcurrent, overheating, low voltage protection to ensure safety, equipped with copper-plated alligator clips, using oxidation copper plating process, high temperature resistance, good conductivity.

·       Wide range of adaptation, suitable for all kinds of batteries, common for automobiles and motorcycles.

·       Universal for Lead Acid GM GEL Wet batteries and LIFEPO4 batteries (only for lithium iron phosphate batteries with BMS protection board. )

Specification:

·       Item: Car Battery Charger

·       Model: 122425A

·       Material: Plastic,metal, electronic components

·       Power: 375W

·       Input voltage: 100V-240V 50/60HZ

·       Output voltage: 12V~15.5V/24V~31V

·       Output current: DC12V 5~25A/24V 5~10A (Max)

·       Frequency: 50/60Hz

·       Plug specifications: EU plug,US plug

·       Application:  for 12V 25Ah-800Ah / 24V 25Ah-400Ah Lead Acid GM GEL Wet batteries and LIFEPO4 batteries (with BMS protection board)

We are the professional manufacturer of all kinds of the battery chargers, such as SLA, AGM,GEL lead-acid battery charger, lithium battery charger, lifepo4 battery charger, etc. We can customize all kinds of battery charger for every customer, any quantity is ok.

Each charger only can charge for one kind battery, such as if you choose lead acid battery, we will manufacture the lead acid battery charger, it will not work for lithium battery or lifepo4 battery. Because different kind battery charger the charging curve is different.



Smart Automatic battery charger list
Model	Charging voltage&current for reference							N.W. (KG)	Size(mm)
	12V	24V	36V	48V	60V	72V	84V
120W	7A	4A	2.5A	1.8A	1.5A	_	_	0.7	135x90x50
180W	10A	5A	3.5A	2.5A	2A	1.5A	_	0.9	155x90x50
240W	15A	7.5A	5A	3.8A	3A	2.5A	_	1	170x90x50
360W	20A	12A	8A	6A	4.5A	4A	_	1.2	170x90x63
600W	25A	19A	12A	9A	7A	6A	_	2.5	207x120x70
900W	40A	25A	18A	15A	12A	10A	_	3	220x135x70
900WB	40A	25A	18A	15A	12A	10A	8A	3.5	260x175x90
1200W	50A	30A	20A	19A	15A	12A	10A	4.5	260x175x90
1500W	60A	45A	30A	24A	19A	16A	14A	5.5	300x175x90
2000W	90A	60A	40A	30A	25A	20A	18A	6.5	330x175x115
2500W	-	75A	50A	40A	30A	25A	22A	7	380x240x150
4000W	150A	100A	80A	60A	45A	40A	35A	11	400x300x200

 Product Introduction

529ced747422812b25a91e0dad2decb

0e59895ad30bff8fc475614dd1864d8

3bbefef5ef2bbed3beacfde9b7d885f

289e414f16dbd5d36aef0057885a52f

73574ae965dd9614508c6678883b6bd

ae404a0514a235ac078c8fb6dc21161

56e635af67f9ea1514ac451d467b12c

21e65cdb25bd426ff61dfa39586763a
