Car Battery Chargers for Sale by SKYFAVOR
Product details of the car battery chargers for sale
Quick Overview
car battery chargers for sale ensures the high precision of products. The product is guaranteed to be of reliable quality as we regard quality as our top priority. Shenzhen Skyfavor Technology Co., ltd has its own R&D capabilities and can design molds and products for your samples.
Product Information
Skyfavor's car battery chargers for sale is produced in strict accordance with standards. We make ensure that the products have more advantages over similar products in the following aspects.
|
Name |
Intelligent Motorcycle car battery charger 12V 6A Automatic Pulse Repair battery charger |
|
Mode |
1206G |
|
Input |
110Vac or 220Vac |
|
Output |
14.7V Float charge voltage:13.8V (for 12V lead acid battery) |
|
Output current |
6A |
|
Features: |
Temperature control compensation charger |
|
Compatibility |
35AH,60AH 80AH lead acid battery |
|
Protection |
-Short circuit protection -Overvoltage protection -Overcurrent protection -Overheating protection -Reverse connection protection |
|
Apply to |
Children's toy cars, motorcycles, cars, etc. |
|
weight |
480g |

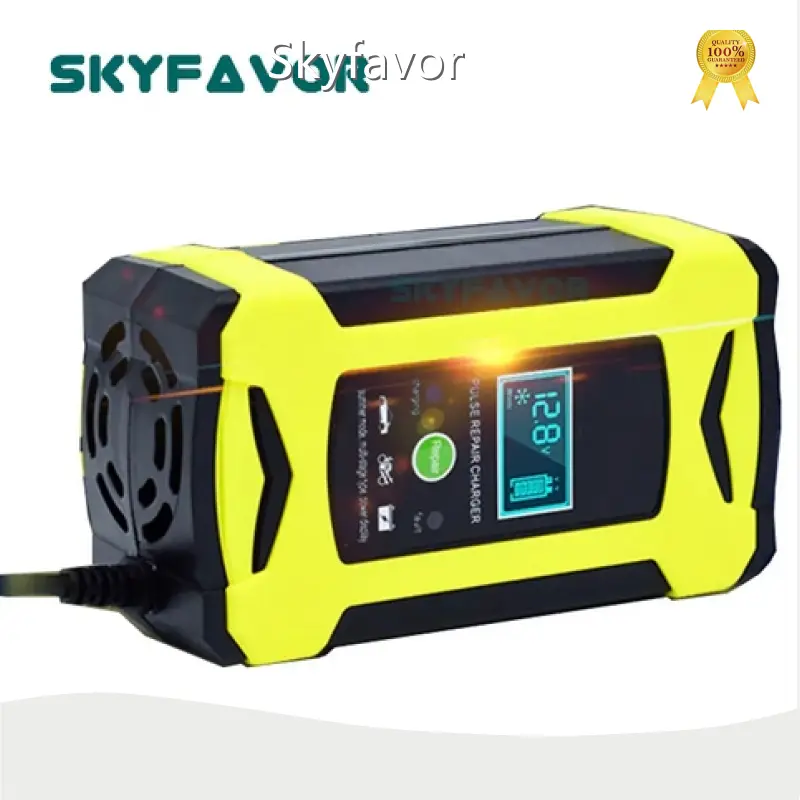

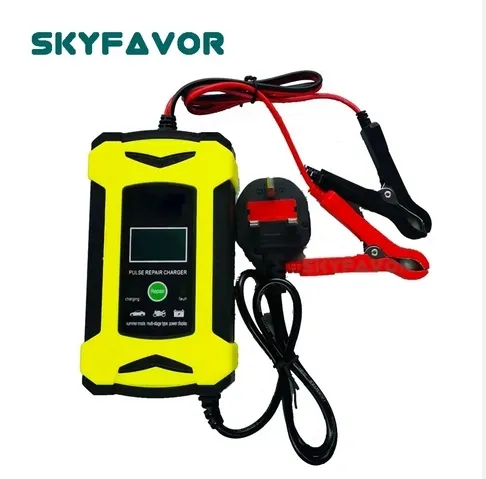

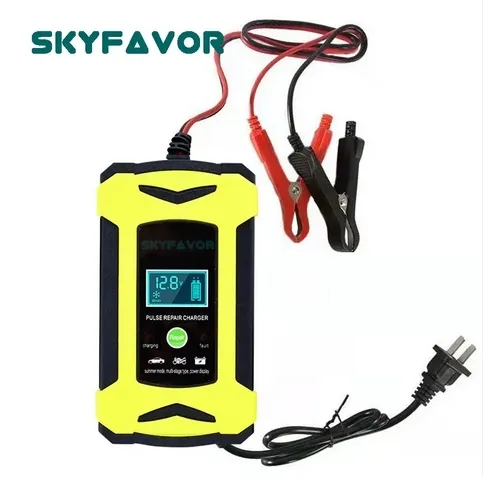

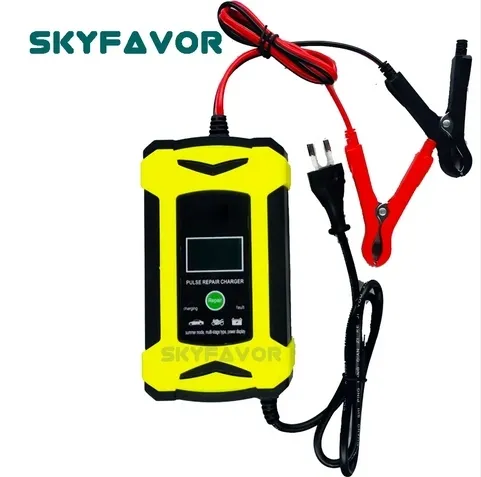

Intelligent Motorcycle car battery charger 12V 6A Automatic Pulse Repair battery charger
The Intelligent Motorcycle car battery charger 12V 6A Automatic Pulse Repair battery charger has designed highly reliable and meet international safety and electromagnetic compatibility requirements.
A:Input Characteristics:
Input Voltage: 100-240Vac input AC voltage
Input Frequency: 50Hz or 60Hz and single phase.
B:Output Characteristics:
Constant Charging Voltage: 14.7V Float charge 13.8V
C:Charging Mode Intelligent Motorcycle car battery charger 12V 6A Automatic Pulse Repair battery charger
3 Stages, CC, CV, Trickle
D:Safety Test for battery charger
Hi-pot Test:15KVac 5mA 3 Seconds between input and output test
Resistance:The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds
Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B
E:Protection for battery charger
Over Voltage Protection The battery charger will be auto recovered when faults remove
Over Current Protection Charger output current does not exceed the set maximum battery charging current.
Over Short Circuit Protection Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)
Over reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.
F:DC Connector Dimension:Intelligent Motorcycle car battery charger 12V 6A Automatic Pulse Repair battery charger
Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.
Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc
MPPT solar charger
We are the professional manufacturer of all kinds of the battery chargers, such as SLA, AGM,GEL lead-acid battery charger, lithium battery charger, lifepo4 battery charger, etc. We can customize all kinds of battery charger for every customer, any quantity is ok.
Smart Automatic battery charger list |
|||||||||
|
Model IDOITWELL |
Charging voltage¤t for reference |
N.W. (KG) |
Size(mm) IDOITWELL |
||||||
|
84V |
|||||||||
|
7A |
4A |
2.5A |
1.8A |
1.5A |
_ |
_ |
0.7 |
135x90x50 |
|
|
10A |
5A |
3.5A |
2.5A |
2A |
1.5A |
_ |
0.9 |
155x90x50 |
|
|
15A |
8.5A |
5A |
3.8A |
3A |
2.5A |
_ |
1 |
170x90x50 |
|
|
20A |
12A |
8A |
6A |
4.5A |
4A |
_ |
1.2 |
170x90x63 |
|
|
25A |
19A |
12A |
9A |
7A |
6A |
_ |
2.5 |
207x120x70 |
|
|
40A |
25A |
18A |
15A |
12A |
10A |
_ |
3 |
220x135x70 |
|
|
40A |
25A |
18A |
15A |
12A |
10A |
8A |
3.5 |
260x175x90 |
|
|
50A |
30A |
20A |
19A |
15A |
12A |
10A |
4.5 |
260x175x90 |
|
|
60A |
45A |
30A |
24A |
19A |
16A |
14A |
5.5 |
300x175x90 |
|
|
90A |
60A |
40A |
30A |
25A |
20A |
18A |
6.5 |
330x175x115 |
|
|
- |
75A |
50A |
40A |
30A |
25A |
22A |
7 |
380x240x150 |
|
|
150A |
100A |
80A |
60A |
45A |
40A |
35A |
11 |
400x300x200 | |
Product Introduction
Company Information
Shenzhen Skyfavor Technology Co., ltd is a company in shen zhen. The main business is focused on Battery charger. Our company abides by the enterprise spirit of 'diligent to think, courageous to challenge, and dare to innovate', and we develop our business based on integrity management and innovation. Relying on talents and technological advantages, we improve our core competitiveness and strive to become a leading company in the industry. Our company has introduced an advanced management model and built a strong and professional elite team. They pave the way for our better development. Skyfavor is dedicated to solving your problems and providing you with one-stop and comprehensive solutions.
If you have any questions, feel free to consult us.
