Car Battery Charger Supplier by SKYFAVOR
Product details of the car battery charger supplier
Product Information
Shenzhen Skyfavor Technology Co., ltd thinks so highly of design for car battery charger supplier that we invest lots of money in it. This product is tested on a set of norms prior to final delivery of the order. This product is a must have product and is suitable for various applications.
|
Name |
Smart battery charger car 12v auto 12 VOLT 6A pulse Repair lead acid car battery charger |
|
Mode |
1206D |
|
Input |
110Vac or 220Vac |
|
Output |
14.4V Float charge voltage:13.8V (for 12V lead acid battery) |
|
Output current |
6A |
|
Features: |
Temperature control compensation charger |
|
Compatibility |
35AH,60AH 80AH lead acid battery |
|
Protection |
-Short circuit protection -Overvoltage protection -Overcurrent protection -Overheating protection -Reverse connection protection |
|
Apply to |
Children's toy cars, motorcycles, cars, etc. |
|
weight |
480g
|

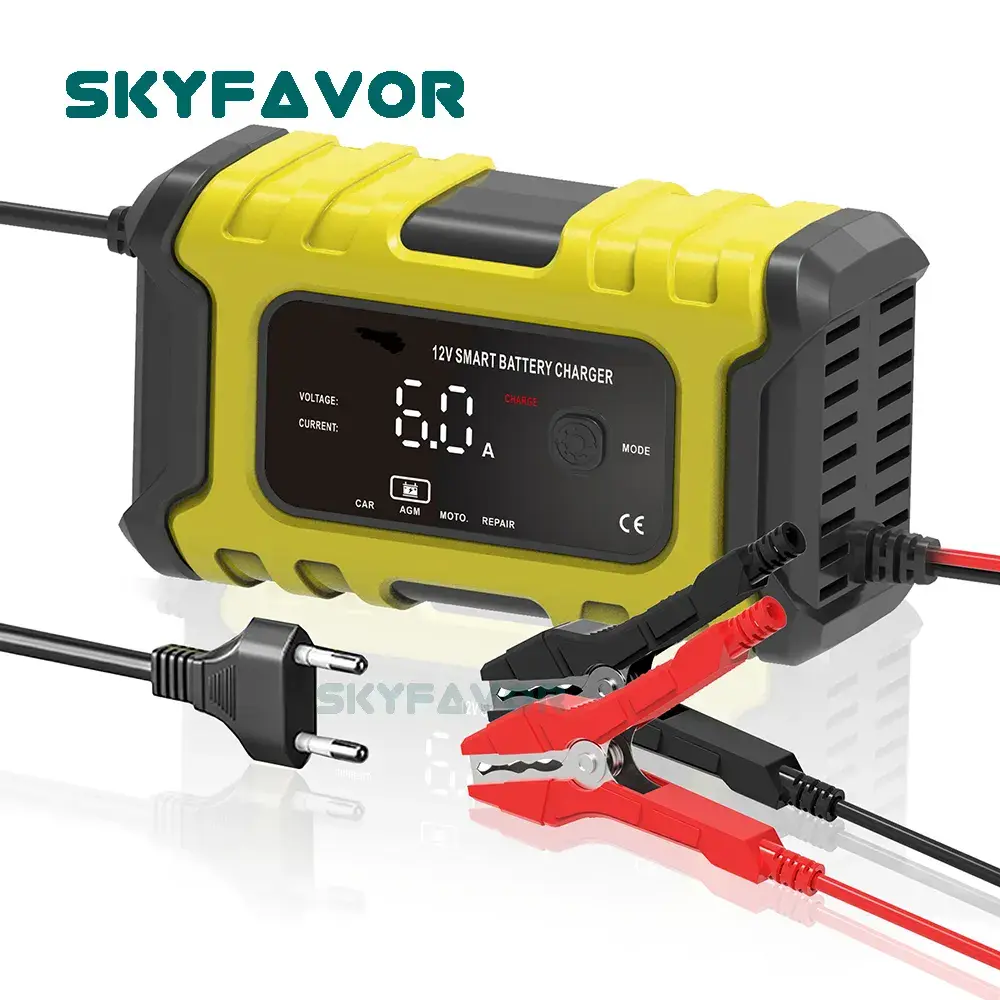

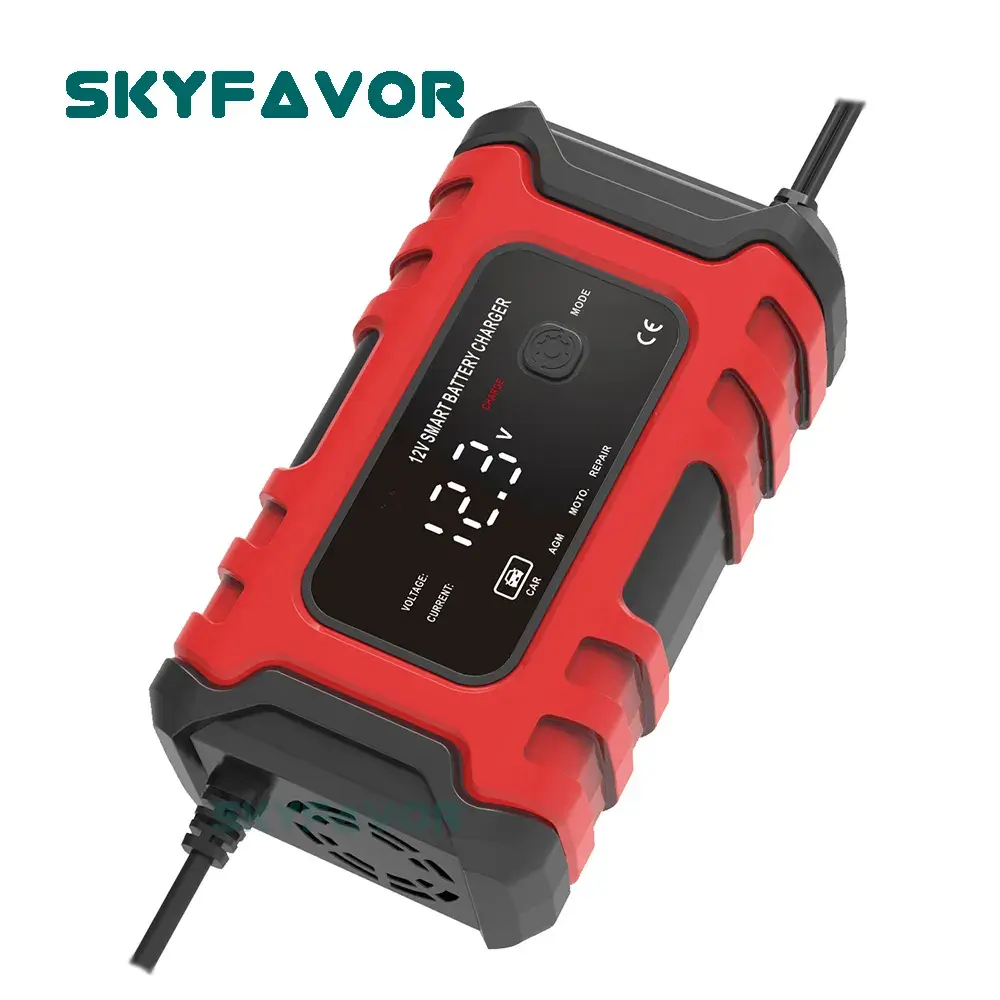

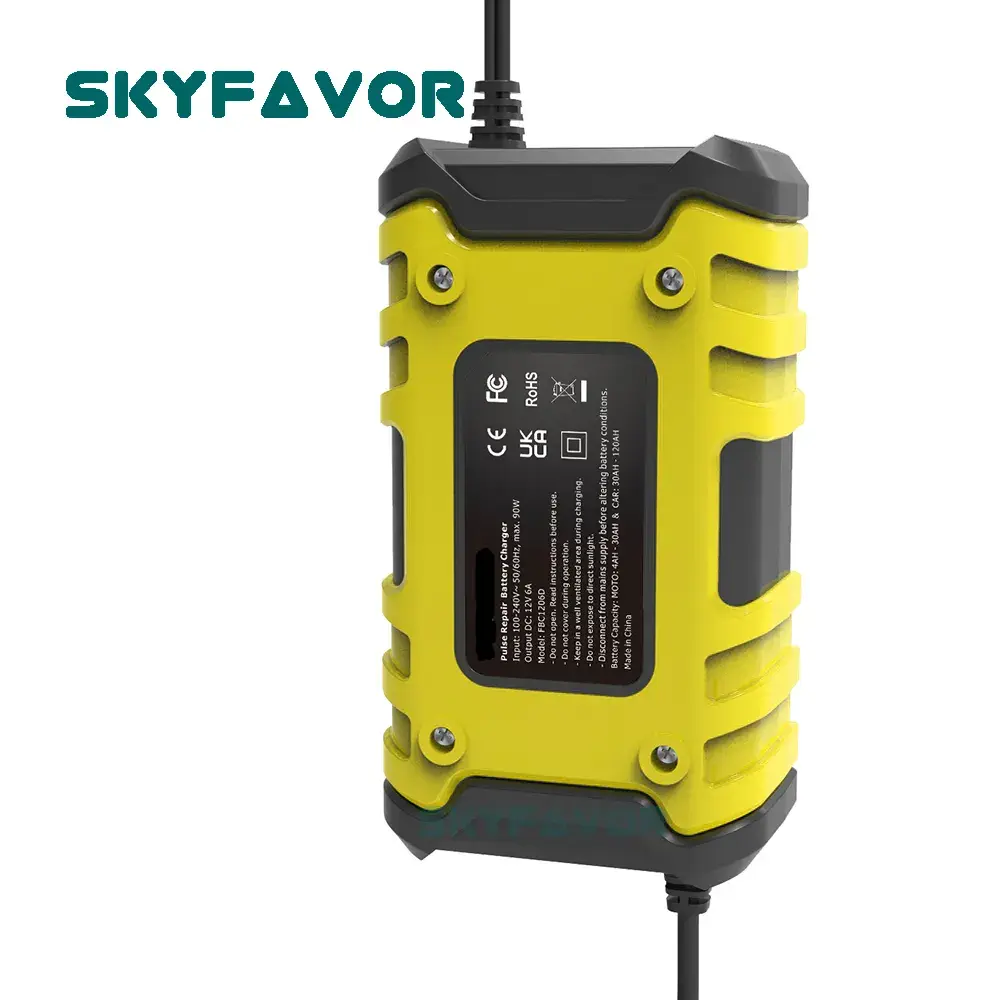

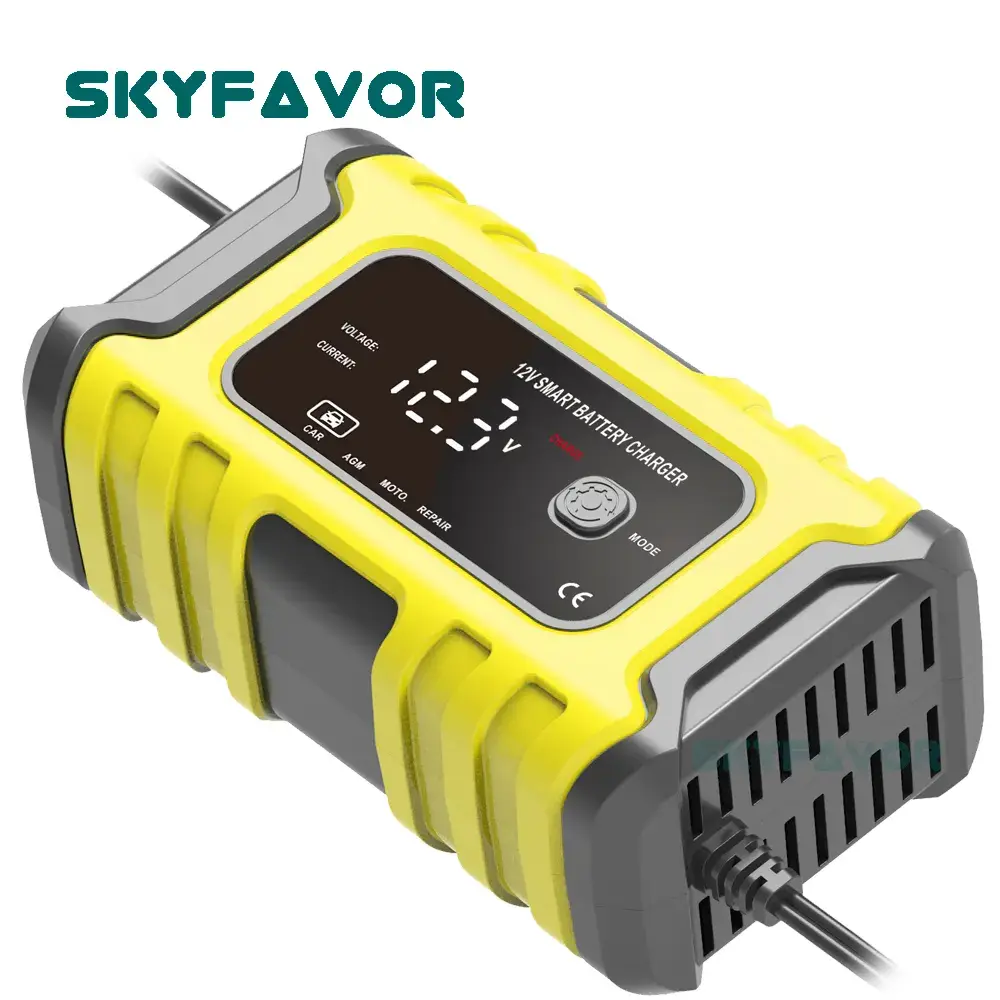

Smart battery charger car 12v auto 12 VOLT 6A pulse Repair lead acid car battery charger
The Smart battery charger car 12v auto 12 VOLT 6A pulse Repair lead acid car battery charger has designed highly reliable and meet international safety and electromagnetic compatibility requirements.
A:Input Characteristics:
Input Voltage: 100-240Vac input AC voltage
Input Frequency: 50Hz or 60Hz and single phase.
B:Output Characteristics:
Constant Charging Voltage: 14.4V Float charge 13.8V
C:Charging Mode Smart battery charger car 12v auto 12 VOLT 6A pulse Repair lead acid car battery charger
3 Stages, CC, CV, Trickle
D:Safety Test for battery charger
Hi-pot Test:15KVac 5mA 3 Seconds between input and output test
Resistance:The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds
Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B
E:Protection for battery charger
Over Voltage Protection The battery charger will be auto recovered when faults remove
Over Current Protection Charger output current does not exceed the set maximum battery charging current.
Over Short Circuit Protection Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)
Over reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.
F:DC Connector Dimension:Smart battery charger car 12v auto 12 VOLT 6A pulse Repair lead acid car battery charger
Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.
Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc
We are the professional manufacturer of all kinds of the battery chargers, such as SLA, AGM,GEL lead-acid battery charger, lithium battery charger, lifepo4 battery charger, etc. We can customize all kinds of battery charger for every customer, any quantity is ok.
Other functions
Smart Automatic battery charger list | |||||||||
Model IDOITWELL | Charging voltage¤t for reference | N.W. (KG) | Size(mm) IDOITWELL | ||||||
84V | |||||||||
7A | 4A | 2.5A | 1.8A | 1.5A | _ | _ | 0.7 | 135x90x50 | |
10A | 5A | 3.5A | 2.5A | 2A | 1.5A | _ | 0.9 | 155x90x50 | |
15A | 8.5A | 5A | 3.8A | 3A | 2.5A | _ | 1 | 170x90x50 | |
20A | 12A | 8A | 6A | 4.5A | 4A | _ | 1.2 | 170x90x63 | |
25A | 19A | 12A | 9A | 7A | 6A | _ | 2.5 | 207x120x70 | |
40A | 25A | 18A | 15A | 12A | 10A | _ | 3 | 220x135x70 | |
40A | 25A | 18A | 15A | 12A | 10A | 8A | 3.5 | 260x175x90 | |
50A | 30A | 20A | 19A | 15A | 12A | 10A | 4.5 | 260x175x90 | |
60A | 45A | 30A | 24A | 19A | 16A | 14A | 5.5 | 300x175x90 | |
90A | 60A | 40A | 30A | 25A | 20A | 18A | 6.5 | 330x175x115 | |
- | 75A | 50A | 40A | 30A | 25A | 22A | 7 | 380x240x150 | |
150A | 100A | 80A | 60A | 45A | 40A | 35A | 11 | 400x300x200 | |
