Car Battery Charger Supplier by SKYFAVOR-1
Product details of the car battery charger supplier
Product Description
The design of car battery charger supplier is original. The product quality is superior, the performance is stable, the service life is long. Shenzhen Skyfavor Technology Co., ltd emphasizes on service provision and future development.
|
Name |
Intelligent pulse Repair car battery charger 12V 6A Automatic 12 volt |
|
Mode |
1206B |
|
Input |
110Vac or 220Vac |
|
Output |
14.7V Float charge voltage:13.8V (for 12V lead acid battery) |
|
Output current |
6A |
|
Features: |
Temperature control compensation charger |
|
Compatibility |
35AH,60AH 80AH lead acid battery |
|
Protection |
-Short circuit protection -Overvoltage protection -Overcurrent protection -Overheating protection -Reverse connection protection |
|
Apply to |
Children's toy cars, motorcycles, cars, etc. |
|
weight |
480g |

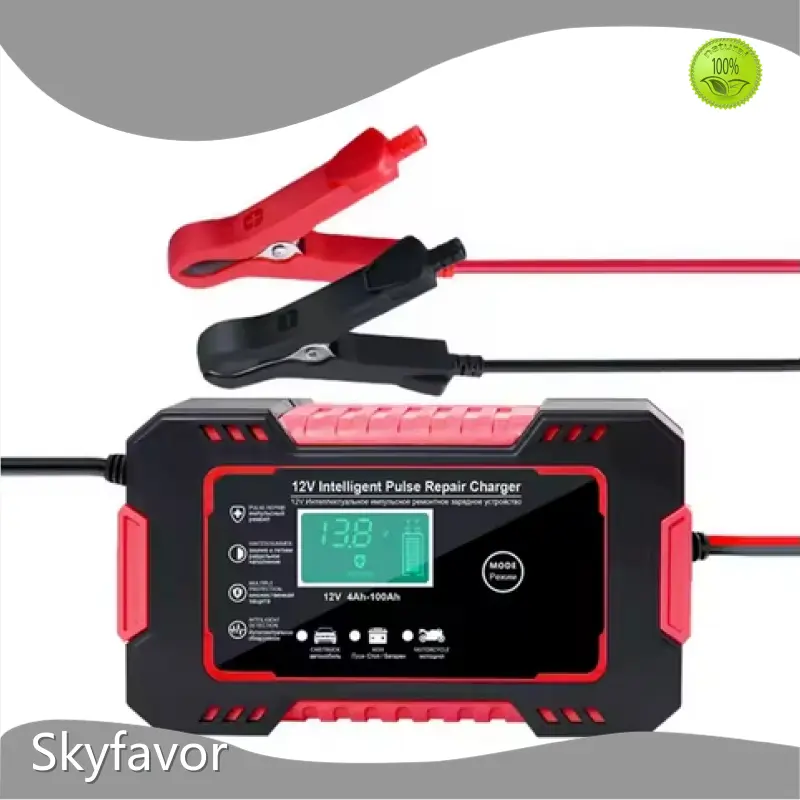

Intelligent pulse Repair car battery charger 12V 6A Automatic 12 volt
The Intelligent pulse Repair car battery charger 12V 6A Automatic 12 volt has designed highly reliable and meet international safety and electromagnetic compatibility requirements.
A:Input Characteristics:
Input Voltage: 100-240Vac input AC voltage
Input Frequency: 50Hz or 60Hz and single phase.
B:Output Characteristics:
Constant Charging Voltage: 14.7V Float charge 13.8V
C:Charging Mode Intelligent pulse Repair car battery charger 12V 6A Automatic 12 volt
3 Stages, CC, CV, Trickle
D:Safety Test for battery charger
Hi-pot Test:15KVac 5mA 3 Seconds between input and output test
Resistance:The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds
Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B
E:Protection for battery charger
Over Voltage Protection The battery charger will be auto recovered when faults remove
Over Current Protection Charger output current does not exceed the set maximum battery charging current.
Over Short Circuit Protection Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)
Over reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.
F:DC Connector Dimension:Intelligent pulse Repair car battery charger 12V 6A Automatic 12 volt
Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.
Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc
Other functions
Smart Automatic battery charger list |
|||||||||
|
Model IDOITWELL |
Charging voltage¤t for reference |
N.W. (KG) |
Size(mm) IDOITWELL |
||||||
|
84V |
|||||||||
|
7A |
4A |
2.5A |
1.8A |
1.5A |
_ |
_ |
0.7 |
135x90x50 |
|
|
10A |
5A |
3.5A |
2.5A |
2A |
1.5A |
_ |
0.9 |
155x90x50 |
|
|
15A |
7.5A |
5A |
3.8A |
3A |
2.5A |
_ |
1 |
170x90x50 |
|
|
20A |
12A |
8A |
6A |
4.5A |
4A |
_ |
1.2 |
170x90x63 |
|
|
25A |
19A |
12A |
9A |
7A |
6A |
_ |
2.5 |
207x120x70 |
|
|
40A |
25A |
18A |
15A |
12A |
10A |
_ |
3 |
220x135x70 |
|
|
40A |
25A |
18A |
15A |
12A |
10A |
8A |
3.5 |
260x175x90 |
|
|
50A |
30A |
20A |
19A |
15A |
12A |
10A |
4.5 |
260x175x90 |
|
|
60A |
45A |
30A |
24A |
19A |
16A |
14A |
5.5 |
300x175x90 |
|
|
90A |
60A |
40A |
30A |
25A |
20A |
18A |
6.5 |
330x175x115 |
|
|
- |
75A |
50A |
40A |
30A |
25A |
22A |
7 |
380x240x150 |
|
|
150A |
100A |
80A |
60A |
45A |
40A |
35A |
11 |
340x235x110 | |
Product Introduction
Company Feature
• Our company was founded in After the continuous development for years, we have broken through various difficulties, accumulated rich experience and achieved excellent results. Now, we take a high position in the industry.
• Our company's sales network covers all major cities in the country. Our products are exported to Southeast Asia, the Middle East, South America and other regions.
• Skyfavor has a large number of professional talents to make contributions to corporate development with the spirit of dedication, exquisite technology, and meticulous quality.
Dear customer, if you are interested in Skyfavor's Battery charger and would like to know more details, please feel free to contact us. We will provide professional services!
