Product details of the bmw battery charger
Product Description
SKYFAVOR bmw battery charger is manufactured using modern management tools and technology. The product is strictly checked by QC team for many rounds to make sure no quality problems. SKYFAVOR is proud of building friendly relationships with new and existing business partners.
|
Name |

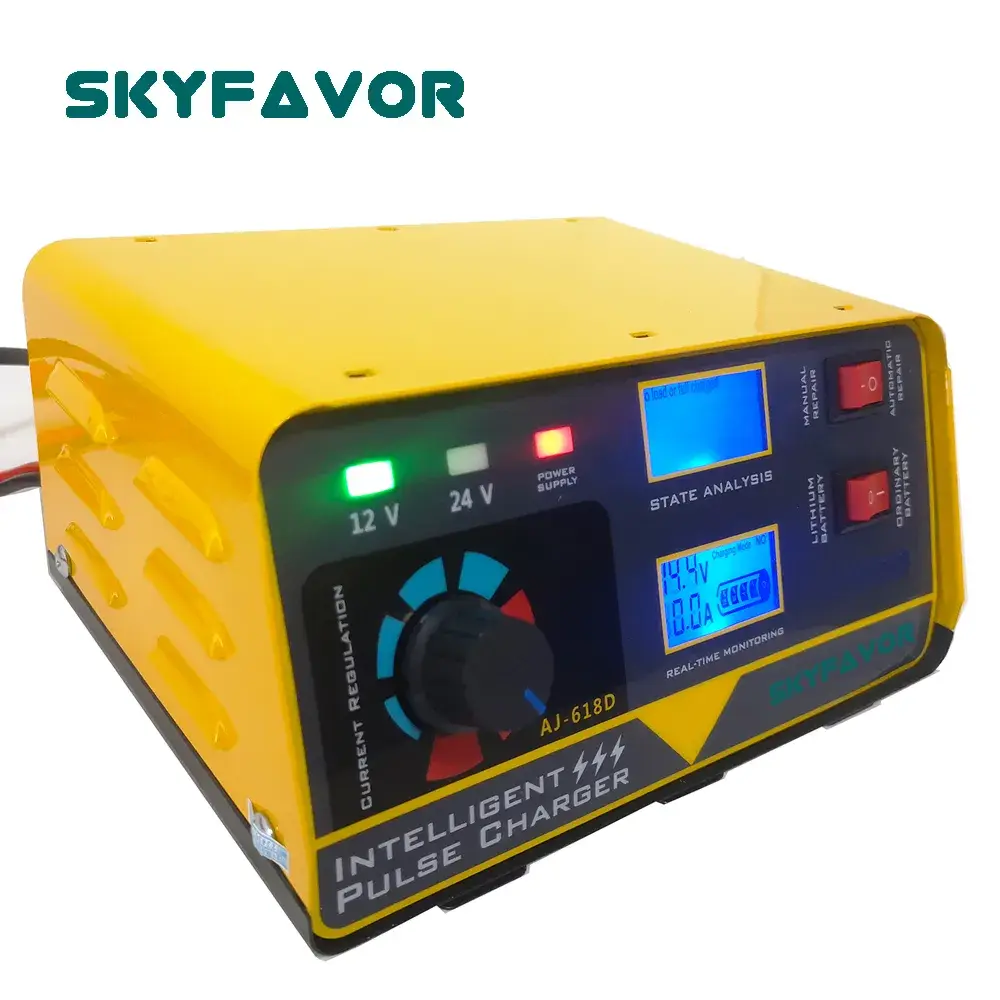

Pulse Repair 12V 24V battery charger 12V 20A 24V 10A Automatic fast adjustable battery charger |
|
Mode |
12V24V-618D |
|
Input |
110Vac or 220Vac |
|
Output |
12V (8-14.5V) 24V (18-29V) |
|
Output current |
12V 20A 24V 10A |
|
Features: |
12v/24v automatic conversion Intelligent Pulse Repair |
|
Compatibility |
12AH-400AH lead acid battery |
|
Protection |
-Short circuit protection -Low-voltage protection -Overvoltage protection -Overcurrent protection -Overheating protection -Smart security protection -Overall earthquake resistance -Overcharge and overdischarge protection -Reverse connection protection -Overshoot over discharge protection |
|
Apply to |
Children's toy cars, motorcycles, cars, buses, trucks, Boat Marine,etc. |
|
weight |
980g
|
Automatic Trickle charger 12V 20A 24V 10A Universal smart fast truck motorcycle car battery charger
Description:
Product Name: High Power Edition 618D
Input rated power: 260W
Product size: 180*145*70mm
Product net weight: about 1.1KG
Input line length: 110cm
Output current: 12V-20A (Maximum) / 24V-10A (Maximum)
Applicable voltage: DC-12V/24V
Scope of use: 12V / 24V,6-400AH,lead-acid battery / maintenance-free battery / dry battery / water battery
Five-paragraph pulse repair charge :Automatic Trickle charger 12V 20A 24V 10A Universal smart fast truck motorcycle car battery charger
Mode 1: No load mode.
Mode 2: Constant current mode
Mode 3: Constant voltage mode
Mode 4: Floating mode
Mode 5: Trickle Up Mode
Trilogy of correct operation of the received charger
First, check the voltage of our battery. The voltage of the 12V battery should be higher than 11V.
Operation method: The charger is only connected to the positive and negative poles of the battery. Not connected the 220V power supply. Now the display shows the current battery voltage.
If the battery voltage displayed is lower than 11V. There are 2 situations:
1. The battery power loss is very serious, caused by long-term over-discharge.
2. One of the batteries in the battery is broken. (There are 6pcs 2V batteries in the 12V battery). This requires the use of repair operations.
Second, the method of operation: the charger is not connected to the battery, only connected the 220V power supply. The display lights up. Switch the manual/repair button, the display voltage is about 15V-16V; automatic/intelligent, the display voltage is about 14V-15V. The data will be different according to the local power supply! Small gaps are normal!
Third, the method of operation: the charger is connected to the 220V power supply and the battery, and the display has a current display (if the battery is fully charged, it may directly display the no-load state, and if the battery is not full, there will be a current value, which is not equal to 0)
Regarding the repair operation:Automatic Trickle charger 12V 20A 24V 10A Universal smart fast truck motorcycle car battery chargerRepair function, its current will be higher. Because our batteries are seriously damaged or used for too long, the internal resistance of the batteries will be relatively large. Its voltage will be around 16V. The charger needs to use a high voltage of 16V to break down the crystals in the battery (crystals produced due to sulfidation). Restore this battery to a certain amount of activity. So its voltage value is relatively high. But the repair time cannot be too long. At the same time, when repairing, someone must be nearby to check the charging status. Because the voltage of 16V is high voltage for a 12V battery, if it is overcharged, the charging time is too long and the battery will be destroyed. At the same time repair is not full of automatic stop function.
About automatic repair:Automatic Trickle charger 12V 20A 24V 10A Universal smart fast truck motorcycle car battery charger
Automatic repair is better for the battery. We choose automatic mode to charge the battery. It will adjust according to the condition of the battery, the more and more power in the battery, the less and less charging current. The voltage of automatic mode is about 15V. When the battery is charged to more and more power, its voltage will drop to about 14V or 13V. Then the charger voltage is consistent with the battery's own voltage. This design is to ensure that the battery will not be damaged due to overcharging. Automatic mode is full of automatic stop function.
We are the professional manufacturer of all kinds of the battery chargers, we can make OEM customized battery charger for every customer
Smart Automatic battery charger list | |||||||||
Model IDOITWELL | Charging voltage¤t for reference | N.W. (KG) | Size(mm) IDOITWELL | ||||||
84V | |||||||||
7A | 4A | 2.5A | 1.8A | 1.5A | _ | _ | 0.7 | 135x90x50 | |
10A | 5A | 3.5A | 2.5A | 2A | 1.5A | _ | 0.9 | 155x90x50 | |
15A | 7.5A | 5A | 3.8A | 3A | 2.5A | _ | 1 | 170x90x50 | |
20A | 12A | 8A | 6A | 4.5A | 4A | _ | 1.2 | 170x90x63 | |
25A | 19A | 12A | 9A | 7A | 6A | _ | 2.5 | 207x120x70 | |
40A | 25A | 18A | 15A | 12A | 10A | _ | 3 | 220x135x70 | |
40A | 25A | 18A | 15A | 12A | 10A | 8A | 3.5 | 260x175x90 | |
50A | 30A | 20A | 19A | 15A | 12A | 10A | 4.5 | 260x175x90 | |
60A | 45A | 30A | 24A | 19A | 16A | 14A | 5.5 | 300x175x90 | |
90A | 60A | 40A | 30A | 25A | 20A | 18A | 6.5 | 330x175x115 | |
- | 75A | 50A | 40A | 30A | 25A | 22A | 7 | 380x240x150 | |
150A | 100A | 80A | 60A | 45A | 40A | 35A | 11 | 340x235x110 | |
Product Introduction
Company Feature
• The superior geographical location and traffic convenience lay a solid foundation for Skyfavor to develop sustainably in the following days.
• At present, Skyfavor's Battery charger are sold to all parts of the country and well received in the industry.
• Founded in our company has gone through years of wind and rain. We now become the vane of the industry after the process of continuous training and struggle.
• Skyfavor runs a comprehensive supply system and after-sales service system. We are committed to providing excellent service for the majority of customers.
Skyfavor's Battery charger are produced and sold directly from the factory. They have reliable quality and reasonable price. Bulk purchase is available. If needed, please contact us!
