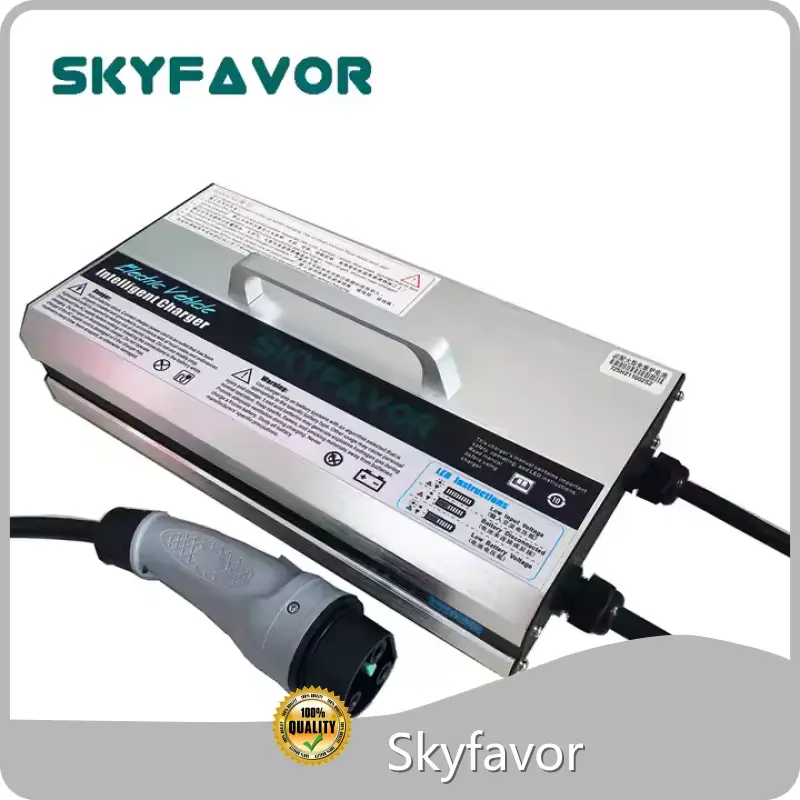

72V 25A Automatic lead acid battery charger for lvtong electrlc vehicle intelligent charger

The 72V 25A Automatic lead acid battery charger for lvtong electrlc vehicle intelligent charger has designed highly reliable and meet international safety and electromagnetic compatibility requirements.

A:Input Characteristics:

   Input Voltage: 230Vac input AC voltage

   Input Frequency: 50Hz or 60Hz and single phase.

B:Output Characteristics:

   Constant Charging Voltage:88.2V float charge 82.8V

  C:Charging Mode:72V 25A Automatic lead acid battery charger for lvtong electrlc vehicle intelligent charger

   3 Stages, CC, CV, Trickle

D:Safety Test for battery charger

   Hi-pot Test:15KVac 5mA 3 Seconds between input and output test

   Resistance:The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds

   Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B

E:Protection for battery charger

Over Voltage Protection   The battery charger will be auto recovered when faults remove

Over Current Protection   Charger output current does not exceed the set maximum battery charging current.72V 25A Automatic lead acid battery charger for lvtong electrlc vehicle intelligent charger

 Short Circuit Protection  Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)

 reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.

F:DC Connector Dimension:72V 25A Automatic lead acid battery charger for lvtong electrlc vehicle intelligent charger

Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.

Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc



Manufacture time:

The manufacture time of the battery charger will need 8-12 days, because all the battery chargers are customized according to the customer's requirements, we have not any chargers in stock. If you accept the delivery time, please go ahead to make purchase. Once you place the order, we will treat you accept the manufacture time.

Lead Time:

Normally we will deliver the battery charger by DHL, UPS or Fedex express, it always need 5-8 days on transport.

So you will receive the parcel in 13-20 days after pay for the order.



Last thing,  when the order be paid it will can't be cancelled after 24 hours, as the charger is customized according to buyer's requirement, it is unique, it is impossible to change the charger specification to resell, so we don't accept order be cancelled after 24 hours. Please read above information carefully and buy with caution.  Thanks for your kind understanding and support!

We are the professional manufacturer of all kinds of the battery chargers, we can make OEM customized battery charger for every customer

Smart Automatic battery charger list
Model	Charging voltage&current for reference							N.W. (KG)	Size(mm)
	12V	24V	36V	48V	60V	72V	84V
120W	7A	4A	2.5A	1.8A	1.5A	_	_	0.7	135x90x50
180W	10A	5A	3.5A	2.5A	2A	1.5A	_	0.9	155x90x50
240W	15A	7.5A	5A	3.8A	3A	2.5A	_	1	170x90x50
360W	20A	12A	8A	6A	4.5A	4A	_	1.2	170x90x63
600W	25A	19A	12A	9A	7A	6A	_	2.5	207x120x70
900W	40A	25A	18A	15A	12A	10A	_	3	220x135x70
900WB	40A	25A	18A	15A	12A	10A	8A	3.5	260x175x90
1200W	50A	30A	20A	19A	15A	12A	10A	4.5	260x175x90
1500W	60A	45A	30A	24A	19A	16A	14A	5.5	300x175x90
2000W	90A	60A	40A	30A	25A	20A	18A	6.5	330x175x115
2500W	-	75A	50A	40A	30A	25A	22A	7	380x240x150
4000W	150A	100A	80A	60A	45A	40A	35A	11	340x235x110
