Battery Chargers Manufacturer - - SKYFAVOR-13
Product details of the battery chargers manufacturer
Product Overview
battery chargers manufacturer is equipped with a large-capacity battery, which can be used for a long time. In addition, it is guaranteed to be high-quality by several tests. The raw materials of SKYFAVOR battery chargers manufacturer are superior and environmentally-friendly. Our team strictly tests the its quality based on the industry standard before package. battery chargers manufacturer, excellent in quality, is often used in automobiles, motorcycles, tractors, diesel engines and other products. This product perfectly meets the actual requirements of customers and has great market potential.
Product Introduction
The specific details of battery chargers manufacturer are presented below.
| Item |
Lifeboat Battery Charger
|
|||
|
Model
|
CD-4212-1 |
CD-4212-2
|
CD-4212-1S | CD-4212-2S |
|
Charging current
|
5A |
5AX2
|
5A | 5AX2 |
|
Size
|
16X12X8.5cm |
24.3*13.4*8cm
|
16X12X8.5cm | 24.3*13.4*8cm |
| Weight | 2.2KG | 5KG | 2.2KG | 5KG |
|
Mains voltage
|
42V AC 50/60HZ
|
|||
|
Charging voltage
|
14.4V/DC
|
|||
|
Tricle voltage
|
13.3V/DC
|
|||
|
Protection Grade
|
IP56
|
|||
|
Material
|
ABS+PC
|
|||
|
Color
|
White
|
|||
| Item | Lifeboat Battery Charger |
| Model | CD-4212-1 |
| Charging current | 5A |
| Size | 16X12X8.5cm |
| Weight | 2.2KG |
| Mains voltage | 42V AC 50/60HZ |
| Charging voltage | 14.4V/DC |
| Tricle voltage | 13.3V/DC |
| Protection Grade | IP56 |
| Material | ABS+PC |
| Color | White |

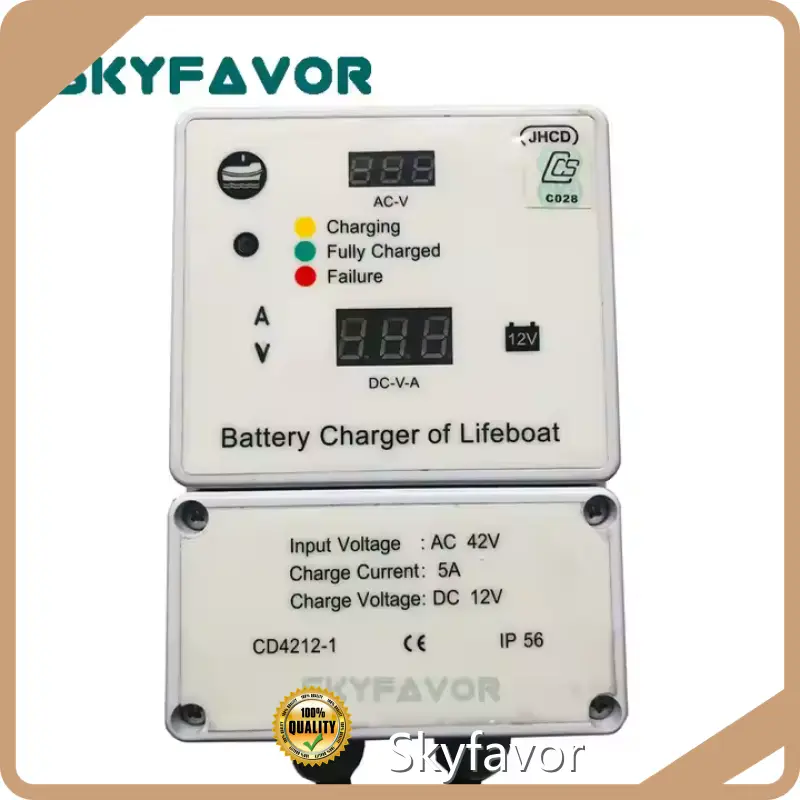

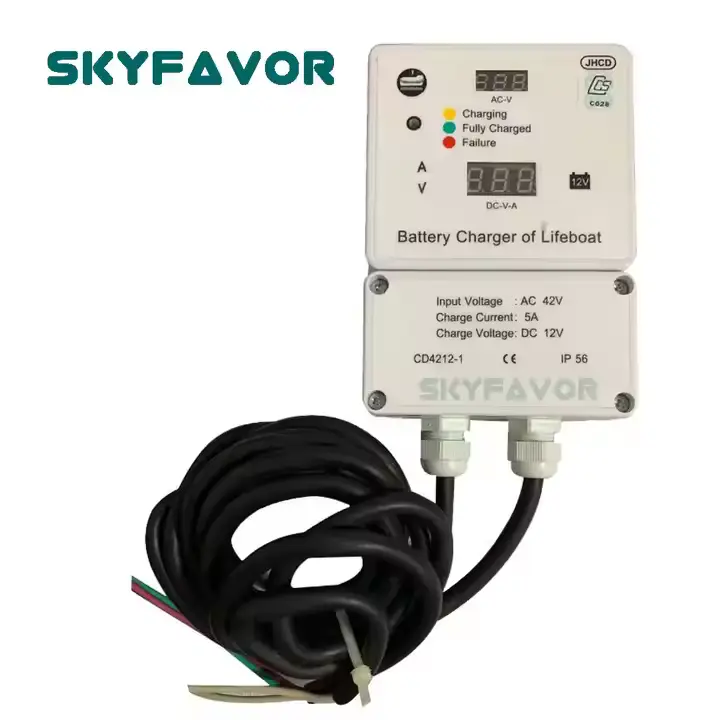

(lifeboat battery charger)42V AC TO 12V DC 5A Marine Lifeboat Ship charger led display waterproof boat battery charger Vessel lifeboat compensating charge
1,Introduce model
A:CD means Battery charger used on boat ship B:4212 means Design No. C:1/2 means Battery Quantity D:s with led display2. Useage
It's specially used for the automatic compensating charge the battery which are used on the boat or ship.
3. Indication
Yellow Lamp: Charging , The unit will charge automatic if the voltage of the battery is lower than 13.3V Green Lamp: Full charged, the unit will stop charge automatic if the voltage of the battery to 14.4V Red Lamp : Alarm, the red lamp will flash there is open-circuit, reverse polarity, short circuit and there will no output
We are the professional manufacturer of all kinds of the battery chargers, such as SLA, AGM,GEL lead-acid battery charger, lithium battery charger, lifepo4 battery charger, etc. We can customize all kinds of battery charger for every customer, any quantity is ok.
Smart Automatic battery charger list | |||||||||
Model IDOITWELL | Charging voltage¤t for reference | N.W. (KG) | Size(mm) IDOITWELL | ||||||
84V | |||||||||
7A | 4A | 2.5A | 1.8A | 1.5A | _ | _ | 0.7 | 135x90x50 | |
10A | 5A | 3.5A | 2.5A | 2A | 1.5A | _ | 0.9 | 155x90x50 | |
15A | 7.5A | 5A | 3.8A | 3A | 2.5A | _ | 1 | 170x90x50 | |
20A | 12A | 8A | 6A | 4.5A | 4A | _ | 1.2 | 170x90x63 | |
25A | 19A | 12A | 9A | 7A | 6A | _ | 2.5 | 207x120x70 | |
40A | 25A | 18A | 15A | 12A | 10A | _ | 3 | 220x135x70 | |
40A | 25A | 18A | 15A | 12A | 10A | 8A | 3.5 | 260x175x90 | |
50A | 30A | 20A | 19A | 15A | 12A | 10A | 4.5 | 260x175x90 | |
60A | 45A | 30A | 24A | 19A | 16A | 14A | 5.5 | 300x175x90 | |
90A | 60A | 40A | 30A | 25A | 20A | 18A | 6.5 | 330x175x115 | |
- | 75A | 50A | 40A | 30A | 25A | 22A | 7 | 380x240x150 | |
150A | 100A | 80A | 60A | 45A | 40A | 35A | 11 | 340x235x110 | |
