Battery Chargers Manufacturer by SKYFAVOR-5
Product details of the battery chargers manufacturer
Quick Detail
Efficient production process: the production process of SKYFAVOR battery chargers manufacturer has been streamlined and the efficient production process minimizes waste and brings the product to market in the most cost-effective manner possible. By using battery chargers manufacturer we produced, some troubles can be avoided. Shenzhen Skyfavor Technology Co., ltd works hard to achieve a win-win situation with customers.
Product Introduction
We strive for perfection and pursue excellence in every detail of production. All this promotes the high quality of our products.
| Model | IN2000M | ||
| Input | DC voltage | 12VDC | 24VDC |
| Voltage range | 9.5-15.5VDC | 19.5-31.5VDC | |
| No load current draw | 1.6A | 0.8A | |
| Efficiency | 90% | ||
| Output | AC voltage | 100/110/120VAC or 220/230/240 VAC | |
| Continuous power | 2000W | ||
| Surge power | 4000W | ||
| Waveform | Modified sine wave | ||
| Frequency | 50Hz or 60Hz | ||
| USB Output | 5VDC 1A | ||
| Protection | Low voltage alarm | 10.5±0.5VDC | 21.5±0.5VDC |
| Low voltage shut down | 9.5±0.5VDC | 19.5±0.5VDC | |
| Over voltage shut down | 15.5±1VDC | 31.5±0.5VDC | |
| Short circuit | Shut off output automatically | ||
| Over load | Shut off output automatically | ||
| Over thermal | Shut off output automatically | ||
| Environment | Working temperature | -10℃ and +50℃. | |
| Working humidity | 20%~90%RH | ||
| Storage temperature | -30℃ ~ +70℃ | ||
| Package | Machine size(L*W*H)mm | 356*234.7*96.9 | |
| Net weight KG | 3.7 | ||
| Gross weight KG | 4.5 | ||
| Packing size mm | 430*290*155 | ||
| Package quantity pcs | 4 | ||
| Outer packing size mm | 600*360*450 | ||
| Total weight KG | 18.9 | ||
(power inverter)High Frequency 2000W power inverter 12V 24V DC to AC 110V 230V modified pure sine wave inverter for solar UPS RV home appliance
Honest marketing1. 100% full power of the product.2. Six intelligent protection functions to protect your safety.3. The enterprise has passed ISO9001, RoHS and other certification.4. The products have passed CE, FCC and other certification.5. The product has obtained more than 20 patents.6. Source enterprises, direct sales of manufacturers.The engineering and technical team will tailor your exclusive products for you.
Product DescriptionInverter Circuit Diagram 300W-3000W, 2times peak power,high frequency type with transformer. It widely applied in wind generator, Solar power system, house, vehicle, ship, navigation and places where lack of city power, mobile electricity work and telecommunications device, launch Station.

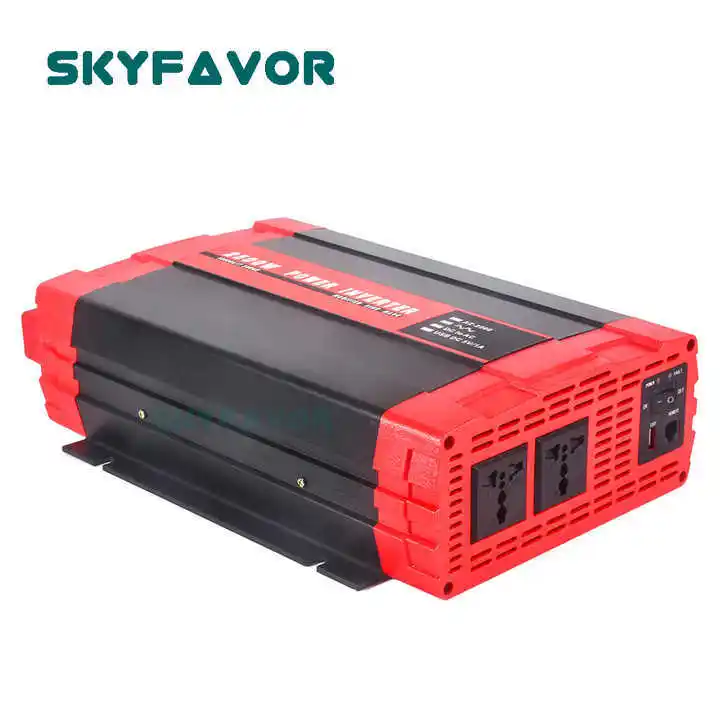

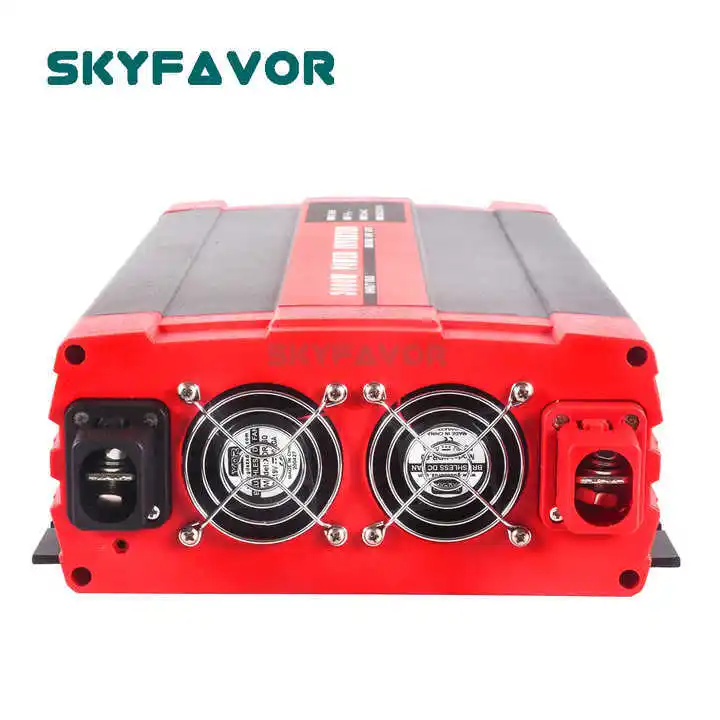

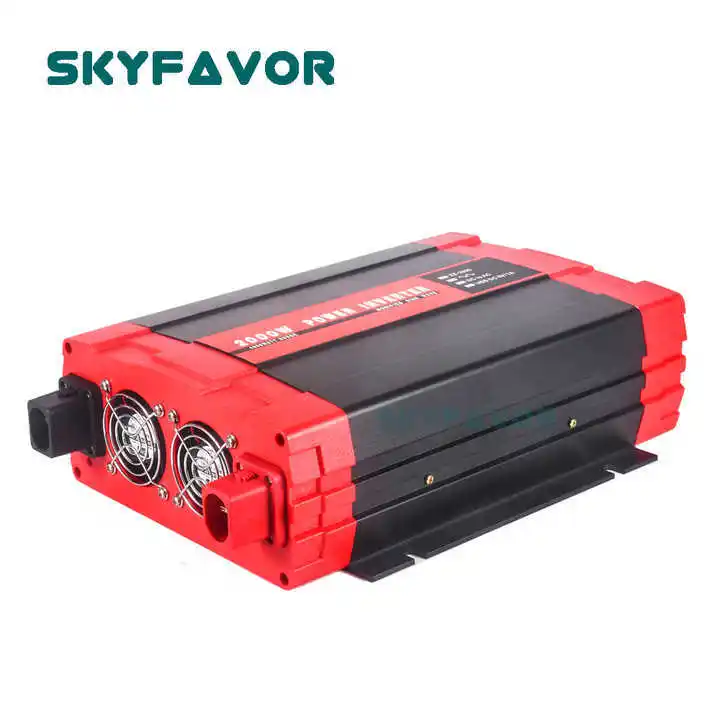

2000W power inverter 12V 24V DC to AC 110V 230V modified pure sine wave inverter
Description:
Power inverter is a kind of products which change the DC electricity to AC electricity. It has been widely used in cars, steamboats, mobile offering post and telecommunications, public security, emergency and other field.
This power inverter has adopted the international lead circuit design, with the advantage of small size, light, stable, and high conversion efficiency. It has five kind of protect function such as: input under voltage protection, input over voltage protection, overload protection, over temperature protection, output short circuit protection.
Protection Features :
1.Low voltage protection
2.Over voltage protection
3.Overload protection
4.Over temperature protection
5.Short circuit protection
6.fulse warning
The field of application
1.Power frequency alternating current (ac)off-grid power generation system .Use for home :TV, computer,audio equipment ,washing machines,electric lights,rice cookers, refrigerators, fans, air conditioning and other household appliances. Use for office:computer,printers, fax machines, projectors, money detector...
2.No power frequency alternating current (ac) off-grid power generation system
hand drill, impact drill, scrubbing machine, punching machine, electric saw, air compressor, emergency lighting, surgical lighting and so on.
3.Vehicle-mounted mobile office and RV lifemobile phones, PAD, DVD, GPS, fans, notebooks, monitors, printers, audio equipment and so on.
4.Isolated emergency power generation system applications
Emergency lighting, vehicle rescue, camping electrical equipment, medical ambulance vehicle equipment, ship related equipment...
Product Introduction
Company Advantages
Shenzhen Skyfavor Technology Co., ltd has grown into a comprehensive company integrating the development, production, and marketing of battery chargers manufacturer. We offer a one-stop customized service. By utilizing new technology, SKYFAVOR produces battery chargers manufacturer that brings newly high technology experience to customers. Through continuous improvement, our company strives to provide customers with quality products, timely delivery, and value. Get info!
We are waiting for consulting from new and old customers!
