Battery Chargers Manufacturer by SKYFAVOR-13
Company Advantages
· The design of battery chargers manufacturer has been viewed to be highly original.
· The implementation of the quality management system ensures that the product complies with international standards.
· Shenzhen Skyfavor Technology Co., ltd is a major supplier for many famous companies in battery chargers manufacturer industry.
|
Name |
60V lithium battery charger 60V 25A waterproof automatic li ion lipo lithium battery charger |
|
Model |
2000W |
|
Battery type |
60V lithium battery pack |
|
AC Input |
230Vac |
|
Output voltage |
67.2V(for 16V lithium battery)/17V(for 17V lithium battery) |
|
Output current |
25A |
|
Protection |
Over Voltage Protection Over Current Protection Short Circuit Protection Reverse polarity Protection |
|
Apply to |
For 70AH 80Ah 90AH, 60V lithium battery |

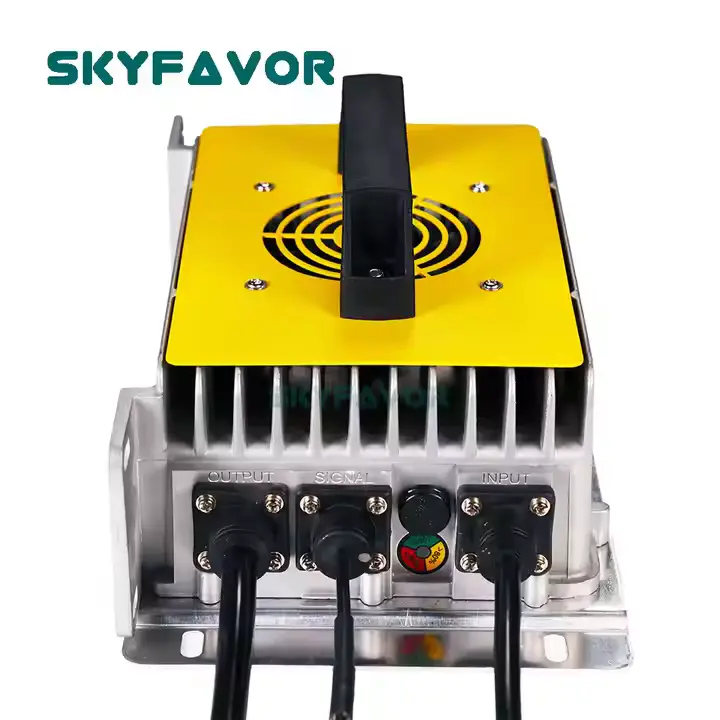

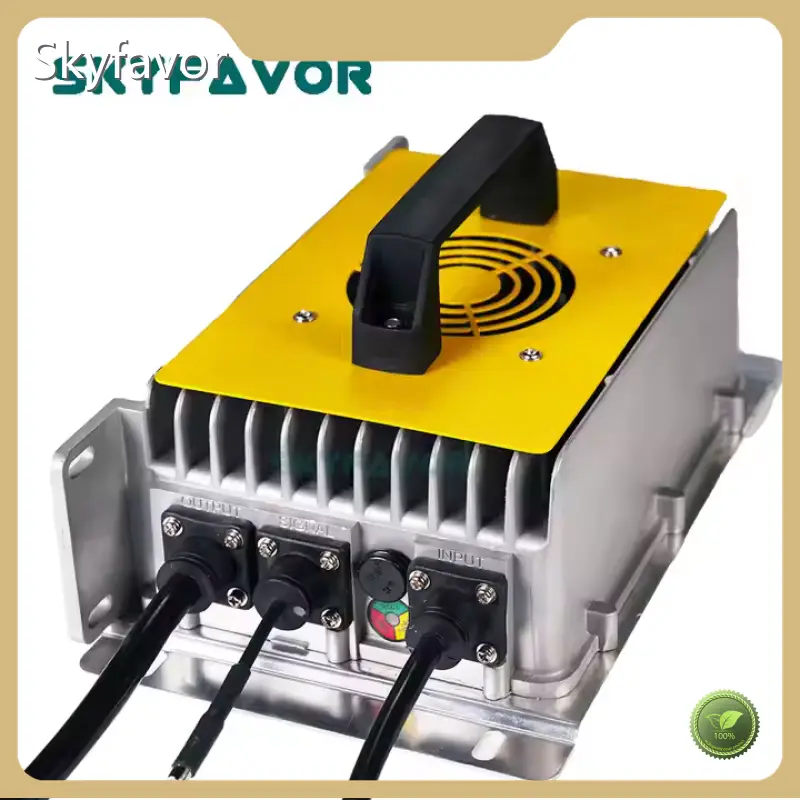

60V lithium battery charger 60V 25A waterproof automatic li ion lipo lithium battery charger
The 60V lithium battery charger 60V 25A waterproof automatic li ion lipo lithium battery charger has designed highly reliable and meet international safety and electromagnetic compatibility requirements.
A:Input Characteristics:
Input Voltage: 230Vac input AC voltage
Input Frequency: 50Hz or 60Hz and single phase.
B:Output Characteristics:
Constant Charging Voltage:67.2V(for 16V lithium battery)/17V(for 17V lithium battery)
C:Charging Mode:60V lithium battery charger 60V 25A waterproof automatic li ion lipo lithium battery charger
4 Stages,pre-charge, CC, CV, Trickle
D:Safety Test for battery charger
Hi-pot Test:15KVac 5mA 3 Seconds between input and output test
Resistance:The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds
Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B
E:Protection for battery charger
Over Voltage Protection The battery charger will be auto recovered when faults remove
Over Current Protection Charger output current does not exceed the set maximum battery charging current.
Over Short Circuit Protection Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)
Over reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.
F:DC Connector Dimension:60V lithium battery charger 60V 25A waterproof automatic li ion lipo lithium battery charger
Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.
Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc
We are the professional manufacturer of all kinds of the battery chargers, we can make OEM customized battery charger for every customer
Product Introduction
Company Features
· SKYFAVOR stands out in the battery chargers manufacturer industry.
· The quality of battery chargers manufacturer has been constantly optimized by our remarkable technology. SKYFAVOR has been always improving its technical skills.
· We have established a supervisory mechanism that is consist of members of our company to supervise and direct our behavior. This mechanism can guide our behavior to be environmental-friendly. Get price!
Product Details
The specific details of battery chargers manufacturer are presented below.
Application of the Product
The battery chargers manufacturer developed by our company can play a role in various fields.
Skyfavor has rich experience in the industry and we are sensitive about customers' needs. Therefore, we can provide comprehensive one-stop solutions based on customers' actual situations.
