Battery Chargers Manufacturer by SKYFAVOR-12
Company Advantages
· SKYFAVOR battery chargers manufacturer uses qualified raw materials from international prestigious vendors.
· The quality of this product can not be assured without the efforts of each SKYFAVOR staff.
· The product has got high client satisfaction and has a great potential for wider application.
(battery charger)Custom High quality 48V battery charger 48V 50A Professional On board IP65 waterproof Automatic smart battery charger INPUT 230Vac
Important Note:
We need the exact charger specifications to start production, so please leave a message when confirming the ordering and provide us with all the necessary information below. Thank you!

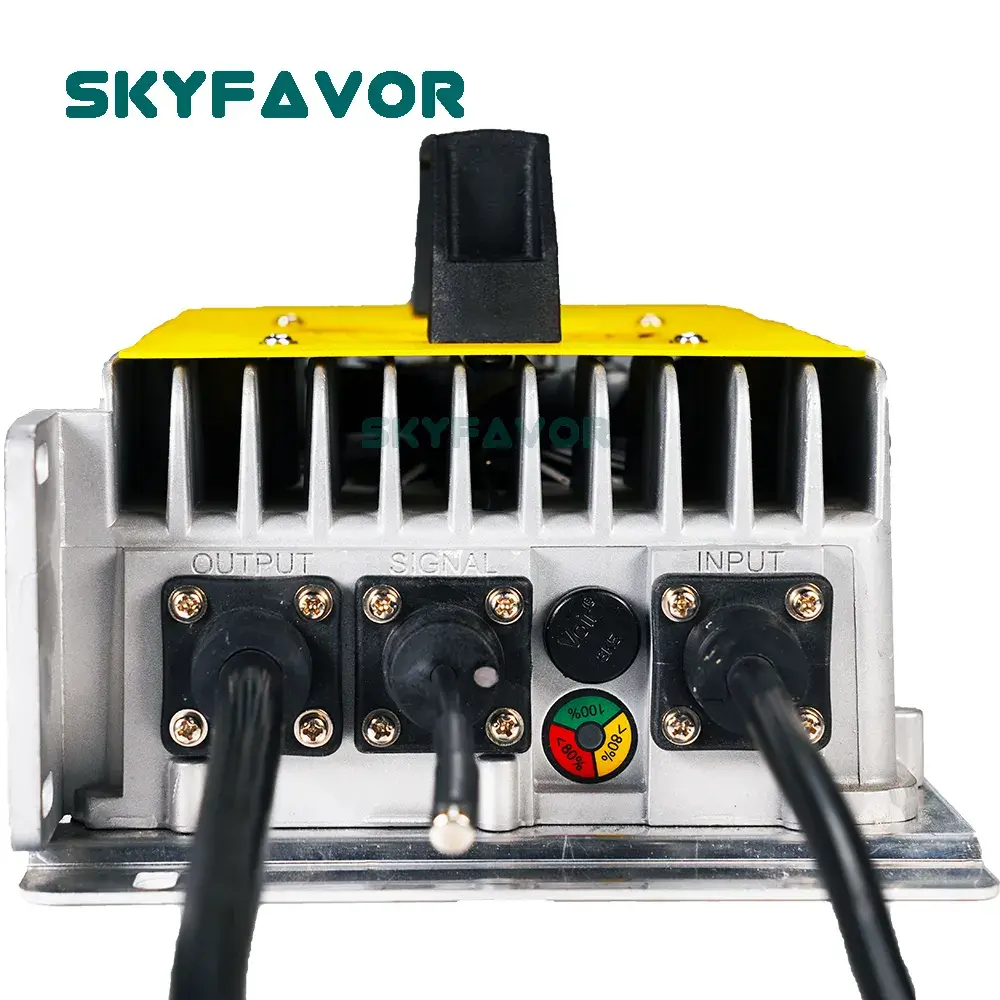

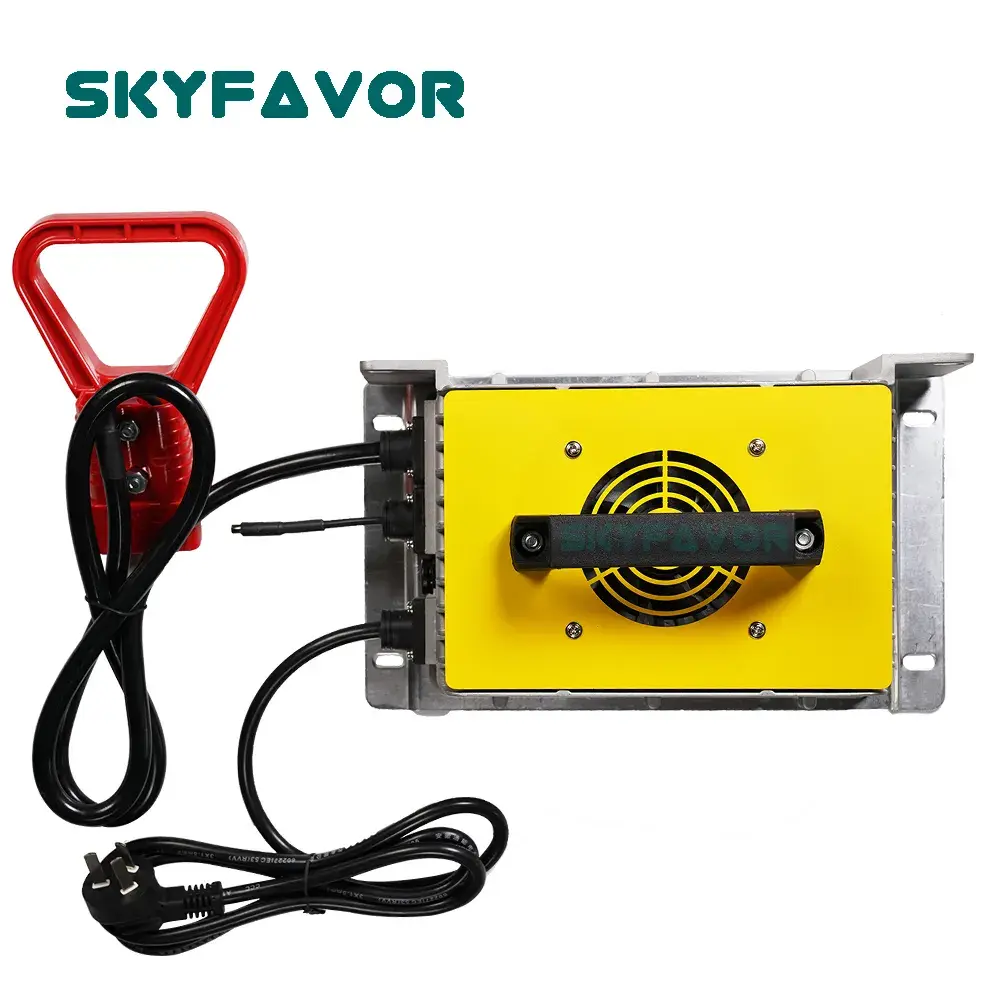

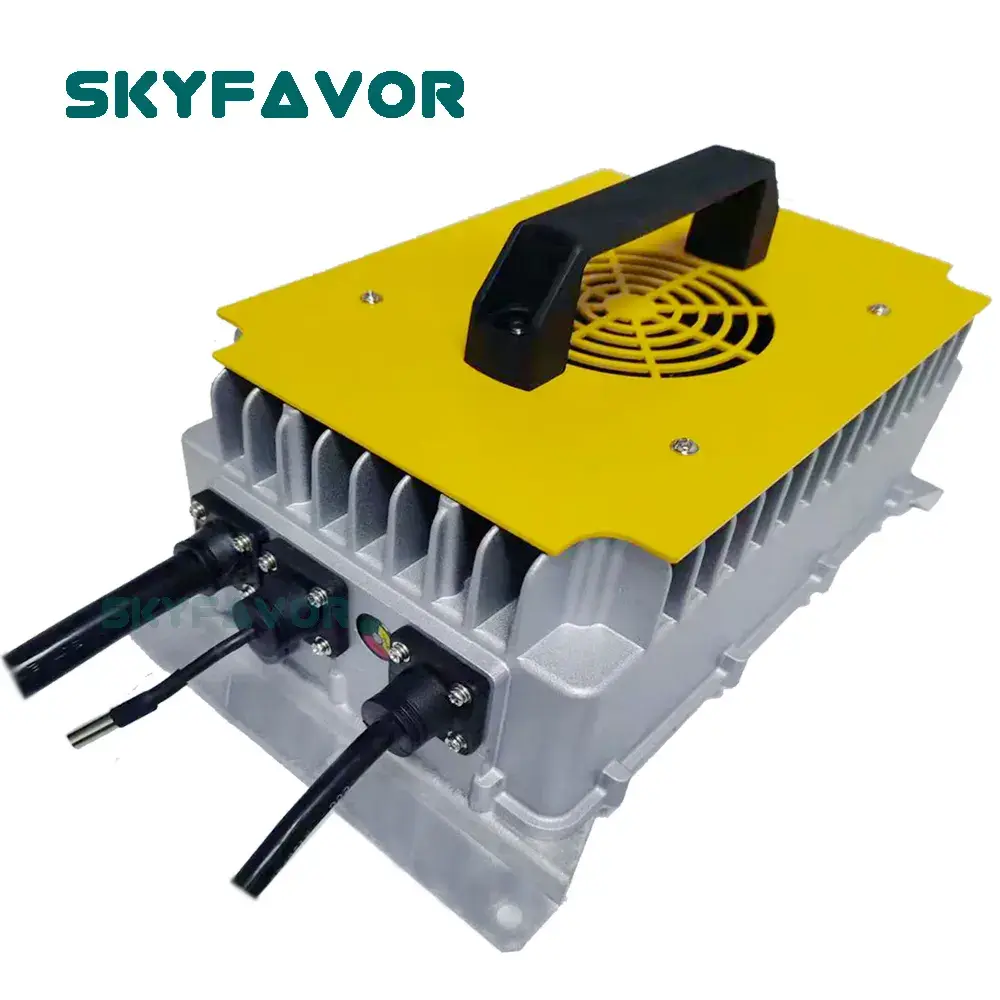

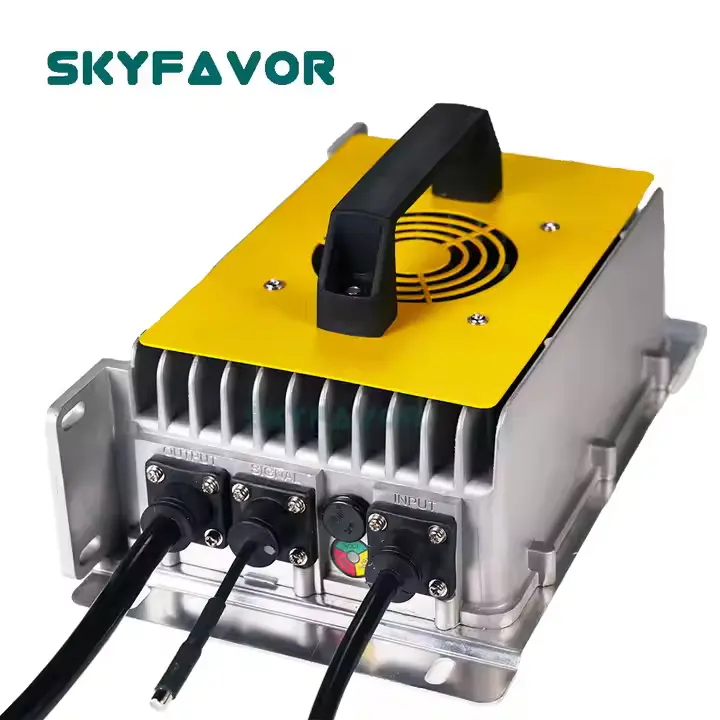

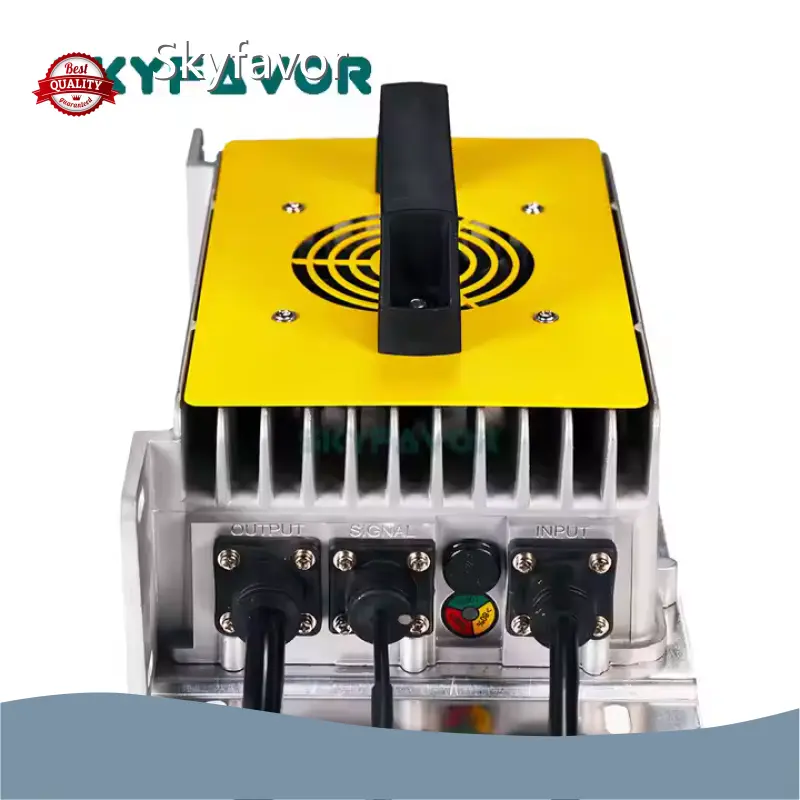

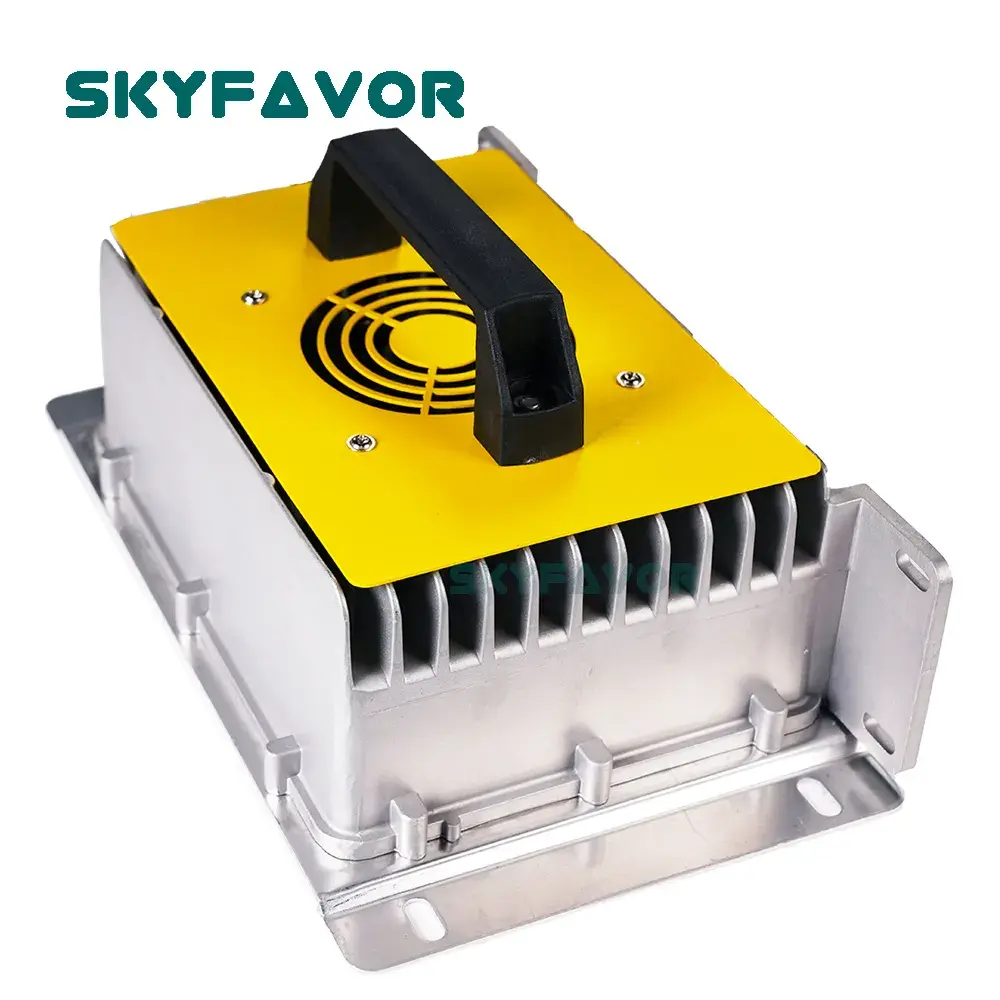

48V battery charger 48V 50A Professional On board IP65 waterproof Automatic smart battery charger
Custom battery charger requires the following information:
1. Battery type: lead-acid battery, lithium battery or lifepo4 battery?
2. Battery capacity:
3. Input AC voltage:
4. Input plug:
5. Output voltage:
6. Output current:
7. Output plug:
For example: 48V 13S 60Ah lithium battery, input 110Vac USA 3-pin plug, output 54.6V 15A Anderdon 50A red plug
(Please specify whether the Anderson 50A plug is gray or red.)
We are the professional manufacturer that produce all kinds of the battery chargers, such as VRLA, AGM, GEL, SLA lead acid battery chargers, lithium battery chargers, lifepo4 battery chargers, lipo battery chargers, etc. We can 100% custom the battery chargers according to buyer's demands. NO MOQ!!! Even if only 1 piece.
48V battery charger 48V 50A Professional On board IP65 waterproof Automatic smart battery charger
The 48V battery charger 48V 50A Professional On board IP65 waterproof Automatic smart battery charger has designed highly reliable and meet international safety and electromagnetic compatibility requirements.
A:Input Characteristics:
Input Voltage: 230Vac input AC voltage
Input Frequency: 50Hz or 60Hz and single phase.
B:Output Characteristics:
Constant Charging Voltage:50.4V (for 12S lithium battery pack)/54.6V(for 13S lithium battery pack)
58.4V(for 16S lifepo4 battery pack)
58.8V(for 48V lead acid battery)
C:Charging Mode:48V battery charger 48V 50A Professional On board IP65 waterproof Automatic smart battery charger
4 Stages,pre-charge, CC, CV, Trickle
D:Safety Test for battery charger
Hi-pot Test:15KVac 5mA 3 Seconds between input and output test
Resistance:The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds
Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B
E:Protection for battery charger
Over Voltage Protection The battery charger will be auto recovered when faults remove
Over Current Protection Charger output current does not exceed the set maximum battery charging current.
Over Short Circuit Protection Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)
Over reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.
F:DC Connector Dimension:48V battery charger 48V 50A Professional On board IP65 waterproof Automatic smart battery charger
Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.
Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc
Product Introduction
Company Features
· Shenzhen Skyfavor Technology Co., ltd is definitely one of the most professional manufacturer of making battery chargers manufacturer.
· In the market of manufacturing battery chargers manufacturer, SKYFAVOR applies the most advanced technology. SKYFAVOR enjoys higher level of battery chargers manufacturer production technology. SKYFAVOR is experienced in applying remarkable technology to the manufacture of battery chargers manufacturer.
· Shenzhen Skyfavor Technology Co., ltd is striving to become a world-class manufacturer of battery chargers manufacturer. Call!
Product Details
With a focus on product quality, Skyfavor strives for quality excellence in the production of battery chargers manufacturer.
Application of the Product
Skyfavor's battery chargers manufacturer has been widely used in many industries.
With professional engineers and technicians in our company, Skyfavor is able to provide one-stop and comprehensive solutions for customers.
Enterprise Advantages
Our company has a professional team composed of various middle and senior technical talents. The team members are experienced and skilled, so the technical guidance and consultation are guaranteed.
We have set up a powerful, complete and effective marketing and serving system. And the most convenient and fastest pre-sales, sales, after-sales service would be provided to satisfy customers' user experience.
With a focus on customer's needs, Skyfavor always adheres to the business philosophy of 'people-based, market-oriented, innovation-driven'. Based on that, we constantly innovate business management methods to promote us to become a high-end, innovative and excellent company.
Skyfavor, built in has gone the process of continuous development. Now our company becomes a industry leader through the development of years.
Skyfavor's Battery charger are sold to all parts of the country and are well received by users.
