Company Advantages
· SKYFAVORbattery chargers manufacturer has an innovative and practical design which is well-received in the market.
· The quality of this product is guaranteed by the means of reliability testing and inspection systems.
· Shenzhen Skyfavor Technology Co., ltd has more interaction with customers.
Product Details
Charger Model: | 900A | Power: | 900W |
Housing: | Aluminium Alloy | Size: | 262*88.5*161.8mm |
Communication: | CAN, RS485 | Waterproof: | IP65 |
Efficiency: | >=92% | Operating Temperature: | -20 to 40℃ |
Storage Temperature: | -40 to +70℃ | Noise: | <=40dB |
Cooling: | Temperature and load current-controlled fan | ||
Protection: | Over-temperature, over-voltage, over-current, short-circuit, | ||
and reverse connection protection. | |||
Battery type: | Suitable for lead-acid batteries (water-added, GEL, and AGM) or lithium batteries (lithium-iron, lithium-manganese, lithium ternary) charging. | ||
Features: | 1.Automatic multi-stage charging curve for long battery life 2.Intelligent fully automatic charging: obtains the battery status | ||
and switches the charging mode(charge wait/pre-charge/constant current/constant voltage/float charge/ recharge/ full charge) |
ITEM | 2430A | 3620A | 4815A | 6012A | 7210A | |
Output | LFP charging voltage | 29.2V | 43.8V | 58.4V | 73.0V | 87.6V |
NCM charging voltage | 29V | 43.5V | 58V | 67.2V | 84.0V | |
L-A charging voltage | 29.4V | 44.1V | 58.8V | 73.5V | 88.2V | |
Floating charge voltage | 27.6V(only Lead) | 41.4V(only Lead) | 55.2V(only Lead) | 69V(only Lead) | 82.8V(only Lead) | |
Maximum charging current | 30A | 20A | 15.0A | 12A | 10A | |
Rotating lamp current | Lead 5.0A/ | Lead 4.5A/ | Lead 3.75A/ | Lead 2.0A/ Lithium 0.64A | Lead 1.5A/ Lithium 0.45A | |
Lithium 1.8A | Lithium 1.44A | Lithium 1.2A | ||||
Ripple voltage | ≤2%VOUTMAX | |||||
Input | Voltage range | 90V~260VAC | ||||
Frequency range | 47~63Hz | |||||
Power factor | PF>0.98/115VAC, PF>0.95/230VAC at full load | |||||
AC current(type) | 12A/115VAC 6.5A/230VAC | |||||
Inrush current(type) | COLD START 50A at 230VAC | |||||
Leakage Current | <0.75MA |

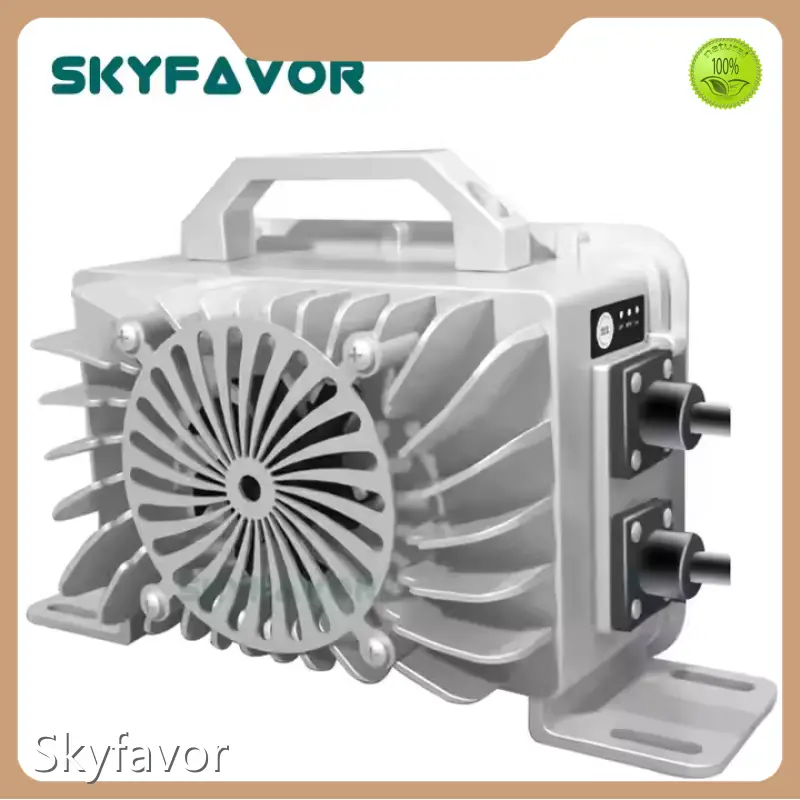

Intelligent automatic 36V battery charger 36V 20A waterproof 36volt battery charger
Product Introduction1.Multi-voltage compatible : manually select battery type and automatically adjust charging curve, solving the problem of different batteries requiring different chargers on the same voltage platform.2.Compatible with AGM, gel, lead-acid, NCM, LFP, lithium-ion batteries.3.Intelligent fully automatic charging: switch charging modes based on the battery's status.(Standby/precharge/constant current/constant voltage/float charge/recharge/full).Automatic multi-stage charging curve for longer battery life.4.Bluetooth application monitoring of charging status, supports custom charging time and parameter settings.5.Dimensions: 262 mm (L) x 88.5 mm (W) x 161.8 mm (H).6.CE, FCC, and DOE etc.7.Supports multiple output plugs8.Customizable charging profiles or charging modes.
We are the professional manufacturer of all kinds of the battery chargers, we can make OEM customized battery charger for every customer
Smart Automatic battery charger list | |||||||||
Model | Charging voltage¤t for reference | N.W. (KG) | Size(mm) | ||||||
84V | |||||||||
7A | 4A | 2.5A | 1.8A | 1.5A | _ | _ | 0.7 | 135x90x50 | |
10A | 5A | 3.5A | 2.5A | 2A | 1.5A | _ | 0.9 | 155x90x50 | |
15A | 7.5A | 5A | 3.8A | 3A | 2.5A | _ | 1 | 170x90x50 | |
20A | 12A | 8A | 6A | 4.5A | 4A | _ | 1.2 | 170x90x63 | |
25A | 19A | 12A | 9A | 7A | 6A | _ | 2.5 | 207x120x70 | |
40A | 25A | 18A | 15A | 12A | 10A | _ | 3 | 220x135x70 | |
40A | 25A | 18A | 15A | 12A | 10A | 8A | 3.5 | 260x175x90 | |
50A | 30A | 20A | 19A | 15A | 12A | 10A | 4.5 | 260x175x90 | |
60A | 45A | 30A | 24A | 19A | 16A | 14A | 5.5 | 300x175x90 | |
90A | 60A | 40A | 30A | 25A | 20A | 18A | 6.5 | 330x175x115 | |
- | 75A | 50A | 40A | 30A | 25A | 22A | 7 | 380x240x150 | |
150A | 100A | 80A | 60A | 45A | 40A | 35A | 11 | 400x300x200 |
Product Introduction
Company Features
· SKYFAVOR is known for its groundbreaking innovations that have reshaped the whole battery chargers manufacturer industry.
· We boast a pool of excellent designing teams. They have a wealth of product knowledge and deep designing expertise, which allows the company to resolve customers’ problems of battery chargers manufacturer promptly. We have a team of senior designers. They are able to offer innovative and functional designs that exactly cater to clients' needs. Their experience and expertise have helped us solve many problems in the battery chargers manufacturer area. Our battery chargers manufacturer business scope has expanded to various countries. We have successfully finished several projects with world-famous brands in product development and manufacture.
· We uphold a corporate culture of collaboration. We encourage employees to work together and deliver more business success through shared goals of mutual support.
Product Details
With a focus on quality, Skyfavor pays great attention to the details of battery chargers manufacturer.
Application of the Product
Skyfavor's battery chargers manufacturer is available in a wide range of applications.
Skyfavor could customize comprehensive and efficient solutions according to customers' different needs.
Enterprise Advantages
Skyfavor has established a management team composed of talents in the industry to expand the publicity channels and achieve the 'going out' strategy.
As for the management of customer service, our company insists on integrating standardized service with personalized service, so as to fulfill different service needs of customers. Based on that, we could build a brand image of high-quality service.
Skyfavor upholds and implements new development concepts which are to strike a balance between economic development and social responsibility. In this way, we promote the development of a new mode of environment-friendly production.
Since Skyfavor was established in we have passed years of wind and rain. Our company has won many honorary qualifications for the high-quality products and services. And our industry status has been significantly improved after all these years.
Skyfavor sells Battery charger in various regions in the country as well as in the Middle East, Southeast Asia, Australia, and other countries and regions.
