Battery Charger for Golf Cart 48v - - SKYFAVOR
|
Name |
Professional 48v golf cart charger 48V 18A waterproof 48 volt lead acid battery charger |
|
Model |
2000W |
|
Battery type |
48V lead acid battery pack |
|
AC Input |
110Vac |
|
Output voltage |
58.8V float charge 55.2V |
|
Output current |
18A |
|
Protection |
Over Voltage Protection Over Current Protection Short Circuit Protection Reverse polarity Protection |
|
Apply to |
For 150AH 180Ah 200AH, 48V lead acid battery |
Professional 48v golf cart charger 48V 18Awaterproof 48 volt lead acid battery charger
The Professional 48v golf cart charger 48V 18A waterproof 48 volt lead acid battery charger has designed highly reliable and meet international safety and electromagnetic compatibility requirements.
A:Input Characteristics:
Input Voltage: 110Vac input AC voltage
Input Frequency: 50Hz or 60Hz and single phase.
B:Output Characteristics:
Constant Charging Voltage:58.8V float charge 55.2V
C:Charging Mode:Professional 48v golf cart charger 48V 18A waterproof 48 volt lead acid battery charger
4 Stages,pre-charge, CC, CV, Trickle
D:Safety Test for battery charger
Hi-pot Test:15KVac 5mA 3 Seconds between input and output test
Resistance:The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds
Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B
E:Protection for battery charger
Over Voltage Protection The battery charger will be auto recovered when faults remove
Over Current Protection Charger output current does not exceed the set maximum battery charging current.
Over Short Circuit Protection Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)
Over reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.

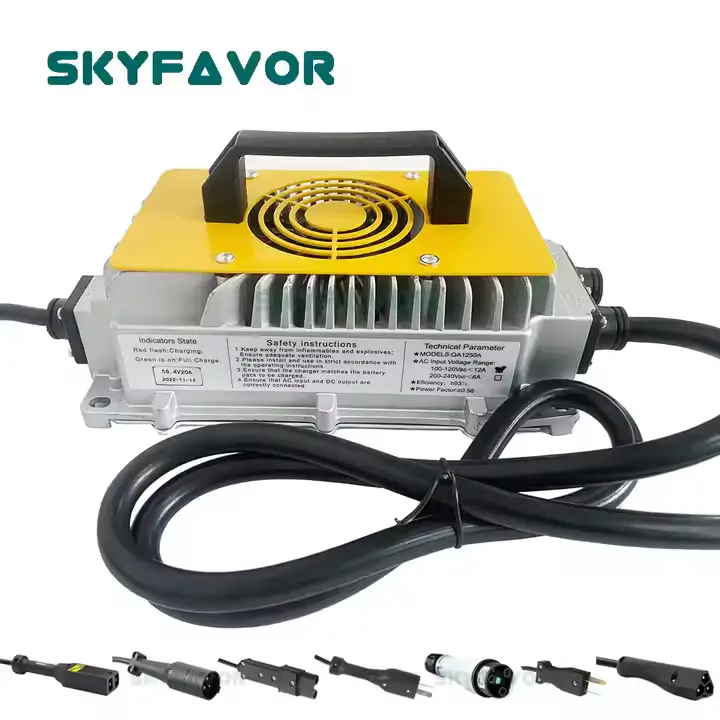

F:DC Connector Dimension:Professional 48v golf cart charger 48V 18A waterproof 48 volt lead acid battery charger
Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.
Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc
We are the professional manufacturer of all kinds of the battery chargers, we can make OEM customized battery charger for every customer
Smart Automatic battery charger list | |||||||||
Model | Charging voltage¤t for reference | N.W. (KG) | Size(mm) | ||||||
84V | |||||||||
7A | 4A | 2.5A | 1.8A | 1.5A | _ | _ | 0.7 | 135x90x50 | |
10A | 5A | 3.5A | 2.5A | 2A | 1.5A | _ | 0.9 | 155x90x50 | |
15A | 7.5A | 5A | 3.8A | 3A | 2.5A | _ | 1 | 170x90x50 | |
20A | 12A | 8A | 6A | 4.5A | 4A | _ | 1.2 | 170x90x63 | |
25A | 19A | 12A | 9A | 7A | 6A | _ | 2.5 | 207x120x70 | |
40A | 25A | 18A | 15A | 12A | 10A | _ | 3 | 220x135x70 | |
40A | 25A | 18A | 15A | 12A | 10A | 8A | 3.5 | 260x175x90 | |
50A | 30A | 20A | 19A | 15A | 12A | 10A | 4.5 | 260x175x90 | |
60A | 45A | 30A | 24A | 19A | 16A | 14A | 5.5 | 300x175x90 | |
90A | 60A | 40A | 30A | 25A | 20A | 18A | 6.5 | 330x175x115 | |
- | 75A | 50A | 40A | 30A | 25A | 22A | 7 | 380x240x150 | |
150A | 100A | 80A | 60A | 45A | 40A | 35A | 11 | 340x235x110 | |
Product Introduction
Company Advantages
· The design of SKYFAVOR battery charger for golf cart 48v is elaborately designed with the combination of functionality and aesthetics.
· This product has been tested for good performance and durability.
· The service assurance is also an important factor for SKYFAVOR to stand out in the market.
Company Features
· With core competency extending, Shenzhen Skyfavor Technology Co., ltd has become one of the key market players in developing and manufacturing battery charger for golf cart 48v.
· The factory has conducted a scientific production process control under the strict international quality management system. All products, including parts and materials, have to go through strict quality testing under specific testing equipment.
· Shenzhen Skyfavor Technology Co., ltd's goal is to be the best supplier of the best products and services for battery charger for golf cart 48v industry. Get price!
Application of the Product
Skyfavor's battery charger for golf cart 48v can be used in multiple industries.
With rich manufacturing experience and strong production capability, Skyfavor is able to provide professional solutions according to customers' actual needs.
