Battery Charger for Golf Cart 48v - - SKYFAVOR-1
Product details of the battery charger for golf cart 48v
Product Overview
Tested by relevant national departments, battery charger for golf cart 48v has excellent performance that meets the national standards. Moreover, the careful design of professionals makes it compact in structure and easy to install and disassemble. The design of the structure makes battery charger for golf cart 48v very easy to operate. battery charger for golf cart 48v is praised by our customers for its high performance in functions. battery charger for golf cart 48v is widely used in automobiles, motorcycles, tractors, diesel engines and other products. Shenzhen Skyfavor Technology Co., ltd offers reliable and high-quality services.
Product Introduction
Compared with other products in the industry, battery charger for golf cart 48v has more obvious advantages which are reflected in the following aspects.
|
Name |
48V 15A Lead acid battery charger |
|
Model |
900G |
|
Battery type |
Lead acid battery |
|
AC Input |
110Vac or 230Vac |
|
Output voltage |
58.8V float charge 55.2V |
|
Output current |
15A |
|
Protection |
Over Voltage Protection Over Current Protection Short Circuit Protection Reverse polarity Protection |
|
Apply to |
For Electric Motorcycle.120AH,150AH,200AH 48v Lead acid battery |

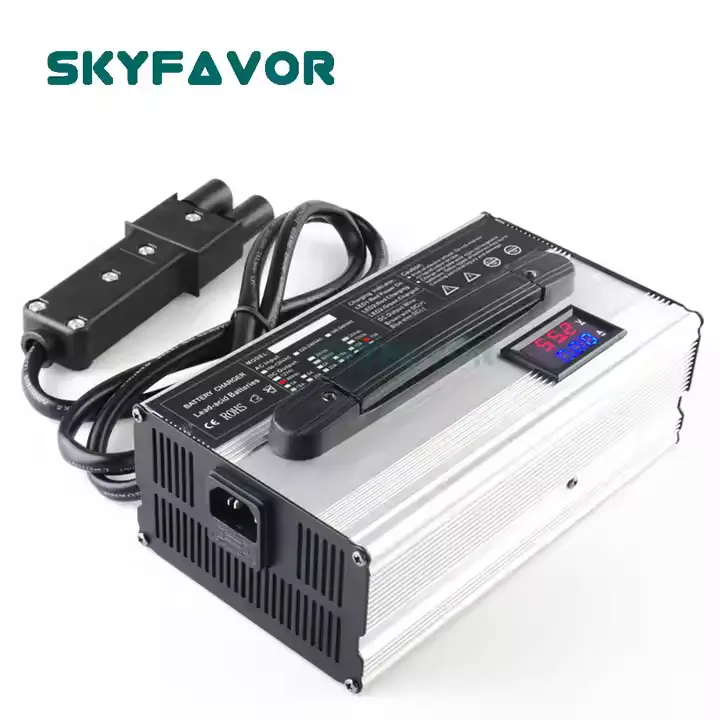

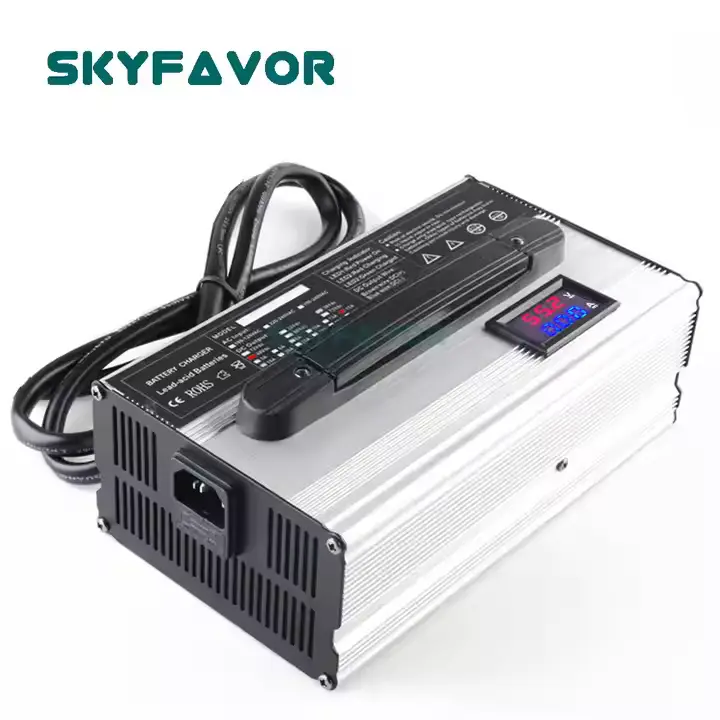

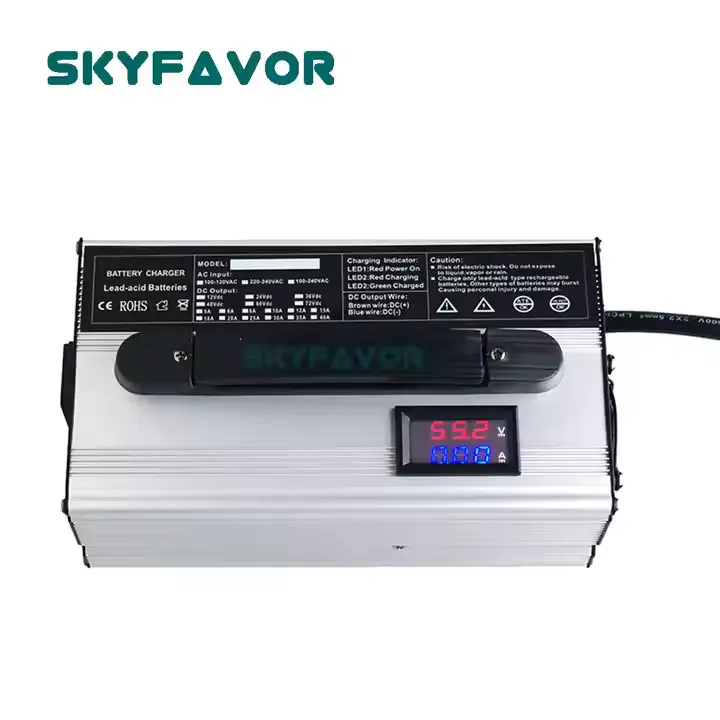

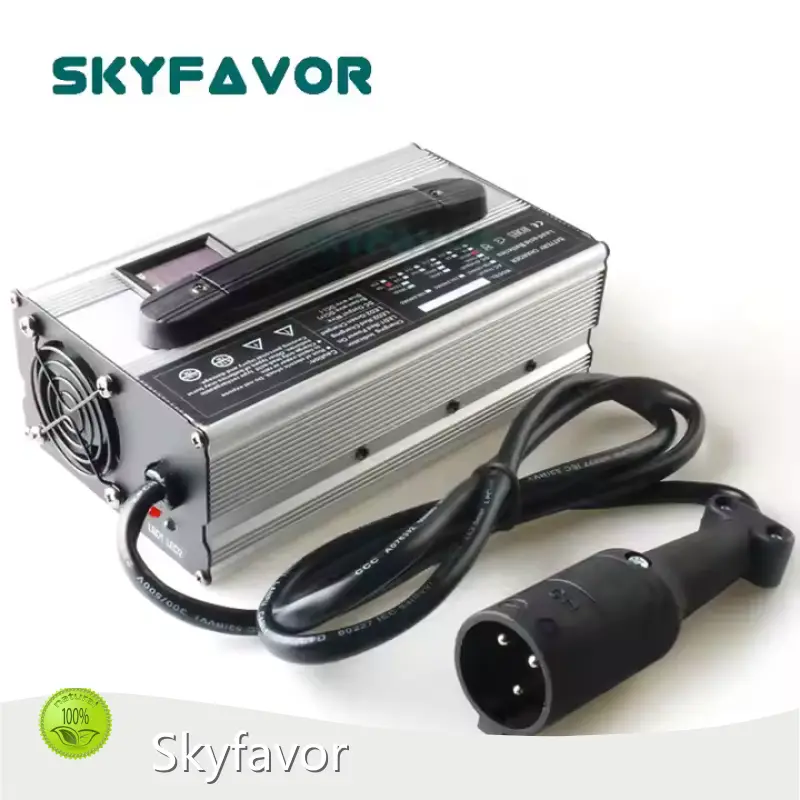

Fast 15 AMP Club Car Battery Charger 48 Volt Golf Carts battery charger
The Fast 15 AMP Club Car Battery Charger 48 Volt Golf Carts battery charger has designed highly reliable and meet international safety and electromagnetic compatibility requirements.
A:Input Characteristics:
Input Voltage: 110v or 230Vac input AC voltage
Input Frequency: 50Hz or 60Hz and single phase.
B:Output Characteristics:
Constant Charging Voltage: 58.8V float charge 55.2V
C:Charging ModeFast 15 AMP Club Car Battery Charger 48 Volt Golf Carts battery charger
3 Stages, CC, CV, Trickle
D:Safety Test for battery charger
Hi-pot Test:15KVac 5mA 3 Seconds between input and output test
Resistance:The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds
Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B
E:Protection for battery charger
Over Voltage Protection The battery charger will be auto recovered when faults remove
Over Current Protection Charger output current does not exceed the set maximum battery charging current.
Over Short Circuit Protection Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)
Over reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.
F:DC Connector Dimension:Fast 15 AMP Club Car Battery Charger 48 Volt Golf Carts battery charger
Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.
Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc
We are the professional manufacturer of all kinds of the battery chargers, we can make OEM customized battery charger for every customer.
Smart Automatic battery charger list | |||||||||
Model | Charging voltage¤t for reference | N.W. (KG) | Size(mm) | ||||||
84V | |||||||||
7A | 4A | 2.5A | 1.8A | 1.5A | _ | _ | 0.7 | 135x90x50 | |
10A | 5A | 3.5A | 2.5A | 2A | 1.5A | _ | 0.9 | 155x90x50 | |
15A | 7.5A | 5A | 3.8A | 3A | 2.5A | _ | 1 | 170x90x50 | |
20A | 12A | 8A | 6A | 4.5A | 4A | _ | 1.2 | 170x90x63 | |
25A | 19A | 12A | 9A | 7A | 6A | _ | 2.5 | 207x120x70 | |
40A | 25A | 18A | 15A | 12A | 10A | _ | 3 | 220x135x70 | |
40A | 25A | 18A | 15A | 12A | 10A | 8A | 3.5 | 260x175x90 | |
50A | 30A | 20A | 19A | 15A | 12A | 10A | 4.5 | 260x175x90 | |
60A | 45A | 30A | 24A | 19A | 16A | 14A | 5.5 | 300x175x90 | |
90A | 60A | 40A | 30A | 25A | 20A | 18A | 6.5 | 330x175x115 | |
- | 75A | 50A | 40A | 30A | 25A | 22A | 7 | 380x240x150 | |
150A | 100A | 80A | 60A | 45A | 40A | 35A | 11 | 340x235x110 | |
Product Introduction
Company Information
Shenzhen Skyfavor Technology Co., ltd acts as a reliable role in the manufacturing of high-quality products such as battery charger for golf cart 48v. We have gained a wide range of recognition in the industry. Shenzhen Skyfavor Technology Co., ltd adopts sophisticated facilities to assist production of battery charger for golf cart 48v. The operational principle of our company is: Be Consistent. We are committed to working consistently, coupling with our endurance and flexibility, we can climb the ladder of success. Get quote!
With rich experience and exquisite technology, we are looking forward to building good cooperation with partners from all walks of life and creating a better tomorrow!
