Battery Charger and Jump Starter - - SKYFAVOR
Product details of the battery charger and jump starter
Product Introduction
With the assistance of a team of professionals, SKYFAVOR battery charger and jump starter is manufactured in adherence to industry standard. The product has withstood tough performance test and function optimally even in extreme conditions. And it has a long service life and is flexible enough for use in different conditions and assignments. With advanced manufacturing equipment and perfect quality guarantee system, Shenzhen Skyfavor Technology Co., ltd supplies the clients with high quality products.
|
Name |
12V lead acid battery charger 12V 2A automatic smart 12 volt motorcycle battery charger |
|
Mode |
1202F |
|
Input |
110Vac or 220Vac |
|
Output |
12V (8-14.5V) |
|
Output current |
12V 2A |
|
Features: |
Intelligent Pulse Repair |
|
Compatibility |
4AH-40AH lead acid battery |
|
Protection |
-Short circuit protection -Low-voltage protection -Overvoltage protection -Overcurrent protection -Overheating protection -Smart security protection -Overall earthquake resistance -Overcharge and overdischarge protection -Reverse connection protection -Overshoot over discharge protection |
|
Apply to |
Children's toy cars, motorcycles,etc. |
|
weight |
450g |

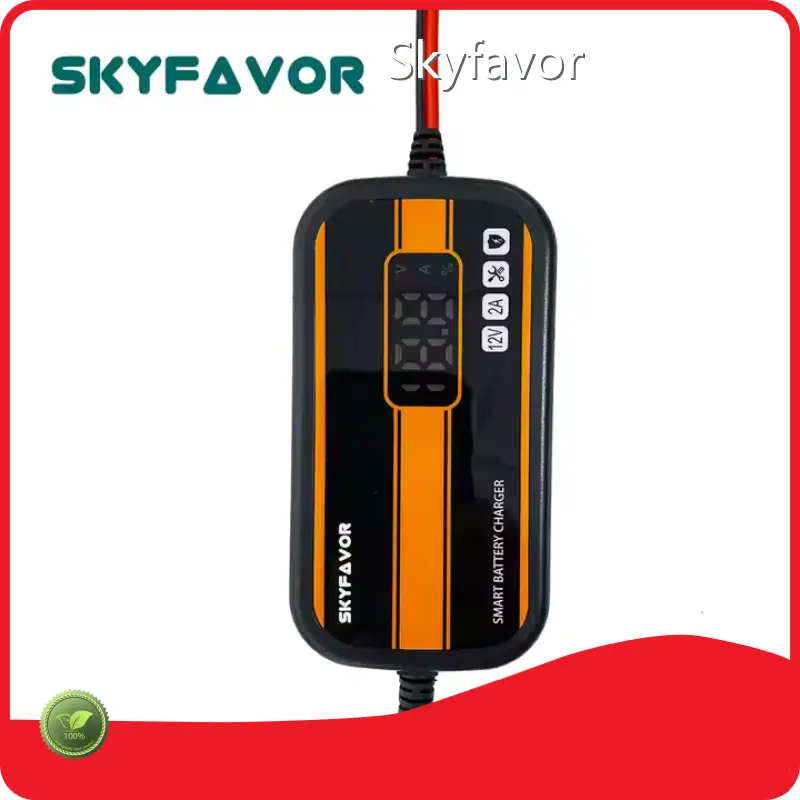

12V lead acid battery charger 12V 2A automatic smart 12 volt motorcycle battery charger
The 12V lead acid battery charger 12V 2A automatic smart 12 volt motorcycle battery charger has designed highly reliable and meet international safety and electromagnetic compatibility requirements.
A:Input Characteristics:
Input Voltage: 100-240Vac input AC voltage
Input Frequency: 50Hz or 60Hz and single phase.
ac/50Hz(Typical full load)
B:Output Characteristics:
Constant Charging Voltage: 14.4V Float charge 13.8V
C:Charging Mode 12V lead acid battery charger 12V 2A automatic smart 12 volt motorcycle battery charger
3 Stages, CC, CV, Trickle
D:Safety Test for battery charger
Hi-pot Test:15KVac 5mA 3 Seconds between input and output test
Resistance:The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds
Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B
E:Protection for battery charger
Over Voltage Protection The battery charger will be auto recovered when faults remove
Over Current Protection Charger output current does not exceed the set maximum battery charging current.
Over Short Circuit Protection Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)
Over reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.
F:DC Connector Dimension:12V lead acid battery charger 12V 2A automatic smart 12 volt motorcycle battery charger
Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.
Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc
12V lead acid battery charger 12V 2A automatic smart 12 volt motorcycle battery charger
We are the professional manufacturer of all kinds of the battery chargers, we can make OEM customized battery charger for every customer
Smart Automatic battery charger list | |||||||||
Model | Charging voltage¤t for reference | N.W. (KG) | Size(mm) | ||||||
84V | |||||||||
7A | 4A | 2.5A | 1.8A | 1.5A | _ | _ | 0.7 | 135x90x50 | |
10A | 5A | 3.5A | 2.5A | 2A | 1.5A | _ | 0.9 | 155x90x50 | |
15A | 7.5A | 5A | 3.8A | 3A | 2.5A | _ | 1 | 170x90x50 | |
20A | 12A | 8A | 6A | 4.5A | 4A | _ | 1.2 | 170x90x63 | |
25A | 19A | 12A | 9A | 7A | 6A | _ | 2.5 | 207x120x70 | |
40A | 25A | 18A | 15A | 12A | 10A | _ | 3 | 220x135x70 | |
40A | 25A | 18A | 15A | 12A | 10A | 8A | 3.5 | 260x175x90 | |
50A | 30A | 20A | 19A | 15A | 12A | 10A | 4.5 | 260x175x90 | |
60A | 45A | 30A | 24A | 19A | 16A | 14A | 5.5 | 300x175x90 | |
90A | 60A | 40A | 30A | 25A | 20A | 18A | 6.5 | 330x175x115 | |
- | 75A | 50A | 40A | 30A | 25A | 22A | 7 | 380x240x150 | |
150A | 100A | 80A | 60A | 45A | 40A | 35A | 11 | 340x235x110 | |
