Company Advantages

· There has been a steady demand in our market for this unique design of 8 volt golf cart battery charger.

· The life cycle of this product has been greatly extended.

· With limitless potential, this product supports a favorable outlook.

Name	72V 20A Lead acid battery cherger(72v golf cart charger)
Model	3300W
Battery type	72v lead acid battery
AC Input	110Vac
Output voltage	88.2V flaot charge 82.8v
Output current	20A
Protection	Over Voltage Protection Over Current Protection Short Circuit Protection Reverse polarity Protection
Apply to	For 170AH,240AH 300AH 72v lead acid battery

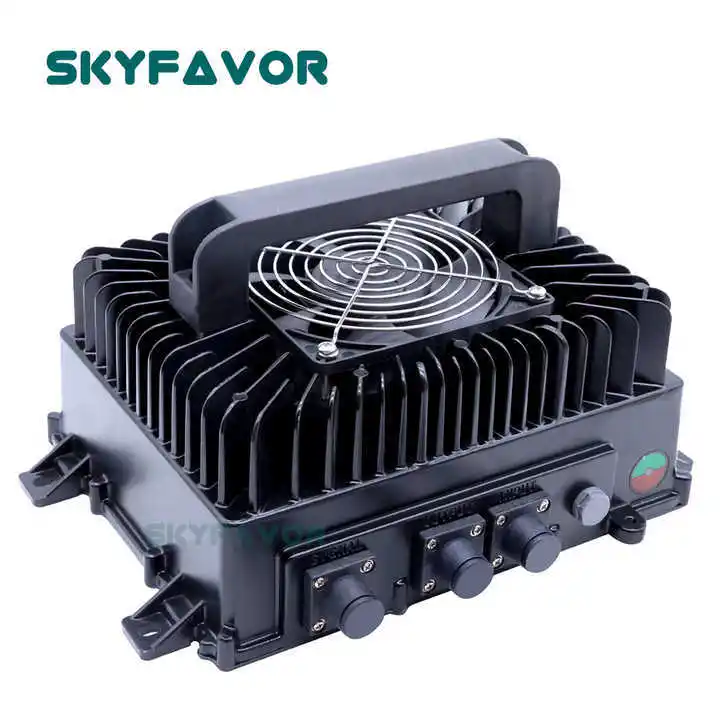

Automatic 72V lead acid battery charger 72V 20A waterproof fast 72 volt lvtong golf cart charger

The Automatic 72V lead acid battery charger 72V 20A waterproof fast 72 volt lvtong golf cart charger has designed highly reliable and meet international safety and electromagnetic compatibility requirements.

A:Input Characteristics:

Input Voltage: 110Vac input AC voltage

Input Frequency: 50Hz or 60Hz and single phase.

B:Output Characteristics:

Constant Charging Voltage:88.2V float charge 82.8V

C:Charging Mode:Automatic 72V lead acid battery charger 72V 20A waterproof fast 72 volt lvtong golf cart charger

3 Stages, CC, CV, Trickle

D:Safety Test for battery charger

Hi-pot Test:15KVac 5mA 3 Seconds between input and output test

Resistance:The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds

Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B

E:Protection for battery charger

Over Voltage Protection The battery charger will be auto recovered when faults remove

Over Current Protection Charger output current does not exceed the set maximum battery charging current.Automatic 72V lead acid battery charger 72V 20A waterproof fast 72 volt lvtong golf cart charger

Short Circuit Protection Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)

reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.

F:DC Connector Dimension:Automatic 72V lead acid battery charger 72V 20A waterproof fast 72 volt lvtong golf cart charger

Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.

Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc

Manufacture time:

The manufacture time of the battery charger will need 8-12 days, because all the battery chargers are customized according to the customer's requirements, we have not any chargers in stock. If you accept the delivery time, please go ahead to make purchase. Once you place the order, we will treat you accept the manufacture time.

Lead Time:

Normally we will deliver the battery charger by DHL, UPS or Fedex express, it always need 5-8 days on transport.

So you will receive the parcel in 13-20 days after pay for the order.

Last thing, when the order be paid it will can't be cancelled after 24 hours, as the charger is customized according to buyer's requirement, it is unique, it is impossible to change the charger specification to resell, so we don't accept order be cancelled after 24 hours. Please read above information carefully and buy with caution. Thanks for your kind understanding and support!

We are the professional manufacturer of all kinds of the battery chargers, we can make OEM customized battery charger for every customer.

Smart Automatic battery charger list
Model	Charging voltage&current for reference							N.W. (KG)	Size(mm)
Model	12V	24V	36V	48V	60V	72V	84V	N.W. (KG)	Size(mm)
120W	7A	4A	2.5A	1.8A	1.5A	_	_	0.7	135x90x50
180W	10A	5A	3.5A	2.5A	2A	1.5A	_	0.9	155x90x50
240W	15A	7.5A	5A	3.8A	3A	2.5A	_	1	170x90x50
360W	20A	12A	8A	6A	4.5A	4A	_	1.2	170x90x63
600W	25A	19A	12A	9A	7A	6A	_	2.5	207x120x70
900W	40A	25A	18A	15A	12A	10A	_	3	220x135x70
900WB	40A	25A	18A	15A	12A	10A	8A	3.5	260x175x90
1200W	50A	30A	20A	19A	15A	12A	10A	4.5	260x175x90
1500W	60A	45A	30A	24A	19A	16A	14A	5.5	300x175x90
2000W	90A	60A	40A	30A	25A	20A	18A	6.5	330x175x115
2500W	-	75A	50A	40A	30A	25A	22A	7	380x240x150
4000W	150A	100A	80A	60A	45A	40A	35A	11	340x235x110

Product Introduction

83c0ca4e4cb2921e7db53ada21bb8d9

b7e8406657928066142acb7a3d804cb

b8f80ade425ba46052bcc7aeacebbe3

a0f98d0e88d2a99966167024004d61a

955c05600b7824009e1800eca153290

703a19fb93ee6515ab69a45034a4705

Company Features

· Shenzhen Skyfavor Technology Co., ltd, a famous manufacturer in the 8 volt golf cart battery charger industry, also excels others by the considerate after-sales service.

· Shenzhen Skyfavor Technology Co., ltd has many production sites around the globe. We introduced advanced 8 volt golf cart battery charger equipment, which produce high quality products with sophisticated design and fine finish. To meet the rapidly expanding market demands, Shenzhen Skyfavor Technology Co., ltd has launched a large-scale production bases.

· Skyfavor gives full play to its superiority and is well welcomed by most of the customers.

Product Details

Skyfavor pays great attention to the details of 8 volt golf cart battery charger. The following will show you one by one.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.

Automatic 72V lead acid battery charger 72V 20A Good safety waterproof fast 72 volt lvtong golf cart charger with Y60 plug

Professional fast 48V lifepo4 battery charger 48V 10A custom automatic fast 48 volt 16S 58.4V lifepo4 battery chargers

Golf cart 36V 5A Lithium Battery Charger output 42V Li-ion battery Charger for Yamaha Ez Go Club Car DS EZgo TXT-One Golf cart

Intelligent 48V 6A Lithium battery cherger 54.6V 6A Golf cart charger tour bus 13S 48 volt Li-ion battery charger with CE RHOS

Custom fast golf cart battery charger 48v 9a lead acid battery charger High quality Automatic 48V deep cycle battery charger
