48v Golf Cart Battery Charger - - SKYFAVOR
Product details of the 48v golf cart battery charger
Quick Detail
48v golf cart battery charger has a terminal protective cap to effectively protect the terminal and reduce the terminal loss rate. In addition, it has good corrosion resistance. SKYFAVOR48v golf cart battery charger has an innovative and practical design which is well-received in the market. Superior performance and long service life make the products competitive. 48v golf cart battery charger, excellent in quality, is often used in automobiles, motorcycles, tractors, diesel engines and other products. Shenzhen Skyfavor Technology Co., ltd can guarantee free technical support for our 48v golf cart battery charger.
Product Introduction
Compared with peer products, Skyfavor's 48v golf cart battery charger has the outstanding advantages, mainly reflected in the following aspects.
|
Name |
Automatic 48 volt lead acid battery charger 48V 10A deep cycle agm gel battery charger |
|
Model |
600W |
|
Battery type |
Lead acid battery |
|
AC Input |
110Vac or 230Vac |
|
Output voltage |
58.8V float charge 55.2V |
|
Output current |
10A |
|
Protection |
Over Voltage Protection Over Current Protection Short Circuit Protection Reverse polarity Protection |
|
Apply to |
For 80AH,100AH,120AH 48V lead acid battery |

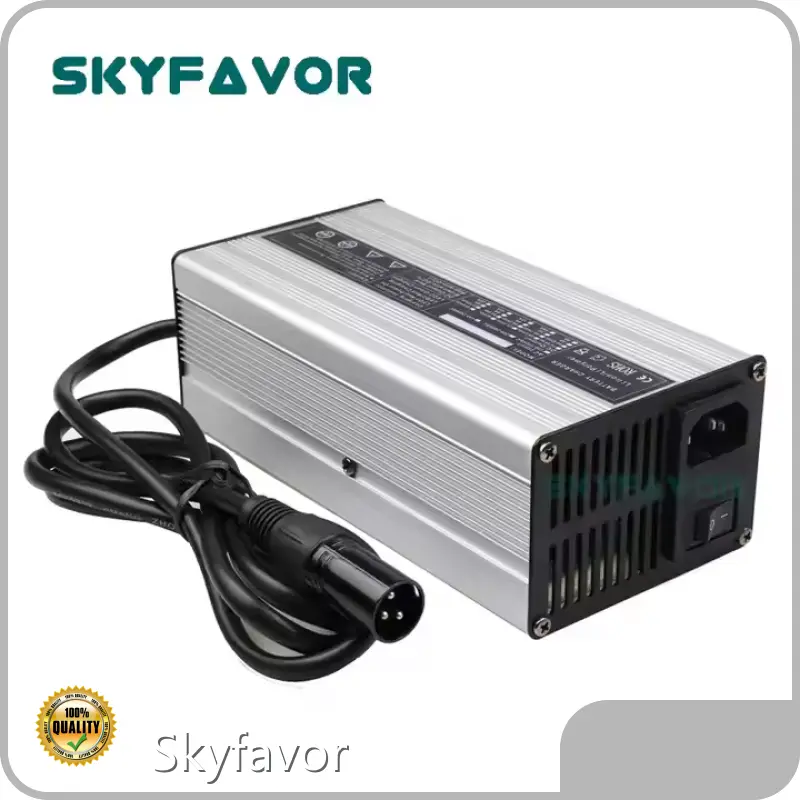

Automatic 48 volt lead acid battery charger 48V 10A deep cycle agm gel battery charger
The Automatic 48 volt lead acid battery charger 48V 10A deep cycle agm gel battery charger has designed highly reliable and meet international safety and electromagnetic compatibility requirements.
A:Input Characteristics:
Input Voltage: 110V OR 230Vac input AC voltage
Input Frequency: 50Hz or 60Hz and single phase.
B:Output Characteristics:
Constant Charging Voltage:58.8V float charge 55.2V
C:Charging Mode:Automatic 48 volt lead acid battery charger 48V 10A deep cycle agm gel battery charger
3 Stages, CC, CV, Trickle
D:Safety Test for battery charger
Hi-pot Test:15KVac 5mA 3 Seconds between input and output test
Resistance:The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds
Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B
E:Protection for battery charger
Over Voltage Protection The battery charger will be auto recovered when faults remove
Over Current Protection Charger output current does not exceed the set maximum battery charging current.Automatic 48 volt lead acid battery charger 48V 10A deep cycle agm gel battery charger
Short Circuit Protection Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)
reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.
F:DC Connector Dimension:Automatic 48 volt lead acid battery charger 48V 10A deep cycle agm gel battery charger
Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.
Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc
We are the professional manufacturer of all kinds of the battery chargers, we can make OEM customized battery charger for every customer.
Smart Automatic battery charger list | |||||||||
Model | Charging voltage¤t for reference | N.W. (KG) | Size(mm) | ||||||
84V | |||||||||
7A | 4A | 2.5A | 1.8A | 1.5A | _ | _ | 0.7 | 135x90x50 | |
10A | 5A | 3.5A | 2.5A | 2A | 1.5A | _ | 0.9 | 155x90x50 | |
15A | 7.5A | 5A | 3.8A | 3A | 2.5A | _ | 1 | 170x90x50 | |
20A | 12A | 8A | 6A | 4.5A | 4A | _ | 1.2 | 170x90x63 | |
25A | 19A | 12A | 9A | 7A | 6A | _ | 2.5 | 207x120x70 | |
40A | 25A | 18A | 15A | 12A | 10A | _ | 3 | 220x135x70 | |
40A | 25A | 18A | 15A | 12A | 10A | 8A | 3.5 | 260x175x90 | |
50A | 30A | 20A | 19A | 15A | 12A | 10A | 4.5 | 260x175x90 | |
60A | 45A | 30A | 24A | 19A | 16A | 14A | 5.5 | 300x175x90 | |
90A | 60A | 40A | 30A | 25A | 20A | 18A | 6.5 | 330x175x115 | |
- | 75A | 50A | 40A | 30A | 25A | 22A | 7 | 380x240x150 | |
150A | 100A | 80A | 60A | 45A | 40A | 35A | 11 | 340x235x110 | |
Product Introduction
Company Information
Shenzhen Skyfavor Technology Co., ltd is a leading 48v golf cart battery charger manufacturer in China. SKYFAVOR has its own technology center to manufacture 48v golf cart battery charger. All of our 48v golf cart battery charger will undergo strict test before selling. Check it!
Our products are all qualified and are sold directly from factory. Welcome friends from all walks of life to contact and consult us.
