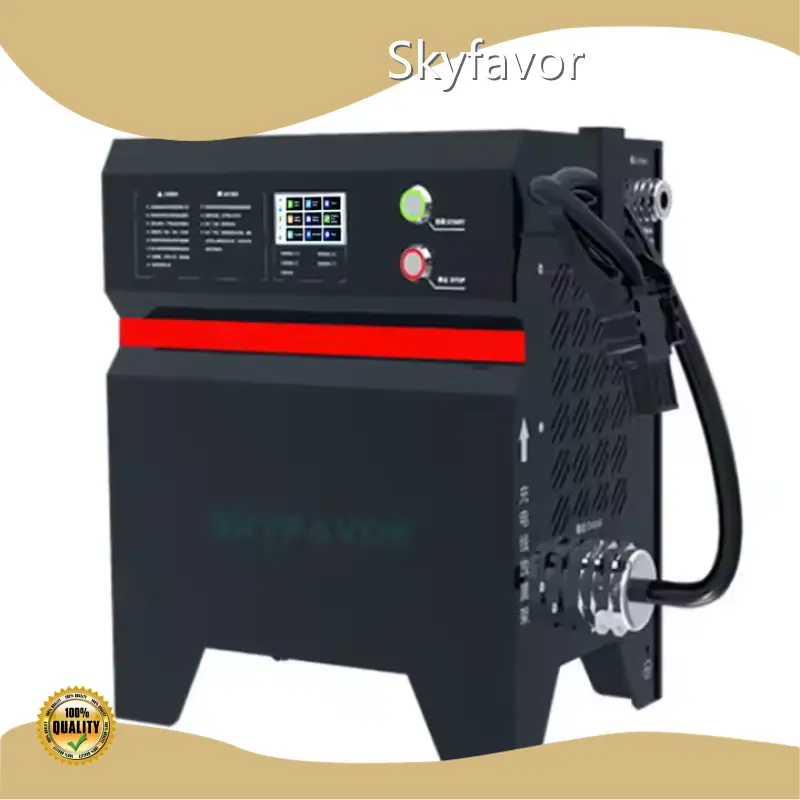

48v Forklift Battery Charger - - SKYFAVOR
(battery charger)Customized High Power battery pack charger 24V 500A 36V 48V 250A 60V 72V 84V 120A fast FPC battery charger with can bus control
Important Note:
We need the exact charger specifications to start production, so please leave a message when confirming the ordering and provide us with all the necessary information below. Thank you!
Customized 24V 500A 36V 48V 250A 60V 72V 84V 120A fast FPC battery charger with can bus control
Custom battery charger requires the following information:
1. Battery type: lead-acid battery, lithium battery or lifepo4 battery?
2. Battery capacity:
3. Input AC voltage:
4. Input plug:
5. Output voltage:
6. Output current:
7. Output plug:
For example: 48V 13S 60Ah lithium battery, input 230Vac USA 3-pin plug, output 54.6V 15A Anderdon 50A red plug
(Please specify whether the Anderson 50A plug is gray or red.)
We are the professional manufacturer that produce all kinds of the battery chargers, such as VRLA, AGM, GEL, SLA lead acid battery chargers, lithium battery chargers, lifepo4 battery chargers, lipo battery chargers, etc. We can 100% custom the battery chargers according to buyer's demands. NO MOQ!!! Even if only 1 piece.
Features:
High-efficiency smart charging system is designed for battery charging of electric vehicles. It is suitable for the charging of electric forklifts, electric pallet trucks, electric vans, electric stackers, electric tractors, AGV, electric sightseeing cars, golf carts, patrol cars, engineering cars, sanitation vehicle. The high-efficiency smart charging system adopts the structure of an integrated charger. The overall is composed of one power rectifying unit, one charging monitoring unit, and one charging socket, the charging process is fully automated to perform the charging management of the battery.
Smart and reliableLCD/LED displayHistory alarm records-1000Charging history-300Emergency stop buttonSmart compensation charging algorithm
Safe and stableWide input voltage range 90~264VOutput voltage ripple ±1%Current ripple ±3%Output current accuracy ±2%Cutomized managementHumanizeLiquid battery IUIa charging managementDedicated charge management for valve-regulated batteriesLithium battery CAN communicationAdvanced heat dissipation technologyMaintain optimal battery performance and battery health.
Energy efficientPFC more than 0.99 ;24V charger efficiency exceeds 92%;48V charger efficiency over 95%;THD ≤ 10%;Power conversion efficiency is high and save cost;Zero Voltage Switching ZVS+MOSFET TechnologyDC 300A, Different voltage 24/36/48/72/80/96V,120V
Smart Automatic battery charger list | |||||||||
Model | Charging voltage¤t for reference | N.W. (KG) | Size(mm) | ||||||
84V | |||||||||
7A | 4A | 2.5A | 1.8A | 1.5A | _ | _ | 0.7 | 135x90x50 | |
10A | 5A | 3.5A | 2.5A | 2A | 1.5A | _ | 0.9 | 155x90x50 | |
15A | 7.5A | 5A | 3.8A | 3A | 2.5A | _ | 1 | 170x90x50 | |
20A | 12A | 8A | 6A | 4.5A | 4A | _ | 1.2 | 170x90x63 | |
25A | 19A | 12A | 9A | 7A | 6A | _ | 2.5 | 207x120x70 | |
40A | 25A | 18A | 15A | 12A | 10A | _ | 3 | 220x135x70 | |
40A | 25A | 18A | 15A | 12A | 10A | 8A | 3.5 | 260x175x90 | |
50A | 30A | 20A | 19A | 15A | 12A | 10A | 4.5 | 260x175x90 | |
60A | 45A | 30A | 24A | 19A | 16A | 14A | 5.5 | 300x175x90 | |
90A | 60A | 40A | 30A | 25A | 20A | 18A | 6.5 | 330x175x115 | |
- | 75A | 50A | 40A | 30A | 25A | 22A | 7 | 380x240x150 | |
150A | 100A | 80A | 60A | 45A | 40A | 35A | 11 | 340x235x110 | |
Product Introduction
Company Advantages
· SKYFAVOR 48v forklift battery charger is created in line with the principle of 'Quality, Design, and Functions'.
· The product complies with stringent quality requirements.
· Increasing the competitiveness of customers with timely delivery time, stable quality is the promise from Shenzhen Skyfavor Technology Co., ltd.
Company Features
· Shenzhen Skyfavor Technology Co., ltd, with many years of design and manufacturing experience, is one of the leading professional suppliers of 48v forklift battery charger.
· So far, we have established a broad marketing channel around the globe. We will continue to adopt the plan of diversification and large quantitative to further expand markets.
· Our successful principle is making the workplace a place of peace, joy, and happiness. We create a harmonious environment for each of our employees so that they can freely exchange creative ideas, which eventually contributes to innovation. Ask online!
Application of the Product
Skyfavor's 48v forklift battery charger is widely used in the industry and is widely recognized by customers.
Skyfavor always focuses on meeting customers' needs. We are dedicated to providing customers with comprehensive and quality solutions.
