40 Amp Dc to Dc Charger with Solar Input by SKYFAVOR
Company Advantages
· The materials of SKYFAVOR 40 amp dc to dc charger with solar input is high quality as they are manufactured on standardizarion production line.
· This product has superior performance, making them compatible and versatile for the industry.
· Shenzhen Skyfavor Technology Co., ltd is deeply trusted by customers from all over the world for its high quality 40 amp dc to dc charger with solar input.
|
Name |
12V 30A DC to DC Dual Input Battery Charger 12V DC and MPPT solar battery charger |
|
Model |
123020BS |
|
Main Battery voltage |
12V |
|
Main battery type |
GEL,Sealed,Flooded/AGM,Lifepo4,Lithium-ion(NCM) |
|
Starter battery voltage |
12V |
|
Starter battery type |
Lead acid |
|
DC-DC Max charging current |
30A |
|
Solar Max charging current |
20A |
|
Solar Max voltage |
50V |
|
Self-consumption current |
24ma |
|
Dimension |
190X194X70mm |
|
Weight |
1.44kg |
|
Accessories(Optional) |
Monitor(MT-2) Bluetooth Dongle(BT10) Temperature Sensor(TRS) |

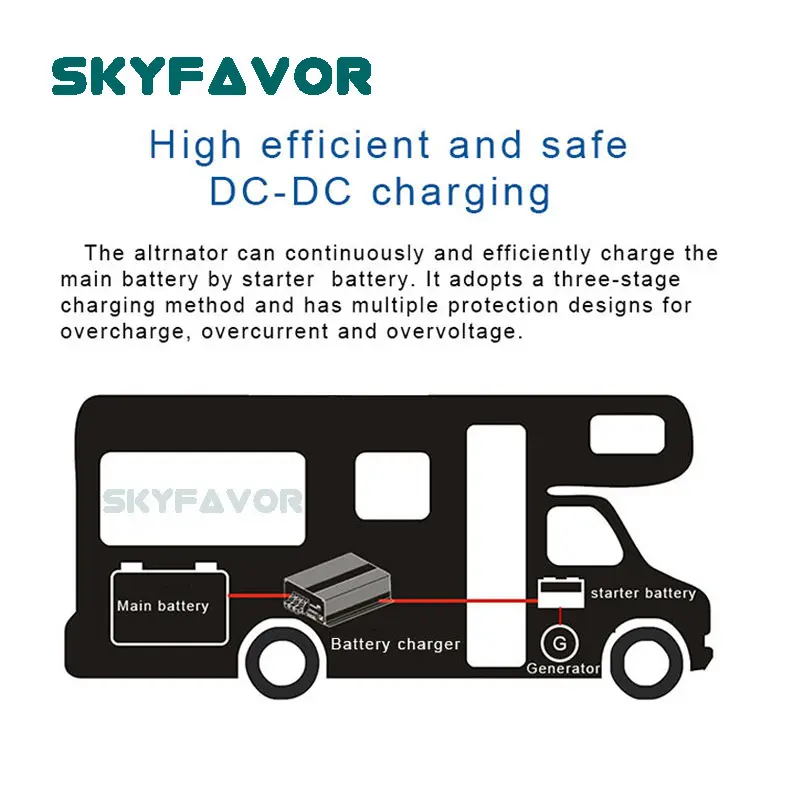

B2B Charge:
It means to charge the main battery through alternator and starter battery. If it is not used in the vehicle, you can also use one battery to charge another battery
1. When the vehicle is running, the vehicle alternator can quickly charge the main battery through the charger at full power
2. The charger can charge the main battery according to the specified voltage and current by boosting or stepping down to ensure that the main battery is in accordance with the standard.
12V 30A DC to DC Dual Input Battery Charger 12V DC and MPPT solar battery charger
MPPT solar charger
1.The charger can increase the charging efficiency of the solar panel by 10-30% through MPPT technology (search for the maximum power point)
2. The charger can charge the main battery according to the specified current by boosting or stepping down to ensure that the main battery is charged according to the standard charge curve charging
3. When the vehicle is not used for a long time, you can maintain a small trickle charge flow for the starter battery to ensure that the starter battery has enough electricity to start the vehicle
12V 30A DC to DC Dual Input Battery Charger 12V DC and MPPT solar battery charger
Other functions
1. Fully automatic charging: In order to continuously charge the battery, the controller can always be connected to the car battery. When the charging energy is stopped, such as the car stops driving, the battery will not discharge in the reverse direction.
2. Multiple protection functions: with overheating, overvoltage, short circuit, wrong connection protection
3.External temperature sensor: The ambient temperature will affect the parameters for charging the battery. The controller needs to perform parameter compensation according to the temperature of the battery, especially
Product Introduction
Company Features
· Shenzhen Skyfavor Technology Co., ltd is a China-based manufacturer of 40 amp dc to dc charger with solar input. We have gained years of experience in designing and manufacturing 40 amp dc to dc charger with solar input.
· SKYFAVOR is armed with newly advanced technology to produce 40 amp dc to dc charger with solar input. Produced by advanced machine and mature technology, 40 amp dc to dc charger with solar input is of great performance. Being supplied with high-end technology, 40 amp dc to dc charger with solar input has attracted many customers.
· Our company's mission is to ensure that our customers are absolutely satisfied. We work hard to provide reliable value: from initial quotation to final delivery, and provide good value and operate in an honest, upright and straightforward manner. Get info!
Product Details
Skyfavor pays great attention to details. And the details of 40 amp dc to dc charger with solar input are as follows.
Application of the Product
Our 40 amp dc to dc charger with solar input is widely used in industry.
Skyfavor is committed to producing quality Battery charger and providing comprehensive and reasonable solutions for customers.
Product Comparison
The 40 amp dc to dc charger with solar input produced by Skyfavor is better than the previous generation. The specific performance is as follows.
