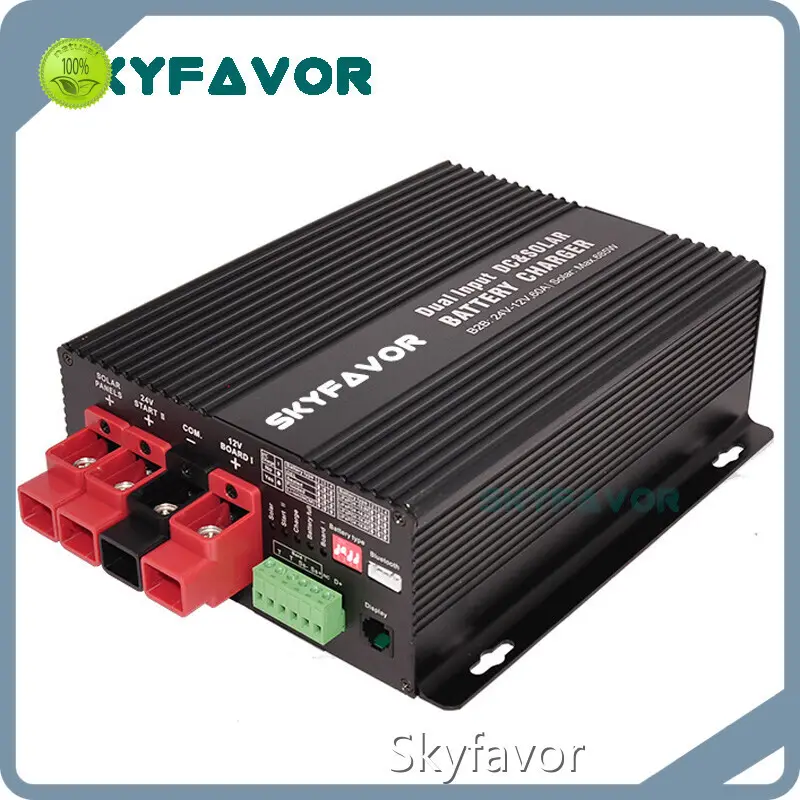

24v to 12v Dc to Dc Charger - - SKYFAVOR
|
Name |
12V TO 24V DC DC battery charger 12Vdc 25A and MPPT solar 30A vehicle battery to battery charger |
|
Model |
12242530BS |
|
Main Battery voltage |
12V |
|
Main battery type |
GEL,Sealed,Flooded/AGM,Lifepo4,Lithium-ion(NCM) |
|
Starter battery voltage |
12V |
|
Starter battery type |
Lead acid |
|
DC-DC Max charging current |
25A |
|
Solar Max charging current |
30A |
|
Solar Max voltage |
50V |
|
Self-consumption current |
18ma |
|
Dimension |
190X215X70mm |
|
Weight |
1.6kg |
|
Accessories(Optional) |
Monitor(MT-2) Bluetooth Dongle(BT10) Temperature Sensor(TRS) |
B2B Charge:
It means to charge the main battery through alternator and starter battery. If it is not used in the vehicle, you can also use one battery to charge another battery
1. When the vehicle is running, the vehicle alternator can quickly charge the main battery through the charger at full power
2. The charger can charge the main battery according to the specified voltage and current by boosting or stepping down to ensure that the main battery is in accordance with the standard.
12V 30A DC to DC Dual Input Battery Charger 12V DC and MPPT solar battery charger
MPPT solar charger
1.The charger can increase the charging efficiency of the solar panel by 10-30% through MPPT technology (search for the maximum power point)
2. The charger can charge the main battery according to the specified current by boosting or stepping down to ensure that the main battery is charged according to the standard charge curve charging
3. When the vehicle is not used for a long time, you can maintain a small trickle charge flow for the starter battery to ensure that the starter battery has enough electricity to start the vehicle
12V 30A DC to DC Dual Input Battery Charger 12V DC and MPPT solar battery charger
Other functions
1. Fully automatic charging: In order to continuously charge the battery, the controller can always be connected to the car battery. When the charging energy is stopped, such as the car stops driving, the battery will not discharge in the reverse direction.
2. Multiple protection functions: with overheating, overvoltage, short circuit, wrong connection protection
3.External temperature sensor: The ambient temperature will affect the parameters for charging the battery. The controller needs to perform parameter compensation according to the temperature of the battery, especially
Product Introduction
Company Advantages
· The raw material of SKYFAVOR 24v to 12v dc to dc charger is tightly controlled from beginning to finish.
· 24v to 12v dc to dc charger shows good comprehensive properties performance.
· Although its export growth rate is not very fast, it has maintained a stable growth trend.
Company Features
· Founded in China, Shenzhen Skyfavor Technology Co., ltd is a company focusing on the development and manufacture of 24v to 12v dc to dc charger. We have been deeply engaged in the industry for many years.
· Our factory has state-of-the-art manufacturing facilities that introduced from various developed countries. They play a significant role in supporting daily production demands, from product developing stage to the packaging stage.
· The attention of SKYFAVOR brand would be to maintain optimizing our own service. Get quote!
Application of the Product
The 24v to 12v dc to dc charger produced by Skyfavor has a wide range of applications.
Skyfavor always provides customers with reasonable and efficient one-stop solutions based on the professional attitude.
