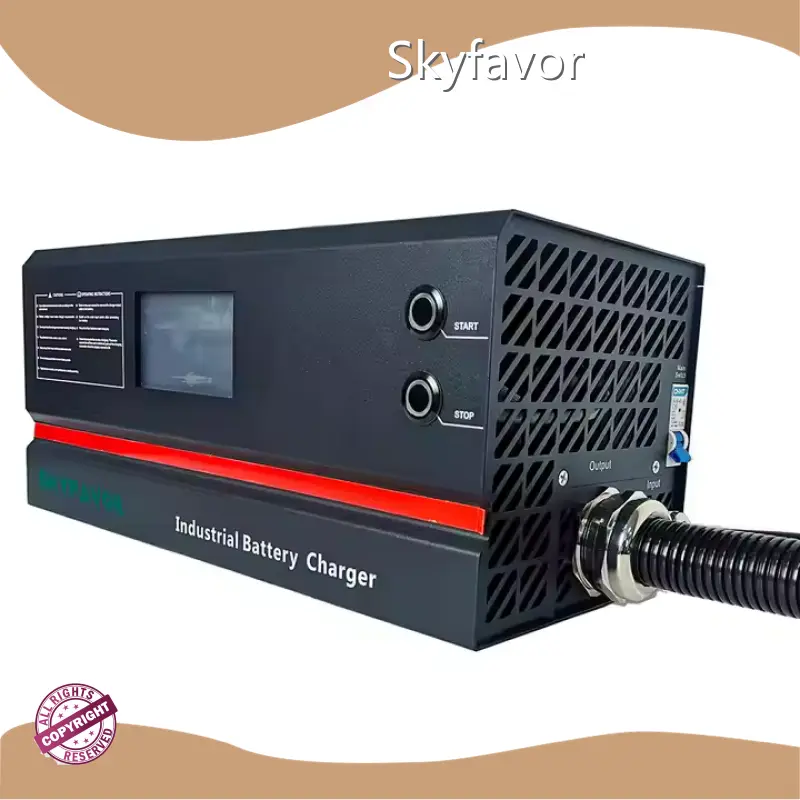

24 Volt Marine Battery Charger by SKYFAVOR
Product details of the 24 volt marine battery charger
Product Introduction
SKYFAVOR 24 volt marine battery charger is made of high-grade raw materials and manufactured by using cutting-edge technology in complete compliance with industry production standards. The product is durable and functions very well. The product has long enjoyed great fame both at home and aboard and its market prospect becomes brighter.
(battery charger)Customized 96V 20A battery charger 96V lithium battery pack charger lcd display Automatic can bus control PFC charger machine
Important Note:
We need the exact charger specifications to start production, so please leave a message when confirming the ordering and provide us with all the necessary information below. Thank you!
Customized 96V 20A battery charger 96V lithium battery pack charger
Custom battery charger requires the following information:
1. Battery type: lead-acid battery, lithium battery or lifepo4 battery?
2. Battery capacity:
3. Input AC voltage:
4. Input plug:
5. Output voltage:
6. Output current:
7. Output plug:
For example: 48V 13S 60Ah lithium battery, input 110Vac USA 3-pin plug, output 54.6V 15A Anderdon 50A red plug
(Please specify whether the Anderson 50A plug is gray or red.)
We are the professional manufacturer that produce all kinds of the battery chargers, such as VRLA, AGM, GEL, SLA lead acid battery chargers, lithium battery chargers, lifepo4 battery chargers, lipo battery chargers, etc. We can 100% custom the battery chargers according to buyer's demands. NO MOQ!!! Even if only 1 piece.
Features:
High-efficiency smart charging system is designed for battery charging of electric vehicles. It is suitable for the charging of electric forklifts, electric pallet trucks, electric vans, electric stackers, electric tractors, AGV, electric sightseeing cars, golf carts, patrol cars, engineering cars, sanitation vehicle. The high-efficiency smart charging system adopts the structure of an integrated charger. The overall is composed of one power rectifying unit, one charging monitoring unit, and one charging socket, the charging process is fully automated to perform the charging management of the battery.
Smart and reliableLCD/LED displayHistory alarm records-1000Charging history-300Emergency stop buttonSmart compensation charging algorithm
Safe and stableWide input voltage range 90~264VOutput voltage ripple ±1%Current ripple ±3%Output current accuracy ±2%Cutomized managementHumanizeLiquid battery IUIa charging managementDedicated charge management for valve-regulated batteries Lithium battery
CAN communicationAdvanced heat dissipation technologyMaintain optimal battery performance and battery health.
Energy efficientPFC more than 0.99 ;24V charger efficiency exceeds 92%;48V charger efficiency over 95%;THD ≤ 10%;Power conversion efficiency is high and save cost;Zero Voltage Switching ZVS+MOSFET TechnologyDC 300A, Different voltage 24/36/48/72/80/96V,120V
Smart Automatic battery charger list | |||||||||
Model | Charging voltage¤t for reference | N.W. (KG) | Size(mm) | ||||||
84V | |||||||||
7A | 4A | 2.5A | 1.8A | 1.5A | _ | _ | 0.7 | 135x90x50 | |
10A | 5A | 3.5A | 2.5A | 2A | 1.5A | _ | 0.9 | 155x90x50 | |
15A | 7.5A | 5A | 3.8A | 3A | 2.5A | _ | 1 | 170x90x50 | |
20A | 12A | 8A | 6A | 4.5A | 4A | _ | 1.2 | 170x90x63 | |
25A | 19A | 12A | 9A | 7A | 6A | _ | 2.5 | 207x120x70 | |
40A | 25A | 18A | 15A | 12A | 10A | _ | 3 | 220x135x70 | |
40A | 25A | 18A | 15A | 12A | 10A | 8A | 3.5 | 260x175x90 | |
50A | 30A | 20A | 19A | 15A | 12A | 10A | 4.5 | 260x175x90 | |
60A | 45A | 30A | 24A | 19A | 16A | 14A | 5.5 | 300x175x90 | |
90A | 60A | 40A | 30A | 25A | 20A | 18A | 6.5 | 330x175x115 | |
- | 75A | 50A | 40A | 30A | 25A | 22A | 7 | 380x240x150 | |
150A | 100A | 80A | 60A | 45A | 40A | 35A | 11 | 340x235x110 | |
Product Introduction
Company Feature
• Skyfavor provides comprehensive and professional services in accordance with the actual needs of customers.
• With a major focus on talents development, Skyfavor has elite teams with rich experience. Our team members are highly educated and highly qualified.
• Founded in Skyfavor has always put the product quality and customer satisfaction in the first place and has gained praises from customers.
Please leave your contact information, and Skyfavor will contact you as soon as possible. We provide more details and quotation about electric equipment for your reference.
