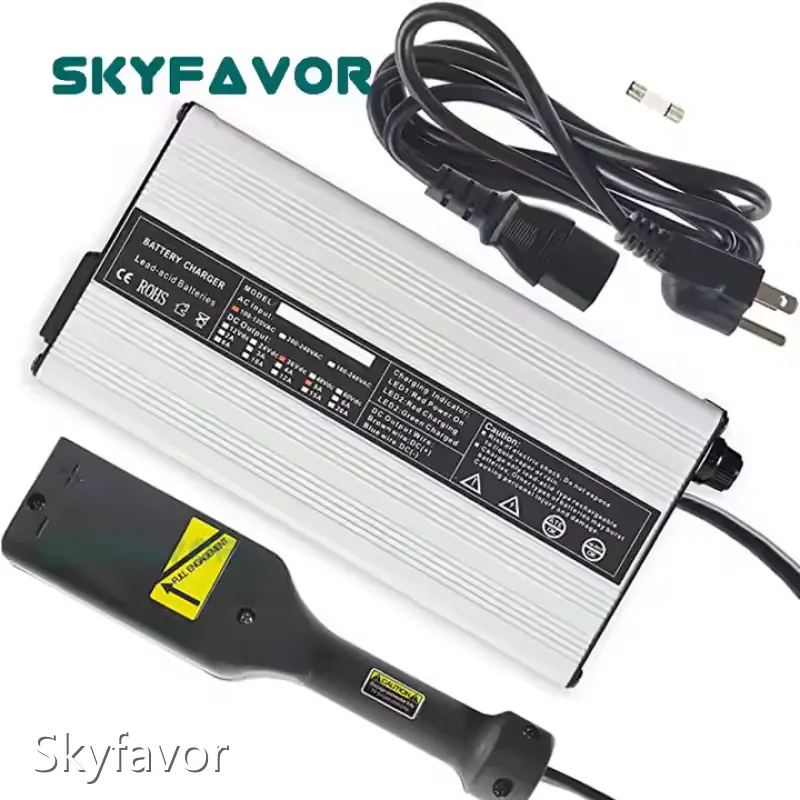

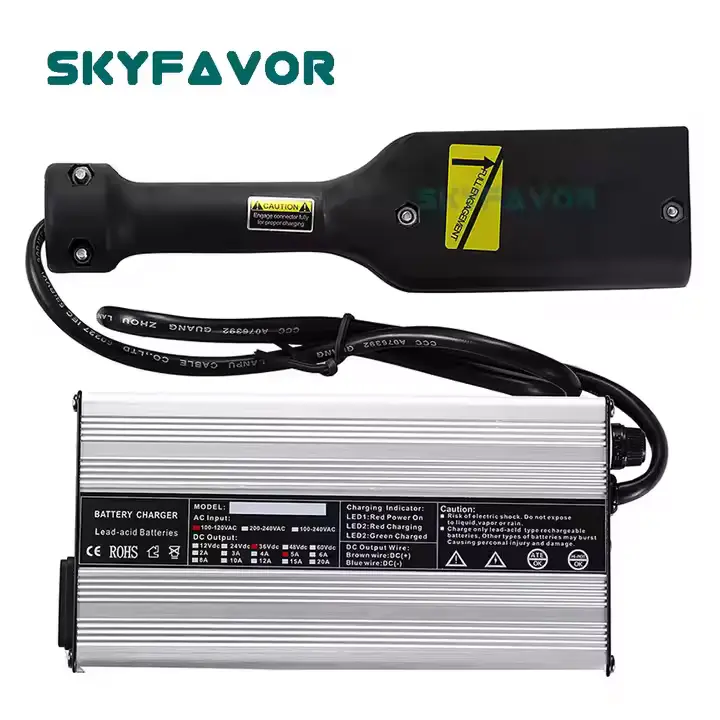

24 Volt Golf Cart Battery Charger by SKYFAVOR
Product details of the 24 volt golf cart battery charger
Product Information
The material of 24 volt golf cart battery charger is eco-friendly. The quality of the product is guaranteed by our state-of-the-art facilities and advanced technology. Its quality has passed the strict test and is examined frequently. Thus its quality has been widely accepted by the users. Shenzhen Skyfavor Technology Co., ltd has a wealth of design capabilities.
|
Name |
36V 5A Lithium battery cherger(10S Li-ion battery) |
|
Model |
240W |
|
Battery type |
Lithium battery |
|
AC Input |
110Vac or 230Vac |
|
Output voltage |
42V |
|
Output current |
5A |
|
Protection |
Over Voltage Protection Over Current Protection Short Circuit Protection Reverse polarity Protection |
|
Apply to |
For golf cart,ebike.12AH,15AH 20AH Li-ion battery |
36V 5A Golf cart charger 42V Lithium Battery Charger
The 36V 5A Golf cart charger 42V Lithium Battery Chargerhas designed highly reliable and meet international safety and electromagnetic compatibility requirements.
A:Input Characteristics:
Input Voltage: 100-240Vac input AC voltage
Input Frequency: 50Hz or 60Hz and single phase.
B:Output Characteristics:
Constant Charging Voltage: 42V
C:Charging Mode36V 5A Golf cart charger 42V Lithium Battery Charger
3 Stages, CC, CV, Trickle
D:Safety Test for battery charger
Hi-pot Test:15KVac 5mA 3 Seconds between input and output test
Resistance:The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds
Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B
E:Protection for battery charger
Over Voltage Protection The battery charger will be auto recovered when faults remove
Over Current Protection Charger output current does not exceed the set maximum battery charging current.
Over Short Circuit Protection Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)
Over reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.
F:DC Connector Dimension:36V 5A Golf cart charger 42V Lithium Battery Charger
Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.
Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc
We are the professional manufacturer of all kinds of the battery chargers, such as SLA, AGM,GEL lead-acid battery charger, lithium battery charger, lifepo4 battery charger, etc. We can customize all kinds of battery charger for every customer
Smart Automatic battery charger list | |||||||||
Model | Charging voltage¤t for reference | N.W. (KG) | Size(mm) | ||||||
84V | |||||||||
7A | 4A | 2.5A | 1.8A | 1.5A | _ | _ | 0.7 | 135x90x50 | |
10A | 5A | 3.5A | 2.5A | 2A | 1.5A | _ | 0.9 | 155x90x50 | |
15A | 7.5A | 5A | 3.8A | 3A | 2.5A | _ | 1 | 170x90x50 | |
20A | 12A | 8A | 6A | 4.5A | 4A | _ | 1.2 | 170x90x63 | |
25A | 19A | 12A | 9A | 7A | 6A | _ | 2.5 | 207x120x70 | |
40A | 25A | 18A | 15A | 12A | 10A | _ | 3 | 220x135x70 | |
40A | 25A | 18A | 15A | 12A | 10A | 8A | 3.5 | 260x175x90 | |
50A | 30A | 20A | 19A | 15A | 12A | 10A | 4.5 | 260x175x90 | |
60A | 45A | 30A | 24A | 19A | 16A | 14A | 5.5 | 300x175x90 | |
90A | 60A | 40A | 30A | 25A | 20A | 18A | 6.5 | 330x175x115 | |
- | 75A | 50A | 40A | 30A | 25A | 22A | 7 | 380x240x150 | |
150A | 100A | 80A | 60A | 45A | 40A | 35A | 11 | 340x235x110 | |
Product Introduction
Company Advantage
• Skyfavor's location enjoys traffic convenience with multiple traffic lines passing through. This is conducive to the outward transportation and is the guarantee of timely supply of products.
• Skyfavor continues to innovate the business mode. We combine online channels with offline channels and expand sales channel, which enables us to build a nationwide marketing network.
• Our company has a core team of experienced research and development technicians. We insist on the concept of 'technology, innovation, quality' for product development and design. Therefore, we can ensure that our products meet market requirements and have good quality.
• Since the beginning in Skyfavor has accumulated a lot of experience in production and sales of Battery charger during the development for years.
Skyfavor's quality-reliable Battery charger are available in a wide range of types and specifications. If you have any needs, please contact us quickly!
