20 Amp Dc to Dc Charger Wholesale - SKYFAVOR
|
Name |
On-board RV DC DC battery charger 24V to 12V 60A lead acid Lithium lifepo4 lfp battery charger |
|
Model |
241260BTOB |
|
Main Battery voltage |
12V |
|
Main battery type |
GEL,Sealed,Flooded/AGM,Lifepo4,Lithium-ion(NCM) |
|
Starter battery voltage |
24V |
|
Starter battery type |
Lead acid |
|
DC-DC Max charging current |
780W |
|
Main battery Max charging current |
60A |
|
Self-consumption current |
24ma |
|
Dimension |
215X194X70mm |
|
Weight |
1.8kg |
|

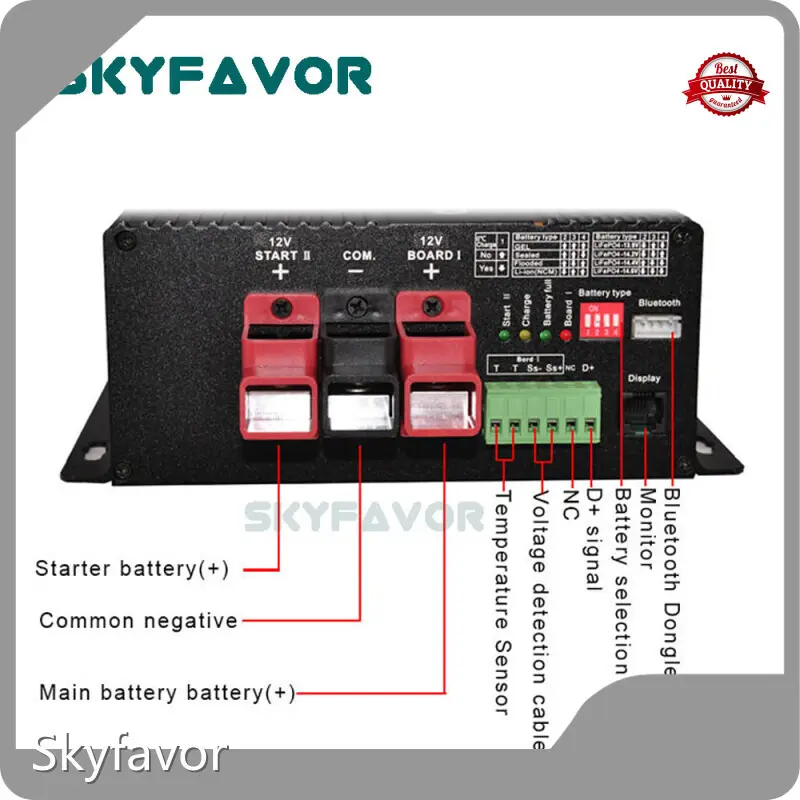

Accessories(Optional) |
Monitor(MT2) Bluetooth Dongle(BT10) Temperature Sensor(TRS) |
B2B Charge:
It means to charge the main battery through alternator and starter battery. If it is not used in the vehicle, you can also use one battery to charge another battery
1. When the vehicle is running, the vehicle alternator can quickly charge the main battery through the charger at full power
2. The charger can charge the main battery according to the specified voltage and current by boosting or stepping down to ensure that the main battery is in accordance with the standard.
12V 30A DC to DC Dual Input Battery Charger 12V DC and MPPT solar battery charger
MPPT solar charger
1.The charger can increase the charging efficiency of the solar panel by 10-30% through MPPT technology (search for the maximum power point)
2. The charger can charge the main battery according to the specified current by boosting or stepping down to ensure that the main battery is charged according to the standard charge curve charging
3. When the vehicle is not used for a long time, you can maintain a small trickle charge flow for the starter battery to ensure that the starter battery has enough electricity to start the vehicle
12V 30A DC to DC Dual Input Battery Charger 12V DC and MPPT solar battery charger
Other functions
1. Fully automatic charging: In order to continuously charge the battery, the controller can always be connected to the car battery. When the charging energy is stopped, such as the car stops driving, the battery will not discharge in the reverse direction.
2. Multiple protection functions: with overheating, overvoltage, short circuit, wrong connection protection
3.External temperature sensor: The ambient temperature will affect the parameters for charging the battery. The controller needs to perform parameter compensation according to the temperature of the battery, especially
Product Introduction
Company Advantages
· All designs of 20 amp dc to dc charger come from professional designers.
· The product performance is reliable, durable, welcomed by users.
· Customer service in SKYFAVOR is highly stressed.
Company Features
· Shenzhen Skyfavor Technology Co., ltd has a wide selection of 20 amp dc to dc charger to suit your needs.
· Shenzhen Skyfavor Technology Co., ltd has a specialized production base and a sound supply chain for 20 amp dc to dc charger.
· We operate within one clear mission: to bring the most valuable products to our customers. We are convinced that our manufacturing expertise and know-how are key ingredients in our continuing success.
Application of the Product
Various in function and wide in application, the 20 amp dc to dc charger can be used in many industries and fields.
Skyfavor has rich experience in the industry and we are sensitive about customers' needs. Therefore, we can provide comprehensive one-stop solutions based on customers' actual situations.
